NEX-9590D-27TXRC Toy Transmitter

www.tuv.com Appendix 5 Prüfbericht - Nr.: Test Report No.: 14027221 001 Seite 6 von 7 Page 6 of 7 User manual www.tuv.com Appendix 5 Prüfbericht - Nr.: Test Report No.: 14027221 001 Seite 7 von 7 Page 7 of 7

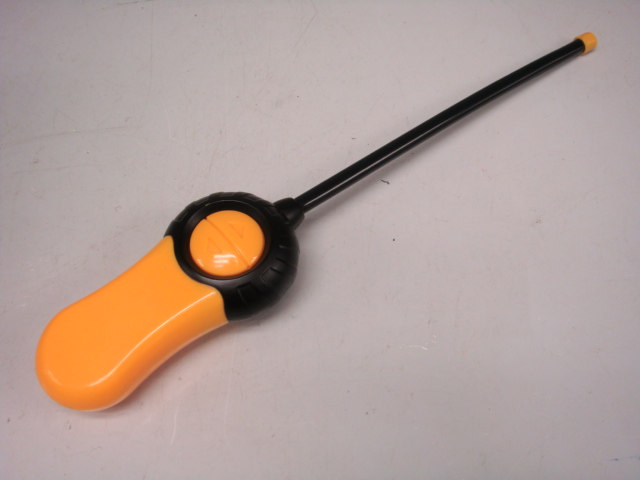

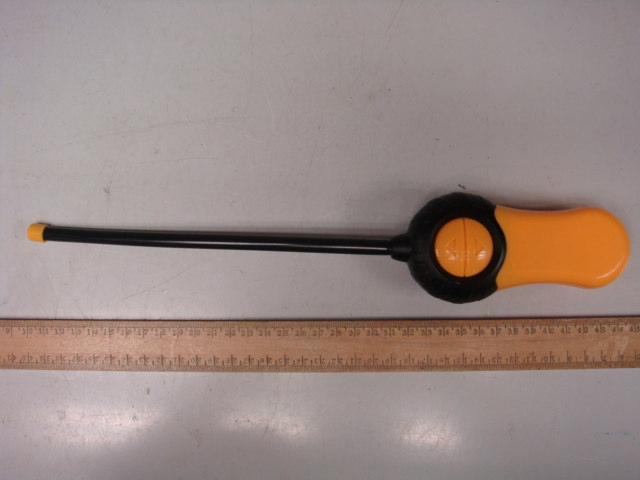

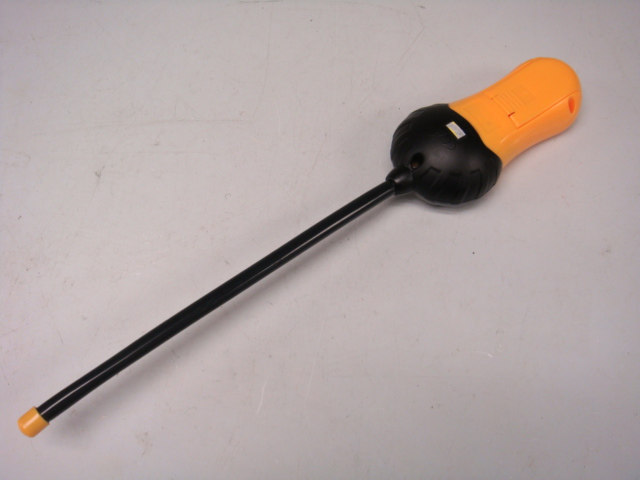

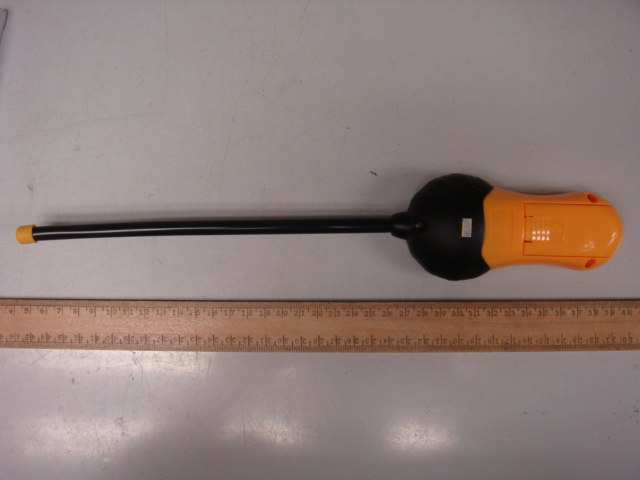

www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No.: 14027221 001 Seite 1 von 3 Page 1 of 3 Transmitter (External view) Transmitter (External view) www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No.: 14027221 001 Seite 2 von 3 Page 2 of 3 Transmitter (External view) Transmitter (External view) www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No.: 14027221 001 Seite 3 von 3 Page 3 of 3 Transmitter (External view)

www.tuv.com Appendix 5 Prüfbericht - Nr.: Test Report No.: 14027221 001 Seite 5 von 7 Page 5 of 7 FCC label and location

www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No.: 14027221 001 Seite 1 von 3 Page 1 of 3 Transmitter (Internal view) Transmitter (Internal view) www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No.: 14027221 001 Seite 2 von 3 Page 2 of 3 Transmitter (Internal view) Transmitter (Internal view) www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No.: 14027221 001 Seite 3 von 3 Page 3 of 3 Transmitter (Internal view)

www.tuv.com Test Report No.: 14027221 001 Date: 08.07.2011 Page 2 of 12 Test Summary Radiated Emission of Carrier Frequency Result: Pass Spurious Radiated Emissions Result: Pass Bandwidth Measurement Result: Pass www.tuv.com Test Report No.: 14027221 001 Date: 08.07.2011 Page 3 of 12 Contents List of Test and Measurement Instruments.........................................................4 General Product Information ................................................................................5 Product Function and Intended Use.............................................................................................5 Ratings and System Details...........................................................................................................5 Independent Operation Modes......................................................................................................6 Submitted Documents ...................................................................................................................6 Related Submittal(s) Grants ..........................................................................................................6 Test Set-up and Operation Mode..........................................................................7 Principle of Configuration Selection ............................................................................................7 Test Operation and Test Software ................................................................................................7 Special Accessories and Auxiliary Equipment ............................................................................7 Countermeasures to achieve EMC Compliance ..........................................................................7 Test Methodology ..................................................................................................8 Radiated Emission..........................................................................................................................8 Field Strength Calculation .............................................................................................................8 Test Results ...........................................................................................................9 Radiated Emission of Carrier Frequency Subclause 15.227(a) ..............................................9 Spurious Radiated Emissions Subclause 15.227(b) ..............................................................10 Bandwidth Measurement .............................................................................................................12 Appendix 1 Test Protocol Appendix 2 Test Setup Appendix 3 EUT External Photo Appendix 4 EUT Internal Photo Appendix 5 FCCID Label, Block Diagram, Schematics and User manual www.tuv.com Test Report No.: 14027221 001 Date: 08.07.2011 Page 4 of 12 List of Test and Measurement Instruments Hong Kong Productivity Council (Registration number: 90656) Kind of Equipment Manufacturer Type S/N Cal Due Date Semi-anechoic Chamber Frankonia Nil Nil 25 May 12 Test Receiver Rohde & Schwarz ESU40 100190 26 May 12 Biconical Antenna Rohde & Schwarz HK116 841489/016 13 Apr 12 Log.-Periodic Antenna Rohde & Schwarz HL223 841516/020 13 Apr 12 Horn Antenna EMCO 3115 9002-3351 16 Apr 12 Coaxial Cable 50ohm Rosenberger RTK081-05S-05S- 10m LA2-001-10M / 002 08 Dec 11 Active Loop Antenna EMCO 6502 9107-2651 19 Apr 12 www.tuv.com Test Report No.: 14027221 001 Date: 08.07.2011 Page 5 of 12 General Product Information Product Function and Intended Use The equipment under test (EUT) is a transmitter for a RC toy operating at 27.145 MHz. The EUT has one control button for commanding the forward and backward movement of the associated receiver. FCCID: NEX-9590D-27TX Model Product description 9590D Radio Control Toy Transmitter Ratings and System Details Transmitter Frequency range : 27.145MHz Number of channels : 1 Type of antenna : Permanent attached antenna Power supply : Battery operated 9V Ports : none Protection Class : III www.tuv.com Test Report No.: 14027221 001 Date: 08.07.2011 Page 6 of 12 Independent Operation Modes The basic operation modes are: - transmitting control signal for the RC toy Car. For further information refer to User Manual Submitted Documents The submitted documents are listed as follow: - Circuit diagram - Block diagram - User manual - Label artwork Related Submittal(s) Grants This is a single application for certification of the transmitter. www.tuv.com Test Report No.: 14027221 001 Date: 08.07.2011 Page 7 of 12 Test Set-up and Operation Mode Principle of Configuration Selection Emission: The equipment under test (EUT) was configured to measure its highest possible radiation level. The test modes were adapted accordingly in reference to the instructions for use. Test Operation and Test Software Test operation should refer to test methodology. - There was no special software to exercise the device. Special Accessories and Auxiliary Equipment The product has been tested together with the following additional accessories: - none Countermeasures to achieve EMC Compliance - none www.tuv.com Test Report No.: 14027221 001 Date: 08.07.2011 Page 8 of 12 Test Methodology Radiated Emission The radiated emission measurements were performed according to the procedures in ANSI C63.4-2003. The equipment under test (EUT) was placed at the middle of the 80 cm height turntable, and the turntable is 3 meters far from the measuring antenna. During the testing, the EUT was operated standalone and arranged for maximum emissions. The EUT was tested in three orthogonal planes. The investigation is performed with the EUT rotated 360 , the antenna height scanned between 1m and 4m, and the antenna rotated to repeat the measurements for both the horizontal and vertical antenna polarizations. Repeat the measurement steps until the maximum emissions were obtained. All radiated tests were performed at an antenna to EUT wi…

Text truncated - open the document above for the full version.

www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No.: 14027221 001 Seite 1 von 1 Page 1 of 1 Ref -20 dBmAtt 10 dB A 32 kHz/Start 26.96 MHzStop 27.28 MHz * RBW 3 kHz * VBW 3 kHz SWT 75 ms 1 PK MAXH PRN -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 1 Marker 1 [T1 ] -36.40 dBm 27.147520000 MHz 2 Delta 2 [T1 ] -48.10 dB -187.520000000 kHz 3 Delta 3 [T1 ] -44.84 dB 132.480000000 kHz Date: 6.JUL.2011 17:32:06 Bandwidth measurement

www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No.: 14027221 001 Seite 1 von 1 Page 1 of 1 Set-up for Radiated Emission (Transmitter) Set-up for Radiated Emission (Transmitter)
