NF28238-27Radio Toy Car Remote Controller

1 Helen Zhao Subject:FW: FW: Hitari Ltd., FCC ID: NF28238-27, Assessment NO.: AN05T4851, Notice#2 Fccrpt-8238-27-TX- fin-filing.p... -----Original Message----- From: weili Sent: Thursday, June 16, 2005 7:37 PM To: Helen Zhao Subject: Re: FW: Hitari Ltd., FCC ID: NF28238-27, Assessment NO.: AN05T4851, Notice#2 Hi, Helen. For Q1,Q2,Q3, Please see revised report ( Pg 13 for Q2). Regards, Wei > -----Original Message----- > From: Compliance Certification Services [mailto:[email protected]] > Sent: Thursday, June 16, 2005 4:28 PM > To: Helen Zhao > Subject: Hitari Ltd., FCC ID: NF28238-27, Assessment NO.: AN05T4851, > Notice#2 > > > Question #1: Please update FCC ID label format to remove the space between > "NF2" and "8238-27". Also please check the location, whether the space is > big enough to place the proposed FCC ID label which includes the > compliance statement. > > Question #2: Though loop antenna is on the test equipment list of test > report, there is no specific measurement procedure indicated in the test report, > or any setup photo to show a loop antenna was used during radiated emissiion > test below 30MHz. Please confirm whether the test below 30MHz was done properly. > If the answer is yes, please update the report to clearly indicate it. > If not, you may need to redo the test. > > Question #3: Please note the most current version of ANSI C63.4 is version > 2003, instead of 2001 as listed in the test report. Please confirm whether > the test was done based on ANSI C63.4: 2003. If so, please update the > report. If not, you may need to redo the test. > > Best Regard, 2 > Helen Zhao > > The items indicated above must be submitted before processing can continue > on the above referenced application. Failure to provide the requested > information within 30 days of the original e-mail date may result in > application dismissal and forfeiture of the filing fee. Also, please note > that partial responses increase processing time and should not be > submitted. Any questions about the content of this correspondence should > be directed to the e-mail address listed below the name of the sender. > >

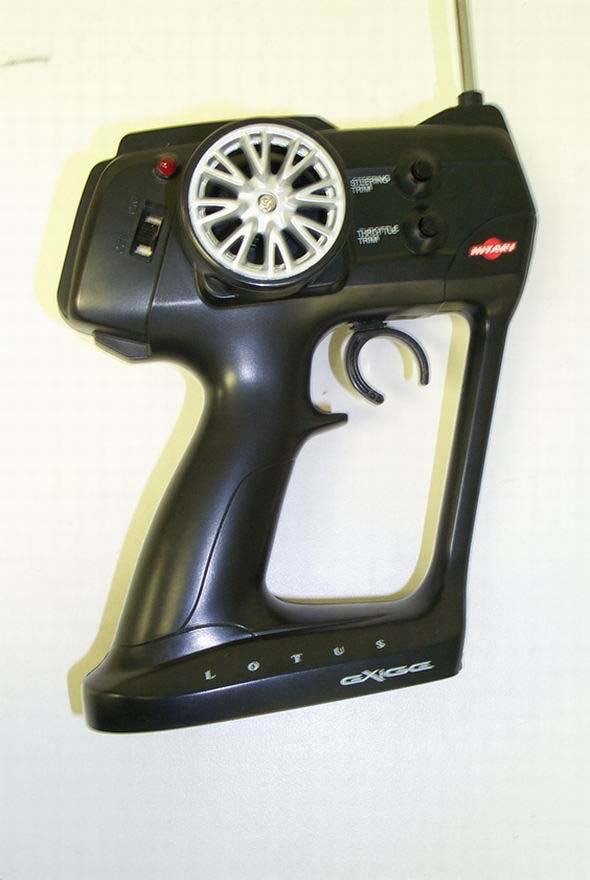

FCC ID: NF28238-27 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 16 Front View FCC ID: NF28238-27 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 17 Rear View

FCC ID: NF28238-27 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 8 2. PRODUCT LABELING Figure 2.1 FCC ID Label Figure 2.2 Location of Label on the Side of EUT FCC ID: NF28238-27 This device complies with part 15 of the FCC Rules. Operating is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Figure 2.1 FCC ID Label FCC Label Figure 2.2 Location of Label on Back of the EUT

FCC ID: NF28238-27 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 18 Open View FCC ID: NF28238-27 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 19 Component Side FCC ID: NF28238-27 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 20 Foil Side

May 09, 2005 Remote Controller 8238-27T Functional Description The EUT is a radio controller for used to control a radio control car. The controller circuit comprises a rf generation circuit and a modulation circuit. In the rf generation circuit, rf frequency carrier is generated continually by a crystal oscillating at 27.145 MHz when the power is switched on. However the rf signal will not further transmit forward to second stage for amplification and radiates via antenna matching network until there is presence of a modulating signal (the control signal). In the modulation circuit, modulating signal is generated by an encoder IC. By changing the values of the variable resistors on the controller, control signal in analogue level will be set on the different input pins of the IC, A to D converting process is carried out inside IC and a series of digital data bits will be generated. The level of data bits are high enough to switch on and off (ON/OFF keying) a control gate allowing the rf carrier to pass through to next amplifying stage and hence radiates to atmosphere via the antenna network. Three different algorithm for coding are available by selecting the ABC switch of the controller, which allows three different sets of control signals to be transmitted at same time and in the same frequency, and hence three controllers can control three cars at the same time without interfering each other. Antenna is a telescopic design. The controller is powered by a 9V dry battery. No supply ground or signal ground is available.

ELECTROMAGNETIC EMISSION COMPLIANCE REPORT of RADIO CONTROL MODEL CAR LOTUS EXIGE TRANSMITTER MODEL: 8238-27 FCC ID: NF28238-27 May 16, 2005 This report concerns (check one): Original grant x Class II change Equipment type: Low Power Intentional Radiator Deferred grant requested per 47 CF 0.457(d)(1)(ii)? yes no x If yes, defer until: (date) Company agrees to notify the Commission by (date) of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? yes no x If no, assumed Part 15, Subpart B for unintentional radiators - the new 47 CFR [10-1-90 Edition] provision. Report prepared for: HITARI LTD. Report prepared by: Advanced Compliance Lab Report number: 0048-050511-01 The test result in this report IS supported and covered by the NVLAP accreditation 6 Randolph Way Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 Advanced Compliance Laboratory FCC ID: NF28238-27 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 2 Table of Contents Report Cover Page ........................................................................................................ 1 Table of Contents........................................................................................................... 2 Figures ............................................................................................................................ 3 1. GENERAL INFORMATION................................................................................... 4 1.1 Verification of Compliance ......................................................................... 4 1.2 Equipment Modifications ........................................................................... 5 1.3 Product Information ................................................................................... 6 1.4 Test Methodology ........................................................................................ 6 1.5 Test Facility .................................................................................................. 6 1.6 Test Equipment............................................................................................ 6 1.7 Statement of the Document Use ................................................................. 7 2. PRODUCT LABELING ........................................................................................... 8 3. SYSTEM TEST CONFIGURATION...................................................................... 9 3.1 Justification .................................................................................................. 9 3.2 Special Accessories ...................................................................................... 9 3.3 Configuration of Tested System ................................................................. 9 4. SYSTEM SCHEMATICS ......................................................................................... 12 5. RADIATED EMISSION DATA............................................................................... 13 5.1 Field Strength Calculation.......................................................................... 13 5.2 Test Methods and Conditions..................................................................... 13 5.3 Test Data....................................................................................................... 13 6. PHOTOS OF TESTED EUT .................................................................................... 15 FCC ID: NF28238-27 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 3 Figures Figure 2.1 FCC ID Label .............................................................................................. 8 Figure 2.2 Location of Label on Back of the EUT...................................................... 8 Figure 3.1 Radiated Test Setup, Position 1 ................................................................. 10 Figure 3.2 Radiated Test Setup, Position 2 ................................................................. 10 Figure 3.3 Radiated Test Setup, Position 3 ................................................................. 11 Figure 4.1 EUT Schematics .......................................................................................... 12 Figure 6.1 Front View ................................................................................................... 16 Figure 6.2 Rear View..................................................................................................... 17 Figure 6.2 Inside View, Cover Opened ........................................................................ 18 Figure 6.3 Component Side .......................................................................................... 19 Figure 6.4 Foil Side........................................................................................................ 20 FCC ID: NF28238-27 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 4 1. GENERAL INFORMATION 1.1 Verification of Compliance EUT: RADIO CONTROL CAR TRANSMITTER Model: 8238-27 Applicant: HITARI LTD. RANDOM HOUSE, 14 HALL DRIVE BRAMHOPE, LEEDS, LS16 9JE, UK Test Type: FCC Part 15C CERTIFICATION Result: PASS Tested by: ADVANCED COMPLIANCE LABORATORY Test Date: May 16, 2005 Report Number: 0048-050511-01 The above equipment was tested by Compliance Laboratory, Advanced Technologies, Inc. for compliance with the requirement set forth in the FCC rules and regulations Part 15 subpart C. This said equipment in the configuration described in the report, shows the maximum emission levels emanating from equipment are within the compliance requirements. The estimated uncertainty of the test result is given as fo…

Text truncated - open the document above for the full version.

FCC ID: NF28238-27 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 10 Figure 3.1 Radiated Test Setup, position 1 Figure 3.2 Radiated Test Setup, position 2 FCC ID: NF28238-27 ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 11 Figure 3.3 Radiated Test Setup, position 3
