NGVAWD8112Wire-to-Air

This equipment also should be installed and operated with minimum distance 20cm between the radiator & your body. Essential requirements – Article 3 Protection requirements for health and safety – Article 3.1a Testing for electric safety according to EN 60065 has been conducted. These are considered relevant and sufficient. Protection requirements for electromagnetic compatibility – Article 3.1b Testing for electromagnetic compatibility according to EN 301 489-1 and EN 301 489 -17 has been conducted. These are considered relevant and sufficient. Effective use of the radio spectrum – Article 3.2 Testing for radio test suites according to EN 300 328 has been conducted. These are considered relevant and sufficient. Declaration of Conformity for R&TTE directive 1999/5/EC

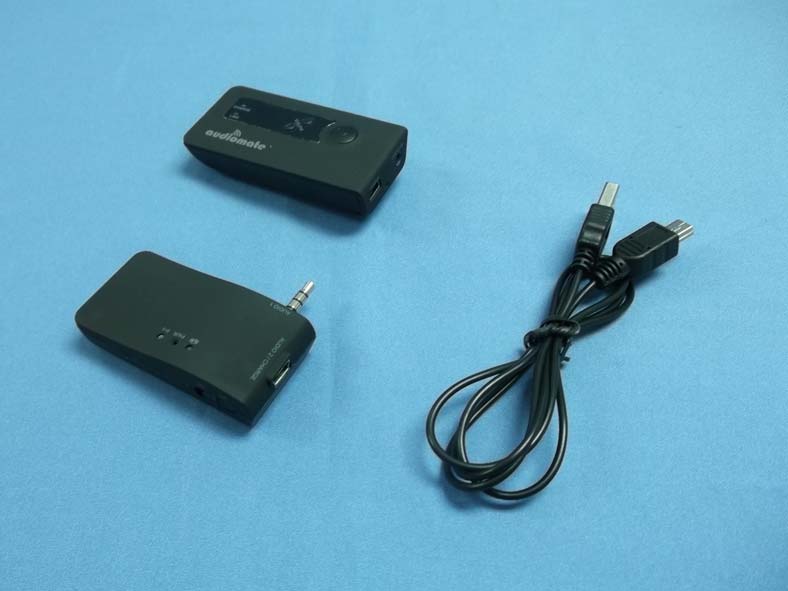

Report No：121271R-RFUSP43V01 Page: 68 of 74 Attachement EUT Photograph (1) EUT Photo (2) EUT Photo

AIRWAVE TECHNOLOGIES INC. FCC ID.: NGVAWD8112 FCC ID AND DoC Label Tx Rx The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Wire-to-Air Model No.: AWS8112, AWS811T, AWS812R, AM8112, AM811T, AM812R, AWS8156, AWS815, AWS816, AWS8178, AWS817, AWS818 F F C C C C I I D D : : N N G G V V A A W W D D 8 8 1 1 1 1 2 2 Trade name: AIRWAVE Model number.: AWS8112, AWS811T, AWS812R, AM8112, AM811T, AM812R, AWS8156, AWS815, AWS816, AWS8178, AWS817, AWS818

AIRWAVE TECHNOLOGIES INC. FCC ID.: NGVAWD8112 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Wire-to-Air Model No.: AWS8112, AWS811T, AWS812R, AM8112, AM811T, AM812R, AWS8156, AWS815, AWS816, AWS8178, AWS817, AWS818 F F C C C C I I D D : : N N G G V V A A W W D D 8 8 1 1 1 1 2 2 Trade name: AIRWAVE Model number.: AWS8112, AWS811T, AWS812R, AM8112, AM811T, AM812R, AWS8156, AWS815, AWS816, AWS8178, AWS817, AWS818

Report No：121271R-RFUSP43V01 Page: 69 of 74 (3) EUT Photo (4) EUT Photo Report No：121271R-RFUSP43V01 Page: 70 of 74 (5) EUT Photo (6) EUT Photo Report No：121271R-RFUSP43V01 Page: 71 of 74 (7) EUT Photo (8) EUT Photo Report No：121271R-RFUSP43V01 Page: 72 of 74 (9) EUT Photo (10) EUT Photo Report No：121271R-RFUSP43V01 Page: 73 of 74 (11) EUT Photo (MB) (12) EUT Photo (ANT) Report No：121271R-RFUSP43V01 Page: 74 of 74 (13) EUT Photo

Report No. 121271R-RF-US-Exp Page: 1 of 3 RF Exposure Evaluation declaration Product Name ： Wire-to-Air Model No. ： AWS8112, AWS811T, AWS812R, AM8112, AM811T, AM812R, AWS8156, AWS815, AWS816, AWS8178, AWS817, AWS818 FCC ID. ： NGVAWD8112 Applicant : AIRWAVE Technologies Inc. Address : 4F, NO.9, Industry E. 9th Road Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Date of Receipt : 2012/01/13 Date of Declaration : 2012/02/17 Report No. : 121271R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 121271R-RF-US-Exp Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 121271R-RF-US-Exp Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product Wire-to-Air Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.58dBi or 1.81 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 01 2406.00 17.74 0.006 16 2440.00 18.92 0.007 31 2472.00 19.86 0.007 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 .

Report No：121271R-RFUSP43V01 Page: 1 of 74 Test Report Product Name ： Wire-to-Air Model No. ： AWS8112, AWS811T, AWS812R, AM8112, AM811T, AM812R, AWS8156, AWS815, AWS816, AWS8178, AWS817, AWS818 FCC ID. ： NGVAWD8112 Applicant ： AIRWAVE Technologies Inc. Address ： 4F, NO.9, Industry E. 9th Road Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Date of Receipt：2012/01/13 Issued Date ：2012/02/17 Report No. ：121271R-RFUSP43V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：121271R-RFUSP43V01 Page: 2 of 74 Test Report Certification Issued Date : 2012/02/17 Report No. : 121271R-RFUSP43V01 Product Name ： Wire-to-Air Applicant ： AIRWAVE Technologies Inc. Address ： 4F, NO.9, Industry E. 9th Road Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Manufacturer ： AIRWAVE Technologies Inc. Model No. ： AWS8112, AWS811T, AWS812R, AM8112, AM811T, AM812R, AWS8156, AWS815, AWS816, AWS8178, AWS817, AWS818 FCC ID. ： NGVAWD8112 EUT Voltage : DC 5V Trade Name ： AIRWAVE, audiomate Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247: 2010 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Demi Chang / Engineering Adm. Specialist ) Reviewed By : ( Chris Liu / Engineer ) Approved By : ( Roy Wang / Manager ) Report No：121271R-RFUSP43V01 Page: 3 of 74 TABLE OF CONTENTS Description Page 1. General Information........................................................................................................ 5 1.1. EUT Description..........................................................................................................................5 1.2. Test Mode....................................................................................................................................7 1.3. Tested System Details................................................................................................................8 1.4. Configuration of tested System................................................................................................9 1.5. EUT Exercise Software..............................................................................................................9 1.6. Test Facility................................................................................................................................10 2. Conducted Emission .................................................................................................... 12 2.1. Test Equipment.........................................................................................................................12 2.2. Test Setup..................................................................................................................................12 2.3. Limits...........................................................................................................................................13 2.4. Test Procedure..........................................................................................................................13 2.5. Test Specification......................................................................................................................13 2.6. Uncertainty.................................................................................................................................13 2.7. Test Result.................................................................................................................................14 2.8. Test Photo..................................................................................................................................16 3. Peak Power Output ...................................................................................................... 17 3.1. Test Equipment.........................................................................................................................17 3.2. Test Setup..................................................................................................................................17 3.3. Test procedures.........................................................................................................................17 3.4. Limits...........................................................................................................................................17 3.5. Test Specification......................................................................................................................17 3.6. Test Result.................................................................................................................................18 4. Radiated Emission ....................................................................................................... 21 4.1. Test Equipment.........................................................................................................................21 4.2. Test Setup..................................................................................................................................21 4.3. Limits...........................................................................................................................................22 4.4. Test Procedure..........................................................................................................................22 4.5. Test Specification......................................................................................................................22 4.6. Test Result.................................................................................................................................23 4.7. Test Photo......................................................................................…

Text truncated - open the document above for the full version.

Report No：121271R-RFUSP43V01 Page: 16 of 74 2.8. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 1: Transmit Description： Back View of Conducted Emission Test Setup Report No：121271R-RFUSP43V01 Page: 32 of 74 4.7. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Bilog) Test Mode ： Mode 1: Transmit Description： Back View of Radiated Emission Test Setup (Bilog) Report No：121271R-RFUSP43V01 Page: 33 of 74 Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Horn) Test Mode ： Mode 1: Transmit Description： Back View of Radiated Emission Test Setup (Horn)
