NGVAWS821TWire-to-Air

FCC Notices This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Change or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. RF exposure warning: The equipment complies with FCC RF exposure limits set forth for an uncontrolled environment. The equipment must not be co-located or operating in conjunction with any other antenna or transmitter.

AIRWAVE TECHNOLOGIES INC. Attestation for FCC Declaration of Conformity FCC ID: NGVAWS821T Data: Feb. 03, 2012 Please be notified that we, the undersigned, AIRWAVE TECHNOLOGIES INC. declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is 121322R-RFUSP37V02. Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District,, Taipei Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, Tzu-Hung Chen AIRWAVE TECHNOLOGIES INC. Tel: 886-3-5778099 Fax: 886-3-5778199 E-mail: [email protected]

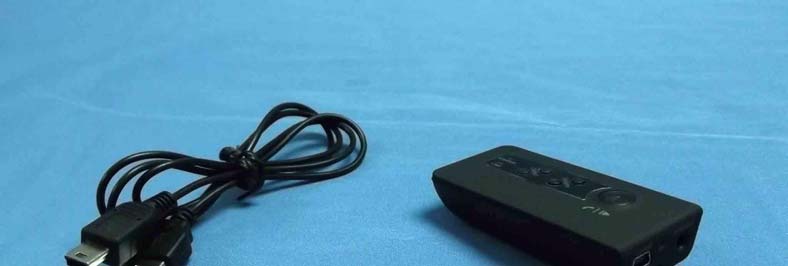

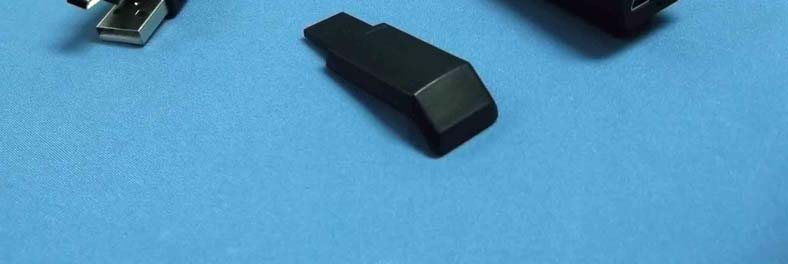

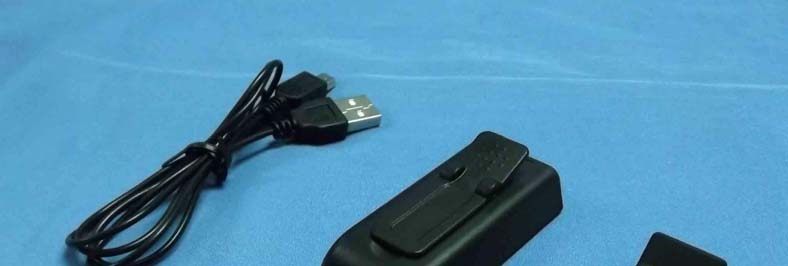

Report No： 121322R-RFUSP42V01 Page: 91 of 102 Attachement EUT Photograph (1) EUT Photo (2) EUT Photo

AIRWAVE TECHNOLOGIES INC. FCC ID.: NGVAWS821T FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Wire-to-Air Package name: AWS8212, AM821 Model No.: AWS821T, AM821T F F C C C C I I D D : : N N G G V V A A W W S S 8 8 2 2 1 1 T T Trade name: AIRWAVE Package name: AWS8212, AM821 Model number.:AWS821T, AM821T

AIRWAVE TECHNOLOGIES INC. FCC ID.: NGVAWS821T FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Wire-to-Air Package name: AWS8212, AM821 Model No.: AWS821T, AM821T F F C C C C I I D D : : N N G G V V A A W W S S 8 8 2 2 1 1 T T Trade name: AIRWAVE Package name: AWS8212, AM821 Model number.:AWS821T, AM821T

Report No： 121322R-RFUSP42V01 Page: 92 of 102 (3) EUT Photo (TX) (4) EUT Photo Report No： 121322R-RFUSP42V01 Page: 93 of 102 (5) EUT Photo (6) EUT Photo Report No： 121322R-RFUSP42V01 Page: 94 of 102 (7) EUT Photo Report No： 121322R-RFUSP42V01 Page: 95 of 102 (8) EUT Photo_MB Report No： 121322R-RFUSP42V01 Page: 96 of 102 (9) EUT Photo_Ant Report No： 121322R-RFUSP42V01 Page: 97 of 102 (10) EUT Photo (Rx) (11) EUT Photo Report No： 121322R-RFUSP42V01 Page: 98 of 102 (12) EUT Photo (13) EUT Photo Report No： 121322R-RFUSP42V01 Page: 99 of 102 (14) EUT Photo (15) EUT Photo Report No： 121322R-RFUSP42V01 Page: 100 of 102 (16) EUT Photo Report No： 121322R-RFUSP42V01 Page: 101 of 102 (17) EUT Photo_MB Report No： 121322R-RFUSP42V01 Page: 102 of 102 (18) EUT Photo (19) EUT Photo_Ant

Report No. 121322R-RF-US-Exp-A Page: 1 of 3 RF Exposure Evaluation declaration Product Name ： Wire-to-Air Model No. ： AWS8212, AWS821T, AWS822R, AM8212, AM821T, AM822R FCC ID. ： NGVAWS822R Applicant : AIRWAVE Technologies Inc. Address : 4F, NO.9, Industry E. 9th Road Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Date of Receipt : 2012/01/18 Date of Declaration : 2012/03/03 Report No. : 121322R-RF-US-Exp-A Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 121322R-RF-US-Exp-A Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to 1.1307(b)(1), system operating under the previsions of this section shall be operated in manner that ensure that the public is not exposed is not exposed to radio frequency energy level in excess of the Commission’s guideline. No SAR test is required as the output power of this device is less than thresholds as below: f = GHz, d = Distance (between radiated device and the body) When d < 2.5cm, Output Power = (60/f) mW Ex: f = 2.4GHz, Output Power = (60/2.4) = 25mW (13.98dBm) 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 121322R-RF-US-Exp-A Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product Wire-to-Air Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3.14dBi or 1.81 in linear scale. Output Power into Antenna Channel Channel Frequency (MHz) Output Power to Antenna (mW) EIRP (mW) Output Power threshold (mW) (d < 2.5cm) 01 2404.4 10.38 21.39 24.95 08 2443.6 11.63 23.96 24.55 12 2476.7 11.46 23.62 24.23 Conclusion: No SAR evaluation required, since transmitter output power is below threshold.

Report No： 121322R-RFUSP42V01 Page: 1 of 102 Test Report Product Name：Wire-to-Air Model No. ：AWS8212, AWS821T, AWS822R, AM8212, AM821T, AM822R FCC ID. ：NGVAWS821T, NGVAWS822R Applicant ：AIRWAVE Technologies Inc. Address ：4F, NO.9, Industry E. 9th Road Science-based Industrial Park, Hsinchu, Taiwan, R.O.C.. Date of Receipt：2012/01/18 Issued Date ：2012/03/03 Report No. ：121322R-RFUSP42V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 121322R-RFUSP42V01 Page: 2 of 102 Test Report Certification Issued Date : 2012/03/03 Report No. : 121322R-RFUSP42V01 Product Name ： Wire-to-Air Applicant ： AIRWAVE Technologies Inc. Address ： 4F, NO.9, Industry E. 9th Road Science-based Industrial Park, Hsinchu, Taiwan, R.O.C.. Manufacturer ： AIRWAVE Technologies Inc. Model No. ： AWS8212, AWS821T, AWS822R, AM8212, AM821T, AM822R FCC ID. ： NGVAWS821T, NGVAWS822R EUT Voltage : DC 5V (Power by Notebook PC) Trade Name ： AIRWAVE, audiomate Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247: 2010 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Carol Tsai / Adm. Specialist ) Reviewed By : ( Chris Liu / Engineer ) Approved By : ( Roy Wang / Manager ) Report No： 121322R-RFUSP42V01 Page: 3 of 102 TABLE OF CONTENTS Description Page 1. General Information.............................................................................................................. 5 1.1. EUT Description ............................................................................................................. 5 1.2. Operational Description .................................................................................................. 6 1.3. Test Mode .......................................................................................................................7 1.4. Tested System Details .................................................................................................... 8 1.5. Configuration of tested System ...................................................................................... 9 1.6. EUT Exercise Software ................................................................................................ 11 1.7. Test Facility...................................................................................................................12 2. Conducted Emission .......................................................................................................... 13 2.1. Test Equipment............................................................................................................. 13 2.2. Test Setup .................................................................................................................... 13 2.3. Limits ............................................................................................................................ 14 2.4. Test Procedure ............................................................................................................. 14 2.5. Test Specification.......................................................................................................... 14 2.6. Uncertainty ................................................................................................................... 14 2.7. Test Result....................................................................................................................15 2.8. Test Photo .................................................................................................................... 19 3. Peak Power Output ............................................................................................................ 21 3.1. Test Equipment............................................................................................................. 21 3.2. Test Setup .................................................................................................................... 21 3.3. Test procedures ............................................................................................................ 21 3.4. Limits ............................................................................................................................ 21 3.5. Test Specification.......................................................................................................... 21 3.6. Uncertainty ................................................................................................................... 21 3.7. Test Result....................................................................................................................22 4. Radiated Emission ............................................................................................................. 24 4.1. Test Equipment............................................................................................................. 24 4.2. Test Setup .................................................................................................................... 24 4.3. Limits ............................................................................................................................ 25 4.4. Test Procedure ............................................................................................................. 25 4.5. Test Specification.......................................................................................................... 25 4.6. Uncertainty ................................................................................................................... 25 4.7. Test Result....................................................................................................................26 4.8. Test Photo ........................…

Text truncated - open the document above for the full version.

Report No： 121322R-RFUSP42V01 Page: 19 of 102 2.8. Test Photo Test Mode ： Mode 1: Transmitter-Transmit Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 1: Transmitter-Transmit Description： Back View of Conducted Emission Test Setup Report No： 121322R-RFUSP42V01 Page: 20 of 102 Test Mode ： Mode 2: Receiver- Transmit Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 2: Receiver- Transmit Description： Back View of Conducted Emission Test Setup Report No： 121322R-RFUSP42V01 Page: 45 of 102 4.8. Test Photo Test Mode ： Mode 1: Transmitter-Transmit Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 1: Transmitter-Transmit Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No： 121322R-RFUSP42V01 Page: 46 of 102 Test Mode ： Mode 1: Transmitter-Transmit Description： Front View of Radiated Emission Test Setup (Horn) Test Mode ： Mode 1: Transmitter-Transmit Description： Back View of Radiated Emission Test Setup (Horn) Report No： 121322R-RFUSP42V01 Page: 47 of 102 Test Mode ： Mode 2: Receiver- Transmit Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 2: Receiver- Transmit Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No： 121322R-RFUSP42V01 Page: 48 of 102 Test Mode ： Mode 2: Receiver- Transmit Description： Front View of Radiated Emission Test Setup (Horn) Test Mode ： Mode 2: Receiver- Transmit Description： Back View of Radiated Emission Test Setup (Horn)
