NHP-SHS-2000SMART HOME NETWORKING SERVICE

User Manual SMART HOME NETWORKING SERVICE Specifications Statement SPECIFICATIONS Model:SHS-2000 Description:Smart Home Server Radio:802.11g, 802.11b compatible Ports:WAN: One 10/100 RJ-45 port LAN: Four 10/100 RJ-45 ports LEDs:On, Status, Disk, WiFi, WAN, LAN (1,2,3,4) Power:External 12V DC, 1.5A Dimensions:9.25”W 6.38” D 1.38” H Weight:1.4 Lbs. SMART HOME NETWORKING SERVICE USER MANUAL While every effort has been made to ensure this document is correct and current, Sereniti reserves the right to revise this document without notice. You can download the latest version of this manual at www.sereniti.com/download/documentation. COPYRIGHT This book and the computer programs to which it relates are original, proprietary materials, the copyright of which is owned by Sereniti Inc. All exclusive rights under the copyright laws are expressly reserved, except to the extent of express license granted to persons acquiring the copyrighted material from Sereniti Inc. In particular, attention is drawn to section 109 of the Copyright Statute, which prohibits the rental, lease, or lending of copyrighted computer programs. Copyright © 2006 by Sereniti Inc. All rights reserved. UM-(v1.0.0.1) Published January, 2006. Printed in the United States of America. While every effort has been made to ensure this document is correct and current, Sereniti reserves the right to revise this document without notice. The customer is responsible for compliance with all applicable local, state, and federal laws and regulations in connection with customer use of this product. Sereniti Inc. 111 Pavonia Ave., Suite 700 Jersey City, NJ 07310 www.sereniti.com Sereniti Smart Home Networking Service | i . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CONTENTS 1 Introduction............................................................ 1 Welcome ............................................................................................. 1 Command Center ................................................................................ 1 Overview of the Manual ..................................................................... 3 2 Using the Command Center ................................. 7 Overview............................................................................................. 7 Tray Icon............................................................................................. 8 Logging In and Out............................................................................. 9 Logging In ..................................................................................................9 Logging Out..............................................................................................11 Change Login Accounts ................................................................... 12 Launch Options................................................................................. 13 Main Menu........................................................................................ 14 Home Page........................................................................................ 17 Network Map ............................................................................................17 Dashboard .................................................................................................19 To Do List......................................................................................... 21 Open the To Do List .................................................................................21 Understanding Alerts................................................................................22 Responding to Alerts ................................................................................23 3 Connecting PCs to Your Network ...................... 27 Overview........................................................................................... 27 Network Map .................................................................................... 28 Device Information Page .................................................................. 29 Device Information...................................................................................29 CONTENTS ii | User Manual (v1.0.0.1) Current Status ...........................................................................................30 Connection Detail .....................................................................................31 Device Management Page................................................................. 32 Security Summary Page .................................................................... 34 Backup Status Page........................................................................... 35 Manage Firewall Page ...................................................................... 37 Set a PC to Auto Login ..................................................................... 37 Change a PC’s Name ........................................................................ 39 Change a PC’s Type ......................................................................... 39 Change a PC’s Icon........................................................................... 39 Connect the PC to Another Wireless Network ................................. 40 4 Connecting Non-PC Devices to Your Network .................................................................43 Overview........................................................................................... 43 Wireless Devices ......................................................................................43 Network Map ............................................................................................44 Other Pages...............................................................................................44 Register a Device .............................................................................. 45 Set a Device to Auto login ....................................…

Text truncated - open the document above for the full version.

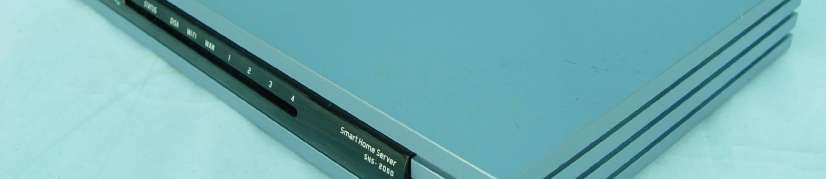

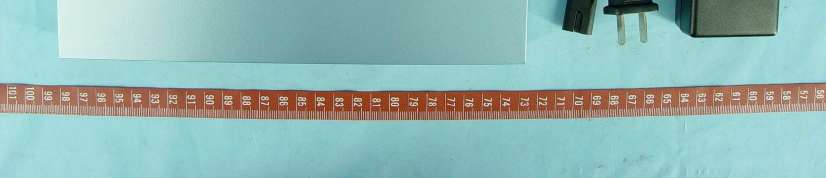

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

Page 1 LABEL LOCATION FCC ID: NHP-SHS-2000 Page 2

05.12.05 SHS-2000 SERENITI ERIC CHI ALICE LIN 9330SHS20000AAV : Tested To Comply With FCC Standards FOR HOME OR OFFICE USE MADE IN TAIWAN This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received,including interference that may cause undesired operation . SHS-2000 S/N: () S/N LABEL: Devices label: S/N: () MAC: Xxxxxxxxxxxx MAC: Xxxxxxxxxxxx Tested To Comply With FCC Standards FOR HOME OR OFFICE USE MADE IN TAIWAN This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received,including interference that may cause undesired operation . SHS-2000 MAC: Xxxxxxxxxxxx MAC: Xxxxxxxxxxxx Red&blue label: (WAN&LAN label) MAC~WAN MAC~LAN LAN WAN NHP-SHS-2000 NHP-SHS-2000

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14

FCC ID: NHP-SHS-2000 Report No.RF950104L07 Operational Description This device is a SMART HOME NETWORKING SERVICE which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 108Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by AC Adapter. The antenna is Dipole antenna with R-SMA antenna connector. For more detailed instruction, please take a look at the user’s manual.

FCC ID: NHP-SHS-2000 Report No: SA950104L07 1 RF EXPOSURE REPORT REPORT NO.: SA950104L07 MODEL NO.: SHS-2000 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: CAMEO COMMUNICATIONS, INC. ADDRESS: 5F, No. 42, Sec. 6, Mincyuan E. Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: NHP-SHS-2000 Report No: SA950104L07 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: NHP-SHS-2000 Report No: SA950104L07 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: NHP-SHS-2000 Report No: SA950104L07 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.585 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: 802.11b DSSS modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241239.90216.011.0 6243740.17916.041.0 11246239.81116.001.0 802.11g OFDM modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241245.60416.591.0 6243744.87516.521.0 11246235.48115.501.0

FCC ID: NHP-SHS-2000 Report No.: RF950104L071Report Format Version 2.0.5 FCC TEST REPORT REPORT NO.: RF950104L07 MODEL NO.: SHS-2000 RECEIVED: Oct. 13, 2005 TESTED: Oct. 13, 2005 ~ Jan. 05, 2006 ISSUED: Jan. 11, 2006 APPLICANT: CAMEO COMMUNICATIONS, INC. ADDRESS: 5F, No. 42, Sec. 6, Mincyuan E. Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 63 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 FCC ID: NHP-SHS-2000 Report No.: RF950104L072Report Format Version 2.0.5 Table of Contents 1CERTIFICATION...........................................................................................................4 2SUMMARY OF TEST RESULTS ..................................................................................5 2.1MEASUREMENT UNCERTAINTY ...............................................................................5 3GENERAL INFORMATION ...........................................................................................6 3.1GENERAL DESCRIPTION OF EUT.............................................................................6 3.2DESCRIPTION OF TEST MODES...............................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..........................................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ...............................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................................10 3.4DESCRIPTION OF SUPPORT UNITS .......................................................................10 4TEST TYPES AND RESULTS .................................................................................... 11 4.1CONDUCTED EMISSION MEASUREMENT .............................................................11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................... 11 4.1.2 TEST INSTRUMENTS................................................................................................ 11 4.1.3 TEST PROCEDURES ................................................................................................12 4.1.4 DEVIATION FROM TEST STANDARD ......................................................................12 4.1.5 TEST SETUP .............................................................................................................13 4.1.6 EUT OPERATING CONDITIONS ...............................................................................13 4.1.7 TEST RESULTS .........................................................................................................14 4.2RADIATED EMISSION MEASUREMENT ..................................................................20 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................20 4.2.2 TEST INSTRUMENTS................................................................................................21 4.2.3 TEST PROCEDURES ................................................................................................22 4.2.4 DEVIATION FROM TEST STANDARD ......................................................................22 4.2.5 TEST SETUP .............................................................................................................23 4.2.6 EUT OPERATING CONDITIONS ...............................................................................23 4.2.7 TEST RESULTS .........................................................................................................24 4.36dB BANDWIDTH MEASUREMENT .........................................................................31 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .......................................................31 4.3.2 TEST INSTRUMENTS................................................................................................31 4.3.3 TEST PROCEDURE...................................................................................................32 4.3.4 DEVIATION FROM TEST STANDARD ......................................................................32 4.3.5 TEST SETUP .............................................................................................................32 4.3.6 EUT OPERATING CONDITIONS ...............................................................................32 4.3.7 TEST RESULTS .........................................................................................................33 4.4MAXIMUM PEAK OUTPUT POWER .........................................................................39 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT..........................39 4.4.2 TEST INSTRUMENTS................................................................................................39 4.4.3 TEST PROCEDURES ................................................................................................40 4.4.4 DEVIATION FROM TEST STANDARD ......................................................................40 4.4.5 TEST SETUP .............................................................................................................40 4.4.6 EUT OPERATING CONDITIONS ...............................................................................40 FCC ID: NHP-SHS-2000 Report No.: RF950104L073Report Format Version 2.0.5 4.4.7 TEST RESULTS .........................................................................................................41 4.5POWER SPECTRAL DENSITY MEASUREMENT................................…

Text truncated - open the document above for the full version.

FCC ID: NHP-SHS-2000 Report No.: RF950104L0760Report Format Version 2.0.5 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: NHP-SHS-2000 Report No.: RF950104L0761Report Format Version 2.0.5 RADIATED EMISSION TEST
