NHPUSR5453Professional Access Point

Professional Access Point Administrator Guide R46.1161.00 rev 1.3 1/06 Professional Access Point Administrator Guide iii Professional Access Point Administrator Guide U.S. Robotics Corporation 935 National Parkway Schaumburg, Illinois 60173-5157 USA No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as a translation, transformation, or adaptation) without written permission from U.S. Robotics Corporation. U.S. Robotics Corporation reserves the right to revise this documentation and to make changes in the products and/or content of this document from time to time without obligation to provide notification of such revision or change. U.S. Robotics Corporation provides this documentation without warranty of any kind, either implied or expressed, including, but not limited to, implied warranties of merchantability and fit- ness for a particular purpose. If there is any software on removable media described in this documentation, it is furnished under a license agreement included with the product as a separate document, in the hard copy documentation, or on the removable media in a directory named LICENSE. If you are unable to locate a copy, please contact USRobotics and a copy will be provided to you. UNITED STATES GOVERNMENT LEGEND If you are a United States government agency, then this documentation and the soft- ware described herein are provided to you subject to the following: All technical data and computer software are commercial in nature and developed solely at private expense. Software is delivered as ìCommercial Computer Softwareî as defined in DFARS 252.227-7014 (June 1995) or as a ìcommercial itemî as defined in FAR 2.101(a) and as such is provided with only such rights as are provided in USRobotics standard commercial license for the Software. Technical data is provided with limited rights only as provided in DFAR 252.227-7015 (Nov 1995) or FAR 52.227-14 (June 1987) whichever is applicable. You agree not to remove or deface any portion of any legend provided on any licensed pro- gram or documentation contained in, or delivered to you in conjunction with, this Administrator Guide. Copyright © 2005 U.S. Robotics Corporation. All rights reserved. U.S. Robotics and the USRobotics logo are registered trade- marks of U.S. Robotics Corporation. Other product names are for identification purposes only and may be trademarks of their respective companies. Product specifications subject to change without notice. Professional Access Point Administrator Guide iv Professional Access Point Administrator Guide v Contents About This Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ix Getting Started Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Whatís Next? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Pre-Launch Checklist: Default Settings and Supported Administrator/ Client Platforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Professional Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Administratorís Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Wireless Client Computers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Understanding Dynamic and Static IP Addressing on the Professional Access Point . . . . . . . . . . 10 Setting Up and Launching Your Wireless Network. . . . . . . . . . . . . . 13 Step 1. Unpack the access point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Step 2. Connect the access point to network and power . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Step 3. Run the Detection Utility to find access points on the network . . . . . . . . . . . . . . . . . . . 16 Step 4. Log on to the Web User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Step 5. Configure Basic Settings and start the wireless network . . . . . . . . . . . . . . . . . . . . . . . 21 Wall Mounting the Access Point. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Whatís Next? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Web User Interface Basic Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Navigating to Basic Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Review / Describe the Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Provide Administrator Password and Wireless Network Name . . . . . . . . . . . . . . . . . . . . . . . . . 28 Set Configuration Policy for New Access Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Update Basic Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Summary of Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Basic Settings for a Standalone Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Your Network at a Glance: Understanding Indicator Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Access Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

Professional Access Point Administrator Guide SNMP - 155 SNMP The Simple Network Management Protocol (SNMP) is an Internet standard protocol that facilitates the monitoring and managing of network devices. SNMP lets you monitor events on your network through an SNMP software application. The following sections describe how to configure SNMP on your network: ïUnderstanding SNMP ïNavigating to Simple Network Management Protocol ïEnabling and Disabling Simple Network Management Protocol (SNMP) ïUpdating Settings ïConfiguring Your Network Management System Understanding SNMP SNMP defines a standard for recording, storing, and sharing information about network devices. SNMP is a subset of Transmission Control Protocol/Internet Protocol (TCP/IP) that facilitates network management, troubleshooting, and maintenance. Key components of any SNMP-managed network are managed devices, SNMP agents, and a network management system. The agents, store data about their devices in Management Information Bases (MIBs) and return this data to the network management system when requested. Managed devices can be network nodes such as access point base stations, routers, switches, bridges, hubs, servers, or printers. The Professional Access Point can function as an SNMP managed device for seamless integration into network management systems such as HP OpenView. The Professional Access Point supports the following SNMP MIBs: ïStandard SNMP MIBs ïSNMP v1 and v2 MIBs ïIEEE802.11 MIB ïProprietary MIB ïUSR5453-PRODUCTS MIBóstores product identification information. ïUSR5453-SYSTEM MIBófacilitates system-level requests, such as reboot and upgrade. ïUSR5453-WIRELESS-CHAN MIBómaintains channel assignment information for access points in a cluster. ïUSR5453-WIRELESS-MIBóstores information about the wireless system, including peer statis- tics, beacon report, radio, and client statistics tables. For more information about SNMP, visit http://www.snmplink.org. Professional Access Point Administrator Guide SNMP - 156 Navigating to Simple Network Management Protocol To enable SNMP, click the Advanced menuís SNMP tab and update the fields as described below. Enabling and Disabling Simple Network Management Protocol (SNMP) To configure your access point to use Simple Network Management Protocol (SNMP) server, first enable the SNMP option that you want to use, and then provide the name of the community or host that can use Professional Access Point Administrator Guide SNMP - 157 the option. FieldDescription Enable SNMPSNMP provides a way for the access point to store management information and to provide the information to a network-management system (NMS). (See http://www.snmplink.org/ for more general information on SNMP.) Choose to either enable (default) or disable use of Simple Network Manage- ment Protocol: Read-only Community Name (entire MIB) If SNMP is enabled, enter the name of the community that is allowed to make information queries against the MIB. The community name acts an as authentication mechanism. The name func- tions as a password, and a request is considered authentic if the requester knows the password. The community name is alphanumeric; do not use special characters or spaces. Allow SNMP SET RequestsChoose to either enable or disable the honouring of SNMP SET requests: ïEnableóMachines on the network that provide the correct community name can issue SET requests. ïDisableó(default) SET requests are not honoured. SET requests are restricted to the USR5453-SYSTEM MIB and USR5453- WIRELESS-CHAN MIB.. Read-write community name (for per- mitted SETs) If SET requests are enabled, enter the name of the community that is allowed to make SET requests. The community name acts an as authentication mechanism. The name func- tions as a password, and a request is considered authentic if the requester knows the password. The community name is alphanumeric; do not use special characters or spaces. Designate source of permitted SNMP requests Choose to either enable or disable designating the source of the SNMP requests: ïEnableó(default) A machine must be designated in the Source field in order for its requests to be honoured. ïDisableóAny machine in the network may issue requests. Professional Access Point Administrator Guide SNMP - 158 To shut down SNMP on the access point, select Disable in the SNMP field. Updating Settings To apply your changes, click Update. Configuring Your Network Management System In order to access the USRobotics proprietary MIBs, you need to import the MIBs into your network management system. You can find the MIB files in the Mib folder on the USRobotics CD-ROM. Refer to your network management system for instructions on importing and compiling MIBs. Source (hostname or subnet)If source designation is enabled, enter the IP address of the host or subnet that is allowed to issue SNMP requests to the access point. If you use this option, the Professional Access Point honours requests from the specified host or subnet only. If you also enable a read-write community, the specified source must be a member of that community in order for the access point to honour the sourceís requests. Note: Even if you explicitly name a machine or a subnet in this field, any machine issuing a request must also know the proper community name in order to have the request honoured. FieldDescription Professional Access Point Administrator Guide Reboot - 159 Reboot For maintenance purposes or as a troubleshooting measure, you can reboot the Professional Access Point as follows. 1. Click the Advanced menuís Reboot tab. 2. Click the Reboot button. The access point reboots. If the IP address of the access point changes after the reboot, you need to specify the new address in your Web browser in order to access the Web User Interface. Reset Configuration If you are experiencing extreme problems with the Professional Access Point and have tried all other troubleshooting measures, use the Reset Configuration function. This will…

Text truncated - open the document above for the full version.

From: [email protected] [mailto:[email protected]] Sent: Monday, February 13, 2006 10:14 PM To: steve.cheng Subject: 回信: TCB Review Comments for (A06-0117a- NHPUSR5453- urgent Cameoprofessional 11g AP) Dear Steve: Revised user's manual has been uploaded, please check. And about the question 2, the answer from client is no for US model. The US model is firmware limited to Ch1 to 11 and is not changeable by the end user. Thanks for your kind assistance. Best Regards, Stephanie Hung (洪榭薇) Advance Data Technology Corporation (誠信科技) Website: www.adt.com.tw Tel: 886-3 318 3232 Ext. 1668 Fax: 886-3 327 0892 e-mail: [email protected] \(^o^)/ \(^o^)/ \(^o^)/ \(^o^)/ \(^o^)/ \(^o^)/ \(^o^)/ \ (^o^)/ "steve.cheng" <[email protected]> 2006/01/18 下午 12:01 收件 人 [email protected], 吳佳鑫 <[email protected]> 副本 抄送 主旨 TCB Review Comments for (A06-0117a- NHPUSR5453- urgent Cameoprofessional 11g AP) TCB Review Comments for (A06-0117a- NHPUSR5453- urgent Cameo professional 11g AP) -EMC- Question #1: P289 of user manual, the statement “To maintain compliance... please avoid direct contact with the transmitting antenna during transmission” seems conflict with 20cm requirement. Please clarify. Question #2: P98 of user manual mentioned “Regulatory Domain Support””, Is there any function or setting which user can use to change the regulatory domain? Best regards, Steve Cheng Technical reviewer Curtis-Straus LLC. [email protected]

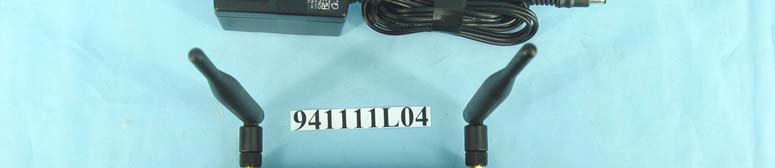

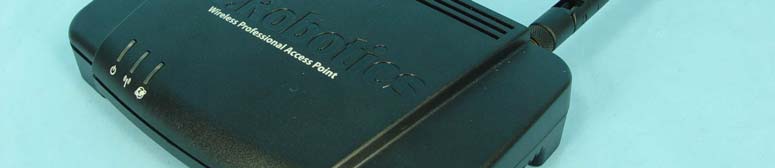

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

Page 1 LABEL LOCATION FCC ID: NHPUSR5453

Page 1 Page 2 Page 3 Page 4

FCC ID: NHPUSR5453 Report No.RF941111L04 Operational Description This device is a Professional Access Point, which operates in the 2.4GHz frequency spectrum with throughput of up to 108Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 108Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by AC Adapter. The antenna is Dipole antenna with R-SMA antenna connector. For more detailed instruction, please take a look at the user’s manual.

FCC ID: NHPUSR5453 Report No: SA941111L04 1 RF EXPOSURE REPORT REPORT NO.: SA941111L04 MODEL NO.: 5453 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: CAMEO COMMUNICATIONS, INC. ADDRESS: 5F,No.42, Sec. 6, Mincyuan E. Rd., Neihu District, Taipei City 114, Taiwan ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: NHPUSR5453 Report No: SA941111L04 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: NHPUSR5453 Report No: SA941111L04 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: NHPUSR5453 Report No: SA941111L04 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 5dBi or 3.162 (numeric) 6.2 Output Power into Antenna & RF Exposure value at distance 20cm: For 802.11b DSSS Modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241244.7710.0281.0 6243745.7090.0291.0 11246245.4990.0291.0 For 802.11g OFDM Modulation_Normal Mode Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241228.5100.0181.0 6243728.8400.0181.0 11246228.5100.0181.0 For 802.11g OFDM Modulation_Turbo Mode Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 6243728.1190.0181.0

FCC ID: NHPUSR5453 Report No.: RF941111L041Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF941111L04 MODEL NO.: 5453 RECEIVED: Nov. 11, 2005 TESTED: Nov. 24 ~ Dec. 05, 2005 ISSUED: Dec. 07, 2005 APPLICANT: CAMEO COMMUNICATIONS, INC. ADDRESS: No.42, Min Chuan East Road, Section 6, Taipei, Taiwan, 114 ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 83 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: NHPUSR5453 Report No.: RF941111L042Report Format Version 2.0.4 TABLE OF CONTENTS 1.CERTIFICATION ..........................................................................................................4 2.SUMMARY OF TEST RESULTS ..................................................................................5 2.1MEASUREMENT UNCERTAINTY................................................................................5 3.GENERAL INFORMATION ...........................................................................................6 3.1 GENERAL DESCRIPTION OF EUT .............................................................................6 3.2 DESCRIPTION OF TEST MODES ...............................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..........................................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ...............................8 3.2.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................10 3.2.4 DESCRIPTION OF SUPPORT UNITS .......................................................................10 4. TEST TYPES AND RESULTS .................................................................................... 11 4.1 CONDUCTED EMISSION MEASUREMENT ............................................................. 11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................... 11 4.1.2 TEST INSTRUMENTS................................................................................................ 11 4.1.3 TEST PROCEDURES ................................................................................................12 4.1.4 DEVIATION FROM TEST STANDARD.......................................................................12 4.1.5 TEST SETUP..............................................................................................................13 4.1.6 EUT OPERATING CONDITIONS ...............................................................................13 4.1.7 TEST RESULTS .........................................................................................................13 4.2 RADIATED EMISSION MEASUREMENT ..................................................................20 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................20 4.2.2 TEST INSTRUMENTS................................................................................................21 4.2.3 TEST PROCEDURES ................................................................................................22 4.2.4 DEVIATION FROM TEST STANDARD.......................................................................23 4.2.5 TEST SETUP..............................................................................................................23 4.2.6 EUT OPERATING CONDITIONS ...............................................................................23 4.2.7 TEST RESULTS .........................................................................................................24 4.3 6dB BANDWIDTH MEASUREMENT..........................................................................42 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .......................................................42 4.3.2 TEST INSTRUMENTS................................................................................................42 4.3.3 TEST PROCEDURE...................................................................................................43 4.3.4 DEVIATION FROM TEST STANDARD.......................................................................43 4.3.5 TEST SETUP..............................................................................................................43 4.3.6 EUT OPERATING CONDITIONS ...............................................................................43 4.3.7 TEST RESULTS .........................................................................................................44 4.4 MAXIMUM PEAK OUTPUT POWER..........................................................................52 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ..........................52 FCC ID: NHPUSR5453 Report No.: RF941111L043Report Format Version 2.0.4 4.4.2 INSTRUMENTS..........................................................................................................52 4.4.3 TEST PROCEDURES ................................................................................................53 4.4.4 DEVIATION FROM TEST STANDARD.......................................................................53 4.4.5 TEST SETUP..............................................................................................................53 4.4.6 EUT OPERATING CONDITIONS ...............................................................................53 4.4.7 TEST RESULTS .........................................................................................................54 4.5 POWER …

Text truncated - open the document above for the full version.

FCC ID: NHPUSR5453 Report No.: RF941111L0480Report Format Version 2.0.4 5. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: NHPUSR5453 Report No.: RF941111L0481Report Format Version 2.0.4 RADIATED EMISSION TEST
