NHPWLAN22022.4GHz/5GHz IEEE802.11a+b+g+n Wireless LAN Router

i 2.4GHZ/5GHZ DUAL BAND DUAL CONCURRENT IEEE802.11A+B+G+N WIRELESS LAN ROUTER ii Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. For operation within 5.15 ~ 5.25GHz frequency range, it is restricted to indoor environment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. iii Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: EN60950-1: 2006 Safety of Information Technology Equipment EN 50385: 2002 Product standard to demonstrate the compliance of radio base stations and fixed terminal stations for wireless telecommunication systems with the basic restrictions or the reference levels related to human exposure to radio frequency electromagnetic fields (110MHz - 40 GHz) - General public EN 300 328 V1.7.1 (2006-10) Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using wide band modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive EN 301 893 V1.4.1: (2007-07) Broadband Radio Access Networks (BRAN); 5 GHz high performance RLAN; Harmonized EN covering essential requirements of article 3.2 of the R&TTE Directive EN 301 489-1 V1.8.1 (2008-04) Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements EN 301 489-17 V1.3.2 (2008-04) Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France and Italy where restrictive use applies. In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services. This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France. 0560 iv Česky [Czech] [Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES. Dansk [Danish] Undertegnede [fabrikantens navn] erklærer herved, at følgende udstyr [udstyrets typebetegnelse] overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Deutsch [German] Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Eesti [Estonian] Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme tüüp = type of equipment] vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. English Hereby, [name of manufacturer], declares that this [type of equipment] is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español [Spanish] Por medio de la presente [nombre del fabricante] declara que el [clase de equipo] cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibl…

Text truncated - open the document above for the full version.

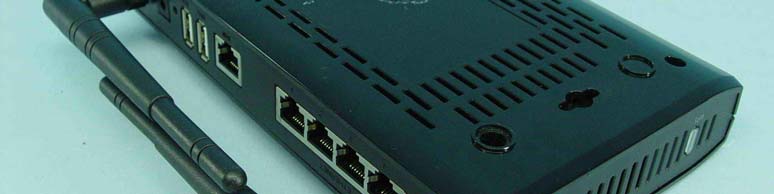

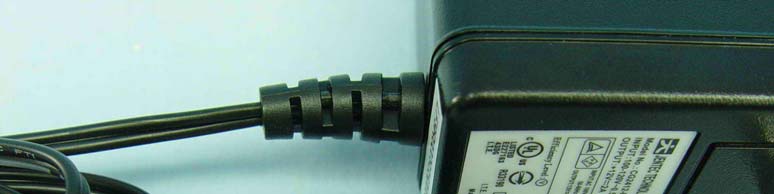

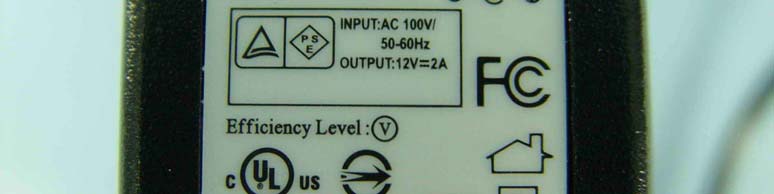

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

FCC ID .: NHPWLAN2202 Label Location

WLAN-2202 CAMEO 6451WAN2202*xAv Grace Chen x: v: # A /FCC E /ETSI 2009.12.21 :Arial FCC ID: NHPWLAN2202 "See Caution in Manual" Power Input: 12V 2A MADE IN CHINA 0560 3 9 . 0 0 m m 59.00 mm This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference and (2)this device must accept any interference received, including interference that may cause undesired operation. LAN MAC: XXXXXXXXXXXX WAN MAC: XXXXXXXXXXXX/# Grace Chen

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13

FCC ID: NHPWLAN2202 Report No.: RF981022L16 OPERATIONAL DESCRIPTION This device is a 2.4GHz/5GHz Dual Band Dual Concurrent IEEE802.11a+b+g+n Wireless LAN Router, which operates in both of the 5GHz and 2.4GHz bands and can transmitting simultaneously, the maximum data rate could be up to 300Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by AC adapter. The antenna is Dipole antenna with R-SMA antenna connector. For more detailed instruction, please take a look at the user’s manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

FCC ID: NHPWLAN2202 Report No.: SA981022L16 Report Format Version 3.0.0. 1 RF EXPOSURE REPORT REPORT NO.: SA981022L16 MODEL NO.: WLAN-2202, TEW-673GRU ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: CAMEO COMMUNICATIONS, INC. ADDRESS: 7F., No.32, Zhongxing Rd., Xizhi City, Taipei County 221, Taiwan (R.O.C.) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: NHPWLAN2202 Report No.: SA981022L16 Report Format Version 3.0.0. 2 RF EXPOSURE MEASUREMENT (MOBILE DEVICE) 1. INTRODUCTION In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF EXPOSURE LIMIT According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) (A)LIMITS FOR OCCUPATIONAL / CONTROL EXPOSURES 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz FCC ID: NHPWLAN2202 Report No.: SA981022L16 Report Format Version 3.0.0. 3 3. FRIIS FORMULA Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT OPERATING CONDITION The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: NHPWLAN2202 Report No.: SA981022L16 Report Format Version 3.0.0. 4 6. TEST RESULTS 6.1 ANTENNA GAIN The maximum Gain measured in Fully Anechoic Chamber are 2dBi or 1.58 (numeric) (for 2.4GHz antenna); 3dBi or 2.00(numeric) (for 5.0GHz). 6.2 OUTPUT POWER INTO ANTENNA & RF EXPOSURE VALUE AT DISTANCE 20cm: For 2.412 ~ 2.462GHz band: POWER OUTPUT (dBm) CHAIN 0 CHAIN 1 TOTAL POWER (mW) TOTAL POWER (dBm) POWER DENSITY (mW/ cm 2 ) LIMIT OF POWER DENSITY (mW/ cm 2 ) 23.4 23.1 422.9 26.3 0.133 1.000 For 5.180 ~ 5.240GHz band: POWER OUTPUT (dBm) CHAIN 0 CHAIN 1 TOTAL POWER (mW) TOTAL POWER (dBm) POWER DENSITY (mW/ cm 2 ) LIMIT OF POWER DENSITY (mW/ cm 2 ) 11.5 12.3 31.1 14.9 0.012 1.000 For 5.745 ~ 5.825GHz band: POWER OUTPUT (dBm) CHAIN 0 CHAIN 1 TOTAL POWER (mW) TOTAL POWER (dBm) POWER DENSITY (mW/cm 2 ) LIMIT OF POWER DENSITY (mW/ cm 2 ) 23.0 22.6 381.5 25.8 0.151 1.000 CONCULSION: Both of the WLAN 2.4G & 5.0G can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density 1. WLAN 2.4G + WLAN 5.0G = 0.284 Therefore, the maximum calculation of this situation is 0.284, which is less than the “1” limit.

Report No.: RF981022L16 1 Report Format Version 3.0.0 FCC TEST REPORT (15.247) REPORT NO.: RF981022L16 MODEL NO.: WLAN-2202 (Refer to item 3.1 for more details) RECEIVED: Sep. 08, 2009 TESTED: Oct. 29 ~ Nov. 21, 2009 ISSUED: Nov. 25, 2009 APPLICANT: CAMEO COMMUNICATIONS, INC. ADDRESS: 7F., No.32, Zhongxing Rd., Xizhi City, Taipei County 221, Taiwan (R.O.C.) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 116 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF981022L16 2 Report Format Version 3.0.0 TABLE OF CONTENTS 1. CERTIFICATION........................................................................................................... 5 2. SUMMARY OF TEST RESULTS .................................................................................. 6 2.1 MEASUREMENT UNCERTAINTY ............................................................................... 6 3. GENERAL INFORMATION ........................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ............................................................................. 7 3.2 DESCRIPTION OF TEST MODES ............................................................................... 9 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ........................................................ 10 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................. 11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................ 15 3.4 DESCRIPTION OF SUPPORT UNITS ....................................................................... 15 4. TEST TYPES AND RESULTS (FOR 2.4GHz BAND)................................................. 16 4.1 RADIATED EMISSION MEASUREMENT .................................................................. 16 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................ 16 4.1.2 TEST INSTRUMENTS................................................................................................ 17 4.1.3 TEST PROCEDURES ................................................................................................ 18 4.1.4 DEVIATION FROM TEST STANDARD....................................................................... 18 4.1.5 TEST SETUP.............................................................................................................. 19 4.1.6 EUT OPERATING CONDITIONS ............................................................................... 19 4.1.7 TEST RESULTS ......................................................................................................... 20 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................. 33 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................... 33 4.2.2 TEST INSTRUMENTS................................................................................................ 33 4.2.3 TEST PROCEDURES ................................................................................................ 34 4.2.4 DEVIATION FROM TEST STANDARD....................................................................... 34 4.2.5 TEST SETUP.............................................................................................................. 35 4.2.6 EUT OPERATING CONDITIONS ............................................................................... 35 4.2.7 TEST RESULTS ......................................................................................................... 36 4.3 6dB BANDWIDTH MEASUREMENT.......................................................................... 38 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ....................................................... 38 4.3.2 TEST INSTRUMENTS................................................................................................ 38 4.3.3 TEST PROCEDURE................................................................................................... 38 4.3.4 DEVIATION FROM TEST STANDARD....................................................................... 38 4.3.5 TEST SETUP.............................................................................................................. 39 4.3.6 EUT OPERATING CONDITIONS ............................................................................... 39 4.3.7 TEST RESULTS ......................................................................................................... 40 4.4 MAXIMUM OUTPUT POWER .................................................................................... 44 4.4.1 LIMITS OF MAXIMUM OUTPUT POWER MEASUREMENT..................................... 44 4.4.2 INSTRUMENTS .......................................................................................................... 44 4.4.3 TEST PROCEDURE................................................................................................... 44 4.4.4 DEVIATION FROM TEST STANDARD....................................................................... 45 4.4.5 TEST SETUP.............................................................................................................. 45 4.4.6 EUT OPERATING CONDITIONS ............................................................................... 45 4.4.7 TEST RESULTS ......................................................................................................... 46 4.5 POWER SPECTRAL…

Text truncated - open the document above for the full version.

Report No.: RF981022L16-1 1 Report Format Version 3.0.0 FCC TEST REPORT (15.407) REPORT NO.: RF981022L16-1 MODEL NO.: WLAN-2202 (Refer to item 3.1 for more details) RECEIVED: Sep. 08, 2009 TESTED: Sep. 08 ~ Nov. 21, 2009 ISSUED: Nov. 25, 2009 APPLICANT: CAMEO COMMUNICATIONS, INC. ADDRESS: 7F., No.32, Zhongxing Rd., Xizhi City, Taipei County 221, Taiwan (R.O.C.) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 69 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF981022L16-1 2 Report Format Version 3.0.0 TABLE OF CONTENTS 1. CERTIFICATION........................................................................................................... 4 2. SUMMARY OF TEST RESULTS .................................................................................. 5 2.1 MEASUREMENT UNCERTAINTY................................................................................ 5 3. GENERAL INFORMATION ........................................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT ............................................................................. 6 3.2 DESCRIPTION OF TEST MODES ............................................................................... 8 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST .......................................................... 9 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................. 10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................ 12 3.4 DESCRIPTION OF SUPPORT UNITS ....................................................................... 12 4. TEST TYPES AND RESULTS .................................................................................... 13 4.1 RADIATED EMISSION MEASUREMENT .................................................................. 13 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................ 13 4.1.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS .............. 13 4.1.3 TEST INSTRUMENTS................................................................................................ 13 4.1.4 TEST PROCEDURES ................................................................................................ 15 4.1.5 DEVIATION FROM TEST STANDARD....................................................................... 15 4.1.6 TEST SETUP.............................................................................................................. 16 4.1.7 EUT OPERATING CONDITION.................................................................................. 16 4.1.8 TEST RESULTS ......................................................................................................... 17 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................. 26 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................... 26 4.2.2 TEST INSTRUMENTS................................................................................................ 26 4.2.3 TEST PROCEDURES ................................................................................................ 27 4.2.4 DEVIATION FROM TEST STANDARD....................................................................... 27 4.2.5 TEST SETUP.............................................................................................................. 28 4.2.6 EUT OPERATING CONDITIONS ............................................................................... 28 4.2.7 TEST RESULTS ......................................................................................................... 29 4.3 MAXIMUM CONDUCTED OUTPUT POWER MEASUREMENT ............................... 31 4.3.1 LIMITS OF MAXIMUM CONDUCTED OUTPUT POWER MEASUREMENT............. 31 4.3.2 TEST INSTRUMENTS................................................................................................ 31 4.3.3 TEST PROCEDURE................................................................................................... 32 4.3.4 DEVIATION FROM TEST STANDARD....................................................................... 32 4.3.5 TEST SETUP.............................................................................................................. 32 4.3.6 EUT OPERATING CONDITIONS ............................................................................... 32 4.3.7 TEST RESULTS ......................................................................................................... 33 4.4 PEAK POWER EXCURSION MEASUREMENT ........................................................ 37 4.4.1 LIMITS OF PEAK POWER EXCURSION MEASUREMENT...................................... 37 4.4.2 TEST INSTRUMENTS................................................................................................ 37 4.4.3 TEST PROCEDURE................................................................................................... 37 4.4.4 DEVIATION FROM TEST STANDARD....................................................................... 38 4.4.5 TEST SETUP.............................................................................................................. 38 4.4.6 EUT OPERATING CONDITIONS ............................................................................... 38 4.4.7 TEST RESULTS ..............................................................................................…

Text truncated - open the document above for the full version.

Report No.: RF981022L16-2 1 Report Format Version 3.0.1 FCC TEST REPORT (CO-LOCATED) REPORT NO.: RF981022L16-2 MODEL NO.: WLAN-2202 (Refer to item 3.1 for more details) RECEIVED: Sep. 08, 2009 TESTED: Jan. 12 ~ Jan. 13, 2010 ISSUED: Jan. 14, 2010 APPLICANT: CAMEO COMMUNICATIONS, INC. ADDRESS: 7F., No.32, Zhongxing Rd., Xizhi City, Taipei County 221, Taiwan (R.O.C.) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 44 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF981022L16-2 2 Report Format Version 3.0.1 TABLE OF CONTENTS 1. CERTIFICATION .................................................................................................... 3 2. SUMMARY OF TEST RESULTS............................................................................ 4 2.1 MEASUREMENT UNCERTAINTY ......................................................................... 4 3. GENERAL INFORMATION .................................................................................... 5 3.1 GENERAL DESCRIPTION OF EUT....................................................................... 5 3.2 DESCRIPTION OF TEST MODES......................................................................... 7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST.................................................... 8 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL......................... 9 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ...................................... 11 3.4 DESCRIPTION OF SUPPORT UNITS................................................................. 11 4. TEST TYPES AND RESULTS .............................................................................. 12 4.1 RADIATED EMISSION MEASUREMENT ............................................................ 12 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT ......................................... 12 4.1.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS........ 12 4.1.3 TEST INSTRUMENTS ......................................................................................... 13 4.1.4 TEST PROCEDURES .......................................................................................... 14 4.1.5 DEVIATION FROM TEST STANDARD ................................................................ 14 4.1.6 TEST SETUP ....................................................................................................... 15 4.1.7 EUT OPERATING CONDITIONS......................................................................... 15 4.1.8 TEST RESULTS ................................................................................................... 16 4.2 CONDUCTED EMISSION MEASUREMENT ....................................................... 22 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .................................... 22 4.2.2 TEST INSTRUMENTS ......................................................................................... 22 4.2.3 TEST PROCEDURES .......................................................................................... 23 4.2.4 DEVIATION FROM TEST STANDARD ................................................................ 23 4.2.5 TEST SETUP ....................................................................................................... 24 4.2.6 EUT OPERATING CONDITIONS......................................................................... 24 4.2.7 TEST RESULTS ................................................................................................... 25 4.3 OUTBAND EMISSION MEASUREMENT ............................................................ 29 4.3.1 TEST INSTRUMENTS ......................................................................................... 29 4.3.2 TEST PROCEDURE ............................................................................................ 29 4.3.3 DEVIATION FROM TEST STANDARD ................................................................ 29 4.3.4 TEST SETUP ....................................................................................................... 29 4.3.5 EUT OPERATING CONDITIONS......................................................................... 29 4.3.6 TEST RESULTS ................................................................................................... 30 5. PHOTOGRAPHS OF THE TEST CONFIGURATION .......................................... 42 6. INFORMATION ON THE TESTING LABORATORIES......................................... 43 7. APPENDIX A - MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB.................................................................................. 44 Report No.: RF981022L16-2 3 Report Format Version 3.0.1 1. CERTIFICATION PRODUCT: 2.4GHz/5GHz Dual Band Dual Concurrent IEEE802.11a+…

Text truncated - open the document above for the full version.
