NHPWLB1100IEEE 802..11b CardBus Adapter

Cameo Communications Inc

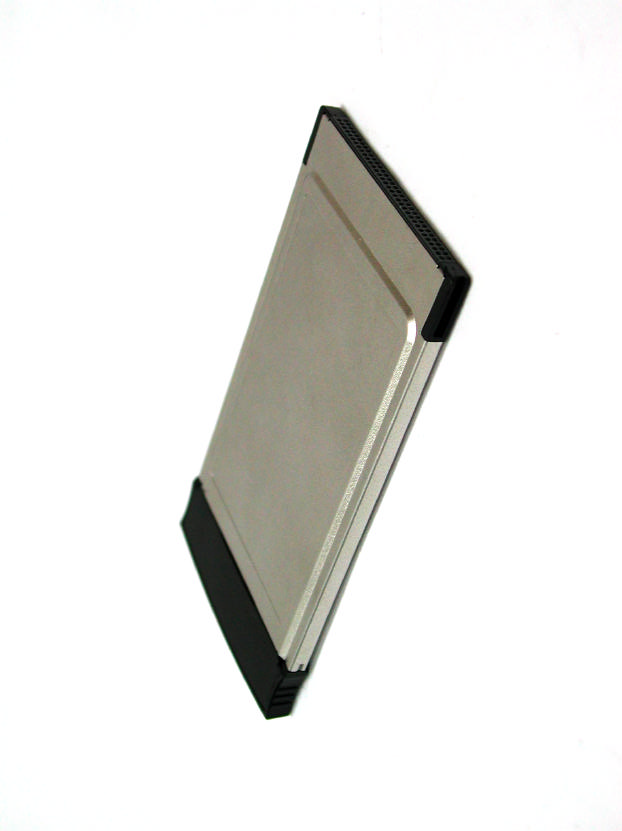

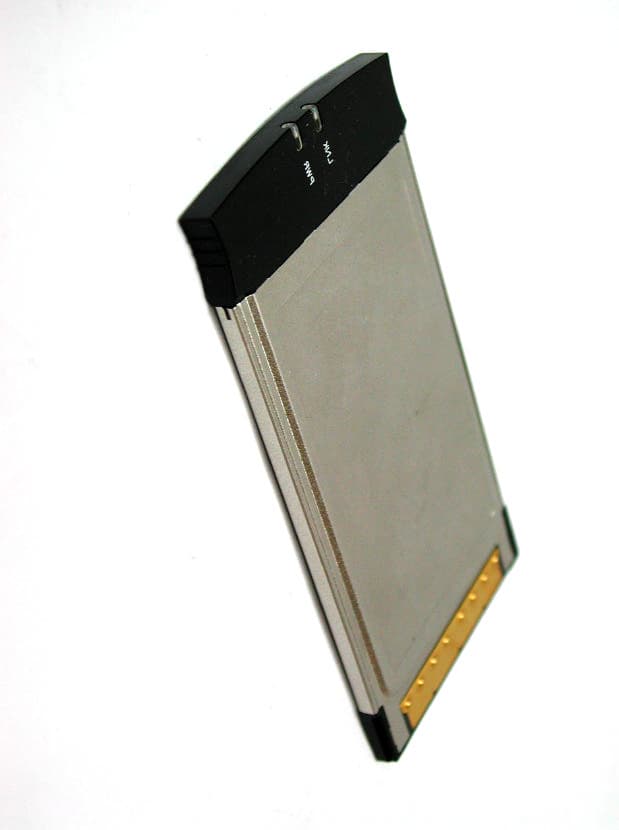

IEEE 802..11b CardBus Adapter - FCC ID NHPWLB1100 - Cameo Communications Inc
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Mar 17, 2003
Application Purpose
Original Equipment
Date of Application
Mar 17, 2003
Equipment Note
IEEE 802..11b CardBus Adapter
Frequency Range
2412.00000000 - 2462.00000000
Company
Cameo Communications Inc
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

IEEE 802.11b CardBus Adapter User’s Guide ii Regulatory notes and statements Wireless LAN, Health and Authorization for use Radio frequency electromagnetic energy is emitted from Wireless LAN devices. The energy levels of these emissions however are far much less than the electromagnetic energy emissions from wireless devices like for example mobile phones. Wireless LAN devices are safe for use frequency safety standards and recommendations. The use of Wireless LAN devices may be restricted in some situations or environments for example: ·On board of airplanes, or ·In an explosive environment, or ·In case the interference risk to other devices or services is perceived or identified as harmful In case the policy regarding the use of Wireless LAN devices in specific organizations or environments (e.g. airports, hospitals, chemical/oil/gas industrial plants, private buildings etc.) is not clear, please ask for authorization to use these devices prior to operating the equipment. Regulatory Information/disclaimers Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The Manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, of the substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. iii USA- FCC (Federal Communications Commission) statement This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference, including interference that may cause undesired operation of this device. FCC Radio Frequency Exposure statement This Wireless LAN radio device has been evaluated under FCC Bulletin OET 65C and found compliant to the requirements as set forth in CFR 47 Sections 2.1091, 2.1093, and 15.247 (b) (5) addressing RF Exposure from radio frequency devices. The radiated output power of this Wireless LAN device is far below the FCC radio frequency exposure limits. Nevertheless, this device shall be used in such a manner that the potential for human contact during normal operation is minimized. FCC RF exposure requirements: This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: iv 1. Reorient or relocate the receiving antenna. 2. Increase the distance between the equipment and the receiver. 3. Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help. Export restrictions This product or software contains encryption code that may not be exported or transferred from the US of Canada without an approved US Department of Commerce export license. Safety Statements Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: ·This device may not cause harmful interference, and ·This device must accept any interference received, including interference that may cause undesired operation. CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. v TABLE OF CONTENT Introduction.....................................................................................................1 Overview of this User’s Guide................................................................1 Unpacking and Setup.....................................................................................3 Unpacking...................................................................................................3 Setup.............................................................................................................3 Hardware Installation....................................................................................5 LED Indicator.............................................................................................5 Check the installation................................................................................5 Software Installation......................................................................................7 Windows 98/ME/2000 Driver Installation............................................7 Windows XP Driver Installation.............................................................7 Windows 98/ME/2000/XP WLAN Utility Installation.......................8 WLAN Utility Setting...............................................................................9 Technical Specifications.............................................................................17 1 INTRODUCTION Congratulations on your purchase of this IEE…

Text truncated - open the document above for the full version.

ID Label/Location Info

LABEL Position:

ID Label/Location Info

90.12.19 9500WLB11000XVV WLB-1100/X Joseph MODEL : WLB-1100/x Q'TY: S/N: 60 PCS FROM () TO CARTON OF NO. / MADE IN xxxxxx ( ) () VV , /x /A /E /F /J /S Joseph ! S/N: 1 2 . 0 0 m m 35.00 mm WLB-1100/X () "MADE IN TAIWAN" "MADE IN CHINA" ! 0470 FCC ID: NHPWLB1100 S/N: WLB-1100/X () ! 0470 FCC ID: NHPWLB1100 1 2 . 0 0 m m 40.00 mm 6 . 0 0 m m 34.00 mm 000000000000(X) MAC:

Test Report

Test Report -------------------------------------------------------------------------------- 3/37 Report No.: C5115268, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Tables of Contents I. GENERAL ......................................................................................................................... 5 1.1 Introduction .................................................................................................................. 5 1.2 Description of EUT ....................................................................................................... 5 1.3 Test method .................................................................................................................. 5 1.4 Description of Support Equipment ................................................................................. 6 1.5 Configuration of System Under Test .............................................................................. 8 1.6 Verify the Frequency and Channel ................................................................................ 10 1.7 Test Procedure ............................................................................................................ 11 1.8 Location of the Test Site ............................................................................................... 11 1.9 General Test Condition ................................................................................................. 11 II. Section 15.101(a) : Equipment Authorization of Unintentional Radiators....................... 12 III. Section 15.203 : Antenna Requirement............................................................................. 13 IV. Section 15.207 : Power Line Conducted Emissions for AC Powered Units ................... 14 4.1 Test Condition & Setup ................................................................................................ 14 4.2 List of Test Instruments ................................................................................................ 14 4.3 Test Result of Conducted Emissions ............................................................................. 15 Table 1 Conducted emissions of Channel 01 .............................................................. 15 Table 2 Conducted emissions of Channel 06 .............................................................. 16 Table 3 Conducted emissions of Channel 11 .............................................................. 16 V. Section 15.247(a) : Technical Description of the EUT..................................................... 17 VI. Section 15.247(a)(2) : Bandwidth for Direct Sequence System ..................................... 18 6.1 Test Condition & Setup ................................................................................................ 18 6.2 Test Instruments Configuration ...................................................................................... 18 6.3 List of Test Instruments ................................................................................................ 18 6.4 Test Result of Bandwidth .............................................................................................. 19 Channel 01 .................................................................................................................. 20 Channel 06 .................................................................................................................. 21 Channel 11 .................................................................................................................. 22 Test Report -------------------------------------------------------------------------------- 4/37 Report No.: C5115268, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 VII. Section 15.247(b) : Power Output .................................................................................... 23 7.1 Test Condition & Setup ................................................................................................ 23 7.2 List of Test Instruments ................................................................................................ 23 7.3 Test Result ................................................................................................................... 23 VIII. Section 15.247(c) : Spurious Emissions (Radiated) ...................................................... 24 8.1 Test Condition & Setup ................................................................................................ 24 8.2 List of Test Instruments ................................................................................................ 25 8.3 Test Result of Spurious Radiated Emissions .................................................................. 26 Table 4 Radiated emissions of Horizontal for 30MHz to 1GHz ................................. 26 Table 5 Radiated emissions of Vertical for 30MHz to 1GHz ..................................... 26 Table 6 Above 1GHz radiated emissions of Horizontal of CH1 ................................ 27 Table 7 Above 1GHz radiated emissions of Vertical of CH1 .................................... 27 Table 8 Above 1GHz radiated emissions of Horizontal of CH6 ................................ 28 Table 9 Above 1GHz radiated emissions of Vertical of CH6 .................................... 28 Table 10 Above 1GHz radiated emissions of Horizontal of CH11 .............................. 29 Table 11 Above 1GHz radiated emissions of Vertical of CH11 .................................. 29 8.4 Test Result of Bandedge................................................................................................. 30 Channel 01 .................................................................................................................. 31 Channel 11 .................................................................................................................. 32 IX. S…

Text truncated - open the document above for the full version.

Test Report

Test Report -------------------------------------------------------------------------------- 30/37 Report No.: C5115268, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 8.4 Test Result of the Bandedge If any 100 kHz bandwidth outside these frequency bands, the radio frequency power that is produced by the modulation products of the spreading sequence, the information sequence and the carrier frequency shall be either at least 20 dB below that in any 100 kHz bandwidth within the band that contains the highest level of the desired power or shall not exceed the general levels specified id 15.209(a), We perform this section by the conducted manner, the RBW is set to 100kHz and VBW>RBW. We’d made the observation up to 10 th harmonics and the criterion is all the harmonic/spurious emissions must be 20dB below the highest emission level measured. If the emissions fall in the restricted bands stated in the Part 15.205(a) must also comply with the radiated emission limits specified in Part 15.209(a). (Peak mode: RBW=VBW=1MHz. Average mode: RBW=1MHz, VBW=10Hz) The following pages show our observations referring to the channel 1 and 11 respectively. Test Condition & Setup: same as < 3.1 > Test Report -------------------------------------------------------------------------------- 31/37 Report No.: C5115268, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Channel 1 Channel 11 Test Report -------------------------------------------------------------------------------- 32/37 Report No.: C5115268, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 This is the hard copy of our bandedge measurement generated by our bandedge testing program. The pictures shown above is the bandedge of channel 1 and 11. 1. The lob right and left by the fundamental side is already 20dB below the highest emission level. 2. The emissions recorded in the restricted band is do comply with the Part 15.209(a) – as below. Radiated Emissions For Bandedge [Horizontal] Radiated Emission FCC Class B ( 3m ) Corrected Amplitude (dBμV/m) Limit (dBμV/m) Frequency (MHz) Ant. H. (m) Table ( ) Correction Factors (dB) Peak Average Peak Ave. Margin (dB) 2390.00 1.00 274 3.13 62.82 52.14 74.00 53.96 -1.82 2489.80 1.00 214 3.47 64.60 52.46 74.00 53.96 -1.50 Radiated Emissions For Bandedge [ Vertical] Radiated Emission FCC Class B ( 3m ) Corrected Amplitude (dBμV/m) Limit (dBμV/m) Frequency (MHz) Ant. H. (m) Table ( ) Correction Factors (dB) Peak Average Peak Ave. Margin (dB) 2390.00 1.00 257 3.13 57.65 48.77 74.00 53.96 -5.19 2489.80 1.00 166 3.47 59.24 48.62 74.00 53.96 -5.34 Note: Margin = Corrected - Limit.

Test Setup Photos

Test Setup Photos ------------------------------------------------------------------------- 1/3 FCC ID: NHPWLB1100 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Conducted Test Setup Placement: (Photographs) Front View of the Test Configuration Rear View of the Test Configuration Test Setup Photos ------------------------------------------------------------------------- 2/3 FCC ID: NHPWLB1100 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: (Unintentional) Front View of the Test Configuration of Unintentional Rear View of the Test Configuration of Unintentional Test Setup Photos ------------------------------------------------------------------------- 3/3 FCC ID: NHPWLB1100 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: (Intentional) Front View of the Test Configuration of Intentional Rear View of the Test Configuration of Intentional

Contact Information

Applicant

Angus Yang(Vice President)
[email protected]886-2-27908998Fax: 886-2-2791-8777

Test Firm

Training Research Co., Ltd.Jack Tsai
[email protected]886-2-26935155Fax: 886-2-26934440

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz16.00 mW
Confidentiality
Long Term
Grant Notes
Power listed is conducted. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with specific operating instructions for satisfying RF exposure compliance requirements.
