NHPWLB1200802.11b Wireless PCI Adaptor

IEEE 802.11b Wireless PCI Adapter User’s Guide USA-FCC (Federal Communications Commission) statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation 15.21 CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Prohibition of co-location This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. 15.105 Federal Communications Commission (FCC) Requirements, Part 15 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. Caution Statement of the FCC Radio Frequency Exposure This Wireless LAN radio device has been evaluated under FCC Bulletin OET 65C and found compliant to the requirements as set forth in CFR 47 Sections 2.1091, 2.1093, and 15.247(b)(4) addressing RF Exposure from radio frequency devices. The radiation output power of this Wireless LAN device is far below the FCC radio frequency exposure limits. Nevertheless, this device shall be used in such a manner that the potential for human contact during normal operation—as a mobile device but use in a body-worn way is strictly prohibit. When using this device, a certain separation distance between antenna and nearby persons has to be kept to ensure RF exposure compliance. Regulatory information / Disclaimers Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution of the connecting cables and equipment other than manufacturer specified. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. MPE Statement (Safety Information) Your device contains a low power transmitter. When device is transmitted it sends out Radio Frequency (RF) signal. Safety Information CAUTION: To maintain compliance with FCC’s RF exposure guidelines, this equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. Use on the supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. 1 INTRODUCTION Congratulations on your purchase of this IEEE 802.11b WLAN PCI Adapter. This manual helps to get familiar with the WLAN PCI Adapter. This manual contains detailed instructions in operation of this product. Please keep this manual for future reference. With a WLAN (IEEE 802.11b) PCI Adapter, a desktop computer or a station can communicate with another computer in a wireless way. Easy-to-use utilities are bundled with WLAN PCI Adapter for configuration, monitoring, and diagnosis purposes. WLAN PCI Adapter can wirelessly transmit and receive data, minimizing the need for wired connections, at a speed of up to eleven megabit per second. With WLAN PCI Adapter, you can locate your desktop PC or station wherever you want without wires and cables. WLAN PCI Adapter provides users with an access to real-time information anywhere in their organization. The mobility provides productivity and service, which are not available under wired networks. The WLAN PCI Adapter configuration is easy to change from peer-to-peer networks, suitable for a small number of users, to full infrastructure networks of thousands of users that allow roaming around a broad area. Overview of this User’s Guide Introduction. Describes the WLAN PCI Adapter. Unpacking and Setup. Helps you get started with the basic installation of the WLAN PCI Adapter. Hardware Installation. Describes the LED indicators of the Adapter. Software Installation. Tells how to setup the driver and the utility setting. Technical Specifications. Lists the technical (general, physical and environmental) specifications of the WLAN PCI Adapter. 2 UNPACKING AND SETUP This chapter provides unpacking and setup information for the WLAN PCI Adapter. Unpacking Open the box of the WLAN PCI Adapter and carefully unpack it. The box should contain the following items: u One 802…

Text truncated - open the document above for the full version.

Request for Confidentiality Federal Communications Commission Authorization and Evaluation Division Sub.: Confidentiality Request regarding application for certification of FCC ID: NHPWLB1200 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: l Schematics l Part List l Block diagram l Operational description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Jason Chang, Wireless Communication RD Dept. Manager CAMEO Communications, Inc.

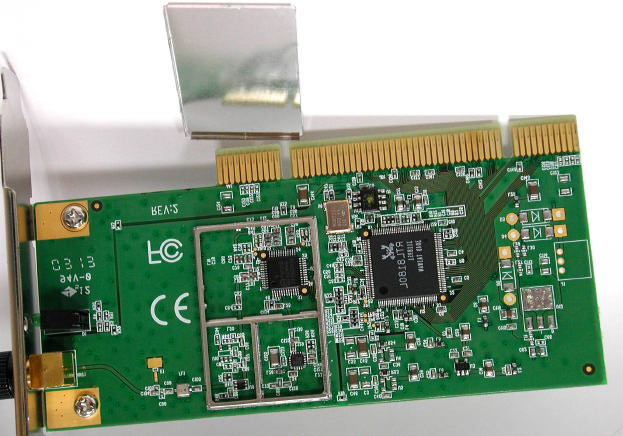

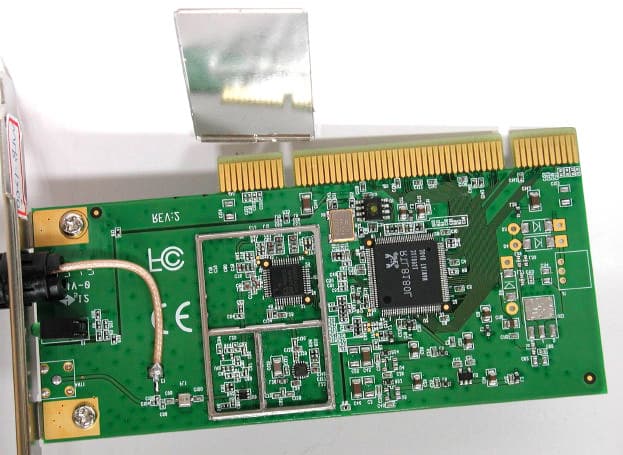

IEEE 802.11b Wireless PCI Adaptor (Undetachable) 1/4 FCC ID: NHPWLB1200 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 IEEE 802.11b Wireless PCI Adaptor (Undetachable) 2/4 FCC ID: NHPWLB1200 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 IEEE 802.11b Wireless PCI Adaptor (Detachable) 3/4 FCC ID: NHPWLB1200 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 IEEE 802.11b Wireless PCI Adaptor (Detachable) 4/4 FCC ID: NHPWLB1200 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

LABEL Location:

IEEE 802.11b Wireless PCI Adaptor (Undetachable) 1/4 FCC ID: NHPWLB1200 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 IEEE 802.11b Wireless PCI Adaptor (Undetachable) 2/4 FCC ID: NHPWLB1200 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 IEEE 802.11b Wireless PCI Adaptor (Detachable) 3/4 FCC ID: NHPWLB1200 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 IEEE 802.11b Wireless PCI Adaptor (Detachable) 4/4 FCC ID: NHPWLB1200 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

Training Research Co., Ltd. No. 255, Nan- yang Street, Shijr City, Taipei Hsien 221, Taiwan Tel: 886-2-26935155 Fax: 886-2-26934440 e-mail: [email protected] 1 of 2 TRCSince1985 ® Measurement of MPE 1. Foreword In adopt with the Human Exposure IEEE C95.1, and according to the FCC 1.1310. The Maximum Permissible Exposure (MPE) is obligated to measure in order to prove the safety of radiation harmfulness to the human body. The Gain of the antenna used is measured in an Anechoic chamber. The maximum total power to the antenna is to be recorded. By adopting the Friis Transmission Formula and the power gain of the antenna, we can find the distance right away from the product, where the limit of the MPE is. 2. Description of EUT Granted FCC ID : NHPWLB1200 Product name : IEEE 802.11b Wireless LAN PCI Adaptor Model name : WLB-1200; WLB-1201; TEW-228PI; FD1814; FD814-A; ALL0181; S21191; GW-7100PCI; DWL-510 Classification : Mobile Device (i) Under normal use condition, the antenna is at least 20cm away from the user; (ii) Warning statement for keeping 20cm separation distance and the prohibition of operating next to the person has been printed in the user’s manual Frequency Range : 2.412 GHz ~ 2.462GHz Supported Channel : 11 Channel Modulation Skill : DBPSK, DQPSK, CCK Power Type : Power by the Protocol Control Information interface of computer Training Research Co., Ltd. No. 255, Nan- yang Street, Shijr City, Taipei Hsien 221, Taiwan Tel: 886-2-26935155 Fax: 886-2-26934440 e-mail: [email protected] 2 of 2 TRCSince1985 ® 3. Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Filed Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Time |E| 2 , |H| 2 or S (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 100 6 3.0-30 1842/f 4.89/f 900/f 2 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 100 30 1.34-30 824/f 2.19/f 180/f 2 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 [The EUT is tested in transmit and receive modes and in the first, middle and the last channel separately. The following shows only our observation have the greatest emissions.] According to OET BULLETIN 56 Fourth Edition / August 1999, Equation for Predicting RF Fields: Friis Transmission Formula: 22 22 /1079.2 )20(4 514.1875.92 4 cmmW R PG S − ×= × == ππ Estimated safe separation: cm PG R 345.3 4 514.1875.92 4 = × == ππ Remarks: "The safe estimated separation that the user must maintain from the antenna is at least 3.345 cm." Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) The Numeric gain G of antenna with a gain specified in dB is determined by: G = Log -1 ( dB antenna gain / 10 ) G = Log -1 (1.8 / 10) = 1.514

Test Report-------------------------------------------------------------------------------1/48 Report No.: C5115640, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 MEASUREMENT REPORT of IEEE802.11b WirelessPCI Adapter Applicant:CAMEO COMMUNICATIONS, INC. Product Name:IEEE802.11b Wireless PCI Adapter Model Name:WLB-1200; WLB-1201; TEW-228PI; FD1814; FD1814-A; ALL0181; S21191; GW-7100PCI FCC ID:NHPWLB1200 Report No.:C5115640 Tested by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 No. 255, Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Test Report-------------------------------------------------------------------------------2/48 Report No.: C5115640, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 CERTIFICATION We here by verify that: The test data, data evaluation, test procedures and equipment configurations shown in this report were made mainly in accordance with the procedures given in ANSI C63.4 (1992) as a reference. All test were conducted by Training Research Co., Ltd., 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with the technical requirements set forth in the FCC Rules Part 15 Subpart B (Declaration of Conformity) and C Section 15.247. Applicant:CAMEO COMMUNICATIONS, INC. Applicant address:6F, No.22, Chung Shin Rd., Hsi-Chih,Taipei 221, Taiwan Product Name:IEEE802.11b Wireless PCI Adapter Model Name:WLB-1200; WLB-1201; TEW-228PI; FD1814; FD1814-A; ALL0181; S21191; GW-7100PCI FCC ID:NHPWLB1200 TestReport No.:C5115640 Test Date:May 8, 2003 Prepared by:Approved by: Jack TsaiFrank Tsai Conditions of issue : (1)This test report shall not be reproduced except in full, without written approval of TRC. And the test result contained within this report only relate to the sample submitted for testing. (2)This report must not be used by the client to claim product endorsement by NVLAP or any agency of U.S. Government. NVLAP LAB CODE: 200174-0 Test Report-------------------------------------------------------------------------------3/48 Report No.: C5115640, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Federal Communications Commission Declaration of Conformity (DoC) For the Following Equipment: Product name: IEEE802.11b Wireless PCI Adapter Model name: WLB-1200; WLB-1201; TEW-228PI; FD1814; FD1814-A; ALL0181; S21191; GW-7100PCI Trade name: CAMEO Communications, Inc. ; Trendware ; SVEC ; ALLNET ; KEY Systems Corp. Is herewith confirmed and found to comply with the requirements of CFR 47 part15 Subpart B - Unintentional Radiators regulation. The results of electromagnetic mission evaluation are shown in thereport number: C5115640 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation ManufacturerUSA local representative Company name: CAMEO COMMUNICATIONS, INC.To be determined Computer address: 6F, No.22, Chung Shin Rd., Hsi-Chih,Taipei, Taiwan ZIP / Postal code 221 Contact person: Jason Chang Title: Wireless Comm RD Dept Manager Internet e-mail address: [email protected] Tel / Fax: 886-2-26499800 / 886-2-26499984 Test Report-------------------------------------------------------------------------------4/48 Report No.: C5115640, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Tables of Contents Declaration of Conformity (DoC) ......................................................................................... 3 I.GENERAL...................................................................................................................... 6 1.1 Introduction............................................................................................................... 6 1.2 Description of EUT .................................................................................................... 6 1.3 Test method ............................................................................................................... 6 1.4 Description of Support Equipment .............................................................................. 7 1.5 Configuration of System Under Test .......................................................................... 10 1.6 Verify the Frequency and Channel ............................................................................. 12 1.7 Test Procedure ......................................................................................................... 13 1.8 Location of the Test Site ............................................................................................ 13 1.9 General Test Condition .............................................................................................. 13 II. Section 15.101(a) : Equipment Authorization of Unintentional Radiators.................... 14 III. Section 15.203 : Antenna Requirement.......................................................................... 15 IV. Section 15.207 : Power Line Conducted Emissions for AC Powered Units................ 16 4.1 Test Condition & Setup ............................................................................................. 16 4.2 List of Test Instruments ............................................................................................. 16 4.3 Test Result of Conducted Emissions .......................................................................... 17 Undetachable antenna............................................................................................... 16 Detachable antenna ..............................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos ------------------------------------------------------------------------- 1/3 FCC ID: NHPWLB1200 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Conducted Test Setup Placement: (Photographs) Front View of the Test Configuration Rear View of the Test Configuration Test Setup Photos ------------------------------------------------------------------------- 2/3 FCC ID: NHPWLB1200 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: (Unintentional) Front View of Unintentional Rear View of Unintentional Test Setup Photos ------------------------------------------------------------------------- 3/3 FCC ID: NHPWLB1200 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: (Intentional) Front View of Intentional Rear View of Intentional
