NHPWLG1200Wireless PCI Adapter

IEEE 802.11g PCI Adapter User’s Guide ii Regulatory notes and statements Wireless LAN, Health and Authorization for use Radio frequency electromagnetic energy is emitted from Wireless LAN devices. The energy levels of these emissions however are far much less than the electromagnetic energy emissions from wireless devices like for example mobile phones. Wireless LAN devices are safe for use frequency safety standards and recommendations. The use of Wireless LAN devices may be restricted in some situations or environments for example: ·On board of airplanes, or ·In an explosive environment, or ·In case the interference risk to other devices or services is perceived or identified as harmful In case the policy regarding the use of Wireless LAN devices in specific organizations or environments (e.g. airports, hospitals, chemical/oil/gas industrial plants, private buildings etc.) is not clear, please ask for authorization to use these devices prior to operating the equipment. Regulatory Information/disclaimers Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The Manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, of the substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. iii USA-FCC (Federal Communications Commission) statement This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference, including interference that may cause undesired operation of this device. FCC Radio Frequency Exposure statement This Wireless LAN radio device has been evaluated under FCC Bulletin OET 65 and found compliant to the requirements as set forth in CFR 47 Sections 2.1091, 2.1093, and 15.247 (b) (4) addressing RF Exposure from radio frequency devices. The radiated output power of this Wireless LAN device is far below the FCC radio frequency exposure limits. Nevertheless, this device shall be used in such a manner that the potential for human contact during normal operation is minimized. When nearby persons has to be kept to ensure RF exposure compliance, in order to comply with RF exposure limits established in the ANSI C95.1 standards, the distance between the antennas and the user should not be less than 20 cm. FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: iv 1. Reorient or relocate the receiving antenna. 2. Increase the distance between the equipment and the receiver. 3. Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help. Export restrictions This product or software contains encryption code that may not be exported or transferred from the US of Canada without an approved US Department of Commerce export license. Safety Information Your device contains a low power transmitter. When device is transmitted it sends out radio frequency (RF) signal. CAUTION: To maintain compliance with FCC’s RF exposure guidelines, this equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Use on the supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. The antenna(s) used for this transmitter must be installed to provide a a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. v CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. vi TABLE OF CONTENT Introduction.......................................................................................... 1 Overview of this User’s Guide......................................................... 1 Unpacking and Setup........................................................................... 3 Unpacking ........................................................................................ 3 Setup................................................................................................ 3 Hardware Installation........................................................................... 5 LED Indicator.................................................................................. 5 Check the installation....................................................................... 5 Software Installation ............................................................................ 7 Windows 98/ME/2000/XP Utility and Driver Installation............... 7 Wireless Utility Setting.................................................................... …

Text truncated - open the document above for the full version.

AmericanTCB CERTIFICATION APPLICATION CAMEO Communications, Inc. 6F, No.22, Chung Hsin Rd., Shijr, Taipei Hsien, 221 Taiwan This TESTING AND CERTIFICATION AGREEMENT ("Agreement") is made effective as of the latter date of execution below, by and between American Telecommunication Certification Body (ATCB) and CAMEO Communications, Inc. , collectively referred to as "the Parties". In consideration of the mutual covenants in this Agreement, ATCB or its subcontractors will perform certification inspection services to determine if Applicant's device(s) are in compliance with the laws, regulations and technical standards (hereinafter "Certification Regulations") of the national authorities specified by Applicant in Schedule A. 1. General 1.1 This Agreement is for the purpose of testing and certification and applies to all tests, audits, and certifications for the Devices, and will be performed in accordance with the Certification Regulations of the national authorities specified in Schedule A. 1.2 ATCB retains full discretion to determine if the Devices are compliant with the Certification Regulations of the Countries. In the event that certification is not issued for the aforementioned Devices, ATCB agrees to advise Applicant in writing of the reasons therefor. 1.3 This Agreement may not be assigned to or acquired by any other person, firm, or corporation without ATCB's written authorization. 2. Scope of Performance 2.1 The scope of performance between the Parties shall be agreed to by contract, purchase order or other mutually agreed-upon schedule or order. 2.2. ATCB may accept test data from any ISO/IEC Guide 25 accredited laboratory or FCC-Listed Laboratory and evaluate the Devices on the basis of this data. ATCB may also choose to accept test data from ISO Guide 25 accredited laboratories owned by Applicant 2.4 If requested for sample purposes (as required by the FCC), client shall supply ATCB, at no charge, with at least one test sample of each Device, including the necessary peripherals, connecting cables, accessories or other hardware or software (hereinafter collectively referred to as "support equipment") required for testing, evaluation, and assessment. 2.5 Applicant shall supply ATCB, at no charge, with all technical documentation and materials required for the testing, evaluation, and assessment of such Devices and support equipment, including pertinent test results and certificates. 2.6 Applicant recognizes that Device samples, including support equipment, may be damaged or completely destroyed when subjected to ATCB's testing and evaluation process. Applicant shall hold ATCB harmless for any such damage or destruction to its equipment. 2.7 ATCB shall evaluate, assess and test (as necessary) Applicant's equipment within 30 business days of ATCB's receipt of such Devices, support equipment and technical documentation, and to work diligently until certification is granted or denied, or Applicant decides to abandon testing, evaluation, and assessment on such Devices. 2.8 Upon completion of testing, evaluation, or assessment, ATCB shall advise Applicant via an abbreviated report whether the results are favorable, and what, if any, conditions, limitations or qualifications to the requested Certification exist. 2.9 Applicant agrees that a full report is available to Applicant only by special request, and for the separate charge specified. 2.10 Where testing, evaluation, and assessment results in certification, ATCB shall certify Applicant's equipment as compliant with the laws, regulations and/or standards of the Countries within 30 business days from the date testing, evaluation, and assessment is completed. 2.10.1 Section 2.11 may be dependent upon a timely response by the United States Federal Communications Commission (FCC) or its foreign equivalent. 2.10.2 In the event of product certification, Applicant may request that ATCB return or destroy Applicant's Device sample(s), equipment support, and technical documentation. Applicant shall bear all costs associated with the return or destruction of such equipment test sample(s) and support equipment. 2.11 Where testing, evaluation, and assessment does not result in certification, ATCB shall provide cost-free storage for each Device sample, support equipment, and technical documentation for a period not to exceed 30 days, provided Applicant agrees to re-testing within this period when notified of the Device's failure. 2.12 If Applicant does not collect or accept receipt of the Device sample(s), support equipment and technical documentation, despite ATCB having sent notice pursuant to subsection 2.12.1, ATCB reserves the right to dispose of them at Applicant's expense. 2.13 Applicant shall retain all documents forwarded to it by ATCB as required by the Certification Regulations of the Countries. 2.14 Applicant shall notify ATCB immediately of any modifications made or planned in the design or technical construction of a Device, or of any planned or implemented changes in Applicant's approved quality assurance system which may render ATCB's certification inapplicable to a Device produced. AmericanTCB CERTIFICATION APPLICATION 2.14.1 For Device modifications notified to ATCB under section 2.14, ATCB will decide in its good engineering judgment whether additional testing is required in order for the Device, as modified, to be manufactured or sold under the certification originally issued. 2.14.2 If Applicant's Device, as modified, does not comply with the Certification Regulations of the Countries, Applicant shall immediately endeavor to obtain compliance under the same Certification Regulations and shall, concurrently, remove any reference to the original certification indicating ATCB's approval or certification, from its Device, as modified. Applicant also agrees that a new certificate issued for a Device, as modified, must reference a model identifier number distinct from the one used in the certification originally issued by ATCB. 2.1…

Text truncated - open the document above for the full version.

CAMEO COMMUNICATIONS, INC. Taipei Office: 6F, No. 22, Chung Shin Rd., Hsi-Chih, Taipei 221, Taiwan, R.O.C. TEL:886-2-26499800 FAX:886-2-26499983 Letter Of Agency 2003/12/6 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Please be advised that CAMEO COMMUNICATIONS, INC. authorizes TRAINING RESEARCH CO., LTD. to act on our behalf, until otherwise notified, for applications submitted to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Signatory Jason Chang, Wireless Comm. R&D Dept. Manager CAMEO COMMUNICATIONS, INC. CAMEO COMMUNICATIONS, INC. Taipei Office: 6F, No. 22, Chung Shin Rd., Hsi-Chih, Taipei 221, Taiwan, R.O.C. TEL:886-2-26499800 FAX:886-2-26499983 Request for Confidentiality 2003/12/6 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: NHPWLG1200 Please be advised that the following information is to be held confidential and behalf of CAMEO COMMUNICATIONS, INC.: • Schematics • Part list • Block diagram • Operational description The application contains technical information which CAMEO Communications, Inc. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Signatory Jason Chang, Wireless Comm. R&D Dept. Manager CAMEO COMMUNICATIONS, INC. CAMEO COMMUNICATIONS, INC. Taipei Office: 6F, No. 22, Chung Shin Rd., Hsi-Chih, Taipei 221, Taiwan, R.O.C. TEL:886-2-26499800 FAX:886-2-26499983 Manufacturer’s Letter 2003/12/6 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: NHPWLG1200 To Whom It May Concern: Please be advised that the manufacturer will ensure that the above-referenced model will be manufactured in accordance with the FCC Rules and Regulations. Thank you for your attention to this matter. Signatory Jason Chang, Wireless Comm. R&D Dept. Manager CAMEO COMMUNICATIONS, INC.

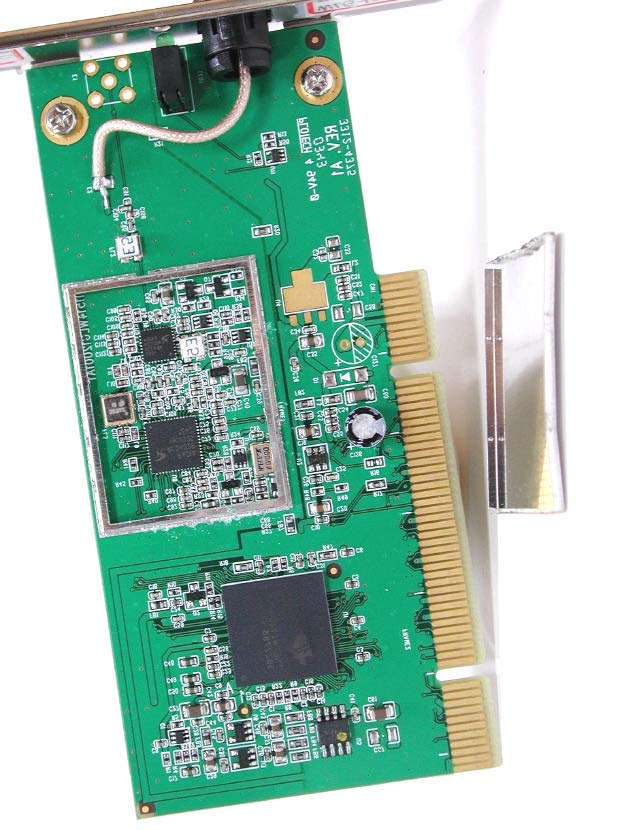

Wireless PCI Adapter (Undetachable) 1/8 FCC ID: NHPWLG1200 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Wireless PCI Adapter (Undetachable) 2/8 FCC ID: NHPWLG1200 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Wireless PCI Adapter (Undetachable) 3/8 FCC ID: NHPWLG1200 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Wireless PCI Adapter (Undetachable) 4/8 FCC ID: NHPWLG1200 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Wireless PCI Adapter (Detachable) 5/8 FCC ID: NHPWLG1200 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Wireless PCI Adapter (Detachable) 6/8 FCC ID: NHPWLG1200 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Wireless PCI Adapter (Detachable) 7/8 FCC ID: NHPWLG1200 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Wireless PCI Adapter (Detachable) 8/8 FCC ID: NHPWLG1200 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

CAMEO COMMUNICATIONS, INC. Taipei Office: 6F, No. 22, Chung Shin Rd., Hsi-Chih, Taipei 221, Taiwan, R.O.C. TEL:886-2-26499800 FAX:886-2-26499983 FCC Labeling Requirements and Information 2003/12/6 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: FCC Labeling Requirements FCC ID: NHPWLG1200 The following label information is required by the FCC Rules and Regulations for certified devices. Also attached, please find marketing information required by the FCC Rules and Regulations. Thank you for your attention to these matters. Sincerely, Jason Chang, Wireless Comm. R&D Dept. Manager CAMEO COMMUNICATIONS, INC. LABEL Format: This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation LABEL Position: Tested to Comply With FCC Standards FOR HOME OR OFFICE USE FCC ID: NHPWLG1200 92.11.03 9500WLG12000XAV WLG-1200 AV Grace Chen S/N: 12.00 mm 40.00 mm WLG-1200 () 6.00 mm 34.00 mm "MADE IN TAIWAN" "MADE IN CHINA" ! 0470 FCC ID: NHPWLG1200 000000000000(X) MAC: Grace Chen MODEL : WLG-1200 Q'TY: S/N: 40 PCS FROM () TO CARTON OF NO. / MADE IN xxxxxx () () 0470 AV , /x /A /E /J /F 92.11.03 9500WLG12010XAV WLG-1201 AV Grace Chen S/N: 12.00 mm 40.00 mm WLG-1201 () 6.00 mm 34.00 mm "MADE IN TAIWAN" "MADE IN CHINA" ! 0470 FCC ID: NHPWLG1200 000000000000(X) MAC: Grace Chen MODEL : WLG-1201 Q'TY: S/N: 40 PCS FROM () TO CARTON OF NO. / MADE IN xxxxxx () () 0470 AV , /x /A /E /J /F

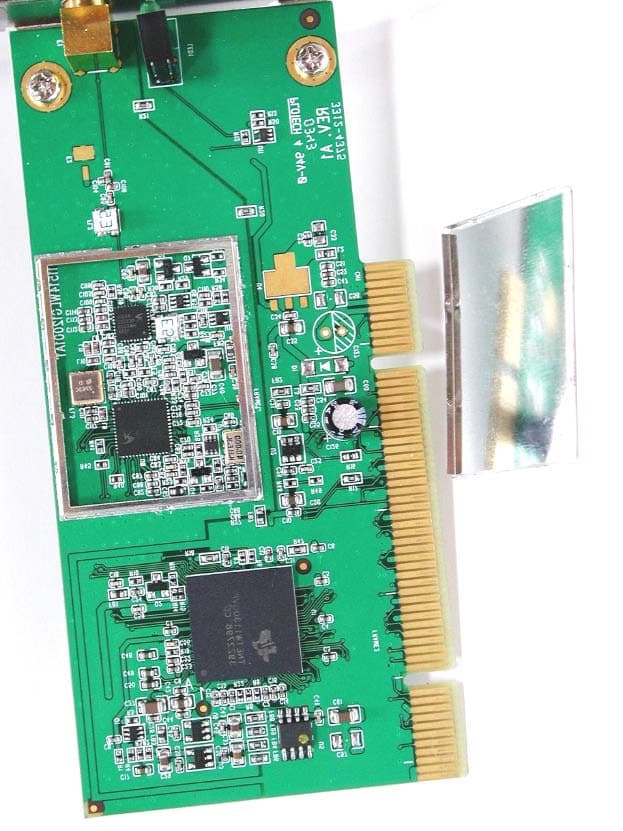

Wireless PCI Adapter (Undetachable) 1/8 FCC ID: NHPWLG1200 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Wireless PCI Adapter (Undetachable) 2/8 FCC ID: NHPWLG1200 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Wireless PCI Adapter (Undetachable) 3/8 FCC ID: NHPWLG1200 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Wireless PCI Adapter (Undetachable) 4/8 FCC ID: NHPWLG1200 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Wireless PCI Adapter (Detachable) 5/8 FCC ID: NHPWLG1200 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Wireless PCI Adapter (Detachable) 6/8 FCC ID: NHPWLG1200 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Wireless PCI Adapter (Detachable) 7/8 FCC ID: NHPWLG1200 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Wireless PCI Adapter (Detachable) 8/8 FCC ID: NHPWLG1200 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

Measurement of Maximum Permissible Exposure 1/4 FCC ID: NHPWLG1200 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Measurement of Maximum Permissible Exposure 1. Foreword In adopt with the Human Exposure IEEE C95.1, and according to the FCC 1.1310. The Maximum Permissible Exposure (MPE) is obligated to measure in order to prove the safety of radiation harmfulness to the human body. The Gain of the antenna used is measured in an anechoic chamber. The maximum total power to the antenna is to be recorded. By adopting the Friis Transmission Formula and the power gain of the antenna, we can find the distance right away from the product, where the limit of the MPE is. 2. Description of EUT Granted FCC ID : NHPWLG1200 Product name : Wireless PCI Adapter Model name : as Appendix A of Test Report Classification : Mobile Device (i) Under normal use condition, the antenna is at least 20cm away from the user; (ii) Warning statement for keeping 20cm separation distance and the prohibition of operating next to the person has been printed in the user’s manual Frequency Range : 2.412 GHz ~ 2.462GHz Supported Channel : 11 Channels Modulation Skill : DBPSK, DQPSK, CCK, OFDM Power Type : Powered by PCI interface of the client’s device Measurement of Maximum Permissible Exposure 2/4 FCC ID: NHPWLG1200 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 3. Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Filed Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Time |E| 2 , |H| 2 or S (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 100 6 3.0-30 1842/f 4.89/f 900/f 2 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 100 30 1.34-30 824/f 2.19/f 180/f 2 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 According to OET BULLETIN 56 Fourth Edition / August 1999, Equation for Predicting RF Fields: 3.1 IEEE 802.11b, Lowest CH Friis Transmission Formula: 2 22 /0189.0 )20(4 514.1661.62 4 cmmW R PG S= × == ππ Estimated safe separation: cm PG R747.2 4 514.1661.62 4 = × == ππ Remarks: "The safe estimated separation that the user must maintain from the antenna is at least 2.747cm." 3.2 IEEE 802.11b, Middle CH Friis Transmission Formula: 2 22 /0385.0 )20(4 514.1183.69 4 cmmW R PG S= × == ππ Estimated safe separation: cm PG R887.2 4 514.1183.69 4 = × == ππ Remarks: "The safe estimated separation that the user must maintain from the antenna is at least 2.887cm." Measurement of Maximum Permissible Exposure 3/4 FCC ID: NHPWLG1200 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 3.3 IEEE 802.11b, Highest CH Friis Transmission Formula: 2 22 /0203.0 )20(4 514.1453.67 4 cmmW R PG S= × == ππ Estimated safe separation: cm PG R8507.2 4 514.1453.67 4 = × == ππ Remarks: "The safe estimated separation that the user must maintain from the antenna is at least 2.851cm." 3.4 IEEE 802.11g, Lowest CH Friis Transmission Formula: 2 22 /03555.0 )20(4 514.1032.118 4 cmmW R PG S= × == ππ Estimated safe separation: cm PG R771.3 4 514.10328.118 4 = × == ππ Remarks: "The safe estimated separation that the user must maintain from the antenna is at least 3.771cm." 3.5 IEEE 802.11g, Middle CH Friis Transmission Formula: 2 22 /0385.0 )20(4 514.1938.127 4 cmmW R PG S= × == ππ Estimated safe separation: cm PG R926.3 4 514.1938.127 4 = × == ππ Remarks: "The safe estimated separation that the user must maintain from the antenna is at least 3.926cm." 3.6 IEEE 802.11g, Highest CH Friis Transmission Formula: 2 22 /03774.0 )20(4 514.1314.125 4 cmmW R PG S= × == ππ Estimated safe separation: cm PG R8856.3 4 514.1314.125 4 = × == ππ Remarks: "The safe estimated separation that the user must maintain from the antenna is at least 3.886cm." Measurement of Maximum Permissible Exposure 4/4 FCC ID: NHPWLG1200 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) The Numeric gain G of antenna with a gain specified in dB is determined by: G = Log -1 ( dB antenna gain / 10 ) G = Log -1 (1.8 / 10) = 1.514

Test Report -------------------------------------------------------------------------------1/60 Report No.: C5115391, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 MEASUREMENT REPORT of Wireless PCI Adapter Applicant:CAMEO COMMUNICATIONS, INC. Product Name:WirelessPCI Adapter Model Name:as Appendix A FCC ID:NHPWLG1200 Report No.:C5115391 Tested by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 No. 255, Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Test Report -------------------------------------------------------------------------------2/60 Report No.: C5115391, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 CERTIFICATION We here by verify that: The test data, data evaluation, test procedures and equipment configurations shown in this report were made mainly in accordance with the procedures given in ANSI C63.4 (1992) as a reference. All test were conducted by Training Research Co., Ltd., 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with the technical requirements set forth in the FCC Rules Part 15 Subpart B (Declaration of Conformity) and C Section 15.247. Applicant:CAMEO COMMUNICATIONS, INC. Applicant address:6F, No.22, Chung Shin Rd., Hsi-Chih,Taipei 221, Taiwan Product Name:WirelessPCI Adapter Model Name:as Appendix A FCC ID:NHPWLG1200 Report No.:C5115391 Test Date:November26, 2003 Prepared by:Approved by: Jack TsaiFrank Tsai Conditions of issue : (1) This test report shall not be reproduced except in full, without written approval of TRC. And the test result contained within this report only relate to the sample submitted for testing. (2) This report must not be used by the client to claim product endorsement by NVLAP or any agency of U.S. Government. NVLAP LAB CODE: 200174-0 Test Report -------------------------------------------------------------------------------3/60 Report No.: C5115391, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Federal Communications Commission Declaration of Conformity (DoC) For the Following Equipment: Product name :IEEE802.11b Wireless PCI Adapte r Model name: as Appendix A Trade name: as Appendix A Is herewith confirmed and found to comply with the requirements of CFR 47 part15 Subpart B - Unintentional Radiators regulation. The results of electromagnetic mission evaluation are shown in thereport number: C5115391 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation ManufacturerUSA local representative Company name: CAMEO COMMUNICATIONS, INC.To be determined Computer address: 6F, No.22, Chung Shin Rd., Hsi-Chih, Taipei 221, Taiwan ZIP / Postal code 221 Contact person: Jason Chang Title: Wireless Comm RD Dept Manager Internet e -mail address: [email protected] Tel / Fax: 886-2-26499800 / 886-2-26499984 Test Report -------------------------------------------------------------------------------4/60 Report No.: C5115391, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Tables of Contents I.GENERAL...................................................................................................................... 6 1.1 Introduction............................................................................................................... 6 1.2 Description of EUT .................................................................................................... 6 1.3 Description of Support Equipment .............................................................................. 6 1.4 Test method ............................................................................................................... 9 1.5 Configuration of System Under Test .......................................................................... 10 1.6 Verify the Frequency and Channel............................................................................. 12 1.7 Test Procedure ......................................................................................................... 12 1.8 Location of the Test Site ............................................................................................ 13 1.9 General Test Condition .............................................................................................. 13 II. Section 15.101(a) : Equipment Authorization of Unintentional Radiators.................... 14 III. Section 15.203 : Antenna Requirement.......................................................................... 15 IV. Section 15.207 : Power Line Conducted Emissions for AC Powered Units................ 16 4.1 Test Condition & Setup ............................................................................................. 16 4.2 List of Test Instruments ............................................................................................. 16 4.3 Test Result of Conducted Emissions .......................................................................... 17 Un-detachable antenna ................................................................................................ 17 Detachable antenna ..................................................................................................... 20 V.Section 15.247(a) : Technical Description of the EUT.................................................. 24 VI. Section 15.247(a)(2) : Bandwidth for Direct Sequence System.................................. 25 6.1 Test Condition & Setup ............................................................................................. 25 6.2 Test Instruments Configuration ................…

Text truncated - open the document above for the full version.

Test Report ------------------------------------------------------------------------------29/60 Report No.: C5115391, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 VII. Section 15.247(b): Power Output 7.1 Test Condition & Setup 1. The output of the transmitter is connected to the BOONTON RF Power Meter. 2. The calibration is performed before every tests. The values of the output power of the EUT will shown in the dBm directly are the transmitter output peak power. Recording as follows. 7.2 List of Test Instruments Instrument NameModel No.BrandSerial No.Last timeNext time RF Power Meter4532BOONTON11750104/12/0304/12/04 Peak Power Sensor57340BOONTON269804/12/0304/12/04 7.3Test Result Formula: RF Output of EUT + Cable loss = Output peak power IEEE 802.11b Channel RF Output of EUT Cable Loss Output Peak Power dBmdBmdBmmW CH 117.270.7017.9762.661 CH 617.700.7018.4069.183 CH 1117.590.7018.2967.453 IEEE802.11g Channel RF Output of EUT Cable Loss Output Peak Power dBmdBmdBmmW CH 120.020.7020.72118.032 CH 620.370.7021.0…

Text truncated - open the document above for the full version.
