NHPWLG1304802.11g WLAN mini-PCI Adapter

802.11g WLAN mini-PCI Adapter User’s Guide i Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. We declare this product is limited in CH1-CH11 for 2.4G band by specific firmware controlled by the manufacturer and is not user changeable. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. 3) For all products market in US, OEM has to limit the operation channels in CH1 to CH11 for 2.4G band by supplied firmware programming tool. And OEM shall not supply any tool or info to the end-user regarding to change the domain selection. ii As long as 3 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users (for example: AP, Router, Notebook, etc.). The final end product must be labeled in a visible area with the following: “Contains TX FCC ID: NHPWLG1304”. The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the users manual of the end product which integrate this module. The users manual for OEM integrators must include the following information in a prominent location “ IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. We declare this product is limited in CH1-CH11 for 2.4G band by specific firmware controlled by the manufacturer and is not user changeable. iii TABLE OF CONTENT Introduction.........................................................................................1 Overview of this User’s Guide........................................................1 Software Installation...........................................................................2 Windows 98se/ME/2000/XP Utility and Driver Installation.........2 Wireless Utility Setting....................................................................3 Technical Specifications..................................................................12 1 INTRODUCTION Congratulations on your purchase of this 802.11g WLAN mini-PCI Adapter. This manual helps to get familiar with the Wireless mini PCI Adapter. This manual contains detailed instructions in operation of this product. Please keep this manual for future reference. With a the 802.11g mini PCI Adapter, a desktop or laptop computer can communicate with another computer in a wireless way. Easy-to-use utilities are bundled with Wireless mini-PCI Adapter for configuration, monitoring, and diagnosis purposes. Wireless mini PCI Adapter can wirelessly transmit and receive data, minimizing the need for wired connections, at a speed of up to fifty-four megabit per second. Wireless mini PCI Adapter provides users with an access to real-time information anywhere in their organization. The mobility provides productivity and service, which are not available under wired networks. The Wireless mini PCI Adapter configuration is easy to change from peer-to-peer networks, suitable for a small nu…

Text truncated - open the document above for the full version.

FCC ID: NHPWLG1304 ADT No.950215L11 Modular Approval Request Letter Advance Data Technology Jul. 24, 2006 Dear Application Examiner, CAMEO COMMUNICATIONS, INC., It’s 802.11g WLAN mini-PCI Adapter, FCC ID: NHPWLG1304 WLG-1304BT and WLG-1304, would like to have your authorization as a limited modular approval specific to the mobile device such as Access Point. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR2413A. 3. “The modular transmitter must have its own power supply regulation. The part number of this regulator is 2SB1132. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a PCMCIA to mini-PCI extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: NHPWLG1304 ADT No.950215L11 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Gary Chang Supervisor Advance Data Technology

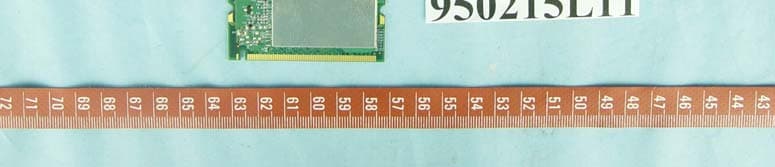

Page 1 CONSTRUCTION PHOTOS OF EUT

確認簽名 日期 產品機種產品料號 客戶名稱 申請者設計者 備註 7500WLG13041XDV WLG-1304 Eddy Chou Judy Chen 6 . 0 0 m m 34.00 mm 台灣製為"MADE IN TAIWAN" 大陸製為"MADE IN CHINA" 000000000000/# MAC: MODEL : WLG-1304/X Q'TY: S/N: 100 PCS FROM (中性序號) TO CARTON OF NO. / MADE IN xxxxxx 1 5 2 . 0 0 m m 101.00 mm ( 成品料號 ) (中性序號) S/N: WLG-1304/XWLG-1304/XWLG-1304/X (中性序號) 1 2 . 0 0 m m 40.00 mm CAMEO 95.3.16 AV:版本 X:規格 #為半成品規格 A規印 /FCC E規印 / ETSI N規印 / FCC FCC ID:NHPWLG1304 "See Caution in Manual"

Page 2 Page 3 Page 4 Page 5

FCC ID: NHPWLG1304 Report No.: RF950215L11 Operational Description The transmitter of the EUT (802.11g WLAN mini-PCI Adapter) is powered from host equipment. The antenna type used in this product is Monopole antenna with UFL-R- SMT antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. This device is a 802.11g WLAN mini-PCI Adapter, which operates in 2.4GHz bands and can’t transmitting simultaneously, the maximum data rate could be 54Mbps. For more detailed instruction, please take a look at the user’s manual.

FCC ID: NHPWLG1304 Report No: SA950215L11 1 RF EXPOSURE REPORT REPORT NO.: SA950215L11 MODEL NO.: WLG-1304 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: CAMEO COMMUNICATIONS, INC. ADDRESS: 5F, No. 42, Sec. 6, Mincyuan E. Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: NHPWLG1304 Report No: SA950215L11 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: NHPWLG1304 Report No: SA950215L11 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: NHPWLG1304 Report No: SA950215L11 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 2dBi or 1.5849 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: 802.11b DSSS modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241260.1170.0191.0 6243759.5660.0191.0 11246259.7040.0191.0 802.11g OFDM modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241236.2240.0111.0 6243735.9750.0111.0 11246236.1410.0111.0

Report No.: RF950215L111Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950215L11 MODEL NO.: WLG-1304 (refer to page 6 for other models) RECEIVED: Feb. 16, 2006 TESTED: Feb. 18 ~ Jun. 29, 2006 ISSUED: Jul. 03, 2006 APPLICANT: CAMEO COMMUNICATIONS, INC. ADDRESS: 5F, No.42, Sec. 6, Mincyuan E. Rd., Neihu District, Taipei City 114, Taiwan ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No.47, 14 th Ling, Chia Pau Tsuen, Linko Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 61 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF950215L112Report Format Version 2.0.4 Table of Contents 1CERTIFICATION........................................................................................................4 2SUMMARY OF TEST RESULTS................................................................................5 2.1MEASUREMENT UNCERTAINTY..............................................................................5 3GENERAL INFORMATION.........................................................................................6 3.1GENERAL DESCRIPTION OF EUT...........................................................................6 3.2DESCRIPTION OF TEST MODES.............................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST.........................................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..............................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...........................................10 3.4DESCRIPTION OF SUPPORT UNITS.....................................................................10 4TEST TYPES AND RESULTS..................................................................................11 4.1CONDUCTED EMISSION MEASUREMENT............................................................11 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT..........................................11 4.1.2TEST INSTRUMENTS..............................................................................................11 4.1.3TEST PROCEDURES..............................................................................................12 4.1.4DEVIATION FROM TEST STANDARD.....................................................................12 4.1.5TEST SETUP...........................................................................................................13 4.1.6EUT OPERATING CONDITIONS.............................................................................13 4.1.7TEST RESULTS.......................................................................................................14 4.2RADIATED EMISSION MEASUREMENT.................................................................20 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT...............................................20 4.2.2TEST INSTRUMENTS..............................................................................................21 4.2.3TEST PROCEDURES..............................................................................................22 4.2.4DEVIATION FROM TEST STANDARD.....................................................................22 4.2.5TEST SETUP...........................................................................................................23 4.2.6EUT OPERATING CONDITIONS.............................................................................23 4.2.7TEST RESULTS.......................................................................................................24 4.36dB BANDWIDTH MEASUREMENT........................................................................31 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT......................................................31 4.3.2TEST INSTRUMENTS..............................................................................................31 4.3.3TEST PROCEDURE.................................................................................................32 4.3.4DEVIATION FROM TEST STANDARD.....................................................................32 4.3.5TEST SETUP...........................................................................................................32 4.3.6EUT OPERATING CONDITIONS.............................................................................32 Report No.: RF950215L113Report Format Version 2.0.4 4.3.7TEST RESULTS.......................................................................................................33 4.4MAXIMUM PEAK OUTPUT POWER........................................................................39 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.........................39 4.4.2TEST INSTRUMENTS..............................................................................................39 4.4.3TEST PROCEDURES..............................................................................................40 4.4.4DEVIATION FROM TEST STANDARD.....................................................................40 4.4.5TEST SETUP...........................................................................................................40 4.4.6EUT OPERATING CONDITIONS.............................................................................40 4.4.7TEST RESULTS.......................................................................................................41 4.5POWER SPECTRAL DENSITY MEASUREMENT....................................................42 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT..................................42 4.5.2TEST I…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 3 RADIATED EMISSION TEST 4
