NHPWLG1500C802.11g WLAN USB Adapter

IEEE 802.11g Pen Size Wireless USB 2.0 Adapter User’s Guide i Regulatory notes and statements Wireless LAN, Health and Authorization for use Radio frequency electromagnetic energy is emitted from Wireless LAN devices. The energy levels of these emissions however are far much less than the electromagnetic energy emissions from wireless devices like for example mobile phones. Wireless LAN devices are safe for use frequency safety standards and recommendations. The use of Wireless LAN devices may be restricted in some situations or environments for example: ·On board of airplanes, or ·In an explosive environment, or ·In case the interference risk to other devices or services is perceived or identified as harmful In case the policy regarding the use of Wireless LAN devices in specific organizations or environments (e.g. airports, hospitals, chemical/oil/gas industrial plants, private buildings etc.) is not clear, please ask for authorization to use these devices prior to operating the equipment. Regulatory Information/disclaimers Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The Manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, of the substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by ii turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC RF exposure compliance requirements, please follow operation instruction as documented in this manual. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. SAR compliance has been established in typical laptop computer(s) with USB slot, and product could be used in typical laptop computer with USB slot. Other application like handheld PC or similar device has not been verified and may not compliance with related RF exposure rule and such use shall be prohibited. The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. iii Industry Canada statement: This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with IC RF exposure compliance requirements, please follow operation instruction as documented in this manual. The Class [B] digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulation. Cet appareil numerique de la class [B] respecte toutes les exigences du Reglement sur le materiel brouilleur du Canada. Protection requirements for electromagnetic compatibility – Article 3.1b Testing for electromagnetic compatibility according to EN 301 489-1, EN 301 489- 17 and EN 55024 has been conducted. These are considered relevant and sufficient. Effective use of the radio spectrum – Article 3.2 Testing for radio test suites according to EN 300 328-2 has been conducted. These are considered relevant and sufficient. CE in which Countries where the product may be used freely: Germany, UK, Italy, Spain, Belgium, Netherlands, Portugal, Greece, Ireland, Denmark, Luxembourg, Austria, Finland, Sweden, Norway and Iceland. France: except the channel 10 through 13, law prohibits the use of other channels. HW.32 V2.00 iv TABLE OF CONTENT Introduction....................…

Text truncated - open the document above for the full version.

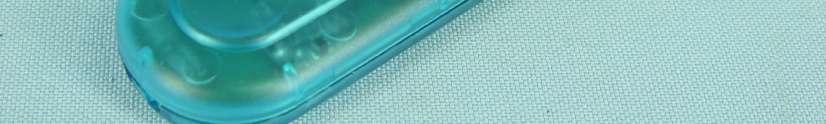

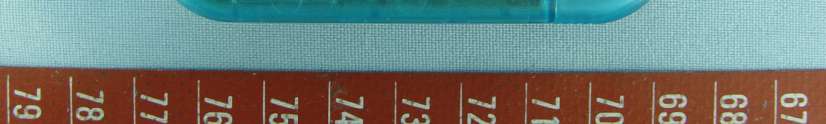

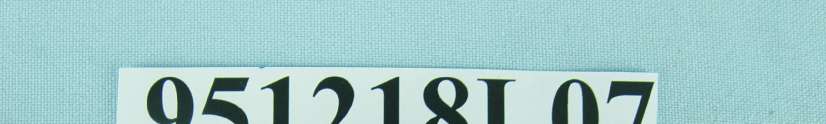

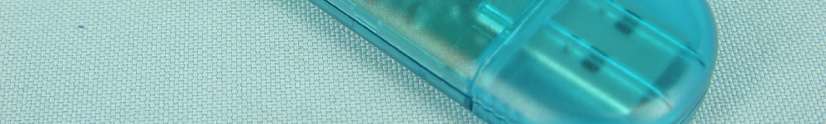

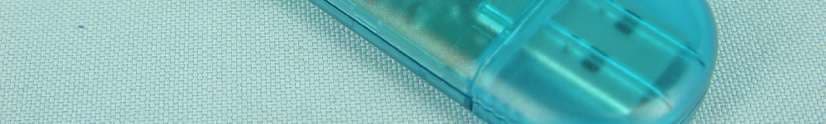

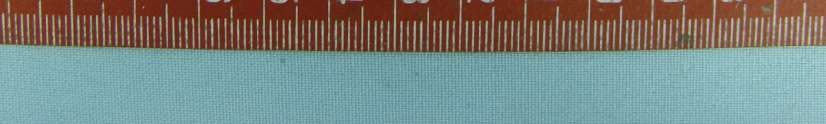

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

7500WLG15000UCV WLG-1500 CV Amanda Chien Judy Chen MODEL : WLG-1500 Q'TY: S/N: 40 PCS FROM () TO CARTON OF NO. / MADE IN xxxxxx ( ) () 0560 5 . 0 0 m m 28.00 mm MACXXXXXXXXXXXX 1 3 . 0 0 m m 30.00 mm FCC ID: NHPWLG1500C WLG-1500 S/N: () 0560 "See Caution in Manual" WLG-1500 S/N: () FCC ID: NHPWLG1500C 2 5 . 0 0 m m 51.00 mm 0560 "See Caution in Manual" IEEE 802.11g Pen Size Wireless USB 2.0 Adapter "MADE IN TAIWAN" "MADE IN CHINA" Made in XXXXXX CAMEO 96.1.9 Rev.CV

FCC ID .: NHPWLG1500C Label Location

Page 3 Page 4 Page 5

FCC ID: NHPWLG1500C Report No. RF951218L07 Operational Description This device is a 802.11g WLAN USB Adapter in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna is Printed antenna without connector. The other instruction, please have a look at the users manual.

Report no.: SA951218L07 1 Report Format Version 2.0.5 SAR TEST REPORT REPORT NO.: SA951218L07 MODEL NO.: WLG-1500 (refer to item 2.1 for more details) RECEIVED: Dec. 18, 2006 TESTED: Dec. 26, 2006 ISSUED: Dec. 29, 2006 APPLICANT: CAMEO COMMUNICATIONS, INC. ADDRESS: 5F, No. 42, Sec. 6, Mincyuan E. Rd., Neihu District, Taipei City 114, Taiwan ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 37 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report no.: SA951218L07 2 Report Format Version 2.0.5 TABLE OF CONTENTS 1. CERTIFICATION..................................................................................................................3 2. GENERAL INFORMATION...................................................................................................4 2.1 GENERAL DESCRIPTION OF EUT......................................................................................4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS........................................................6 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM..............................................................6 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION...............................9 3. DESCRIPTION OF SUPPORT UNITS................................................................................13 4. DESCRIPTION OF TEST MODES AND CONFIGURATIONS..............................................14 4.1. DESCRIPTION OF ANTENNA LOCATION..........................................................................14 4.2. DESCRIPTION OF ASSESSMENT POSITION...................................................................15 4.3. DESCRIPTION OF TEST MODE........................................................................................15 4.4. SUMMARY OF TEST RESULTS.........................................................................................16 5. TEST RESULTS.................................................................................................................17 5.1 TEST PROCEDURES.........................................................................................................17 5.2 MEASURED SAR RESULTS..............................................................................................19 5.3 SAR LIMITS........................................................................................................................21 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS.................................................................22 5.5 TEST EQUIPMENT FOR TISSUE PROPERTY...................................................................24 6. SYSTEM VALIDATION.......................................................................................................25 6.1 TEST EQUIPMENT............................................................................................................25 6.2 TEST PROCEDURE...........................................................................................................26 6.3 VALIDATION RESULTS......................................................................................................28 6.4 SYSTEM VALIDATION UNCERTAINTIES...........................................................................29 7. MEASUREMENT SAR PROCEDURE UNCERTAINTIES....................................................30 7.1. PROBE CALIBRATION UNCERTAINTY.............................................................................30 7.2. ISOTROPY UNCERTAINTY...............................................................................................31 7.3. BOUNDARY EFFECT UNCERTAINTY...............................................................................31 7.4. PROBE LINEARITY UNCERTAINTY..................................................................................32 7.5. READOUT ELECTRONICS UNCERTAINTY.......................................................................32 7.6. RESPONSE TIME UNCERTAINTY.....................................................................................32 7.7. INTEGRATION TIME UNCERTAINTY................................................................................33 7.8. PROBE POSITIONER MECHANICAL TOLERANCE..........................................................34 7.9. PROBE POSITIONING.......................................................................................................34 7.10. PHANTOM UNCERTAINTY................................................................................................35 7.11. DASY4 UNCERTAINTY BUDGET......................................................................................36 8. INFORMATION ON THE TESTING LABORATORIES.........................................................37 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION Report no.: SA951218L07 3 Report Format Version 2.0.5 1. CERTIFICATION PRODUCT: IEEE 802.11g Pen Size Wireless USB 2.0 Adapter MODEL: WLG-1500 (refer to item 2.1 for more details) BRAND: CAMEO (refer to item 2.1 for more details) APPLICANT: CAMEO COMMUNICATIONS, INC. TESTED: Dec. 26, 2006 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1093) FCC OET Bulletin 65, Supplement C (01-01) RSS-102 IEEE 1528-2003 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, da…

Text truncated - open the document above for the full version.

A - 1 APPENDIX A: TEST DATA Liquid Level Photo MSL 2450MHz D=155mm A - 2 Date/Time: 2006/12/26 11:40:09 Test Laboratory: Advance Data Technology N800C-11b-Ch1-Mode 1 DUT: 802.11g WLAN USB Adapter ; Type: WLG-1500 ; Test Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: DBPSK Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.96 mho/m; ε r = 50.8; ρ = 1000 kg/m 3 ; Liquid level : 155 mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 22.6 degrees ; Liquid temp. : 21.5 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2006/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2006/3/15 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.7 Build 44 ; Postprocessing SW: SEMCAD, V1.8 Build 171 Low Channel 1/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.161 mW/g Low Channel 1/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.2 V/m Peak SAR (extrapolated) = 0.296 W/kg SAR(1 g) = 0.142 mW/g; SAR(10 g) = 0.070 mW/g Maximum value of SAR (measured) = 0.160 mW/g A - 3 Date/Time: 2006/12/26 12:00:30 Test Laboratory: Advance Data Technology N800C-11b-Ch6-Mode 1 DUT: 802.11g WLAN USB Adapter ; Type: WLG-1500 ; Test Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: DBPSK Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 1.99 mho/m; ε r = 50.7; ρ = 1000 kg/m 3 ; Liquid level : 155 mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 22.6 degrees ; Liquid temp. : 21.5 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2006/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2006/3/15 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.7 Build 44 ; Postprocessing SW: SEMCAD, V1.8 Build 171 Mid Channel 6/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.199 mW/g Mid Channel 6/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.0 V/m Peak SAR (extrapolated) = 0.453 W/kg SAR(1 g) = 0.200 mW/g; SAR(10 g) = 0.090 mW/g Maximum value of SAR (measured) = 0.215 mW/g A - 4 A - 5 Date/Time: 2006/12/26 12:20:56 Test Laboratory: Advance Data Technology N800C-11b-Ch11-Mode 1 DUT: 802.11g WLAN USB Adapter ; Type: WLG-1500 ; Test Frequency: 2462 MHz Communication System: 802.11b ; Frequency: 2462 MHz ; Duty Cycle: 1:1 ; Modulation type: DBPSK Medium: MSL2450 Medium parameters used: f = 2462 MHz; σ = 2.03 mho/m; ε r = 50.6; ρ = 1000 kg/m 3 ; Liquid level : 155 mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 22.6 degrees ; Liquid temp. : 21.5 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2006/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2006/3/15 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.7 Build 44 ; Postprocessing SW: SEMCAD, V1.8 Build 171 High Channel 11/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.126 mW/g High Channel 11/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.24 V/m Peak SAR (extrapolated) = 0.285 W/kg SAR(1 g) = 0.129 mW/g; SAR(10 g) = 0.055 mW/g Maximum value of SAR (measured) = 0.150 mW/g A - 6 Date/Time: 2006/12/26 13:03:48 Test Laboratory: Advance Data Technology N800C-11g-Ch1-Mode 2 DUT: 802.11g WLAN USB Adapter ; Type: WLG-1500 ; Test Frequency: 2412 MHz Communication System: 802.11g ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: BPSK Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.96 mho/m; ε r = 50.8; ρ = 1000 kg/m 3 ; Liquid level : 155 mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 22.6 degrees ; Liquid temp. : 21.5 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2006/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2006/3/15 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.7 Build 44 ; Postprocessing SW: SEMCAD, V1.8 Build 171 Low Channel 1/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.086 mW/g Low Channel 1/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.16 V/m Peak SAR (extrapolated) = 0.473 W/kg SAR(1 g) = 0.115 mW/g; SAR(10 g) = 0.039 mW/g Maximum value of SAR (measured) = 0.099 mW/g A - 7 Date/Time: 2006/12/26 13:19:13 Test Laboratory: Advance Data Technology N800C-11g-Ch6-Mode 2 DUT: 802.11g WLAN USB Adapter ; Type: WLG-1500 ; Test Frequency: 2437 MHz Communication System: 802.11g ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: BPSK Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 1.99 mho/m; ε r = 50.7; ρ = 1000 kg/m 3 ; Liquid level : 155 mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 22.6 degrees ; Liquid temp. : 21.5 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2006/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2006/3/15 - Phantom: SAM 12 ; Type: SAM V4.0 ; Seria…

Text truncated - open the document above for the full version.

B - 1 APPENDIX B: ADT SAR MEASUREMENT SYSTEM C - 1 APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM D2: DOSIMETRIC E-FIELD PROBE D3: DAE D4: SYSTEM VALIDATION DIPOLE

Report No.: RF951218L07 1 Report Format Version 2.0.5 FCC TEST REPORT REPORT NO.:RF951218L07 MODEL NO.: WLG-1500 (refer to item 3.1 for more details) RECEIVED:Dec. 18, 2006 TESTED:Dec. 19 ~ Dec. 22, 2006 ISSUED:Dec. 25, 2006 APPLICANT : CAMEO COMMUNICATIONS, INC. ADDRESS : 5F, No. 42, Sec. 6, Mincyuan E. Rd., Neihu District, Taipei City 114, Taiwan ISSUED BY : Advance Data Technology Corporation LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION : No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 57 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF951218L07 2 Report Format Version 2.0.5 Table of Contents 1 CERTIFICATION......................................................................................................................... 4 2 SUMMARY OF TEST RESULTS ................................................................................................ 5 2.1 MEASUREMENT UNCERTAINTY ............................................................................................. 5 3 GENERAL INFORMATION......................................................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT........................................................................................... 6 3.2 DESCRIPTION OF TEST MODES............................................................................................. 7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ........................................................................ 7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................................ 8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS .......................................................... 10 3.4 DESCRIPTION OF SUPPORT UNITS ..................................................................................... 10 4 TEST TYPES AND RESULTS ...................................................................................................11 4.1 CONDUCTED EMISSION MEASUREMENT ............................................................................11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .........................................................11 4.1.2 TEST INSTRUMENTS...............................................................................................................11 4.1.3 TEST PROCEDURES .............................................................................................................. 12 4.1.4 DEVIATION FROM TEST STANDARD .................................................................................... 12 4.1.5 TEST SETUP............................................................................................................................ 13 4.1.6 EUT OPERATING CONDITIONS ............................................................................................. 13 4.1.7 TEST RESULTS ....................................................................................................................... 14 4.2 RADIATED EMISSION MEASUREMENT ................................................................................ 20 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ............................................................. 20 4.2.2 TEST INSTRUMENTS.............................................................................................................. 21 4.2.3 TEST PROCEDURES .............................................................................................................. 22 4.2.4 DEVIATION FROM TEST STANDARD .................................................................................... 22 4.2.5 TEST SETUP............................................................................................................................ 23 4.2.6 EUT OPERATING CONDITIONS ............................................................................................. 23 4.2.7 TEST RESULTS ....................................................................................................................... 24 4.3 6dB BANDWIDTH MEASUREMENT ....................................................................................... 32 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT..................................................................... 32 4.3.2 TEST INSTRUMENTS.............................................................................................................. 32 4.3.3 TEST PROCEDURE................................................................................................................. 32 4.3.4 DEVIATION FROM TEST STANDARD .................................................................................... 32 4.3.5 TEST SETUP............................................................................................................................ 33 4.3.6 EUT OPERATING CONDITIONS ............................................................................................. 33 4.3.7 TEST RESULTS ....................................................................................................................... 34 4.4 MAXIMUM PEAK OUTPUT POWER ....................................................................................... 38 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ....................................... 38 4.4.2 TEST INSTRUMENTS.............................................................................................................. 38 4.4.3 TEST PROCEDURES ............................................................................................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
