NHPWLG2009802.11g Wireless LAN Access Point

802.11g Wireless LAN Access Point USER MANUAL Contents 1. Overview..............................................................................................1 1.1 Product Feature..........................................................................................1 1.2 System Requirements...............................................................................1 2. Getting Start with Access Point...........................................................2 2.1 Know the 54Mbps Wireless Network Access Point..............................2 2.2 Connect to the 54Mbps Wireless Network Access Point.....................2 2.3 Quick Setup with Wizard...........................................................................3 2.3.1 Access the Setting Menu...................................................................3 2.3.2 Setup with Wizard...............................................................................5 3. Configuration Access Point through WEB Browser............................8 3.1 Status............................................................................................................8 3.2 Basic Setting.............................................................................................10 3.3 IP Setting...................................................................................................12 3.5 Security.......................................................................................................15 3.6 Tools...........................................................................................................16 4. Configuration through AP Utility........................................................18 4.1 Link Information........................................................................................18 4.2 AP Setting..................................................................................................19 4.3 IP Setting....................................................................................................21 4.4 WEP Setting..............................................................................................22 5. Glossary............................................................................................24 1 1. Overview 1.1 Product Feature ? Compliance with IEEE 802.11g and 802.11b standards ? Highly efficient design mechanism to provide unbeatable performance ? Achieving data rate up to 54Mbps for 802.11g and 11Mps for 802.11b with wide range coverage ? Strong network security with WEP encryption and WPA-PSK. ? Quick and easy setup with Web-based management utility. 1.2 System Requirements ? Windows 98SE, Millennium Edition (ME), 2000 and XP operating systems ? Microsoft Internet Explorer 5.5 or higher ? One CD-ROM drive ? At least one RJ-45 Ethernet network adapter installed. 2 2. Getting Start with Access Point 2.1 Know the 54Mbps Wireless Network Access Point Ports: ? Power Receptor ? Reset Button ? RJ-45 Ethernet Port Straight through cable is required to connect with router or switch Cross-over cable is required to connect to computer directly LEDs: ? Power LED: ON when the unit is powered up ? LAN LED: ON indicates LAN connection; BLINK indicates LAN activity ? WLAN LED: ON indicates WLAN is working; BLINK indicates wireless activity. 2.2 Connect to the 54Mbps Wireless Network Access Point Build the Infrastructure Mode 3 In order to setup an Infrastructure of a wireless network such as the example shown above, user will need the following: 1. A broadband Internet connection. 2. ADSL or Cable modem provided by ISP as part of the broadband connection installation. 3. A Router that connects to the ADSL/Cable modem for Internet connection sharing. 4. An Access Point to connect with the Router to form a wireless infrastructure network. 5. Wireless clients equipped with wireless networking devices such as wireless PC Card for wireless connection. 2.3 Quick Setup with Wizard 2.3.1 Access the Setting Menu User could start to access the configuration menu anytime by opening a web browser window and typing the IP address of this access point. The default IP is 192.168.1.1. The below window will popup. Please enter the user name and password. Both of the default is “admin”. 4 Now, the main menu screen is popup. 5 2.3.2 Setup with Wizard Setup wizard is provided as the part of the web configuration utility. User can simply follow the step-by-step process to get Access Point configuration ready to run in 4 easy steps by clicking on the “Wizard” button on the function menu. The following screen will appear. Please click “Next” to continue. Step 1: Set Password User can change the password and then click “Next” to continue. 6 Step2: Set WLAN Connection Please type the name of SSID and select the channel. Then, click “Next” to continue. Step 3: Set WEP Encryption If user wants to enable WEP, please click “Enabled”. Then, select the key size of WEP encryption and enter the key value in the key text box. Please click “Next” to continue. 7 Step 4: Restart The Setup wizard is now completed. The new settings will be effective after the Access Point restarted. Please click “Restart” to reboot the Access Point. If user does not want to make any changes, please click “exit” to quit without any changes. User also can go back to modify the setting by clicking “back”. 8 3. Configuration Access Point through WEB Browser 3.1 Status This page as below shows the following information. Firmware Version: Shows the current firmware version. LAN: Shows the Mac address, IP address (default: 192.168.1.1), Subnet Mask, Gateway Address. The current LAN traffic calculated in terms of number of packets sent and received by AP through wired connection is also displayed. Wireless: Shows the Mac address, current ESSID, the status of Encryption Function (Enable or Disable), the current using channel. The current wireless traffic calculated in terms of number of packets sent and received by AP through wireless comm…

Text truncated - open the document above for the full version.

-----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Wednesday, November 09, 2005 1:46 AM To: steve.cheng Subject: 回信: RE: FW: TCB Review Comments for (A05-1017a- NHPWLG2009,940823L24-Cameo 11g AP Dear Steve About the Channel description in manual, our meaning is as below: When you get the sample which domain is FCC that you could choose the channel in 1~11. When you get the sample which domain is ETSI that you could choose the channel in 1~13. When you get the sample which domain is MKK that you could choose the channel in 1~14. We don't provide the function for customers to choose different domain by themselves. If you still have any problem, pls feel free to let me know. Thanks for your assistance! Best Regards Wendy Liao Wendy Liao (廖意紋)/ ADT Corp. TEL: 03-318-3232 EXT 1625 FAX: 03-318-5050 Email: [email protected] 地址:桃園縣龜山鄉文化村華亞二路１９號 "steve.cheng" <steve.cheng@nacs emc.com> 收 件人 [email protected] 2005/11/09 下午 副本抄 送 04:42 [email protected] 主旨 RE: FW: TCB Review Comments for (A05-1017a- NHPWLG2009,940823L24-Cameo 11g AP Dear Wendy, The manual Page 12 show following info: Channel: The channel that AP will operate in. User can select the channel range from 1 to 11 for North America (FCC) domain, 1 to 13 for European (ETSI) domain and 1 to 14 for Japanese domain. Please confirm if there is any utility or function that end-user can use to select the different domain. Best regards, Steve Cheng 24889 Ferguson Ave.. Maple Ridge, Canada V2W 1H4 Tel: (604) 466-5978 Email: [email protected]

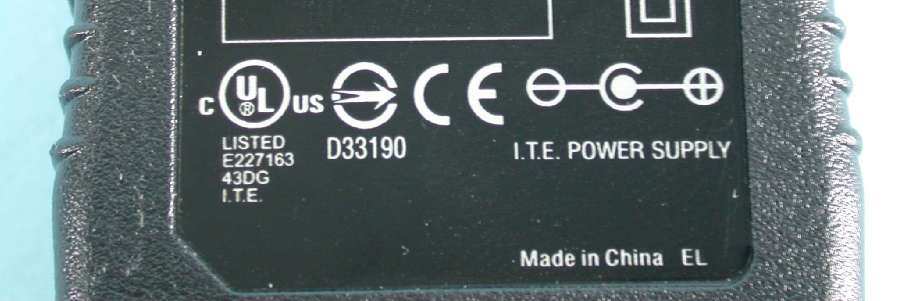

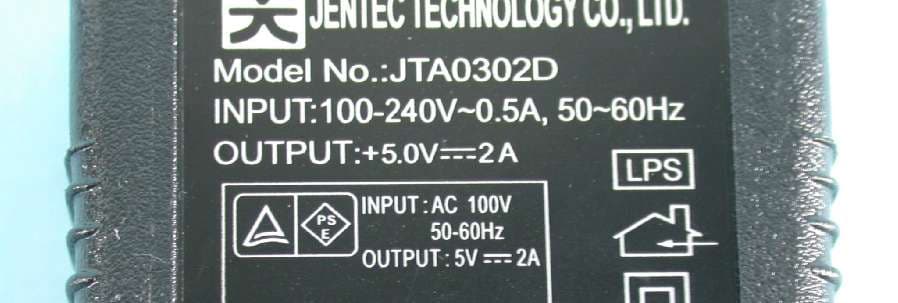

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6

Page 1

MADE IN TAIWAN This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference and (2)this device must accept any interference received, including interference that may cause undesired operation. 0560 FCC ID: NHPWLG2009 () WLG-2009 MAC: XXXXXXXXXXXX

Page 7 Page 8 Page 9 Page 10 Page 11 Page 12

FCC ID: NHPWLG2009 Report No.RF930209R02B Operational Description This device is a 802.11g Wireless LAN Access Point which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by AC adapters and connected with managing computer through RJ45 port. The antenna is Dipole & PIFA antenna with Reverse SMA antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual.

FCC ID: NHPWLG2009 Report No: SA930209R02B 1 RF EXPOSURE REPORT REPORT NO.: SA930209R02B MODEL NO.: WLG-2009, ALL0265 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: CAMEO COMMUNICATIONS, INC. ADDRESS: 5F, No. 42, Sec. 6, Mincyuan E. Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: NHPWLG2009 Report No: SA930209R02B 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: NHPWLG2009 Report No: SA930209R02B 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warming statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. FCC ID: NHPWLG2009 Report No: SA930209R02B 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 2dBi or 1.584 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 2.4GHz band: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241241.9760.0131.0 6243747.2060.0151.0 11246242.4620.0131.0 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241236.0580.0111.0 6243736.6440.0121.0 11246234.5940.0111.0

FCC ID: NHPWLG2009 Report No.: RF930209R02B1Report Format Version 2.0.3 Reference No.: 940823L24 FCC TEST REPORT REPORT NO.: RF930209R02B MODEL NO.: WLG-2009 (refer to page 6 for other model) RECEIVED: NA TESTED: Feb. 06 ~ Feb. 27, 2004 ISSUED: Sep. 09, 2005 APPLICANT: CAMEO COMMUNICATIONS, INC. ADDRESS: 5F, No. 42, Sec. 6, Mincyuan E. Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 68 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 0528 ILAC MRA FCC ID: NHPWLG2009 Report No.: RF930209R02B2Report Format Version 2.0.3 Reference No.: 940823L24 Table of Contents 1CERTIFICATION .......................................................................................................4 2SUMMARY OF TEST RESULTS ...............................................................................5 2.1MEASUREMENT UNCERTAINTY.............................................................................5 3GENERAL INFORMATION........................................................................................6 3.1GENERAL DESCRIPTION OF EUT ..........................................................................6 3.2DESCRIPTION OF TEST MODES ............................................................................7 3.2.1CONFIGURATION OF SYSTEM UNDER TEST .......................................................7 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS .........................................10 3.4DESCRIPTION OF SUPPORT UNITS ....................................................................10 4TEST TYPES AND RESULTS ................................................................................. 11 4.1CONDUCTED EMISSION MEASUREMENT .......................................................... 11 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................ 11 4.1.2TEST INSTRUMENTS............................................................................................. 11 4.1.3TEST PROCEDURES .............................................................................................12 4.1.4DEVIATION FROM TEST STANDARD ...................................................................12 4.1.5TEST SETUP...........................................................................................................13 4.1.6EUT OPERATING CONDITIONS ............................................................................13 4.1.7TEST RESULTS ......................................................................................................14 4.2RADIATED EMISSION MEASUREMENT ...............................................................20 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.............................................20 4.2.2TEST INSTRUMENTS.............................................................................................21 4.2.3TEST PROCEDURES .............................................................................................22 4.2.4DEVIATION FROM TEST STANDARD ...................................................................22 4.2.5TEST SETUP...........................................................................................................23 4.2.6EUT OPERATING CONDITIONS ............................................................................23 4.2.7TEST RESULTS ......................................................................................................24 4.36dB BANDWIDTH MEASUREMENT.......................................................................37 4.3.1LIMITS OF 6DB BANDWIDTH MEASUREMENT ...................................................37 4.3.2TEST INSTRUMENTS.............................................................................................37 4.3.3TEST PROCEDURE................................................................................................38 4.3.4DEVIATION FROM TEST STANDARD ...................................................................38 4.3.5TEST SETUP...........................................................................................................38 4.3.6EUT OPERATING CONDITIONS ............................................................................38 4.3.7TEST RESULTS ......................................................................................................39 4.4MAXIMUM PEAK OUTPUT POWER ......................................................................45 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT .......................45 4.4.2TEST INSTRUMENTS.............................................................................................45 4.4.3TEST PROCEDURES .............................................................................................46 4.4.4DEVIATION FROM TEST STANDARD ...................................................................46 4.4.5TEST SETUP...........................................................................................................46 4.4.6EUT OPERATING CONDITIONS ............................................................................46 4.4.7TEST RESULTS ......................................................................................................47 4.5POWER SPECTRAL DENSITY MEASUREMENT..................................................48 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ..................…

Text truncated - open the document above for the full version.

FCC ID: NHPWLG2009 Report No.: RF930209R02B66Report Format Version 2.0.3 Reference No.: 940823L24 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: NHPWLG2009 Report No.: RF930209R02B67Report Format Version 2.0.3 Reference No.: 940823L24 RADIATED EMISSION TEST
