NHPWLG2011108Mbps Super-G Wireless LAN Access Point

108Mbps Super-G TM Wireless LAN Access Point User Guide v Regulatory notes and statements Wireless LAN, Health and Authorization for use Radio frequency electromagnetic energy is emitted from Wireless LAN devices. The energy levels of these emissions however are far much less than the electromagnetic energy emissions from wireless devices like for example mobile phones. Wireless LAN devices are safe for use frequency safety standards and recommendations. The use of Wireless LAN devices may be restricted in some situations or environments for example: ·On board of airplanes, or ·In an explosive environment, or ·In case the interference risk to other devices or services is perceived or identified as harmful In case the policy regarding the use of Wireless LAN devices in specific organizations or environments (e.g. airports, hospitals, chemical/oil/gas industrial plants, private buildings etc.) is not clear, please ask for authorization to use these devices prior to operating the equipment. Regulatory Information/disclaimers Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The Manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, of the substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause vi harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: vii EN 60 950-1: 2001 +A11: 2004 Safety of Information Technology Equipment EN 50385: 2002 Product standard to demonstrate the compliance of radio base stations and fixed terminal stations for wireless telecommunication systems with the basic restrictions or the reference levels related to human exposure to radio frequency electromagnetic fields (110 MHz - 40 GHz) – General public EN 300 328 V1.6.1 (2004-11) Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using wide band modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive EN 301 489-17 V1.2.1 (2002-08) and EN 301 489-1 V1.4.1 (2002-08) Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France and Italy where restrictive use applies. In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services. This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France. viii 0560 Česky [Czech] [Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se zák…

Text truncated - open the document above for the full version.

WLG-2011 AV: X: 7500WLG20110XAV Amanda Chien MODEL : WLG-2011/X Q'TY: S/N: 10 PCS FROM () TO CARTON OF NO. / MADE IN xxxxxx ( ) () Right side of white box Box label WLB-2010/xx MADE IN xxxxxx ! 0470 FCC ID: NHPWLB2203 AV ,X BOM /xx A, /A B, /B C, /CN E, /E F, /F J, /J N, /N T, /T "MADE IN TAIWAN" "MADE IN CHINA" 1 0 . 0 0 m m 40.00 mm 0560 FCC ID:NHPWLG2011 "See Caution in Manual" 3 0 . 0 0 m m 35.00 mm WLG-2011/X Rev.AV 108M Super-G Wireless LAN Access Point 0560 MADE IN xxxxxx This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference and (2)this device must accept any interference received, including interference that may cause undesired operation. 0560 FCC ID: NHPWLG2011 () WLG-2011 59.00 mm 9 . 0 0 m m 29.00 mm MAC: 000000000000/# Device label CAMEO MADE IN xxxxxx Judy Chen 95.7.18 # A /FCC E / ETSI N / FCC

FCC ID .: NHPWLG2011 Label Location

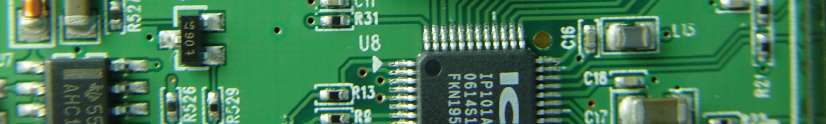

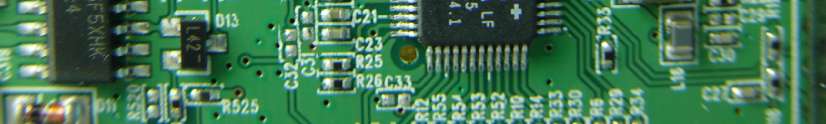

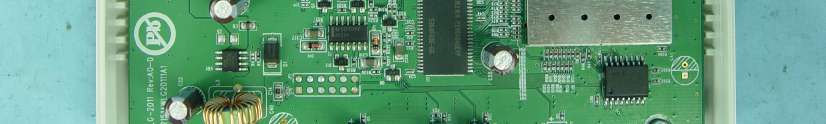

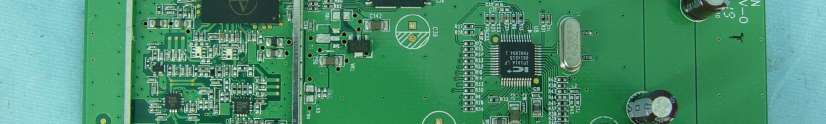

Page 5 Page 6 Page 7 Page 8

FCC ID: NHPWLG2011 Report No.: RF950801L13 Technical Description This device is a 108Mbps Super-G TM Wireless LAN Access Point, which operates in the 2.4GHz frequency spectrum with throughput of up to 108Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 108Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by AC adapter. The antenna is Dipole antenna with RSMA antenna connector. The other instruction, please have a look at the users manual.

FCC ID: NHPWLG2011 Report No: SA950801L13 1 RF EXPOSURE REPORT REPORT NO.:SA950801L13 MODEL NO.:WLG-2011, WAP-4000, WGTLAPBG, A02-WAP-54G, ALL0285A, WAP-0003, ET-WNA-0103R, WLG-108AAP2B, UGL2454-APXR, INAP88GA, ENRXWI-SG, TEW-450APB ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:CAMEO COMMUNICATIONS, INC. ADDRESS: 5F, No. 42, Sec. 6, Mincyuan E. Rd., Neihu District, Taipei City 114, Taiwan ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: NHPWLG2011 Report No: SA950801L13 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz FCC ID: NHPWLG2011 Report No: SA950801L13 3 3. Friis Formula Friis transmission formula: Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warning statement for keeping 20cm-separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. FCC ID: NHPWLG2011 Report No: SA950801L13 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2.10dBi or 1.621810 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 802.11b DSSS MODULATION Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 82.985 0.027 1.0 6 2437 83.368 0.027 1.0 11 2462 84.528 0.027 1.0 For 802.11g OFDM MODULATION Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 63.973 0.021 1.0 6 2437 63.973 0.021 1.0 11 2462 63.241 0.020 1.0 For 802.11g OFDM MODULATION_TURBO MODE Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 6 2437 63.680 0.021 1.0

Report No.: RF950801L13 1 Report Format Version 2.0.5 FCC TEST REPORT REPORT NO.:RF950801L13 MODEL NO.: WLG-2011 (refer to page 6 for other models) RECEIVED:Aug. 02, 2006 TESTED:Aug. 02 ~ Aug. 07, 2006 ISSUED:Aug. 08, 2006 APPLICANT : CAMEO COMMUNICATIONS, INC. ADDRESS : 5F, No. 42, Sec. 6, Mincyuan E. Rd., Neihu District, Taipei City 114, Taiwan ISSUED BY : Advance Data Technology Corporation LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION : No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 78 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF950801L13 2 Report Format Version 2.0.5 Table of Contents 1 CERTIFICATION........................................................................................................ 4 2 SUMMARY OF TEST RESULTS................................................................................ 5 2.1 MEASUREMENT UNCERTAINTY ............................................................................. 5 3 GENERAL INFORMATION ........................................................................................ 6 3.1 GENERAL DESCRIPTION OF EUT........................................................................... 6 3.2 DESCRIPTION OF TEST MODES............................................................................. 8 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST........................................................ 9 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL.............................10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS............................................12 3.4 DESCRIPTION OF SUPPORT UNITS ......................................................................12 4 TEST TYPES AND RESULTS...................................................................................13 4.1 CONDUCTED EMISSION MEASUREMENT............................................................13 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT..........................................13 4.1.2 TEST INSTRUMENTS ..............................................................................................13 4.1.3 TEST PROCEDURES...............................................................................................14 4.1.4 DEVIATION FROM TEST STANDARD .....................................................................14 4.1.5 TEST SETUP............................................................................................................15 4.1.6 EUT OPERATING CONDITIONS..............................................................................15 4.1.7 TEST RESULTS........................................................................................................16 4.2 RADIATED EMISSION MEASUREMENT .................................................................32 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ...............................................32 4.2.2 TEST INSTRUMENTS ..............................................................................................33 4.2.3 TEST PROCEDURES...............................................................................................34 4.2.4 DEVIATION FROM TEST STANDARD .....................................................................34 4.2.5 TEST SETUP............................................................................................................35 4.2.6 EUT OPERATING CONDITIONS..............................................................................35 4.2.7 TEST RESULTS........................................................................................................36 4.3 6dB BANDWIDTH MEASUREMENT ........................................................................47 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ......................................................47 4.3.2 TEST INSTRUMENTS ..............................................................................................47 4.3.3 TEST PROCEDURE.................................................................................................47 4.3.4 DEVIATION FROM TEST STANDARD .....................................................................47 4.3.5 TEST SETUP............................................................................................................48 4.3.6 EUT OPERATING CONDITIONS..............................................................................48 4.3.7 TEST RESULTS........................................................................................................49 4.4 MAXIMUM PEAK OUTPUT POWER ........................................................................54 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT..........................54 4.4.2 TEST INSTRUMENTS ..............................................................................................54 4.4.3 TEST PROCEDURES...............................................................................................55 4.4.4 DEVIATION FROM TEST STANDARD .....................................................................55 4.4.5 TEST SETUP............................................................................................................55 4.4.6 EUT OPERATING CONDITIONS..............................................................................55 Report No.: RF950801L13 3 Report Format Version 2.0.5 4.4.7 TEST RESULTS........................................................................................................56 4.5 POWER SPECTRAL DENSITY MEASUREMENT....................................................57 4.5.1 LIMITS OF PO…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST _ TEST MODE A 2 CONDUCTED EMISSION TEST _ TEST MODE B 3 RADIATED EMISSION TEST _ TEST MODE A 4 RADIATED EMISSION TEST _ TEST MODE B
