IEEE 802.11g Wireless Broadband Router User Guide i Regulatory notes and statements Wireless LAN, Health and Authorization for use Radio frequency electromagnetic energy is emitted from Wireless LAN devices. The energy levels of these emissions however are far much less than the electromagnetic energy emissions from wireless devices like for example mobile phones. Wireless LAN devices are safe for use frequency safety standards and recommendations. The use of Wireless LAN devices may be restricted in some situations or environments for example: ·On board of airplanes, or ·In an explosive environment, or ·In case the interference risk to other devices or services is perceived or identified as harmful In case the policy regarding the use of Wireless LAN devices in specific organizations or environments (e.g. airports, hospitals, chemical/oil/gas industrial plants, private buildings etc.) is not clear, please ask for authorization to use these devices prior to operating the equipment. Regulatory Information/disclaimers Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The Manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, of the substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. USA-FCC (Federal Communications Commission) statement This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference, including interference that may cause undesired operation of this device. FCC Radio Frequency Exposure statement This Wireless LAN radio device has been evaluated under FCC Bulletin OET 65 and found compliant to the requirements as set forth in CFR 47 Sections 2.1091, 2.1093, and 15.247 (b) (4) addressing RF Exposure from radio frequency devices. ii The radiated output power of this Wireless LAN device is far below the FCC radio frequency exposure limits. Nevertheless, this device shall be used in such a manner that the potential for human contact during normal operation is minimized. When nearby persons has to be kept to ensure RF exposure compliance, in order to comply with RF exposure limits established in the ANSI C95.1 standards, the distance between the antennas and the user should not be less than 20 cm. This device is limited in CH1~CH11 for 2.4GHz by specified firmware controlled in U.S.A." FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the distance between the equipment and the receiver. 3. Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help. Export restrictions This product or software contains encryption code that may not be exported or transferred from the US of Canada without an approved US Department of Commerce export license. Safety Information Your device contains a low power transmitter. When device is transmitted it sends out radio frequency (RF) signal. CAUTION: To maintain compliance with FCC’s RF exposure guidelines, this equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Use on the supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. iii The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. Protection requirements for health and safety – Article 3.1a Testing for electric safety according to EN 60950 has been conducted. These are considered relevant and sufficient. Protection requirements for electromagnetic compatibility – Article 3.1b Testing for electromagnetic compatibility according to EN 301 489-1, EN 301 489- 17 and EN 55024 has been conducted. These are considered relevant and sufficient. Effective use of the radio spectrum – Article 3.2 Testing for radio test suites according to EN 300 328-2 has been conducted. These are considered relevant and sufficient. CE in which Countries where the product may be used freely: Germany, UK, Italy, Spain, Belgium, Netherlands, Portugal, Greece, Ireland, Denmark, Luxembourg, Austria, Finland, Sweden, Norway and Iceland. France: except the channel 10 through 13, law prohibits the use of other channels. iv TABLE OF CONTENT ABOUT THIS GUIDE......................................................................…

Text truncated - open the document above for the full version.

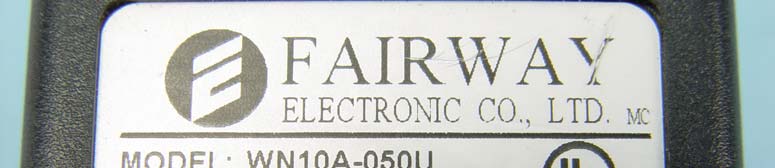

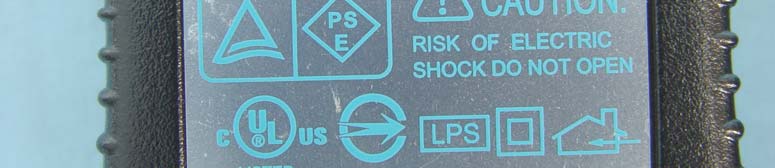

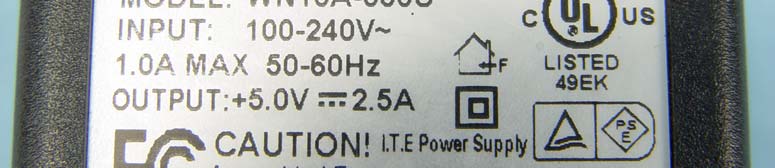

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

FCC ID Label Location (FCC ID: NHPWLG2206)

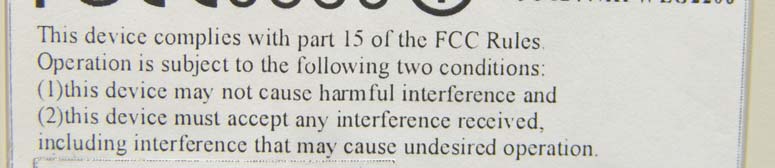

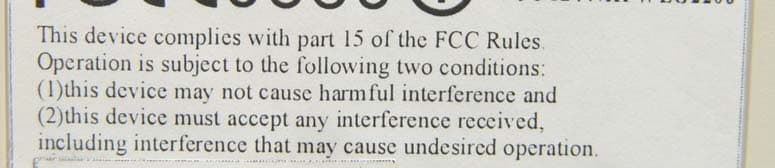

MODEL : WLG-2206/X Q'TY: S/N: 10 PCS FROM () TO CARTON OF NO. / MADE IN xxxxxx ( ) () Right side of white box Box label WLB-2203/xx MADE IN xxxxxx ! 0470 FCC ID: NHPWLB2203 1 0 . 0 0 m m 40.00 mm 0560 FCC ID:NHPWLG2206 "See Caution in Manual" 3 0 . 0 0 m m 35.00 mm MADE IN XXXXXX WLG-2206/X Rev.AV () 802.11g Wireless Broadband Router 0560 MADE IN xxxxxx This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference and (2)this device must accept any interference received, including interference that may cause undesired operation. 0560 FCC ID: NHPWLG2206 MAC: XXXXXXXXXXXX () WLG-2206 59.00 mm CARTON label DEVICE label

Page 4 Page 5 Page 6 Page 7

FCC ID: NHPWLG2206 Report No. RF931018L03A Operational Description This device is a 802.11g Wireless Broadband Router which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by AC adapter. The antenna is Dipole antenna with RSMA connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual.

FCC ID: NHPWLG2206 Report No: SA931018L03A 1 RF EXPOSURE REPORT REPORT NO.: SA931018L03A MODEL NO.: WLG-2206 (please refer to Appendix for other models) ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: CAMEO COMMUNICATIONS, INC. ADDRESS: 2F, No 44, Park Ave 2 Science-Based Industrial Park, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation TEST LOCATION: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. FCC ID: NHPWLG2206 Report No: SA931018L03A 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: NHPWLG2206 Report No: SA931018L03A 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warning statement for keeping 20cm-separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. FCC ID: NHPWLG2206 Report No: SA931018L03A 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.585(numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm : For DSSS: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241256.2340.0181.0 6243756.4940.0181.0 11246256.3640.0181.0 For OFDM: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241240.7380.0131.0 6243739.8110.0131.0 11246235.4810.0111.0 FCC ID: NHPWLG2206 Report No: SA931018L03A 5 Appendix 1. The models as below are identical to each other expect for their models due to marketing requirement. Model NameBrandRemark ISINEIS35744-M1OEM WLG-2206CameoOEM WR 100CryptoOEM BR6004W-GDynamodeOEM LSA-900Rlenovonetworks OEM LWG5410RLGOEM WL-G54MARLINKPROOEM KWG-401KTIOEM ENHWI-RGENCOREOEM WLG-R4IIBONAOEM TEW-432BRPTRENDnetOEM ALL0266ALLNET GmbH OEM WL RT 2454 NM2 GSTOEM WLR4GAmertekOEM

FCC ID: NHPWLG2206 Report No.: RF931018L03A1Report Format Version 2.0.2 Reference No. 940421L03 FCC TEST REPORT REPORT NO.: RF931018L03A MODEL NO.: WLG-2206 OEM MODEL NO.: IS35744-M1 (refer to page 6 for other models) RECEIVED: NA TESTED: Oct. 07 ~ Oct. 13, 2004 ISSUED: Apr. 22, 2005 APPLICANT: CAMEO COMMUNICATIONS, INC. ADDRESS: 2F, No 44, Park Ave 2 Science-Based Industrial Park, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 62 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA , A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: NHPWLG2206 Report No.: RF931018L03A2Report Format Version 2.0.2 Reference No. 940421L03 Table of Contents 1CERTIFICATION .......................................................................................................4 2SUMMARY OF TEST RESULTS ...............................................................................5 2.1GENERAL DESCRIPTION OF EUT ..........................................................................5 3GENERAL INFORMATION........................................................................................6 3.1GENERAL DESCRIPTION OF EUT ..........................................................................6 3.2DESCRIPTION OF TEST MODES ............................................................................7 3.2.1CONFIGURATION OF SYSTEM UNDER TEST .......................................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ...........................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS .........................................10 3.4DESCRIPTION OF SUPPORT UNITS ....................................................................10 4TEST TYPES AND RESULTS ................................................................................. 11 4.1CONDUCTED EMISSION MEASUREMENT .......................................................... 11 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................ 11 4.1.2TEST INSTRUMENTS............................................................................................. 11 4.1.3TEST PROCEDURES .............................................................................................12 4.1.4DEVIATION FROM TEST STANDARD ...................................................................12 4.1.5 TEST SETUP ...........................................................................................................13 4.1.6EUT OPERATING CONDITIONS ............................................................................13 4.1.7TEST RESULTS ......................................................................................................14 4.2RADIATED EMISSION MEASUREMENT ...............................................................20 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.............................................20 4.2.2TEST INSTRUMENTS.............................................................................................21 4.2.3TEST PROCEDURES .............................................................................................22 4.2.4DEVIATION FROM TEST STANDARD ...................................................................22 4.2.5TEST SETUP...........................................................................................................23 4.2.6EUT OPERATING CONDITIONS ............................................................................23 4.2.7TEST RESULTS ......................................................................................................24 4.36dB BANDWIDTH MEASUREMENT.......................................................................31 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ....................................................31 4.3.2TEST INSTRUMENTS.............................................................................................31 4.3.3TEST PROCEDURE................................................................................................32 4.3.4DEVIATION FROM TEST STANDARD ...................................................................32 4.3.5TEST SETUP...........................................................................................................32 4.3.6EUT OPERATING CONDITIONS ............................................................................32 4.3.7TEST RESULTS ......................................................................................................33 4.4MAXIMUM PEAK OUTPUT POWER ......................................................................39 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT .......................39 4.4.2TEST INSTRUMENTS.............................................................................................39 4.4.3TEST PROCEDURES .............................................................................................40 4.4.4DEVIATION FROM TEST STANDARD ...................................................................40 4.4.5TEST SETUP...........................................................................................................40 4.4.6EUT OPERATING CONDITIONS ............................................................................40 4.4.7TEST RESULTS ......................................................................................................41 FCC ID: NHPWLG2206 Report No.: RF931018L03A3Report Format Version 2.0.2 Reference No. 940421L03 4.5POWER SPECTRAL DENSITY MEASUREMENT.............…

Text truncated - open the document above for the full version.

FCC ID: NHPWLG2206 Report No.: RF931018L03A60Report Format Version 2.0.2 Reference No. 940421L03 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: NHPWLG2206 Report No.: RF931018L03A61Report Format Version 2.0.2 Reference No. 940421L03 RADIATED EMISSION TEST
