NHPWLG22072.4GHz Wireless Broadband Router

USER MANUAL Contents 1. Overview..............................................................................................1 1.1 Product Feature..........................................................................................1 1.2 System Requirements...............................................................................1 1.3 Applications.................................................................................................1 2. Getting Start........................................................................................2 2.1 Know the 54Mbps Wireless Router.........................................................2 2.2 Connect to the 54Mbps Wireless Router................................................3 2.2.1 Access the Setting Menu...................................................................3 2.2.2 Quick Setup with Wizard..................................................................5 3. Configuration.....................................................................................12 3.1 LAN Setting...............................................................................................12 3.1.1 LAN & DHCP Server.....................................................................12 3.1.2 WAN...............................................................................................13 3.1.3 Password.........................................................................................14 3.1.4 Time................................................................................................15 3.1.5 Dynamic DNS.................................................................................16 3.2 Wireless.....................................................................................................17 3.2.1 Basic................................................................................................17 3.2.2 Authentication.................................................................................18 3.2.3 Advanced........................................................................................20 3.3 Status..........................................................................................................22 3.3.1 Device Information.........................................................................22 3.3.2 Log..................................................................................................23 3.3.3 Log Setting......................................................................................24 3.3.4 Statistic............................................................................................25 3.3.5 Wireless...........................................................................................26 3.4 Routing.......................................................................................................27 3.4.1 Static................................................................................................27 3.4.2 Dynamic..........................................................................................28 3.4.3 Routing Table..................................................................................29 3.5 Access........................................................................................................30 3.5.1 Filters..............................................................................................30 3.5.2 Virtual Server..................................................................................34 3.5.3 Special AP.......................................................................................35 3.5.4 DMZ................................................................................................36 3.5.5 Firewall Rule...................................................................................37 3.6 Management.............................................................................................38 3.6.1 SNMP..............................................................................................38 3.6.2 Remote Management......................................................................39 3.7 Tools...........................................................................................................40 3.7.1 Restart.............................................................................................40 3.7.2 Settings............................................................................................40 3.7.3 Firmware.........................................................................................41 3.7.4 Ping Test..........................................................................................42 4. Glossary............................................................................................43 1 1. Overview 1.1 Product Feature ? Compliance with IEEE 802.11g and 802.11b standards ? Highly efficient design mechanism to provide unbeatable performance ? Strong network security with WEP and 802.1X encryption ? Achieving data rate up to 54Mbps for 802.11g and 11Mps for 802.11b with wide range coverage; high performance to deliver up to 54Mbps raw data rate for 802.11g ? Quick and easy setup with Web-based management utility 1.2 System Requirements ? Windows 98, 98SE, Millennium Edition (ME), 2000 and XP operating systems ? Microsoft Internet Explorer 5.5 or higher ? DSL/ Cable Modem Broadband Internet connection and ISP account ? PCs equipped with 10Mbps or 10/100 Mbps Ethernet connection to support TCP/IP protocol ? One CD-ROM drive 1.3 Applications ? Home SOHO networking for device sharing and wireless multimedia ? Wireless office provides a wider range for home and SOHO Ethernet ? Enables wireless building-to-building data communication ? Built-in infrastructure mode ? Router provides ideal solution for: ? Difficult-to-wire environments ? Temporary LANs for scenarios such as trade-exhibitions and meetings ? Enables LAN adaptability to frequently ch…

Text truncated - open the document above for the full version.

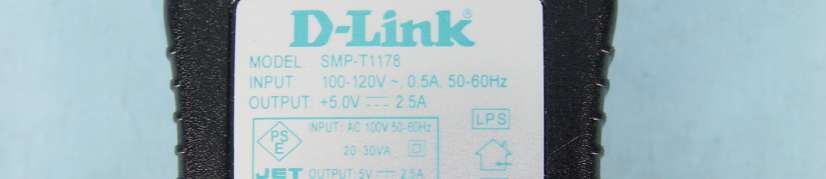

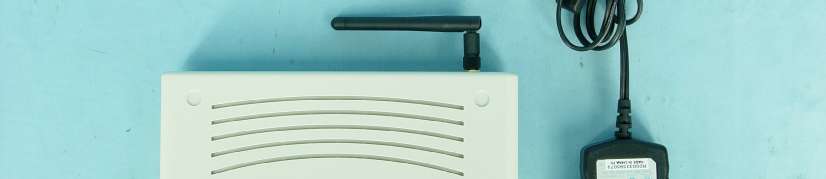

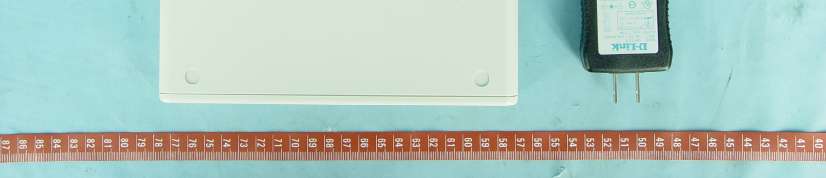

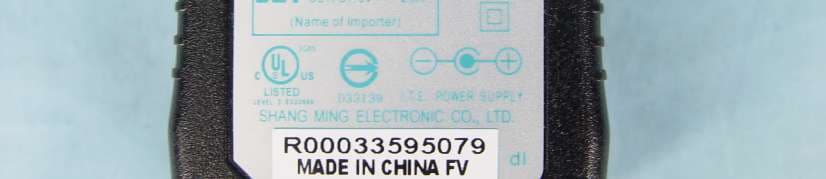

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID : NHPWLG2207 Label Location

MADE IN TAIWAN This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference and (2)this device must accept any interference received, including interference that may cause undesired operation. 0560 FCC ID: NHPWLG2207 WLG-2207 LAN MAC: XXXXXXXXXXXX WAN MAC: XXXXXXXXXXXX

Page 3 Page 4

FCC ID: NHPWLG2207 Report No. RF921011R03H Operational Description This device is a 2.4GHz Wireless Broadband Router which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by AC adapter. The antenna is Dipole antenna with Reverse SMA antenna connector. For more detailed instruction, please take a look at the user’s manual.

FCC ID.: NHPWLG2207 Report No: SA921011R03H 1 RF EXPOSURE REPORT REPORT NO.: SA921011R03H MODEL NO.: WLG-2207 OEM MODEL NO.: ALL0286; TEW-451BRP ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: CAMEO COMMUNICATIONS, INC. ADDRESS: 5F, No. 42, Sec. 6, Mincyuan E. Rd., Neihu District, Taipei City 114, Taiwan R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID.: NHPWLG2207 Report No: SA921011R03H 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID.: NHPWLG2207 Report No: SA921011R03H 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID.: NHPWLG2207 Report No: SA921011R03H 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.585 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For DSSS: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241251.7610.0161.0 6244250.1190.0161.0 11247251.0500.0161.0 For OFDM: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241251.5230.0161.0 6244250.5820.0161.0 11247250.3500.0161.0

FCC ID: NHPWLG2207 Report No.: RF921011R03H1Report Format Version 2.0.3 Reference No.: 940721L16 FCC TEST REPORT REPORT NO.: RF921011R03H MODEL NO.: WLG-2207 Refer to page 6 for other models RECEIVED: NA TESTED: Oct. 9, 2003 ~ Oct. 13, 2003 ISSUED: Aug. 02, 2005 APPLICANT: CAMEO COMMUNICATIONS, INC. ADDRESS: 5F, No.42, Sec. 6, Mincyuan E. Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 63 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: NHPWLG2207 Report No.: RF921011R03H2Report Format Version 2.0.3 Reference No.: 940721L16 TABLE OF CONTENTS 1.CERTIFICATION.........................................................................................................4 2.SUMMARY OF TEST RESULTS.................................................................................5 2.1MEASUREMENT UNCERTAINTY..............................................................................5 3.GENERAL INFORMATION.........................................................................................6 3.1 GENERAL DESCRIPTION OF EUT...........................................................................6 3.2 DESCRIPTION OF TEST MODES.............................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST.........................................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..............................8 3.2.3 GENERAL DESCRIPTION OF APPLIED STANDARDS...........................................10 3.2.4 DESCRIPTION OF SUPPORT UNITS......................................................................10 4. TEST TYPES AND RESULTS...................................................................................11 4.1 CONDUCTED EMISSION MEASUREMENT............................................................11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT..........................................11 4.1.2 TEST INSTRUMENTS..............................................................................................11 4.1.3 TEST PROCEDURES..............................................................................................12 4.1.4 DEVIATION FROM TEST STANDARD.....................................................................12 4.1.5 TEST SETUP...........................................................................................................13 4.1.6 EUT OPERATING CONDITIONS..............................................................................13 4.1.7 TEST RESULTS.......................................................................................................13 4.2 RADIATED EMISSION MEASUREMENT.................................................................20 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...............................................20 4.2.2 TEST INSTRUMENTS..............................................................................................21 4.2.3 TEST PROCEDURES..............................................................................................22 4.2.4 DEVIATION FROM TEST STANDARD.....................................................................23 4.2.5 TEST SETUP...........................................................................................................23 4.2.6 EUT OPERATING CONDITIONS..............................................................................23 4.2.7 TEST RESULTS.......................................................................................................24 4.3 6dB BANDWIDTH MEASUREMENT........................................................................32 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT......................................................32 4.3.2 TEST INSTRUMENTS..............................................................................................32 4.3.3 TEST PROCEDURE.................................................................................................33 4.3.4 DEVIATION FROM TEST STANDARD.....................................................................33 4.3.5 TEST SETUP...........................................................................................................33 4.3.6 EUT OPERATING CONDITIONS..............................................................................33 4.3.7 TEST RESULTS.......................................................................................................34 4.4 MAXIMUM PEAK OUTPUT POWER........................................................................40 FCC ID: NHPWLG2207 Report No.: RF921011R03H3Report Format Version 2.0.3 Reference No.: 940721L16 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.........................40 4.4.2 INSTRUMENTS........................................................................................................40 4.4.3 TEST PROCEDURES..............................................................................................41 4.4.4 DEVIATION FROM TEST STANDARD.....................................................................41 4.4.5 TEST SETUP...........................................................................................................41 4.4.6 EUT OPERATING CONDITIONS..............................................................................41 4.4.7 TEST RESULTS...................................................................................…

Text truncated - open the document above for the full version.

FCC ID: NHPWLG2207 Report No.: RF921011R03H61Report Format Version 2.0.3 Reference No.: 940721L16 5. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: NHPWLG2207 Report No.: RF921011R03H62Report Format Version 2.0.3 Reference No.: 940721L16 RADIATED EMISSION TEST
