NHPWLG2210108M 802.11g Wireless LAN Router

108M 802.11g Wireless LAN Router CAMEO WLG-2210 User’s Manual Regulatory notes and statements Wireless LAN, Health and Authorization for use Radio frequency electromagnetic energy is emitted from Wireless LAN devices. The energy levels of these emissions however are far much less than the electromagnetic energy emissions from wireless devices like for example mobile phones. Wireless LAN devices are safe for use frequency safety standards and recommendations. The use of Wireless LAN devices may be restricted in some situations or environments for example: ·On board of airplanes, or ·In an explosive environment, or ·In case the interference risk to other devices or services is perceived or identified as harmful In case the policy regarding the use of Wireless LAN devices in specific organizations or environments (e.g. airports, hospitals, chemical/oil/gas industrial plants, private buildings etc.) is not clear, please ask for authorization to use these devices prior to operating the equipment. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. We declare that the product is limited in CH1-CH11 for 2.4G band by specific firmware controlled by the manufacturer and is not user changeable. TABLE OF CONTENT ABOUT THIS GUIDE...............................................................................1 Purpose............................................................................................................................................................................................................1 Terms/Usage...................................................................................................................................................................................................1 Overview of this User’s Guide......................................................................................................................................................................1 INTRODUCTION......................................................................................2 Applications:...................................................................................................................................................................................................2 Features:..........................................................................................................................................................................................................3 UNPACKING AND SETUP.........................................................................4 Unpacking.......................................................................................................................................................................................................4 Setup................................................................................................................................................................................................................4 HARDWARE INSTALLATION.....................................................................5 Front Panel......................................................................................................................................................................................................5 Rear Panel.......................................................................................................................................................................................................6 Hardware connections....................................................................................................................................................................................7 Connecting the WLAN Router..................................................................................................................................................................7 Check the installation.................................................................................................................................................................................7 PC NETWORK TCP/IP SETTING..............…

Text truncated - open the document above for the full version.

Authentication The authentication type default is set to disable. There are four options: Disable, WEP, WPA, and WPA2. Authentication Type: The authentication type default is set to open system. There are three options: Open System; Shared Key, WPA and WPA-PKS. WEP Encryption WEP: Open System allows public access to the router via wireless communications; Shared Key requires the user to set a WEP key to exchange data with other wireless clients that have the same WEP key.. Mode: Select the key mode in ASCII or HEX WEP Key: Select the level of encryption from the drop-down list. The router supports, 64- and 128-bit encryption. Key 1 ~ Key 4: Enables user to create an encryption scheme for Wireless LAN transmissions. Manually enter a set of values for each key. Select a key to use by clicking the radio button next to the key. Click “Clear” to erase key values. WPA/WPA2 Security If WPA or WPA2 is selected, the below screen is shown. Please set the length of the encryption key and the parameters for the RADIUS server. Lifetime: Select the Lifetime of the Encryption Key from 5 Minutes to 1 Day. As soon as the lifetime of the Encryption Key is over, the Encryption Key will be renewed by the Radius server. Encryption Key: Select the Encryption Key Length Size ranging from 64 to 128 Bits that you would like to use. RADIUS Server: 1. Enter the IP address, Port used and Shared Secret by the Primary Radius Server. 2. Enter the IP address, Port used and Shared Secret by the Secondary Radius Server. WPA-PSK/WPA2-PSK Security If WPA-PSK or WPA2-PSK is selected, please set the PSK key in the pass phrase field. The length should be 8 characters at least. Advanced This screen enables user to configure advanced wireless functions. Beacon Interval: Type the beacon interval in the text box. User can specify a value from 1 to 1000. The default beacon interval is 100. RTS Threshold: Type the RTS (Request-To-Send) threshold in the text box. This value stabilizes data flow. If data flow is irregular, choose values between 256 and 2432 until data flow is normalized. Fragmentation Threshold: Type the fragmentation threshold in the text box. If packet transfer error rates are high, choose values between 256 and 2432 until packet transfer rates are minimized. (NOTE: set this fragmentation threshold value may diminish system performance.) DTIM Interval: Type a DTIM (Delivery Traffic Indication Message) interval in the text box. User can specify a value between 1 and 65535. The default value is 1. TX Rates (Mbps): Select one of the wireless communications transfer rates, measured in megabytes per second, based upon the speed of wireless adapters connected to the WLAN. 11g only mode: If selected the Enable, only allow 802.11g WLAN client communicate with this WLAN Router. Status This selection enables user to view the status of the router LAN, WAN and Wireless connections, and view logs and statistics pertaining to connections and packet transfers. Device Information This screen enables user to view the router LAN, Wireless and WAN configuration. Firmware Version: Displays the latest build of the router firmware interface. After updating the firmware in Tools - Firmware, check this to ensure that the firmware was successfully updated. LAN: This section displays the LAN interface configuration including the MAC address, IP address, subnet mask, and DHCP server status. Click “DHCP Table” to view a list of client stations currently connected to the router LAN interface. Wireless: This section displays the wireless configuration information, including the MAC address, the Connection status, SSID, Channel and Authentication type. WAN: This section displays the WAN interface configuration including the MAC address, Connection status, DHCP client status, IP address, Subnet mask, Default gateway, and DNS. Click “DHCP Release” to release all IP addresses assigned to client stations connected to the WAN via the router. Click “DHCP Renew” to reassign IP addresses to client stations connected to the WAN. Log This screen enables user to view a running log of router system statistics, events, and activities. The log displays up to 200 entries. Older entries are overwritten by new entries. The Log screen commands are as follows: Click “First Page” to view the first page of the log Click “Last Page” to view the final page of the log Click “Previous Page” to view the page just before the current page Click “Next Page” to view the page just after the current page Click “Clear Log” to delete the contents of the log and begin a new log Click “Refresh” to renew log statistics Time: Displays the time and date that the log entry was created. Message: Displays summary information about the log entry. Source: Displays the source of the communication. Destination: Displays the destination of the communication. Note: Displays the IP address of the communication Log Setting This screen enables user to set router logging parameters. SMTP Server: Type the SMTP server address for the email that the log will be sent to in the next field. Send to: Type an email address for the log to be sent to. Click “Email Log Now” to immediately send the current log. Syslog Server: Type the IP address of the Syslog Server if user wants the router to listen and receive incoming Syslog messages. Log Type: Enables user to select what items will be included in the log: System Activity: Displays information related to router operation. Debug Information: Displays information related to errors and system malfunction. Attacks: Displays information about any malicious activity on the network. Dropped Packets: Displays information about packets that have not been transferred successfully. Notice: Displays important notices by the system administrator. Statistic This screen displays a table that shows the rate of packet transmission via the router LAN, Wireless and WAN ports (in bytes per second). Click “Reset” to erase all statistics and begin logging statistics again. Wir…

Text truncated - open the document above for the full version.

Virtual Server This screen enables user to create a virtual server via the router. If the router is set as a virtual server, remote users requesting Web or FTP services through the WAN are directed to local servers in the LAN. The router redirects the request via the protocol and port numbers to the correct LAN server. The Virtual Sever profiles are listed in the table at the bottom of the page. Note: When selecting items in the table at the bottom, click anywhere in the item. The line is selected, and the fields automatically load the item's parameters, which user can edit. Enable: Click to enable or disable the virtual server. Name: Type a descriptive name for the virtual server. Protocol: Select a protocol (TCP or UDP) to use for the virtual server. Private Port: Type the port number of the computer on the LAN that is being used to act as a virtual server. Public Port: Type the port number on the WAN that will be used to provide access to the virtual server. LAN Server: Type the LAN IP address that will be assigned to the virtual server. Add: Click to add the virtual server to the table at the bottom of the screen. Update: Click to update information for the virtual server if user have selected a list item and have made changes. Delete: Select a list item and click “Delete” to remove the item from the list. New: Click “New” to erase all fields and enter new information. Special AP This screen enables user to specify special applications, such as games, that require multiple connections that are inhibited by NAT. The special applications profiles are listed in the table at the bottom of the page. Note: When selecting items in the table at the bottom, click anywhere in the item. The line is selected, and the fields automatically load the item's parameters, which user can edit. Enable: Click to enable or disable the application profile. When enabled, users will be able to connect to the application via the router WAN connection. Click “Disabled” on a profile to prevent users from accessing the application on the WAN. Name: Type a descriptive name for the application. Trigger: Defines the outgoing communication that determines whether the user has legitimate access to the application. ? Protocol: Select the protocol (TCP, UDP, or ICMP) that can be used to access the application. ? Port Range: Type the port range that can be used to access the application in the text boxes. ? Incoming: Defines which incoming communications users are permitted to connect with. ? Protocol: Select the protocol (TCP, UDP, or ICMP) that can be used by the incoming communication. ? Port: Type the port number that can be used for the incoming communication. Add: Click to add the special application profile to the table at the bottom of the screen. Update: Click to update information for the special application if user have selected a list item and have made changes. Delete: Select a list item and click Delete to remove the item from the list. New: Click “New” to erase all fields and enter new information. DMZ This screen enables user to create a DMZ for those computers that cannot access Internet applications properly through the router and associated security settings. Note: Any clients added to the DMZ exposes the clients to security risks such as viruses and unauthorized access. Enable: Click to enable or disable the DMZ. DMZ Host IP: Type a host IP address for the DMZ. The computer with this IP address acts as a DMZ host with unlimited Internet access. Apply: Click to save the settings. Firewall Rule This screen enables user to set up the firewall. The router provides basic firewall functions, by filtering all the packets that enter the router using a set of rules. The rules are in an order sequence list--the lower the rule number, the higher the priority the rule has. Enable: Click to enable or disable the firewall rule profile. Name: Type a descriptive name for the firewall rule profile. Action: Select whether to allow or deny packets that conform to the rule. Source: Defines the source of the incoming packet that the rule is applied to. ? Interface: Select which interface (WAN or LAN) the rule is applied to. ? IP Range Start: Type the start IP address that the rule is applied to. ? IP Range End: Type the end IP address that the rule is applied to. Destination: Defines the destination of the incoming packet that the rule is applied to. ? Interface: Select which interface (WAN or LAN) the rule is applied to. ? IP Range Start: Type the start IP address that the rule is applied to. ? IP Range End: Type the end IP address that the rule is applied to. ? Protocol: Select the protocol (TCP, UDP, or ICMP) of the destination. ? Port Range: Select the port range. Add: Click to add the rule profile to the table at the bottom of the screen. Update: Click to update information for the rule if user have selected a list item and have made changes. Delete: Select a list item and click “Delete” to remove the item from the list. New: Click “New” to erase all fields and enter new information. Priority Up: Select a rule from the list and click “Priority Up” to increase the priority of the rule. Priority Down: Select a rule from the list and click “Priority Down” to decrease the priority of the rule. Update Priority: After increasing or decreasing the priority of a rule, click “Update Priority” to save the changes. Management Management enables user to set up SNMP and Remote Management feature. SNMP This screen enables you to configure the SNMP. Enabled/Disabled: Click to enable or disable SNMP. System Name: A name given to the router. System Location: Description the location of the router (normally, the DNS name). System Contact: Description the contact information for the person responsible for the router. Community: SNMP system name for exchanging SNMP community messages. The name can be used to limit SNMP messages passing through the network. The default name is 'public.' Trap Receiver: Type the name of the destination PC …

Text truncated - open the document above for the full version.

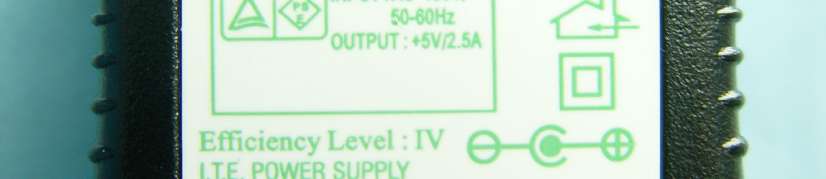

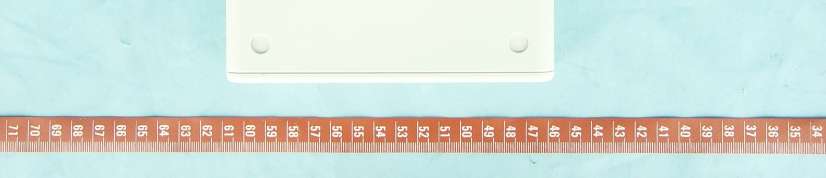

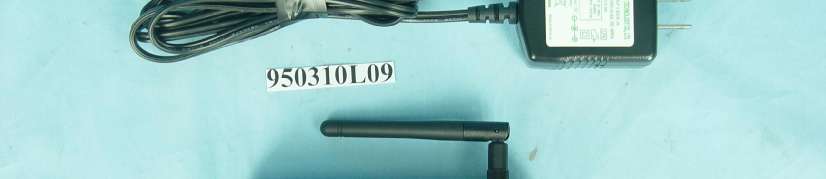

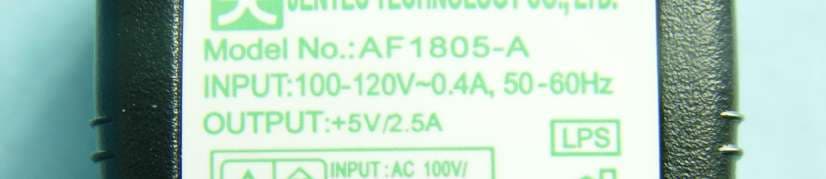

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID .: NHPWLG2210 Label Location

WLG-2210 AV: X: Cameo 7500WLG22100XAV Amanda MODEL : WLG-2210/X Q'TY: S/N: 10 PCS FROM () TO CARTON OF NO. / MADE IN xxxxxx ( ) () Right side of white box Box label WLB-2203/xx MADE IN xxxxxx ! 0470 FCC ID: NHPWLB2203 AV ,X BOM /xx A, /A B, /B C, /CN E, /E F, /F J, /J N, /N T, /T "MADE IN TAIWAN" "MADE IN CHINA" 1 0 . 0 0 m m 40.00 mm 0560 FCC ID:NHPWLG2210 "See Caution in Manual" 3 0 . 0 0 m m 35.00 mm MADE IN XXXXXX WLG-2210/X Rev.AV () 108M Super-G Wireless LAN Router 0560 MADE IN xxxxxx This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference and (2)this device must accept any interference received, including interference that may cause undesired operation. 0560 FCC ID: NHPWLG2210 () WLG-2210 Rev.AV 59.00 mm 9 . 0 0 m m 29.00 mm LAN MAC: 000000000000 WAN MAC: 000000000000/# MACLAN MAC WAN=LAN+1 Example : LAN = 0040F4000001 WAN = 0040F4000002 Device label Judy 96.4.19 # A /FCC E / ETSI N / FCC

Page 3 Page 4 Page 5 Page 6

FCC ID: NHPWLG2210 Report No.: RF950310L09 OPERATIONAL DESCRIPTION This device is a 108M 802.11g Wireless LAN Router, which operates in the 2.4GHz frequency spectrum with throughput of up to 108Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 108Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna is dipole antenna with RSMA antenna connector. For more detailed instruction, please take a look at the user’s manual.

FCC ID: NHPWLG2210 Report No: SA950310L09 1 RF EXPOSURE REPORT REPORT NO.: SA950310L09 MODEL NO.: DWL-2210 OEM MODEL NO.: TEW-452BPR / WBR-3405TX 8E4264 / A02-WR-54G EP-9610SX-gp / WNB-0403R ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: CAMEO COMMUNICATIONS, INC. ADDRESS: 5F,No.42, Sec. 6, Mincyuan E. Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: NHPWLG2210 Report No: SA950310L09 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: NHPWLG2210 Report No: SA950310L09 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is fixed inside the host equipment. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: NHPWLG2210 Report No: SA950310L09 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.5849 (numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: 802.11b DSSS modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241263.5330.0201.0 6243763.5330.0201.0 11246263.6800.0201.0 802.11g OFDM modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241263.3870.0201.0 6243763.8260.0201.0 11246263.3870.0201.0 6 (Turbo)243763.3870.0201.0

Report No.: RF950310L091Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950310L09 MODEL NO.: WLG-2210 (refer to page 6 for other models) RECEIVED: Mar. 13, 2006 TESTED: Mar. 13 ~ Apr. 07, 2006 ISSUED: Apr. 11, 2006 APPLICANT: CAMEO COMMUNICATIONS, INC. ADDRESS: 5F,No.42, Sec. 6, Mincyuan E. Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. ISSUED BY :Advance Data Technology Corporation LAB ADDRESS :No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION :No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 75 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF950310L092Report Format Version 2.0.4 Table of Contents 1CERTIFICATION...........................................................................................................4 2SUMMARY OF TEST RESULTS ..................................................................................5 2.1MEASUREMENT UNCERTAINTY ...............................................................................5 3GENERAL INFORMATION ...........................................................................................6 3.1GENERAL DESCRIPTION OF EUT.............................................................................6 3.2DESCRIPTION OF TEST MODES...............................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..........................................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ...............................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................................10 3.4DESCRIPTION OF SUPPORT UNITS .......................................................................10 4TEST TYPES AND RESULTS .................................................................................... 11 4.1CONDUCTED EMISSION MEASUREMENT .............................................................11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................... 11 4.1.2 TEST INSTRUMENTS................................................................................................ 11 4.1.3 TEST PROCEDURES ................................................................................................12 4.1.4 DEVIATION FROM TEST STANDARD ......................................................................12 4.1.5 TEST SETUP .............................................................................................................13 4.1.6 EUT OPERATING CONDITIONS ...............................................................................13 4.1.7 TEST RESULTS .........................................................................................................14 4.2RADIATED EMISSION MEASUREMENT ..................................................................22 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................22 4.2.2 TEST INSTRUMENTS................................................................................................23 4.2.3 TEST PROCEDURES ................................................................................................24 4.2.4 DEVIATION FROM TEST STANDARD ......................................................................24 4.2.5 TEST SETUP .............................................................................................................25 4.2.6 EUT OPERATING CONDITIONS ...............................................................................25 4.2.7 TEST RESULTS .........................................................................................................26 4.36dB BANDWIDTH MEASUREMENT .........................................................................34 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .......................................................34 4.3.2 TEST INSTRUMENTS................................................................................................34 4.3.3 TEST PROCEDURE...................................................................................................35 4.3.4 DEVIATION FROM TEST STANDARD ......................................................................35 4.3.5 TEST SETUP .............................................................................................................35 4.3.6 EUT OPERATING CONDITIONS ...............................................................................35 4.3.7 TEST RESULTS .........................................................................................................36 4.4MAXIMUM PEAK OUTPUT POWER .........................................................................44 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT..........................44 4.4.2 TEST INSTRUMENTS................................................................................................44 4.4.3 TEST PROCEDURES ................................................................................................45 4.4.4 DEVIATION FROM TEST STANDARD ......................................................................45 4.4.5 TEST SETUP .............................................................................................................45 4.4.6 EUT OPERATING CONDITIONS ...............................................................................45 Report No.: RF950310L093Report Format Version 2.0.4 4.4.7 TEST RESULTS .........................................................................................................46 4.5POWER SPECTRAL DENSITY MEASUREMENT .......…

Text truncated - open the document above for the full version.

Report No.: RF950310L0972Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: RF950310L0973Report Format Version 2.0.4 RADIATED EMISSION TEST
