NHVB1U523Keyless Entry Transmitter

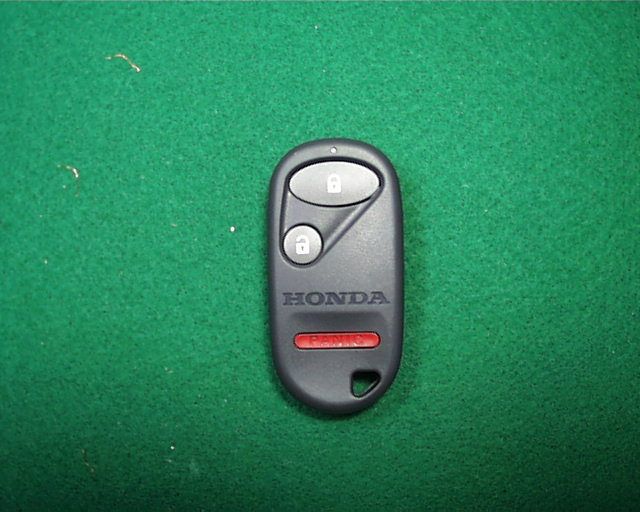

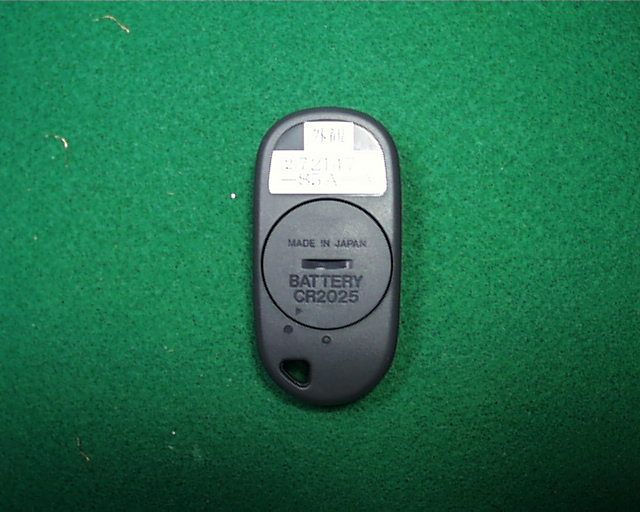

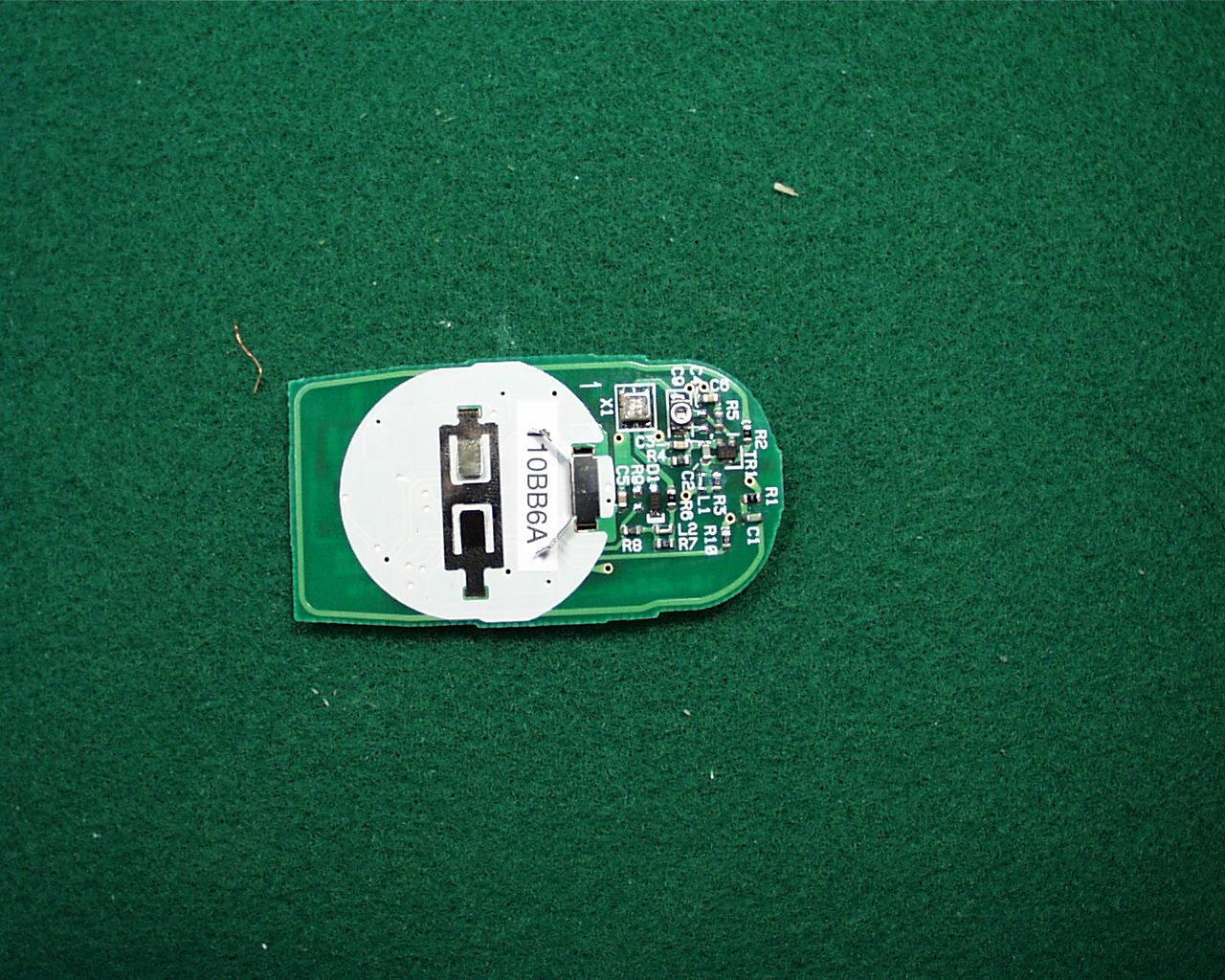

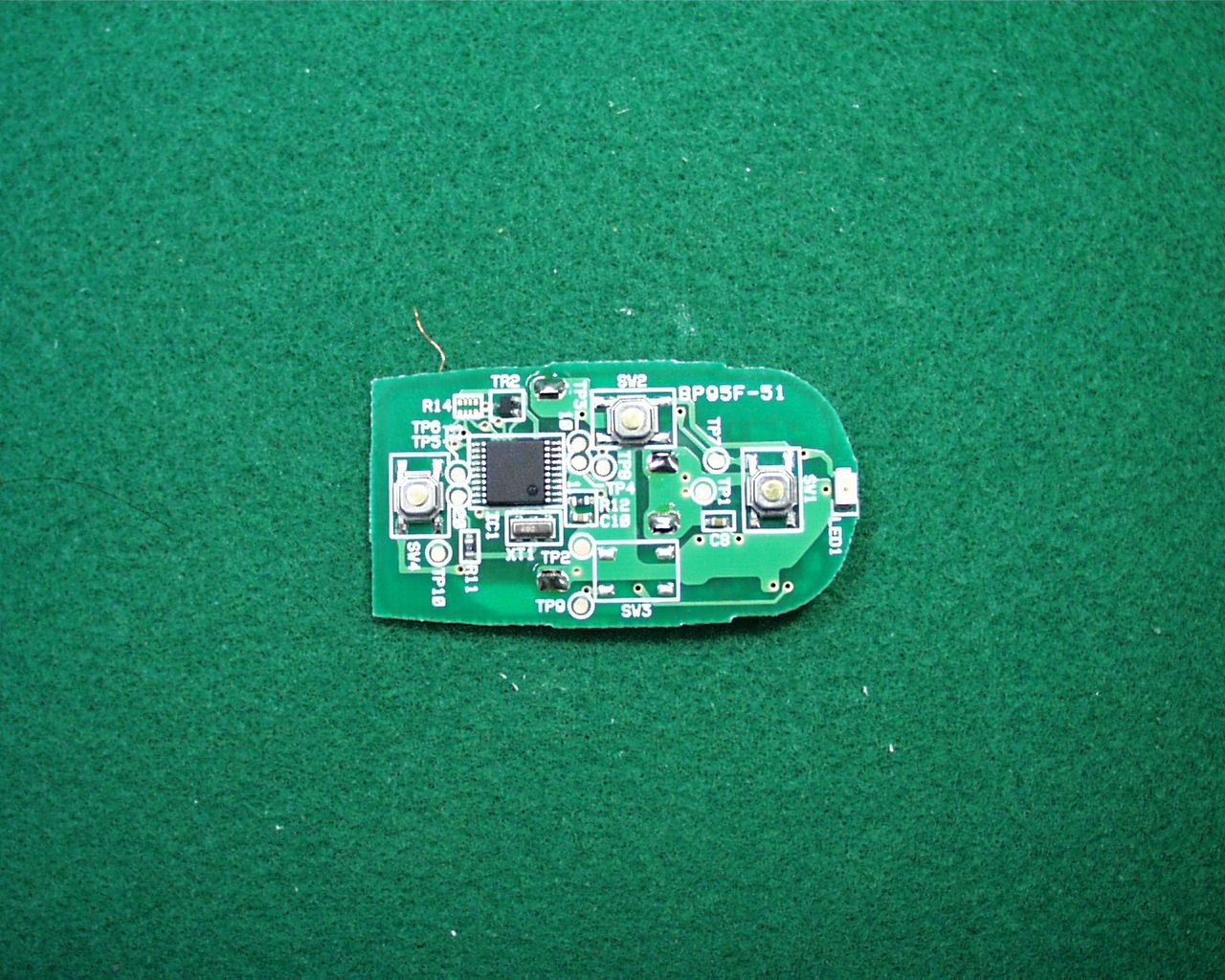

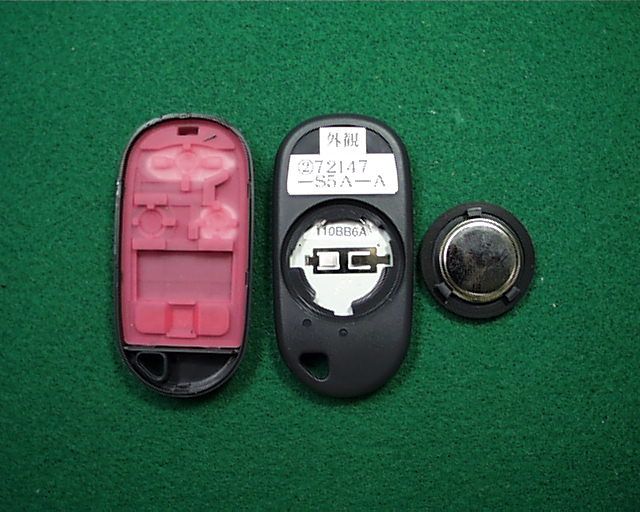

ALPS ELECTRIC Co., LTD Users Manual Remote Transmitter Your vehicle comes with two transmitters. You can lock and unlock your vehicle with the remote transmitter. When you push the Lock button, all the doors will lock. When you push the Unlock button once, only the driver’s door unlocks. The remaining doors unlock when you push the button a second time. The ceiling light (if the ceiling light switch is in the center position) and the door courtesy lights come on when you unlock the doors. If you do not open any doors, the lights stay on for about 30 seconds, then fade out. If you re-lock the doors with the remote transmitter, the light go off immediately. If you unlock the doors with the remote transmitter, but do not open any of the doors within 30 seconds, the doors automatically re-lock and the security system sets. You can not lock any of the doors with the remote transmitter if any doors is open or key is in the ignition switch. You can not also unlock any of the doors with the key in the ignition switch. NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment dose cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Operation is subject to the following two conditions; (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. LED UNLOCK BUTTON LOCK BUTTON PAN IC BUTTON ALPS ELECTRIC Co., LTD Panic Mode Panic mode allows you to remotely activate your vehicle’s security system to attract attention . The horn will sound , and the exterior lights will flash, for about 30 seconds. To activate panic mode, press and hold the Panic button for about one second. To cancel Panic mode before 30 seconds, press any button on the remote transmitter . You can also turn the ignition switch to ACCESSORY (I) or ON (II). Panic mode will not activate if the ignition switch is in ACCESSORY (I) or ON (II). Replacing the Battery When the Remote Keyless Entry Transmitter’s Battery begins to get weak, it may take several pushes on the button to lock or unlock the doors, and the LED will get dim. Replace the Battery as soon as possible. Battery type : CR2025 To replace the Battery, remove the round cover on the back of the Transmitter by turning it counter clock wise with a coin. Remove the old Battery and note the polarity. Make sure the polarity of the new Battery is the same (+ side facing up), then insert it in the Transmitter. Reinstall the cushion ring. Align the mark on the cover with the mark on the Transmitter, then set the cover in place and turn it clock wise. Transmitter Care Avoid severe shock to the transmitter, such as dropping or throwing it. Also, protect it from extreme hot or cold temperatures. Clean the transmitter case with a soft cloth. Do not use strong cleaners to solvents that could harm the case. Immersing the transmitter in any liquid will harm the transmitter and cause it to not function properly. If you lose a transmitter, you will need to have the replacement programmed to your vehicle’s system by your Honda Dealer. Any other transmitters you have will a lso need to be reprogrammed. Open Close Battery CR2025 Round Cover Cushion Ring

ALPS ELECTRIC CO., LTD. CAR ELECTRONICS DIVISION 1-7, YUKIGAYA-OTSUKA-CHO, OTA-KU, TOKYO, 145-8501 JAPAN TEL +81 3 3726 1211 FAX +81 3 3728 1741 Date: November 15, 2001 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Please be advised that TOHOKU ALPS CO., LTD. authorizes A-Pex International Co., Ltd. to act on our behalf, until otherwise notified, for applications submitted to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Sincerely Tomosuke Takata Manager ALPS ELECTRIC CO., LTD. CAR ELECTRONICS DIVISION 1-7, YUKIGAYA-OTSUKA-CHO, OTA-KU, TOKYO, 145-8501 JAPAN TEL +81 3 3726 1211 FAX +81 3 3728 1741 Date November 15, 2001 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: FCC Labeling Requirements FCC ID:NHVWB1U523 The following label information is required by the FCC Rules and Regulations for certified devices. Also attached, please find marketing information required by the FCC Rules and Regulations. Thank you for your attention to these matters. Sincerely, Tomosuke Takata Manager ALPS ELECTRIC CO., LTD. CAR ELECTRONICS DIVISION 1-7, YUKIGAYA-OTSUKA-CHO, OTA-KU, TOKYO, 145-8501 JAPAN TEL +81 3 3726 1211 FAX +81 3 3728 1741 Date: November 15, 2001 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID:NHVWB1U523 Please be advised that the following information is to be held confidential and behalf of TOHOKU ALPS CO., LTD.: Block Diagram Schematics The application contains technical information which TOHOKU ALPS CO., LTD. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Tomosuke Takata Manager ALPS ELECTRIC CO., LTD. CAR ELECTRONICS DIVISION 1-7, YUKIGAYA-OTSUKA-CHO, OTA-KU, TOKYO, 145-8501 JAPAN TEL +81 3 3726 1211 FAX +81 3 3728 1741 Date: November 15, 2001 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID:NHVWB1U523 To Whom It May Concern: Please be advised that the manufacturer will ensure that the above-referenced model will be manufactured in accordance with the FCC Rules and Regulations. Thank you for your attention to this matter. Tomosuke Takata Manager

11/23/2001 A-Pex International In reference to FCC ID: NHVB1U523 Mr. Kosaka Upon completion of review of the FCC ID NHVB1U523 is in process and the following is needed before the review can begin. Please address each issue below. 1.) A new copy of the test report, several pages did not convert properly and the data is unreadable. Please resubmit new report as soon as possible to continue this review. David A. Case NCE Examining Engineer mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

ALPS ELECTRIC Co., LTD Label for Approval number (Transmitter) P/N: 72147-S5A-A LABEL EXAMPLE P/N: 72147-S9V-Y LABEL ALPS ELECTRIC Co., LTD EXAMPLE

Test report No.: 22CE0032-YW-1 Page: 2 of 13 Issued date: November 1, 2001 FCC ID: NHVWB1U523 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 CONTENTS PAGE SECTION 1: Client information 3 SECTION 2: Equipment under test (E.U.T.)3 SECTION 3: Test specification, methods & procedures4 SECTION 4: Operation of E.U.T. during testing5 SECTION 5: Summary of test results 6 SECTION 6: Radiated emission7 APPENDIX 1: Photographs of test setup8 APPENDIX 2:Test instruments8 APPENDIX 3: Data of EMI test8 APPENDIX 4: Wave shape of bandwidth8 Test report No.: 22CE0032-YW-1 Page: 3 of 13 Issued date: November 1, 2001 FCC ID: NHVWB1U523 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 SECTION 1: Client information Company name: Tohoku Alps Co., Ltd. Address: 6-3-36 Nakazato, Furukawa-city, Miyagi-pref. 989-6181 Japan Telephone Number: +81-229-23-5111 Facsimile Number: +81-229-22-3755 Contact Person: Koichi Abe SECTION 2: Equipment under test (E.U.T.) 2.1Identification of E.U.T. Type of Equipment: Keyless Entry System (Transmitter) Model No.: 72147-S5A-A FCC ID: NHVWB1U523 Serial No.: sample No. 1 Condition of EUT: Engineering prototype Country of Manufacture: Japan Receipt Date of Sample: October 25, 2001 2.2 Product Description Model: 72147-S5A-A, referred to as the EUT in this report, is a Transmitter of Keyless Entry System. Model: 72147-S9V-Y and 72147-S5A-A are deemed to be equal about the level of EMC since they have few differences as remarked below; 72147-S5A-A which is a top - level model, therefore, was measured as a representative. ModelPWBParts on PWBSoftware (basic control) 72147-S5A-AOriginalLoaded three SW (Lock, Unlock, PANIC)Original 72147-S9V-YSame as 72147-S5A-ALoaded two SW (Lock, Unlock)Same as 72147-S5A-A Carrier Frequency : 433.920 MHz Modulation: FSK Other Clock Frequency: 4.19MHz Information antenna: Integral / P.C.B pattern antenna Operation Voltage: Lithium Battery DC 3.0V(CR2025) Test report No.: 22CE0032-YW-1 Page: 4 of 13 Issued date: November 1, 2001 FCC ID: NHVWB1U523 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 SECTION 3: Test specification, methods & procedures 3. 1Test Specification Test Specification: FCC Part 15 Subpart C Title: FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators 15.231 Periodic operation in the band 40.66 – 40.70 MHz and above 70MHz 3.2Methods & Procedures No.ItemTest ProcedureSpecificationRemarks 1 Electric Field Strength of Fundamental Emission ANSI C63.4:1992 15.231 3m 2 Electric Field Strength of Spurious Emission ANSI C63.4:1992 15.205 15.209 15.231 3m 3-20dB BandwidthANSI C63.4:1992 15.231 3m 3.3 Additions or deviations to standards No addition, deviation nor exclusion have been made from standards. Test report No.: 22CE0032-YW-1 Page: 5 of 13 Issued date: November 1, 2001 FCC ID: NHVWB1U523 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 SECTION 4: Operation of E.U.T. during testing 4.1Operating Modes The EUT exercise program used during radiated and conducted testing was designed to exercise the various system components in a manner similar to typical use. The operating mode/system were as follows: Operation Mode : Transmitting Justification: The system was configured in typical fashion (as a customer would normally use it) for testing. 4.2 Configuration and peripherals Front View (A):EUT Top View (A):EUT *Test data was taken under worse case conditions. Description of EUT No.ItemModel numberSerial numberManufacturerFCC ID A Keyless Entry System (Transmitter) 72147-S5A-A Sample No.1 Tohoku Alps Co., Ltd.NHVWB1U523 Test report No.: 22CE0032-YW-1 Page: 6 of 13 Issued date: November 1, 2001 FCC ID: NHVWB1U523 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 SECTION 5: Summary of test results 5.1Test results No.ItemTest ProcedureSpecification Worst marginResult 1Electric Field Strength of Fundamental Emission ANSI C63.4:1992 15.231 10.1dB (433.898MHz: Horizontal) Complied 2Electric Field Strength of Spurious Emission ANSI C63.4:1992 15.205 15.209 15.231 24.4dB (1301.715MHz: Horizontal) 10.8dB (867.806MHz: Horizontal) Complied 3-20dB BandwidthANSI C63.4:1992 15.231 Refer to 5.7Complied A-PEX INTERNATIONAL hereby confirms that E.U.T., in the configuration tested, complies with the specifications FCC Part 15 Subpart C Section 15.231(b) and 15.205. 5.2Uncertainty Radiated Emission Test The measurement uncertainty (with a 95% confidence level) for this test was +3.3dB. The data listed in this test report may exceed the test limit because it does not have enough margin (more than 3.3dB). The data listed in this test report has enough margin, more than 3.3dB. 5.3Test Location A-PEX International Co.,Ltd. Yokowa No.3 test site 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 Japan Telephone number: +81-596-39-1485 Facsimile number: +81-596-39-0232 This site has been fully described in a report submitted to FCC office, and listed on September 12, 2000 (Registration number: 90412).*NVLAP Lab. code : 200109-0 5.4Photographs of test setup Refer to Appendix 1. 5.5Test instruments Refer to Appendix 2. 5.6Data of EMI Test Refer to Appendix 3. 5.7–20dB Bandwidth Bandwidth Limit: Fundamental Frequency 433.92MHz 0.25% = 1.0848MHz Bandwidth Limit measurement data (20dB down) Center Freq: 433.9380MHz Result Upper frequency Limit (434.4624MHz:542.4kHz)434.142MHz(204kHz)Complied Lower frequency Limit (433.3776MHz:542.4kHz)433.707MHz(231kHz)Complied -20dB Bandwidth (1.0848MHz) Uf + Lf = 435kHzComplied Refer to Appendix 4. Test report No.: 22CE0032-YW-1…

Text truncated - open the document above for the full version.

Test report No.: 22CE0032-YW-1 Page: 2 of 13 Issued date: November 1, 2001 FCC ID: NHVWB1U523 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 CONTENTS PAGE SECTION 1: Client information 3 SECTION 2: Equipment under test (E.U.T.)3 SECTION 3: Test specification, methods & procedures4 SECTION 4: Operation of E.U.T. during testing5 SECTION 5: Summary of test results 6 SECTION 6: Radiated emission7 APPENDIX 1: Photographs of test setup8 APPENDIX 2:Test instruments8 APPENDIX 3: Data of EMI test8 APPENDIX 4: Wave shape of bandwidth8 Test report No.: 22CE0032-YW-1 Page: 3 of 13 Issued date: November 1, 2001 FCC ID: NHVWB1U523 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 SECTION 1: Client information Company name: Tohoku Alps Co., Ltd. Address: 6-3-36 Nakazato, Furukawa-city, Miyagi-pref. 989-6181 Japan Telephone Number: +81-229-23-5111 Facsimile Number: +81-229-22-3755 Contact Person: Koichi Abe SECTION 2: Equipment under test (E.U.T.) 2.1Identification of E.U.T. Type of Equipment: Keyless Entry System (Transmitter) Model No.: 72147-S5A-A FCC ID: NHVWB1U523 Serial No.: sample No. 1 Condition of EUT: Engineering prototype Country of Manufacture: Japan Receipt Date of Sample: October 25, 2001 2.2 Product Description Model: 72147-S5A-A, referred to as the EUT in this report, is a Transmitter of Keyless Entry System. Model: 72147-S9V-Y and 72147-S5A-A are deemed to be equal about the level of EMC since they have few differences as remarked below; 72147-S5A-A which is a top - level model, therefore, was measured as a representative. ModelPWBParts on PWBSoftware (basic control) 72147-S5A-AOriginalLoaded three SW (Lock, Unlock, PANIC)Original 72147-S9V-YSame as 72147-S5A-ALoaded two SW (Lock, Unlock)Same as 72147-S5A-A Carrier Frequency : 433.920 MHz Modulation: FSK Other Clock Frequency: 4.19MHz Information antenna: Integral / P.C.B pattern antenna Operation Voltage: Lithium Battery DC 3.0V(CR2025) Test report No.: 22CE0032-YW-1 Page: 4 of 13 Issued date: November 1, 2001 FCC ID: NHVWB1U523 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 SECTION 3: Test specification, methods & procedures 3. 1Test Specification Test Specification: FCC Part 15 Subpart C Title: FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 – 40.70 MHz and above 70MHz 3.2Methods & Procedures No.ItemTest ProcedureSpecificationRemarks 1 Electric Field Strength of Fundamental Emission ANSI C63.4:1992 Section 15.2313m 2 Electric Field Strength of Spurious Emission ANSI C63.4:1992 Section 15.205 Section 15.209 Section 15.231 3m 3-20dB BandwidthANSI C63.4:1992 Section 15.2313m 3.3 Additions or deviations to standards No addition, deviation nor exclusion have been made from standards. Test report No.: 22CE0032-YW-1 Page: 5 of 13 Issued date: November 1, 2001 FCC ID: NHVWB1U523 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 SECTION 4: Operation of E.U.T. during testing 4.1Operating Modes The EUT exercise program used during radiated and conducted testing was designed to exercise the various system components in a manner similar to typical use. The operating mode/system were as follows: Operation Mode : Transmitting Justification: The system was configured in typical fashion (as a customer would normally use it) for testing. 4.2 Configuration and peripherals Front View (A):EUT Top View (A):EUT *Test data was taken under worse case conditions. Description of EUT No.ItemModel numberSerial numberManufacturerFCC ID A Keyless Entry System (Transmitter) 72147-S5A-A Sample No.1 Tohoku Alps Co., Ltd.NHVWB1U523 Test report No.: 22CE0032-YW-1 Page: 6 of 13 Issued date: November 1, 2001 FCC ID: NHVWB1U523 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 SECTION 5: Summary of test results 5.1Test results No.ItemTest ProcedureSpecification Worst marginResult 1Electric Field Strength of Fundamental Emission ANSI C63.4:1992Section 15.23110.1dB (433.898MHz: Horizontal) Complied 2Electric Field Strength of Spurious Emission ANSI C63.4:1992Section 15.205 Section 15.209 Section 15.231 24.4dB (1301.715MHz: Horizontal) 10.8dB (867.806MHz: Horizontal) Complied 3-20dB BandwidthANSI C63.4:1992Section 15.231Refer to 5.7Complied A-PEX INTERNATIONAL hereby confirms that E.U.T., in the configuration tested, complies with the specifications FCC Part 15 Subpart C Section 15.231(b) and 15.205. 5.2Uncertainty Radiated Emission Test The measurement uncertainty (with a 95% confidence level) for this test was +3.3dB. The data listed in this test report may exceed the test limit because it does not have enough margin (more than 3.3dB). The data listed in this test report has enough margin, more than 3.3dB. 5.3Test Location A-PEX International Co., Ltd. Yokowa No.3 test site 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 Japan Telephone number: +81-596-39-1485 Facsimile number: +81-596-39-0232 This site has been fully described in a report submitted to FCC office, and listed on September 12, 2000 (Registration number: 90412).*NVLAP Lab. code : 200109-0 5.4Photographs of test setup Refer to Appendix 1. 5.5Test instruments Refer to Appendix 2. 5.6Data of EMI Test Refer to Appendix 3. 5.7-20dB Bandwidth Bandwidth Limit: Fundamental Frequency 433.92MHz x 0.25% = 1.0848MHz Bandwidth Limit measurement data (20dB down) Center Freq: 433.9380MHz Result Upper frequency Limit (434.4624MHz:542.4kHz)434.142MHz(204kHz)Complied Lower frequency Limit (433.3776MHz:542.4kHz)433.707MHz(231kHz)Complied -20dB Bandwidth (1.0…

Text truncated - open the document above for the full version.

Test report No.: 22CE0032-YW-1 Page: 9 of 13 Issued date: November 1, 2001 FCC ID: NHVWB1U523 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 Radiated emission
