NHVWB1U521Remote Keyless Entry TX

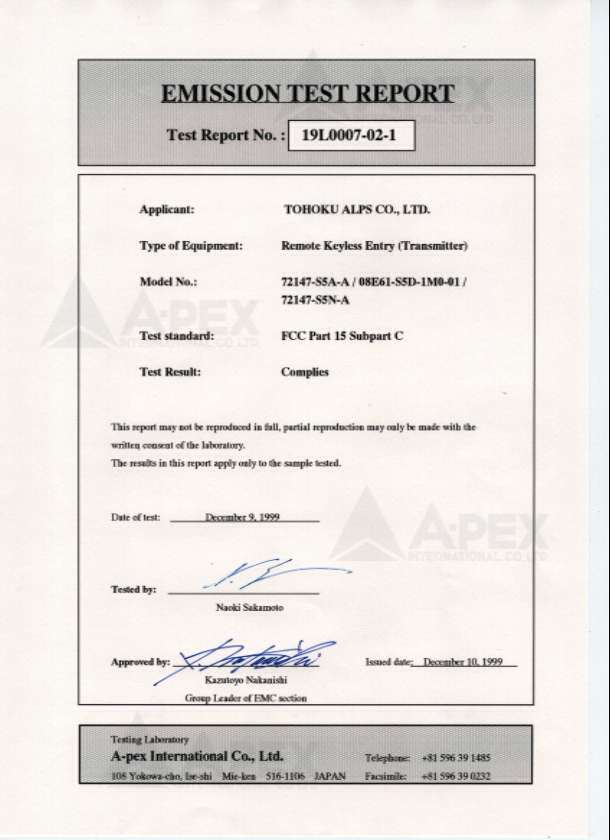

Testing Laboratory A-pex International Co., Ltd.Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPAN Facsimile:+81 596 39 0232 EMISSION TEST REPORT Test Report No. : 19L0007-02-1 Applicant: TOHOKU ALPS CO., LTD. Type of Equipment:Remote Keyless Entry (Transmitter) Model No.:72147-S5A-A / 08E61-S5D-1M0-01 / 72147-S5N-A Test standard:FCC Part 15 Subpart C Test Result:Complies This report may not be reproduced in full, partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. Date of test: December 9, 1999 Tested by: Naoki Sakamoto Approved by: Issued date: December 10, 1999 Kazutoyo Nakanishi Group Leader of EMC section Test report FCC ID : NHVWB1U521 Our reference : 19L0007-02-1 Page: 2 of 13 Issued date: 99-12-10 Testing Laboratory A-pex International Co., Ltd.Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 Table of Contents Page 1 GENERAL INFORMATION3 1.1 Tested Methodology4 1.2 Test Facility4 2 PRODUCT DESCRIPTION5 3 TESTED SYSTEM DETAILS5 4 SYSTEM TEST CONFIGURATION6 4.1 Justification6 4.2 Test Procedure6 Figure 4.2 Configuration of Tested System7 5 RADIATED MEASUREMENT PHOTOS8 Figure 5.1 Radiated Measurement Photos8 5.1 Measurement Uncertainty9 6 RADIATED EMISSION DATA10 6.1 Field Strength Calculation11 7 TEST EQUIPMENT USED12 APPENDIX13 Test Data A1 - A3 Test report FCC ID : NHVWB1U521 Our reference : 19L0007-02-1 Page: 3 of 13 Issued date: 99-12-10 Testing Laboratory A-pex International Co., Ltd.Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 1 GENERAL INFORMATION APPLICANT: TOHOKU ALPS CO., LTD. ADDRESS: 6-3-36, Nakazato, Furukawa-shi, Miyagi-ken, 989-6181 Japan Tel: +81-229-23-5111 Fax: +81-229-22-9997 REGULATION(S): FCC Part 15 Subpart C MODEL NUMBER: 72147-S5A-A / 08E61-S5D-1M0-01 / 72147-S5N-A SERIAL NUMBER: T99120801 (72147-S5A-A) T99120802 (72147-S5N-A) KIND OF EQUIPMENT: Remote Keyless Entry (Transmitter) TESTED DATE: December 8, 1999 RECEIPT DATE OF SAMPLE : November 27, 1999 REPORT FILE NUMBER: 19L0007-02-1 TEST SITE: A-PEX Yokowa NO.3 Open Test Site Test report FCC ID : NHVWB1U521 Our reference : 19L0007-02-1 Page: 4 of 13 Issued date: 99-12-10 Testing Laboratory A-pex International Co., Ltd.Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 1.1 Tested Methodology Radiated testing were performed according to the procedures in FCC/ANSI C63.4(1992). Radiated testing was performed at a distance of 3 meters from the antenna to EUT . 1.2 Test Facility The open area site measurement facility used to collect the radiated data is located on 108, Yokowa-cho, Ise-shi, Mie-ken, 516-1106 Japan. This site has been fully described in a report dated Aug. 1, 1997 submitted to FCC office, and listed dated Sep. 16, 1997 (31040/SIT 1300F2) and accepted Feb. 19, 1998 (IC2973-3) by Industry Canada. Test report FCC ID : NHVWB1U521 Our reference : 19L0007-02-1 Page: 5 of 13 Issued date: 99-12-10 Testing Laboratory A-pex International Co., Ltd.Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 2 Product Description TOHOKU ALPS CO., LTD., Model 72147-S5A-A / 08E61-S5D-1M0-01 / 72147-S5N-A (referred to as the EUT in this report) is a Remote Keyless Entry (Transmitter). *The operation frequency is as following : RF : 433.92MHz (SAW-R) Modulation techniques : FSK Rate of transmission : 1 kbps CPU clock: 4.19MHz (Ceramic Oscillator) Operation voltage : DC 3V (Battery) *This EUT has two type models, one is 3 Key type and another is 4 Key. 3 Key type4 Key type 72147-S5A-A72147-S5N-A 08E61-S5D-1M0-01- These three models have the same electric characteristics. The differences between above three models are as follows; 08E61-S5D-1M0-01 is the series model of 72147-S5A-A. 4 Key type (72147-S5N-A) is added “TRUNK Key” to 3 Key type. *The description of button is as follows; - LOCK : Transmit the LOCK command by pushing this button. (Transmission time : 256msec) - UNLOCK : Transmit the UNLOCK command by pushing this button. (Transmission time : 256msec) - TRUNK(only 4key type) : Transmit the TRUNK command by pushing this button. (Transmission time : 256msec) - PANIC : Transmit the PANIC command after 1 sec. of pushing this button. PANIC command will be transmitted during the button is on, and 30 seconds transmission will be the maximum. *The timing chart is as follows; 256msec. 256msec. 714msec. 4msec . * The output level of each key is even. 3 Tested Equipment Details The FCC IDs for all equipment, plus description of all cables used in the tested system are: Model FCC ID Description Cable description Backshell Material (1) TOHOKU ALPSNHVWB1U521Keyless Entry System - - CO., LTD. (Transmitter) M/N: 72147-S5N-A S/N: T99120802 (EUT) Test report FCC ID : NHVWB1U521 Our reference : 19L0007-02-1 Page: 6 of 13 Issued date: 99-12-10 Testing Laboratory A-pex International Co., Ltd.Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 4 SYSTEM TEST CONFIGURATION 4.1 Justification The measurement was performed with the system configuration shown in Figure 4.2. Since 72147-S5A-A, 08E61-S5D-1M0-01 and 72147-S5N-A have the same electric characteristics, only 72147-S5N-A was tested representatively. Running mode was taken for the EUT transmitting mode. 4.2 Test Procedure Tabletop Equipment Radiated Emissions EUT was placed on a platform of nominal size, 1m by 1.0m, raised 80cm above the conducting ground plane. Test was made with the antenna positioned in both the horizontal and vertical planes of polarization. The measurement antenna was varied in height above the conducting ground plane to obtain the maximum signal strength. Test report FCC ID : NHVWB1U521 Our reference : 19L0007-02-1 Page: 7 of 13 Issued date: 99-12-10 Testing Laboratory A-pex International Co., Ltd.Telephone:+81 59…
