NHVWBU61Passive Entry System

Document No. Title Page 5AX000XX00 Product Specification Background Passive Entry System FORMAT NO. FIRMWARE_A(VER 0.01) 1. Preface This document describes the requirements and operation of the Passive Entry System. However, this document is especially for the Entry system ECU (acronym for Electric Control Unit) and the FOB. The FOB consists the following functionality for passive access and active access: • Door unlocking / locking (however, only for request by means of switch operation) • Trunk unlocking / locking (however, only for request by means of switch operation) • LF decoding • RF encoding • Communication data encryption (cryptograph, anti-collision, rolling code and stuff) And the entry system ECU consists of the following functionality: • Door unlocking / locking • Trunk unlocking / locking • Engine start (/ stop) • LF encoding • RF encoding • Communication data encryption (cryptograph, anti-collision, rolling code and stuff) • LF antenna unit control • Communication with the node ECUs connected to the body bus (e.g. CAN, J1850, customer dependent bus) As a further function, both the FOB and the entry system ECU provides the following function: • Learning mode for programming the manufacturing data and stuff • Data locking and password protection • Diagnostic (based upon ISO9141 if required) Document No. Title Page 5AX000XX00 Product Specification Background Passive Entry System FORMAT NO. FIRMWARE_A(VER 0.01) 2. Passsive Accsess Entry Functionality A proximity sensor located on, for example the door handles, mirrors and trunk lid will be used for proximity check if user is in neighborhood of the vehicle. The switch input will trigger for unlocking and open the doors and trunk. Figure 1 2.1.Door Unlocking • User pull / touch the door handle (sensing of door handle switch). • ECU sends LF-challenge via exterior antenna. • FOB sends RF-response to the ECU. • Door unlocking status is engaged. • Doors are opened. Figure 2 Proximity sensor Switch input (door handle) LF RF FOB Document No. Title Page 5AX000XX00 Product Specification Background Passive Entry System FORMAT NO. FIRMWARE_A(VER 0.01) 2.2.Engine Start • User pushes / operate the engine start button / knob. • ECU sends LF-challenge via interior antenna. • FOB sends RF-response to the ECU. • Immobilizer ECU receives and authorize the response. • Engine controller ECU receives the authorization for engine strat. • Start the engine. Figure 3 2.3.Engine Stop • User pushes / operate the engine stop button / knob. • ECU communicates with the other ECU for engine start request. • Engine controller ECU receives the request. • Stop the engine Figure 4 LF RF FOB Document No. Title Page 5AX000XX00 Product Specification Background Passive Entry System FORMAT NO. FIRMWARE_A(VER 0.01) 2.4.Door Locking (Push switch) • User closes the door and pushes the switch (sensing of door locking switch). • ECU sends LF-challenge via exterior antenna. • FOB sends RF-response to the ECU. • Door locking status is engaged. • Doors are locked. • (Indicates the door locking status by means of Flasher / Buzzer or stuff) Figure 5 Document No. Title Page 5AX000XX00 Product Specification Background Passive Entry System FORMAT NO. FIRMWARE_A(VER 0.01) 3. Active Access Entry Functionality 3.1.Door Unlocking Same functionality as the current one. 3.2.Engine Start This function does not effect on the active entry system. 3.3.Engine Stop This function does not have influencei on the active entry system. 3.4.Door Locking Same functionality as the current one. Document No. Title Page 5AX000XX00 Product Specification Background Passive Entry System FORMAT NO. FIRMWARE_A(VER 0.01) 4. Entry System Options 4.1.System Schematic 4.2.Modules 4.2.1.FOB ECU 4.2.2.Entry System ECU FOB OTHER ECUS LF (>2Kbps) RF (>4Kbps) Local Bus ECU1 ECU2 ECU3 Body Bus ENTRY SYSTEM ECU FOB ENTRY SYSTEM ECU RF Amp LF Amp ASIC Z X Y Lock Unlock Trunk Key lock Emergency key (Transponder) MCU FT handle BT handle FH handle BH handle Trunk lid Engine start Body Bus Local Bus RF Amp LF Exciter LF Exciter LF Exciter LF Exciter LF Exciter LF Exciter Interior FT BT FH BH Trunk 125kHz 433.92 MHz 125kHz 433.92 MHz 433.92M Hz 125kHz Document No. Title Page 5AX000XX00 Product Specification Background Passive Entry System FORMAT NO. FIRMWARE_A(VER 0.01) 5. System Characteristics 5.1.Antenna Areas Exterior operating range: 0.8m to 1.5m Interior operating range: Only inside the car Number of the exterior exciters : max. 5 (min. 2), however, it is depending on the type of the vehicle. Number of the interior exciters: 1 (1-Dimmension) or 2 (2-Dimension required) Figure 6 Exterior antenna functionality: • Unlock / lock doors and trunk. • Activate / deactivate alarm system. • Activate immobilizer Interior antenna functionality: • Deactivate immobilizer • Engine start Exterior Interior FT BT Document No. Title Page 5AX000XX00 Product Specification Background Passive Entry System FORMAT NO. FIRMWARE_A(VER 0.01) 5.2.Exciter Locations Exterior exciters: 2 doors and 1 trunk Interior exciters: 1 driver’s sheet 2 column / shift lever (X-Y 2-Dimension) Figure 7 Antenna location can be different among of type of the vehicle (e.g. coupe, sedan, mini and stuff). Exterior Interior FT BT Document No. Title Page 5AX000XX00 Product Specification Background Passive Entry System FORMAT NO. FIRMWARE_A(VER 0.01) 5.3.Switch Input Locations (Door handle, Touch sensor) There are some kind of sensors, for instance the door handle contact switch and touch sensor, will be used as a triggering for unlocking and open the door. Switch inputs: 2 doors and 1 trunk Figure 8 Switch inputs can be different among of type of the vehicle (e.g. coupe, sedan, mini and stuff). FT BT Document No. Title Page 5AX000XX00 Product Specification Background Passive Entry System FORMAT NO. FIRMWARE_A(VER 0.01) 6. Electrical Characteristics 6.1.FOB • ASK / FSK modulation • Operating supply voltage 2.1V to 4.0V (3.0V Battery) • Operating supply current < 7mA •…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 October 14, 2002 RE: FCC ID: NHVWBU61 Attention: Mr.Makoto Kosaka / Ms.Yukie Koyama I have a few comments on this Application. 1 The following documents contain non-English fonts and cannot be read by the FCC server: Schematics, Label drawing and location, Test report. Please provide documents that do not contain non-English fonts. 2 Please provide Internal photos of the device. The file listed as internal photos cannot be read and is not recognized by the ATCB server. 3 On page 14 of the report, there appears to be 2 carriers separated by 90 kHz shown in the bandwidth plot. Please explain. 4 Please note that pulse width modulation duty cycle for devices whose transmission exceeds 0.1 sec is determined by the alternative method. “In cases where the pulse train exceeds 0.1 seconds, the measured field strength shall be determined from the average absolute voltage during a 0.1 second interval during which the field strength is at its maximum value.” Please note that in your calculation you referenced 189us to 391us, not to the required 100ms. While the device may be a 50% duty cycle device, the references need to be in accordance with Part 15. Since the device appears to have a pulse train longer than 100ms, please shown compliance using 100ms, not 391us. This would be the total on time to total time. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Subject: Re: 10-14, 02 NHVWBU61 ATCB Comments..PDF Date: Tue, 15 Oct 2002 15:23:37 +0900 From: [email protected] To: [email protected] CC: [email protected] Dear Dennis, Thank you very much for your contact on the above application. I make a reply as follow. 1. As for the Schematics and Label drawing & location, I re-uploaded them through your website. Please check them. As for the testreport, we think this file doesn't contain non-English fonts because we can open this file and see all pages by our English acrobat. Could you check this again? If there is any pages of non-English fonts, please let me know the applicable pages. 2. We uploaded the revised Internal photos. Please check it. 3. Since the modulation of the Hand Unit <NHVWBU61> is FSK <Frequency shift keying, we observed the waveform as the submitted testreport. However, since we wrote only Frequency on the page 3, we modified "Frequency" to "Frequency shift keying". Please replace original page 3 to "revise Page 3". 4. We added the applicable data and uploaded it. Please see the "add A3-1". Thanks. Best regards, Yukie Koyama ::::::::::::::::::::::::::::: EMC Head Office Division A-Pex International Co.,Ltd. 4383-326 Asama-cho Ise-shi Mie-ken 516-0021 JAPAN TEL +81-596-24-8116 FAX +81-596-24-8124 E-mail:[email protected] ::::::::::::::::::::::::::::: --Original Message 2002/10/15 6:14:13-- Attached is a request for information on the above application Thanks Dennis - 10-14, 02 NHVWBU61 ATCB Comments..PDF

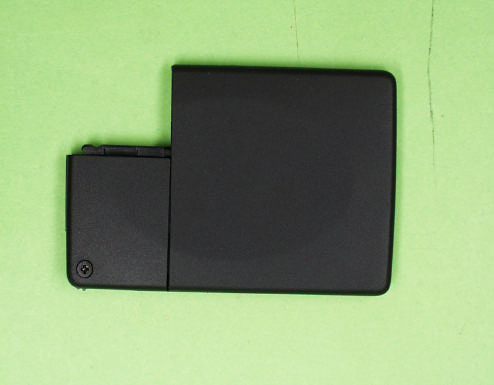

TOHOKU ALPS CO., LTD Passive Entry System<FCC ID: NHVWBU61> <External Photos> Front view TOHOKU ALPS CO., LTD Passive Entry System<FCC ID: NHVWBU61> Rear view

TOHOKU ALPS CO., LTD Passive Entry System<FCC ID: NHVWBU61> <Internal Photos> Front view TOHOKU ALPS CO., LTD Passive Entry System<FCC ID: NHVWBU61> Rear view TOHOKU ALPS CO., LTD Passive Entry System<FCC ID: NHVWBU61> Inside view TOHOKU ALPS CO., LTD Passive Entry System<FCC ID: NHVWBU61> Overview of Antenna Part

Test report No.: 23AE0036-YW-1 Page: 1 of 11 FCC ID: NHVWBU61 Issued date: October 7, 2002 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 EMI TEST REPORT Test Report No. : 23AE0036-YW-1 Applicant:Tohoku Alps Co., Ltd. Type of Equipment:Passive Entry System Model No.:TFWB1U611 (Hand Unit) FCC IDNHVWBU61 Test standard:FCC Part 15 Subpart C Section 15.231 and FCC Part 15 Subpart B Section 15.109 Test Result:Complied 1. This test report shall not be reproduced in full or partial, without the written approval of A-Pex International Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with above regulation. We hereby certify that the data contain a true representation of the EMC profile. 4. The test results in this report are traceable to the national or international standards. 5. This test report does not constitute an endorsement by NIST/NVLAP or U.S. Government. Date of test: September 11, 2002 Tested by: Makoto Kosaka EMC Section Approved by: Kazutoyo Nakanishi Site Operation Manager of EMC Section Test report No.: 23AE0036-YW-1 Page: 2 of 11 FCC ID: NHVWBU61 Issued date: October 7, 2002 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 CONTENTS PAGE SECTION 1: Client information 3 SECTION 2: Equipment under test (E.U.T.)3 SECTION 3: Test specification, methods & procedures4 SECTION 4: Operation of E.U.T. during testing5 SECTION 5: Summary of test results 7 SECTION 6: Radiated emissions, -20dB BW & Automatically deactivate8 APPENDIX 1: Photographs of test setup9 APPENDIX 2:Test instruments9 APPENDIX 3: Data of EMI test9 Test report No.: 23AE0036-YW-1 Page: 3 of 11 FCC ID: NHVWBU61 Issued date: October 7, 2002 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 SECTION 1: Client information Company name: Tohoku Alps Co., Ltd. Address: 6-3-36 Nakazato, Furukawa-City, Miyagi-pref, 989-6181 Japan Telephone Number: +81 229 23 5111 Facsimile Number: +81 229 22 3755 Contact Person: Tomosuke Takata SECTION 2: Equipment under test (E.U.T.) Type of Equipment: Passive Entry System / (Car Lock / Unlock devices) Tx section Model No.TFWB1U611(Hand Unit) Sample No. No.1 Number of Channel 1 Frequency Characteristics 433.92MHz Modulation Frequency Information antenna Integral / (P.C.B pattern antenna) Rating DC3.0V Lithium Battery (CR2023) Country of Manufacture Japan Rx section Type of Receiver Turned Radio Frequency Receiver Receiving Frequency125kHz Local Oscillator Frequencynone Intermediate Frequencynone Information antennaIntegral / (Loop coil and Bar antenna) RatingDC3.0V Lithium Battery (CR2023) Country of Manufacture: Japan Receipt Date of Sample : September 11, 2002 Condition of EUT: Engineering prototype 2.2Product Description The hand unit of passive entry system is a transmitter of 433.92MHz and a receiver of 125kHz. The control unit of the passive entry system is a transmitter of 125kHz and a receiver of 433.92MHz. These units are the new type of keyless entry system which communicates with each other. See reference our test report No. 23AE0036-YW-2.(Control Unit) Test report No.: 23AE0036-YW-1 Page: 4 of 11 FCC ID: NHVWBU61 Issued date: October 7, 2002 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 SECTION 3: Test specification, methods & procedures 3. 1Test Specification Test Specification: FCC Part 15 Subpart C Title: FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 – 40.70 MHz and above 70MHz Test Specification: FCC Part 15 Subpart B Section 15.109 Radiated emission limits Title: FCC 47CFR Part15 Radio Frequency Device Subpart B Unintentional Radiators 3.2Methods & Procedures No.ItemTest ProcedureSpecificationRemarks 1Automatically DeactivateANSI C63.4:2000 FCC Section 15.231(a)(1)Radiated 2 Electric Field Strength of Fundamental Emission ANSI C63.4:2000 FCC Section 15.231(b)Radiated 3 Electric Field Strength of Spurious Emission ANSI C63.4:2000 FCC Section 15.205 FCC Section 15.209 FCC Section 15.231(b) Radiated 4-20dB BandwidthANSI C63.4:2000 FCC Section 15.231(c)Radiated 5Radiated emissionANSI C63.4:2000 FCC Section 15.109(a)Radiated 6Conducted EmissionANSI C63.4:2000 FCC Section 15.107(a) and 207 AC Mains only *These tests were performed without any deviations from test procedure except for additions or exclusions. 3.3 Exclusion from standard No.ItemTest ProcedureSpecificationRemarks 6Conducted EmissionANSI C63.4:2000 FCC Section 15.107(a) and 207 This test is not applicable since the EUT does not have AC pwer port. Test report No.: 23AE0036-YW-1 Page: 5 of 11 FCC ID: NHVWBU61 Issued date: October 7, 2002 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 SECTION 4: Operation of E.U.T. during testing 4.1Operating Modes The EUT exercise program used during radiated and conducted testing was designed to exercise the various system components in a manner similar to typical use. The operating mode/system were as follows: Operation mode is as follows; - Transmitting mode - Receiving mode Justification: The system was configured in typical fashion (as a customer would normally use it) for testing. 4.2 Configuration and peripherals Front View (Hand Unit) (A):EUT Top View (Hand Unit) (A):EUT Description of EUT No.ItemModel numberSerial numberManufacturerRemarks A Passive Entry System (Hand Unit) TFWB1U611 Sample No.1 Tohoku AlpsEUT Test report No.: 23AE0036-YW-1 Page: 6 of 11 FCC ID: NHVWBU61 Issued date: October 7, 2002 A-pex International Co., Ltd. YOKOWA LAB. 108…

Text truncated - open the document above for the full version.

Test report No.: 23AE0036-YW-1 Page: 3 of 11 FCC ID: NHVWBU61 Issued date: October 7, 2002 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 SECTION 1: Client information Company name: Tohoku Alps Co., Ltd. Address: 6-3-36 Nakazato, Furukawa-City, Miyagi-pref, 989-6181 Japan Telephone Number: +81 229 23 5111 Facsimile Number: +81 229 22 3755 Contact Person: Tomosuke Takata SECTION 2: Equipment under test (E.U.T.) Type of Equipment: Passive Entry System / (Car Lock / Unlock devices) Tx section Model No.TFWB1U611(Hand Unit) Sample No. No.1 Number of Channel 1 Frequency Characteristics 433.92MHz Modulation FSK(Frequency shift keying) Information antenna Integral / (P.C.B pattern antenna) Rating DC3.0V Lithium Battery (CR2023) Country of Manufacture Japan Rx section Type of Receiver Turned Radio Frequency Receiver Receiving Frequency125kHz Local Oscillator Frequencynone Intermediate Frequencynone Information antennaIntegral / (Loop coil and Bar antenna) RatingDC3.0V Lithium Battery (CR2023) Country of Manufacture: Japan Receipt Date of Sample : September 11, 2002 Condition of EUT: Engineering prototype 2.2Product Description The hand unit of passive entry system is a transmitter of 433.92MHz and a receiver of 125kHz. The control unit of the passive entry system is a transmitter of 125kHz and a receiver of 433.92MHz. These units are the new type of keyless entry system which communicates with each other. See reference our test report No. 23AE0036-YW-2.(Control Unit)

Company: TOHOKU ALPS CO., LTD.Report No.: 23AE0036-YW-1 Equipment: Passive Entry System (Hand Unit)Regulation: FCC Part15C Section 15.231& 15.35( c ) Model: TFWB1U611Date : 2002/09/11 Sample No.: No.1Temperature: 21deg.C Power: DC 3.0V (CR2023)Humidity: 80% Mode: Transmitting (433.92MHz) FCC ID: NHVWBU61 IC No: 3495A-FWB1U61 ENGINEER : Makoto Kosaka 100ms plot20ms plot * Ton = 189us, Toff = 202us , Tperiod = 391us 100ms/391us = 255.7times Duty Factor = 20log(189us*255.7)/100ms = -6.3 Duty cycle factor Page: A3-1

Test report No.: 23AE0036-YW-1 Page: 10 of 11 FCC ID: NHVWBU61 Issued date: October 7, 2002 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 APPENDIX 1: Photographs of test setup Radiated emission
