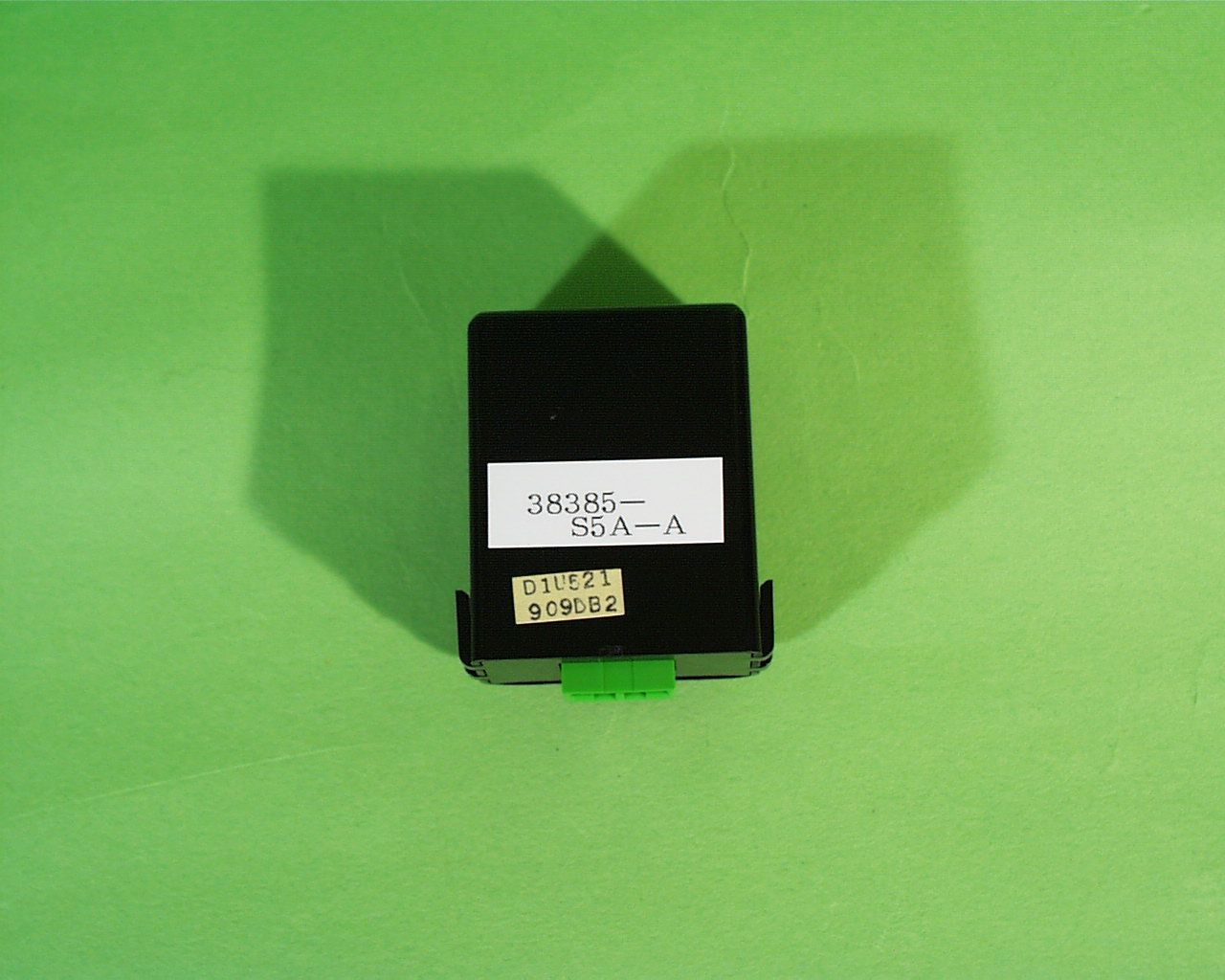

NHVWD1U521Remote Keyless Entry (Receiver)

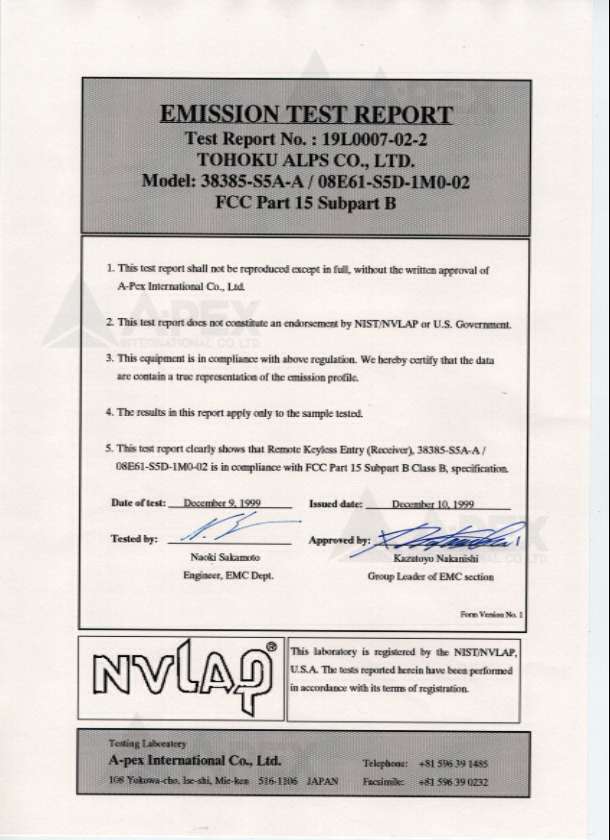

Testing Laboratory A-pex International Co., Ltd.Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Facsimile:+81 596 39 0232 This laboratory is registered by the NIST/NVLAP, U.S.A. The tests reported herein have been performed in accordance with its terms of registration. EMISSION TEST REPORT Test Report No. : 19L0007-02-2 TOHOKU ALPS CO., LTD. Model: 38385-S5A-A / 08E61-S5D-1M0-02 FCC Part 15 Subpart B 1. This test report shall not be reproduced except in full, without the written approval of A-Pex International Co., Ltd. 2. This test report does not constitute an endorsement by NIST/NVLAP or U.S. Government. 3. This equipment is in compliance with above regulation. We hereby certify that the data are contain a true representation of the emission profile. 4. The results in this report apply only to the sample tested. 5. This test report clearly shows that Remote Keyless Entry (Receiver), 38385-S5A-A / 08E61-S5D-1M0-02 is in compliance with FCC Part 15 Subpart B Class B, specification. Date of test: December 9, 1999 Issued date: December 10, 1999 Tested by: Approved by: Naoki SakamotoKazutoyo Nakanishi Engineer, EMC Dept. Group Leader of EMC section Form Version No. 1 Test report FCC ID : NHVWD1U521 Our reference : 19L0007-02-2 Page: 2 of 15 Issued date: 99-12-10 Testing Laboratory A-pex International Co., Ltd.Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 Table of Contents Page 1 GENERAL INFORMATION3 1.1 Product Description4 1.2 Tested System Details4 1.3 Tested Methodology5 1.4 Test Facility5 2 SYSTEM TEST CONFIGURATION6 2. 1 Operation Environment 6 2.2 Justification6 2. 3 EUT Exercise Software6 2.4 Test Procedure7 Figure 2.1 Configuration of Tested System8 3 RADIATED MEASUREMENT PHOTOS10 Figure 3.1 Radiated Measurement Photos10 3.1 Measurement Uncertainty11 4 RADIATED EMISSION DATA12 4.1 Field Strength Calculation13 5 TEST EQUIPMENT USED14 APPENDIX15 A:Test Data A1 - A2 Test report FCC ID : NHVWD1U521 Our reference : 19L0007-02-2 Page: 3 of 15 Issued date: 99-12-10 Testing Laboratory A-pex International Co., Ltd.Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 1 GENERAL INFORMATION APPLICANT: TOHOKU ALPS CO., LTD. ADDRESS: 6-3-36, Nakazato, Furukawa-shi, Miyagi-ken, 989-6181 Japan Tel: +81-229-23-5111 Fax: +81-229-22-9997 REGULATION(S): FCC Part 15 Subpart B MODEL NUMBER: 38385-S5A-A / 08E61-S5D-1M0-02 SERIAL NUMBER: R99120901 (38385-S5A-A) KIND OF EQUIPMENT: Remote Keyless Entry (Receiver) TESTED DATE: December 9, 1999 RECEIPT DATE OF SAMPLE : November 27, 1999 REPORT FILE NUMBER: 19L0007-02-2 TEST SITE: A-PEX Yokowa NO.3 Open Test Site Test report FCC ID : NHVWD1U521 Our reference : 19L0007-02-2 Page: 4 of 15 Issued date: 99-12-10 Testing Laboratory A-pex International Co., Ltd.Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 1.1 Product Description TOHOKU ALPS CO., LTD., Model 38385-S5A-A / 08E61-S5D-1M0-02 (referred to as the EUT in this report) is a Remote Keyless Entry (Receiver). These two models have the same electric characteristics. 08E61-S5D-1M0-02 is the series model of 38385-S5A-A. The operation frequency is as following : RF : 84.644MHz (X-TAL) CPU clock: 4.19MHz (X-TAL) Operation voltage : DC 13V 1.2 Tested System Details The FCC IDs for all equipment, plus description of all cables used in the tested system are: Model FCC ID Description Cable description Backshell Material (1) TOHOKU ALPSNHVWD1U521Remote Keyless Entry Unshielded I/F Cable P.V.C. CO., LTD. (Receiver) M/N: 38385-S5A-A S/N: R99120901 (EUT) (2) TOHOKU ALPSNHVWB1U521Remote Keyless Entry - - CO., LTD. (Transmitter) M/N: 72147-S5N-A (4 key) S/N: T99120802 (3) TOHOKU ALPSN/A Checker - - CO., LTD. M/N: - S/N: - (4) Shin-kobe ElectricN/A Battery Unshielded DC Power Cable P.V.C. Machinery Co., Ltd. M/N: 38B19R S/N: - Test report FCC ID : NHVWD1U521 Our reference : 19L0007-02-2 Page: 5 of 15 Issued date: 99-12-10 Testing Laboratory A-pex International Co., Ltd.Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 1.3 Tested Methodology Both conducted and radiated testing were performed according to the procedures in FCC/ANSI C63.4(1992). Radiated testing was performed at a distance of 3 meters from the antenna to EUT . 1.4 Test Facility The open area test site and conducted measurement facility used to collect the radiated data is located at 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 Japan. This site has been fully described in a report dated Aug. 1, 1997 submitted to FCC office, and Listed dated Sep. 16, 1997 (31040/SIT 1300F2). Test report FCC ID : NHVWD1U521 Our reference : 19L0007-02-2 Page: 6 of 15 Issued date: 99-12-10 Testing Laboratory A-pex International Co., Ltd.Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 2 SYSTEM TEST CONFIGURATION 2.1 Operation Environment Radiation Temperature : 20 Degree Humidity: 45% Power supply : DC 13V 2.2 Justification The system was configured in typical fashion (as a customer would normally use it) for testing. Since 38385-S5A-A and 08E61-S5D-1M0-02 have the same electric characteristics, only 38385-S5A-A was tested representatively. 2.3 EUT Exercise Software The EUT exercise program used during radiated and conducted testing was designed to exercise the various system components in a manner similar to typical use. The sequence is used: Operation: Receiving mode Test report FCC ID : NHVWD1U521 Our reference : 19L0007-02-2 Page: 7 of 15 Issued date: 99-12-10 Testing Laboratory A-pex International Co., Ltd.Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 2.4 Test Procedure 2.4.1 Tabletop Equipment Radiated Emissions EUT was placed on a platform of nominal size, 1m by 1.5m, raised 80cm above the conducting ground plane. The rear of EUT, including peripherals was…
