NHVWG1U713keyless entry system receiver

Tohoku Alps Co Ltd

Click to zoom

Application Details

Equipment Class: CYY - Communications Receiver used w/Pt 15 Transmitter
Date of Grant: Jan 13, 2003
Application Purpose: Original Equipment
Date of Application: Jan 13, 2003
Equipment Note: keyless entry system receiver
Frequency Range: 433.92000000 - 433.92000000
Company: Tohoku Alps Co Ltd
Country: Japan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

The radio frequency keyless entry system has the following functions. 1. Locking and unlocking the doors and rear gate without key 2. Sounding a panic alarm This system consists of transmitter and receiver. The receiver (EUT) is powered 12V. It is designed to operate on a single fixed frequency RF 433.92MHz by amplitude modulation. It receives unique identification code and function code transmitted from transmitter. After receiving the signal, the CPU in receiver decides which operation will be performed. And then driving circuit in receiver performs selected operations by pressing the button of the transmitter. Keys and doors Keyless entry system (if equipped) CONTINUED 2-7 CAUTION Do not expose the transmitter to severe shocks, such as those experienced as a result of dropping or throwing. Do not take the transmitter apart except when replacing the battery. Do not get the transmitter wet. If it gets wet, wipe it dry with a cloth immediately. This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, Including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

External Photos

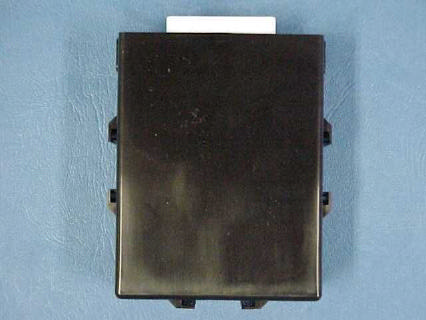

TOHOKU ALPS CO.,LTD. Receiver of Keyless Entry System FCC ID: NHVWG1U713 <External photos> Top view TOHOKU ALPS CO.,LTD. Receiver of Keyless Entry System FCC ID: NHVWG1U713 Bottom view TOHOKU ALPS CO.,LTD. Receiver of Keyless Entry System FCC ID: NHVWG1U713 Front view TOHOKU ALPS CO.,LTD. Receiver of Keyless Entry System FCC ID: NHVWG1U713 Back view TOHOKU ALPS CO.,LTD. Receiver of Keyless Entry System FCC ID: NHVWG1U713 Side view

Internal Photos

TOHOKU ALPS CO.,LTD. Receiver of Keyless Entry System FCC ID: NHVWG1U713 <Internal photos> Circuit board <Front> TOHOKU ALPS CO.,LTD. Receiver of Keyless Entry System FCC ID: NHVWG1U713 Circuit board <Rear >

Test Report

Test report No. : 23DE0050-HO-1 Page : 9 of 12 Issued date : December 27, 2002 FCC ID : NHVWG1U713 A-Pex International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 MF060b (23.04.02) APPENDIX 1: Photographs of test setup Radiated emission
