NIM2400Video transmitter

• 1. Connect the input cable (A) to the video source. • 2. Make sure that the antenna (B) is facing the receiver. • For best performance make sure that the antenna is vertical and that it is clear of any obstructions. • LEGEND • Yellow: video input • Orange: control input • Red: n/c • Brown: ground/common • Black: +6-12Vdc • Changes or modifications not expressly approved by Electra could void the user’s authority to operate the equipment. SPECIFICATIONS FREQUENCY: 2410-2475MHz POWER OUT PUT: 50mV/METRE @3 METRES VOLTAGE: 6-12v DC CURRENT: 26 mA VIDEO INPUT: 1V P-P 75 ohm •

Offices In Hull (UK), Ottawa (Canada), Dallas (USA) And Arnhem (The Netherlands) April 7, 2000 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland 21046 USA KTL 3325 River Road RR #5 Ottawa, Ontario Canada K1V 1H2 Tel: 613-737-9680 Fax: 613-737-9691 Toll Free: 1-800-563-6336 Email: [email protected] Internet: www.ktl.com Dear Sir/Madam:Our File Ref. 9R01704 FCC ID: NIM2400 Applicant: Electra Enterprises Equipment: Video Transmitter FCC Confirmation no.: EA97283 We have successfully electronically filed all the required documentation for an application for certification in accordance with FCC Part 15 on the above mentioned equipment, April 7, 2000. Enclosed, please find a cheque in the amount of $1075.00 US (includes confidentiality request), a copy of FCC Remittance Form 159, a copy of the FCC Form 731 confirmation number and a copy of the list of exhibits. If you require additional information, please do not hesitate to contact me at 1-800-563-6336 (extension 232). Thank you in advance for your assistance in this matter. Sincerely, Ruby Dulmage Regulatory Submissions Clerk KTL Ottawa Inc. [email protected] Encl.

Offices In Hull (UK), Ottawa (Canada), Dallas (USA) And Arnhem (The Netherlands) April 12, 2000 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland 21046 USA KTL 3325 River Road RR #5 Ottawa, Ontario Canada K1V 1H2 Tel: 613-737-9680 Fax: 613-737-9691 Toll Free: 1-800-563-6336 Email: [email protected] Internet: www.ktl.com Dear Sir/Madam:OUR FILE REF. 9R01704 FCC ID: NIM2400 APPLICANT: ELECTRA ENTERPRISES EQUIPMENT: VIDEO TRANSMITTER FCC CONFIRMATION NO.: EA97283 NOTICE OF AN ERROR IN TEST REPORT An error was noticed in the test report for the above mentioned file. The type of modulation should be “frequencey modulation” and the emission designator should be “14M4F3E”. Therefore, the Form 731 was submitted with the incorrect emission designator. A revised test report was submitted yesterday (April 11, 2000) with the corrections made. I apologize for any inconvenience this may have caused. Sincerely, Ruby Dulmage Regulatory Submissions Clerk KTL Ottawa Inc. [email protected]

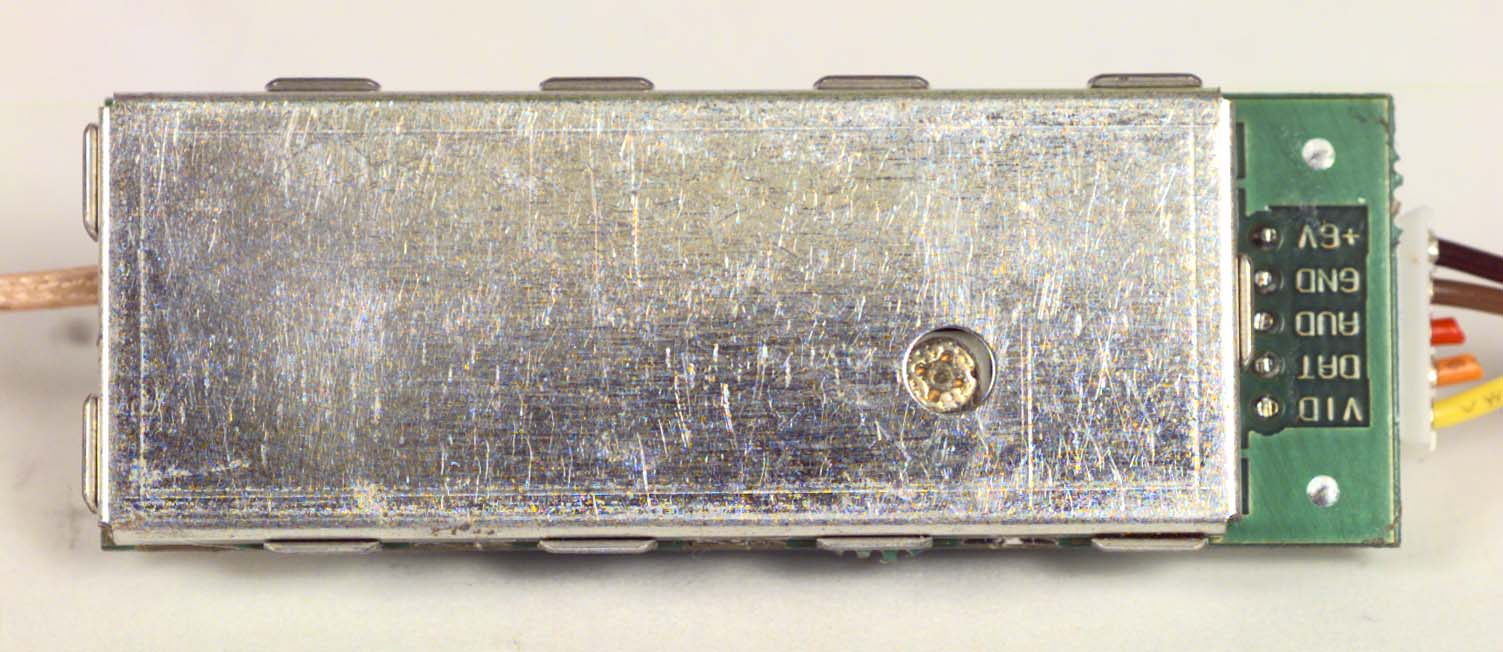

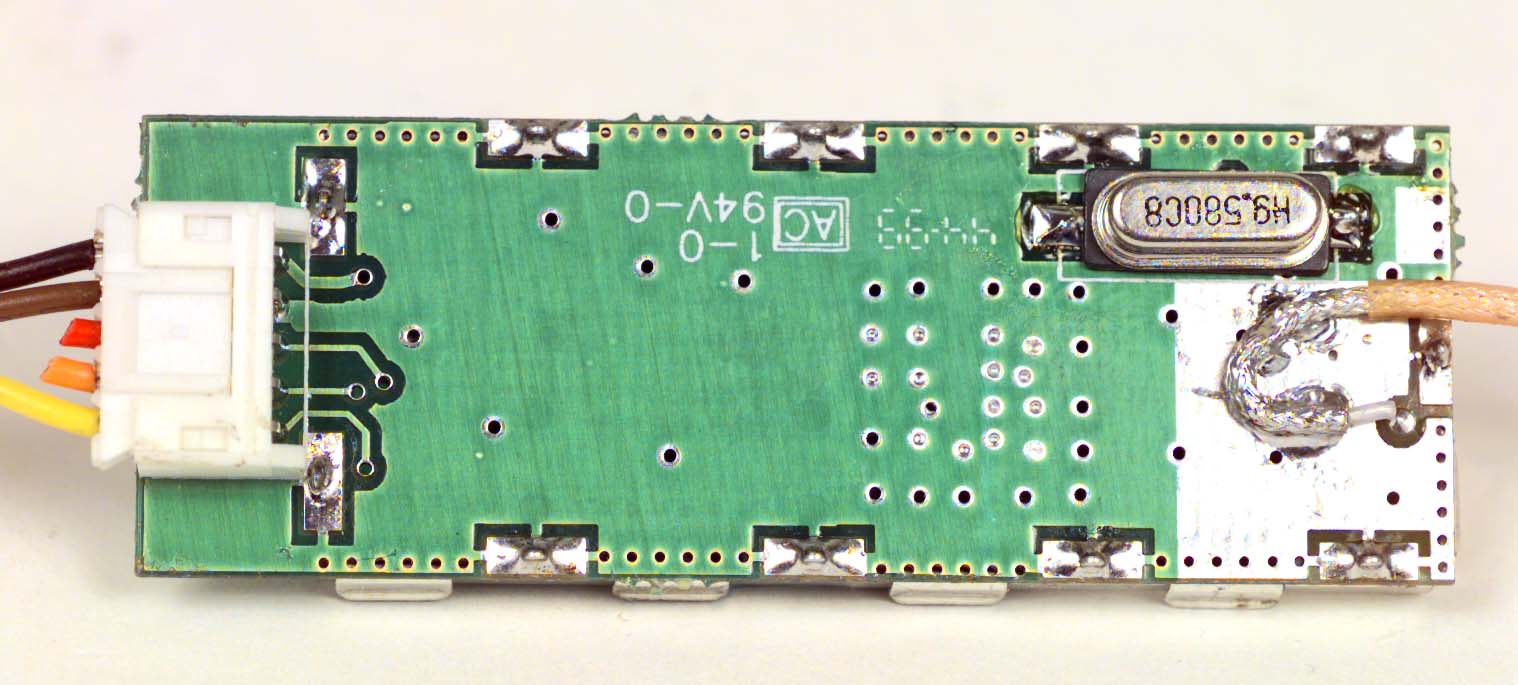

Technical description 24 PIC 2.4GHz Transmitter ELECTRA ENTERPRISES Video is fed into modulator, where pre-emphasis is applied to the video signal. Raw Data is applied to the microprocessor. Output of MP FM-modulates D1, w hich in co nj unctio n w ith Q1 ge nerates the A udio S ubcarrier. Optional an audio signal may be applied here via C22. VCO1 ge nerates the 2.4GHz signal whic h is phase-locked to crystal Y1 in U1. Video and audio-subcarrier are superimposed onto the low-pass-filtered tuning-voltage from U1 and FM-modulate VCO1. The output of VCO1 is attenuated and passes through the monolithic 2.4GHz bandpass-Filter. Voltage-regulator Reg1 is a low-dropout regulator and stabilizes the supply voltages.

Master: ktlPT15209 Date: April 4, 2000 KTL Test Report:9R01704 Applicant:Electra Enterprises 390 Edgeley Blvd. Concord, Ontario L4K 3Z6 Equipment Under Test:Video Transmitter (E.U.T.) FCC ID:NIM2400 In Accordance With:FCC Part 15, Subpart C, Paragraph 15.209 General Limits For Low Power Transmitters Tested By:KTL Ottawa Inc. 3325 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: R. Grant, Wireless Group Manager Date: Total Number of Pages:14 KTL Ottawa FCC PART 15, SUBPART C PARAGRAPH 15.209 PROJECT NO.: 9R01704 EQUIPMENT: Video Transmitter FCC ID: NIM2400 Page 2 of 12 Table Of Contents Section 1. Summary Of Test Results......................................................................................... 3 Section 2. General Equipment Specification ........................................................................... 5 Section 3. Radiated Emissions...................................................................................................6 Section 4. Occupied Bandwidth.............................................................................................. 10 Section 5. Test Equipment List ............................................................................................... 12 Annex A Test Diagrams ........................................................................................................ A1 KTL Ottawa FCC PART 15, SUBPART C PARAGRAPH 15.209 PROJECT NO.: 9R01704 EQUIPMENT: Video Transmitter FCC ID: NIM2400 Page 3 of 12 Section 1.Summary Of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15, Subpart C for low power devices. All tests were conducted using measurement procedure ANSI C63.4-1992. Radiated Emissions were made on an open area test site. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit DXX Equipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100351-0 It is recommended that the margin of compliance be improved to allow for manufacturing tolerances. TESTED BY: _____________________________________ DATE: ___________________ Kevin Carr, Technologist KTL Ottawa Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. KTL Ottawa Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. KTL Ottawa FCC PART 15, SUBPART C PARAGRAPH 15.209 PROJECT NO.: 9R01704 EQUIPMENT: Video Transmitter FCC ID: NIM2400 Page 4 of 12 Summary Of Test Data Name Of TestPara. No.Result Powerline Conducted Emissions15.207Not Applicable Radiated Emissions15.209Complies Occupied BandwidthNot SpecifiedComplies Footnotes For N/A’s: Battery Powered Test Conditions: Indoor Temperature: 24 °C Humidity:35 % Outdoor Temperature: 15 °C Humidity:35 % KTL Ottawa FCC PART 15, SUBPART C PARAGRAPH 15.209 PROJECT NO.: 9R01704 EQUIPMENT: Video Transmitter FCC ID: NIM2400 Page 5 of 12 Section 2.General Equipment Specification Manufacturer: Electra Enterprises Model No.: 2400 Serial No.: None Date Received In Laboratory: March 24, 2000 KTL Identification No.: Item #4 Frequency Range: 2410 – 2475 MHz Operating Frequency(ies) of Sample: 2410.8 MHz, 2453 MHz and 2473 MHz Modulation: Frequency Modulation Emission Designator: 13M4F3E Integral Antenna YesNo Note: If antenna is not integral to transmitter explain method of attachment and type of unique connector: KTL Ottawa FCC PART 15, SUBPART C PARAGRAPH 15.209 PROJECT NO.: 9R01704 EQUIPMENT: Video Transmitter FCC ID: NIM2400 Page 6 of 12 Section 3.Radiated Emissions Para. No.: 15.209 Test Performed By: Kevin Carr Date of Test: April 3, 2000 Minimum Standard: The field strength of emissions from the device shall not exceed the following limits. Fundamental (MHz) Field Strength ( μ μμ μ V/m) Field Strength (dB μ μμ μ V) 0.009 - 0.4902400/F(kHz) @ 300m— 0.490 - 1.70524000/F(kHz) @ 30m— 1.705 - 3030 @ 30m— 30 - 8810040.0 88 - 21615043.5 216 - 96020046.0 Above 96050054.0 Test Results: Complies. The worst-case emission level is 92.5 dBμV/m @ 3m at 2411 MHz. This is 1.5 dB below the specification limit. Measurement Data:(Procedure ANSI C63.4-1992) Series resistor in II network equal to 120Ω for fundamental frequencies of 2453 MHz and 2473 MHz. Series resistor equal to 82Ω for fundamental frequency of 2411 MHz KTL Ottawa FCC PART 15, SUBPART C PARAGRAPH 15.209 PROJECT NO.: 9R01704 EQUIPMENT: Video Transmitter FCC ID: NIM2400 Page 7 of 12 Test Data - Radiated Emissions Test Distance (meters) : 3 Range : A Towe r Re ce ive r: HP8564E RBW(kHz ): 1000 Detector: Peak Fre q. (M Hz) Ant. * Pol. (V/H) RCVD Signal (dB μ μμ μ V/m) Ant. Factor (dB)** Amp. Gain (dB)*** Dist. Corr. (dB) Fie ld Strength (dB μ μμ μ V/m) Limit (dB μ μμ μ V/m) Margin (dB) 2411.0H2V56.335.391.694.02.4 2411.0H2H57.235.392.594.01.5 4822.0H2V48.3334.4-45.537.2354.016.77 4821.0H2H47.8334.4-45.536.7354.017.27 7232.0H2V57.038.0-46.848.254.05.8 7232.0H2H58.038.0-46.849.254.04.8 9644.0H2V40.240.1-40.739.654.014.4 9644.0H2H39.840.1-40.739.254.014.8 12055.0H2V41.840.2-40.741.354.012.7 12055.0H2H40.640.2-40.740.154.013.9 14465.0H2V40.742.0-41.141.654.012.4 14465.0H2H41.042.0-41.141.954.012.1 2453.0H2V55.835.491.294.02.8 2453.0H2H56.135.491.594.02.5 4906.0H2V50.943.6-45.648.954.05.1 4906.0H2H51.243.6-45.649.254.04.8 7359.0H2V57.737.0-46.947.854.06.2 7359.0H2H58.037.0-46.948.154.05.9 9812.0H2V46.838.6-41.044.454.09.6 9812.0H2H45.638.6-41.043.254.010.8 12265.0H2V44.540.2-40.744.054.010.0 12…
