NIMT5800Video Transmitter

Transmitter T-5800 Allocation schedule DC: (red / black) Please use a stabilised mains adapter or battery with an output of 5.5 – 7.5 V DC (150 mA). The transmitter includes a reverse connect protection. However, please consider the polarity of your power supply. Red = 5.5 – 7.5 V Black = GND Please consider: We don’t give guarantee for damage caused by overvoltage. Please consider that all terminals must be connected properly before the device is ready to operate. Video: (yellow / black) Yellow = 1 Vpp on 75 Ohms Black = GND The video signal must be a standardised composite 1Vpp signal. You can transmit each kind of composite video signals. Audio: The transmitter is supplied with a high sensitive electret microphone. An audio input of 500 mVeff on > 10 kOhms is available on request. Because of the controlled micro amplifier the squelch circuit may operate in case of very low noise. Therefore the volume may be adjusted up and down. Please use shielded lines to decouple the Video and Audio signals. Technical dataTransmitter T-5800 Frequency range5725MHz - 5875MHz Range indoor ́s in connection with suitable receivers depending on the transmission power as well as number, thickness and material of walls (depending on the gain factor of the antenna, the range can be improved up to multiple times compared to the standard range) Range indoor ́s in connection with suitable receivers and line of sight depending on the gain factor of the antenna, the range can be improved up to multiple times compared to the standard range Video inputComposite colour picture signal pos 1.0 + 0.1 V pp Video bandwidth30 Hz - 5 MHz Audio bandwidth30 Hz - 15 kHz Audio inputmicro input automatically controlled Modulation modeF3F Current consumptionmax. 150mA Power supply DC5.5 V - 7.5 V (optionally 2.4 V - 3 V) Antennaomnidirektionally antenna Dimensions without antenna18 x 18 x 13 (with connector strip) Weight without mains adapter8 g Protection classIP 30 Ambient temperatures (use/ store)-10°C- +55°C / -20°C- +60°C Humiditynon- condensing Connectors Video input6 pole terminal Audio input6 pole terminal DC6 pole terminal This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, cluding interference that may cause undesired operation. IMPORTANT NOTE: Intentional or unintentional changes or modifications not expressly approved by the party responsible for compliance must not be made. Any such modifications could void the user's authority to operate the equipment.

Annex B (external photos) of test report R30763_FCC_Edition 1a EUT: 5.8 GHz Video-Transmitter T-5800 Manufacturer: VTQ Videotronik GmbH Examiner: Raimund BLASKDate of issue: 24 March 2004page 1 of 2 30763eut8.jpgEUT front view Annex B (external photos) of test report R30763_FCC_Edition 1a EUT: 5.8 GHz Video-Transmitter T-5800 Manufacturer: VTQ Videotronik GmbH Examiner: Raimund BLASKDate of issue: 24 March 2004page 2 of 2 30763eut10.jpgEUT rear view

FCCID NIMT5800 ThisdevicecomplieswithPart 15otheFCCRules.Operation issubjecttothefollowingtwo conditions:(1)thisdevicemay notcauseharmful interference,and(2)this devicemustacceptany interferencereceived,cluding interferencethatmaycause undesiredoperation. FCCIDLabelinformation T-5800

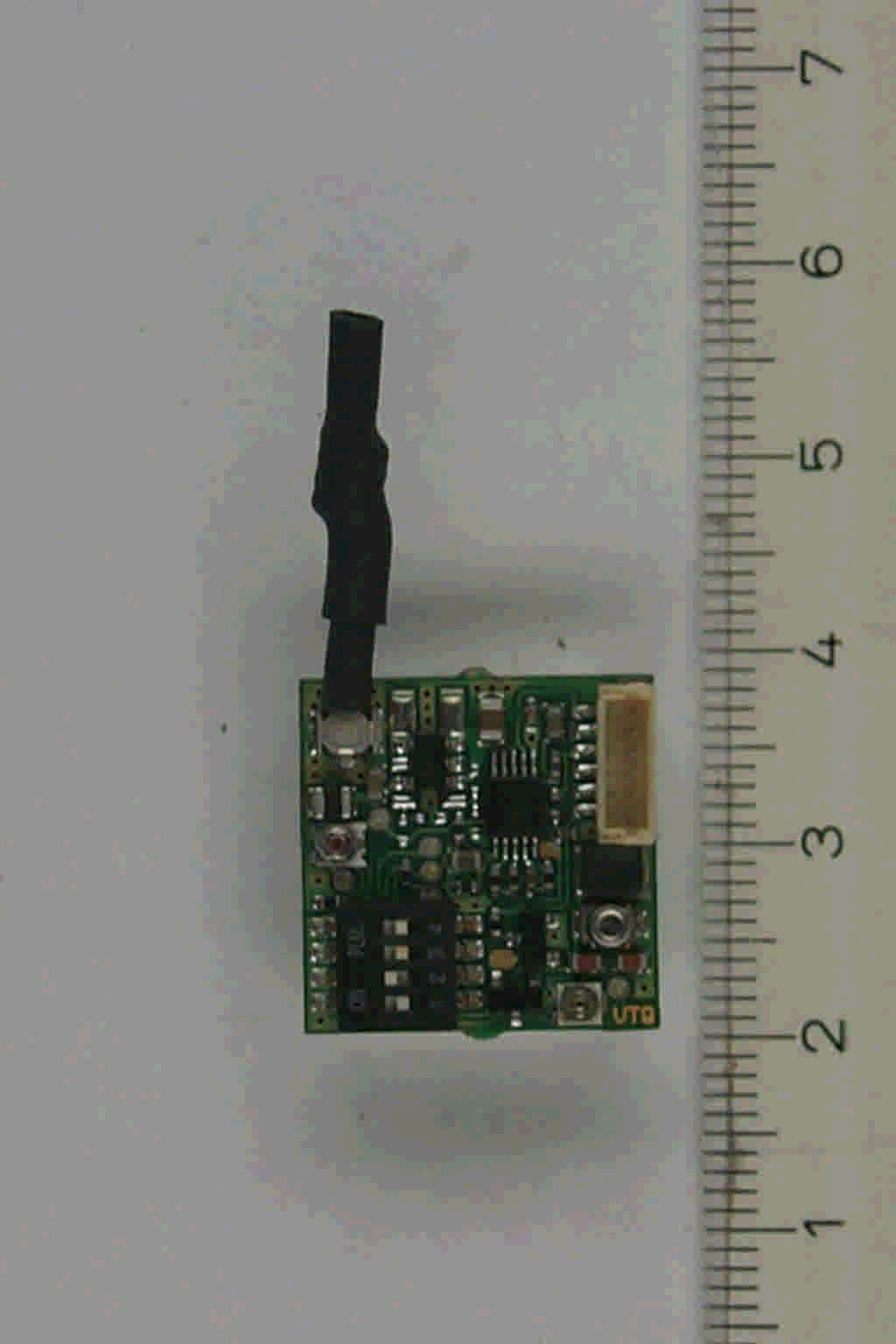

Annex A (internal photos) of test report R30763_FCC_Edition 1a EUT: 5.8 GHz Video-Transmitter T-5800 Manufacturer: VTQ Videotronik GmbH Examiner: Raimund BLASKDate of issue: 24 March 2004page 1 of 1 30763TX_PCB2.jpgPCB (transmitter) internal view

Königswinkel 10 32825 Blomberg Germany Phone+49 5235 9500-0 Fax+49 5235 9500-10 Test Report Reference: R30763_FCC_Edition 1a Equipment under Test: 5.8 GHz Video-Transmitter T-5800 Applicant: Electra Enterprises Manufacturer: VTQ Videotronic GmbH FCC ID: NIMT5800 Test Laboratory (CAB) accredited by DATech e.V. in compliance with DIN EN ISO/IEC 17025 under the Reg. No. TTI-P-G071/94-11 and listed by FCC 31040/SIT1300F2 TEST REPORT REFERENCE: R30763_FCC_Edition 1a Examiner: Raimund BLASKDate of issue: 24 March 2004Page 2 of 38 Contents:Page 1IDENTIFICATION.....................................................................................................................................................3 1.1APPLICANT...................................................................................................................................................3 1.2MANUFACTURER.........................................................................................................................................3 1.3DATES..........................................................................................................................................................3 1.4TEST LABORATORY.....................................................................................................................................4 1.5RESERVATION..............................................................................................................................................4 1.6NORMATIVE REFERENCES.........................................................................................................................4 1.7TEST RESULTS.............................................................................................................................................4 2TECHNICAL DATA OF EQUIPMENT......................................................................................................................5 2.1DEVICE UNDER TEST..................................................................................................................................5 2.2PERIPHERY DEVICES..................................................................................................................................5 2.3MODIFICATIONS...........................................................................................................................................5 3OPERATIONAL STATES AND PHYSICAL BOUNDARIES.....................................................................................6 4LIST OF TEST MODULES.......................................................................................................................................7 4.1EMISSION......................................................................................................................................................7 METHOD OF MEASUREMENT...................................................................................................................................8 4.2CONDUCTED EMISSIONS ON AC MAINS (150 kHz to 30 MHz).................................................................8 4.3RADIATED EMISSIONS 150 kHz to 30 MHz.................................................................................................9 4.4RADIATED EMISSIONS 30 MHz to 40 GHz..................................................................................................11 4.5FREQUENCY STABILITY WITH RESPECT TO AMBIENT TEMPERATURE AND SUPPLY VOLTAGE......15 5TEST RESULTS EMISSION TEST..........................................................................................................................17 5.1CONDUCTED EMISSION TEST (150 kHz to 30 MHz)..................................................................................17 5.2PRELIMINARY RADIATED EMISSION TEST (9 kHz to 30 MHz)..................................................................18 5.3PRELIMINARY RADIATED EMISSION TEST (30 MHz to 1 GHz).................................................................19 5.4PRELIMINARY RADIATED EMISSION TEST (1 GHz to 40 GHz).................................................................23 5.5FREQUENCY STABILITY WITH RESPECT TO AMBIENT TEMPERAURE AND SUPPLY VOLTAGE........31 5.6BAND EDGE COMPLIANCE..........................................................................................................................32 6TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS.................................................................................34 7LIST OF ANNEXES..................................................................................................................................................38 TEST REPORT REFERENCE: R30763_FCC_Edition 1a Examiner: Raimund BLASKDate of issue: 24 March 2004Page 3 of 38 1IDENTIFICATION 1.1APPLICANT Name:Electra Enterprises Address:390 Edgeley Blvd. Concord, Ontario L4K 3Z6 Country:Canada Name for contact purposes:Mr. Eddy Stevens Tel:001-416-512-1919 Fax:- e-mail address:- 1.2MANUFACTURER Name:VTQ Videotronik GmbH Address:Grüne Straße 2 06268 Querfurt Country:Germany Name for contact purposes:Mr. Richter Tel:+49 (0) 34771 5189 Fax:+49 (0) 34771 22044 e-mail address:[email protected] 1.3DATES Date of receipt of test sample: 24 September 2003 Start of test:24 September 2003 Finish of test:25 September 2003 TEST REPORT REFERENCE: R30763_FCC_Edition 1a Examiner: Raimund BLASKDate of issue: 24 March 2004Page 4 of 38 1.4TEST LABORATORY The tests were carried out at:PHOENIX TEST-LAB GmbH Königswinkel 10 D-32825 BlombergPhone: +49 (0) 52 35 / 95 00-0 GermanyFax:+49 (0) 52 35 / 95 00-10 Test engineer:Raimund Blask24 March 2004 namesignaturedate Test report checked: Bernd Steiner24 March 2004 namesignaturedate stamp 1.5RESERVATION T h i s t e s t r e p o r t i s o n l y v a l i d i n i t s o r i g i n a l f o r m . Any reproduction of its contents without written permission of the accredited test laboratory PHOENIX TEST-LAB GmbH is prohibited. The test results her…

Text truncated - open the document above for the full version.

Annex C (photos of test set-up) of test report R30763_FCC_Edition 1a EUT: 5.8 GHz Video-Transmitter T-5800 Manufacturer: VTQ Videotronik GmbH Examiner: Raimund BLASKDate of issue: 24 March 2004page 1 of 3 30763emi7.jpgTest set-up fully anechoic chamber Annex C (photos of test set-up) of test report R30763_FCC_Edition 1a EUT: 5.8 GHz Video-Transmitter T-5800 Manufacturer: VTQ Videotronik GmbH Examiner: Raimund BLASKDate of issue: 24 March 2004page 2 of 3 30763emi17.jpgTest set-up fully anechoic chamber Annex C (photos of test set-up) of test report R30763_FCC_Edition 1a EUT: 5.8 GHz Video-Transmitter T-5800 Manufacturer: VTQ Videotronik GmbH Examiner: Raimund BLASKDate of issue: 24 March 2004page 3 of 3 30763clima.jpgTest set-up climatic chamber
