NIMTC900VIDEO TRANSMITTER

TC-900 USER GUIDE 1. Tune your video receiver to 916.5 MHz 2. Connect power adapter at “Connector A”. 3. Connect a video source to the transmitter at “Connector B”. 4. The transmitted picture should now be seen on the monitor. 5. For best results make sure that the antenna is notobstructed. 6. IMPORTANT! Using the TC-900 closer than 10 feet tothe receiver may result in a distorted picture. S PECIFICATIONS F REQUENCY: 916.5 MHz STABILITY: ± ± ± ± 10kHz POWER OUTPUT: 0.75mW, 50 mV/m@3m CURRENT: 18 mA @ 9V VOLTAGE: 7 - 14 V DC VIDEO INPUT: 1 V pk-pk NTSC or PAL AB THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS.(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE. (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVEDTHAT MAY CAUSE UNDESIRED OPERATION. Made in Canada

FCC ID: NIMTC900

FCC ID: NIMTC900 LABEL LOCATION LABEL FORMAT FCC ID: NIMT900 Label is affixed to top of unit with permanentadhesive.

FCC ID: NIMTC900 LABEL LOCATION LABEL FORMAT FCC ID: NIMTC900 Label is affixed to top of unit with permanentadhesive.

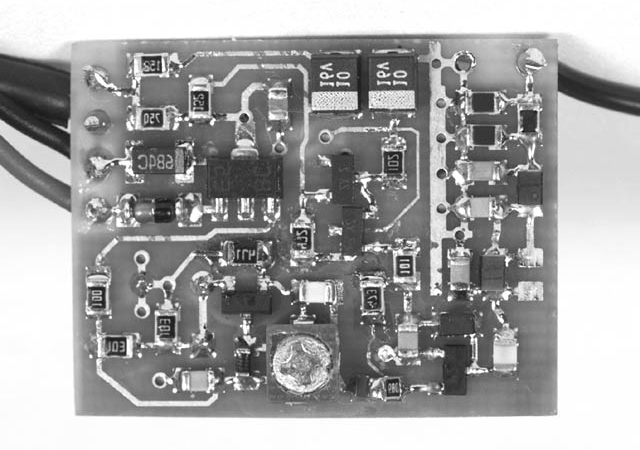

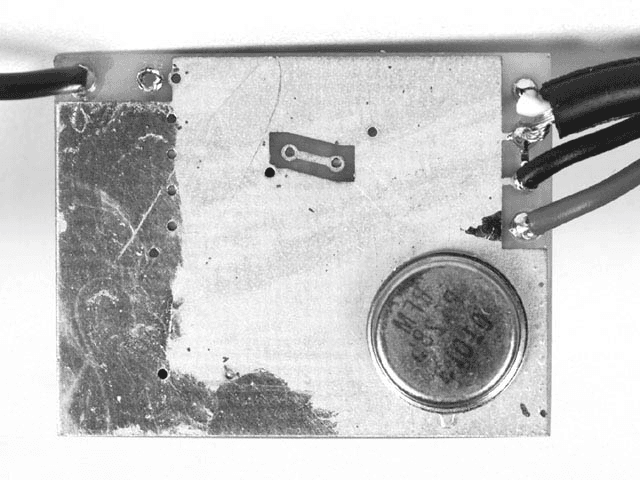

TC900 VIDEO TRANSMITTER EXTERNAL VIEW TC900 VIDEO TRANSMITTER EXTERIOR VIEW TC900 VIDEO TRANSMITTER ANTENNA CONNECTOR CLOSEUP VIEW TC900 VIDEO TRANSMITTER INTERNAL VIEW TC900 VIDEO TRANSMITTER PCB COMPONENT SIDE WITH SHIELD REMOVED TC900 VIDEO TRANSMITTER TRACE SIDE

KTL Ottawa Safety - EMI - Telecom - ISO Guide 25 Master: ktlPT15249A Date: June 25, 1998 ENGINEERING TEST REPORT ON: THE ELECTRA ENTERPRISES "TC900 VIDEO TRANSMITTER" FCC ID: NIMTC900 IN ACCORDANCE WITH: FCC PART 15, SUBPART C, 15.249 FOR 900 MHz TRANSMITTERS PROJECT NO.: 8R00451 TESTED FOR: ELECTRA ENTERPRISES 390 EDGELEY BLVD., UNIT 21 CONCORD, ONTARIO L4K 3Z6 TESTED BY: KTL OTTAWA INC. 3325 RIVER ROAD, R.R. 5 OTTAWA, ONTARIO K1V 1H2 NVLAP LAB CODE: 100351-0 JUNE 1998 This document contains 21 pages including this one. KTL Ottawa Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. KTL Ottawa Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. KTL Ottawa FCC PART 15, SUBPART C FOR 900 MHz TRANSMITTERS PROJECT NO.: 8R00451 EQUIPMENT: TC900 Video Transmitter Page 2 of 18 Table Of Contents Section 1. Summary of Test Results General Summary of T est Data Section 2. General Equipment Specification Specifications Modifications Theory of Operation System Diagram Section 3. Powerline Conducted Emissions Test Results Graphs Photographs Section 4. Radiated Emissions Test Results Table Photographs Section 5. Test Equipment List Annex A. Test Diagrams Conducted Emissions Radiated Prescan Test Site for Radiated Emissions KTL Ottawa FCC PART 15, SUBPART C FOR 900 MHz TRANSMITTERS PROJECT NO.: 8R00451 EQUIPMENT: TC900 Video Transmitter Page 3 of 18 Section 1.Summary Of Test Results Manufacturer:Electra Enterprises Model No.:TC900 Serial No.:None General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15.249. All tests were conducted using measurement procedure ANSI C63.4-1992. Radiated Emissions were made on an open area test site. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100351-0 TESTED BY: ___________________________________ DATE: __________________ Tom Tidw ell, Senior Technologist APPROVED BY: ________________________________ DATE: __________________ W. Waterhouse, RF Engineering Lab Manager KTL Ottawa FCC PART 15, SUBPART C FOR 900 MHz TRANSMITTERS PROJECT NO.: 8R00451 EQUIPMENT: TC900 Video Transmitter Page 4 of 18 Summary Of Test Data NAME OF TESTPARA. NO.RESULT Conducted Emissions15.207Complies Radiated Emissions15.249Complies Footnotes For N/A’s: Test Conditions: Temperature: 27 ° C Humidity:25 % KTL Ottawa FCC PART 15, SUBPART C FOR 900 MHz TRANSMITTERS PROJECT NO.: 8R00451 EQUIPMENT: TC900 Video Transmitter Page 5 of 18 Section 2.General Equipment Specification Equipment: Video Transmitter Model Number: TC900 Serial Number: None Frequency Range: 916.5 MHz (Fixed) Operating Frequency(ies) of Sample: Not Applicable Tunable Bands: Not Applicable Number of Channels: 1 Channel Spacing: Not Applicable Emission Designator: 108KC3F Crystal Frequencies: Not Applicable User Frequency Adjustment: Not Applicable Integral Antenna Ye sNo The antenna connector is a standard TNC connector. The manufacturer will use permanent thread lock to install the antenna. The metal enclosure is secured with tamper-proof screws. KTL Ottawa FCC PART 15, SUBPART C FOR 900 MHz TRANSMITTERS PROJECT NO.: 8R00451 EQUIPMENT: TC900 Video Transmitter Page 6 of 18 Description of Modification for Class II Permissive Change KTL Ottawa FCC PART 15, SUBPART C FOR 900 MHz TRANSMITTERS PROJECT NO.: 8R00451 EQUIPMENT: TC900 Video Transmitter Page 7 of 18 Modifications Made During Testing KTL Ottawa FCC PART 15, SUBPART C FOR 900 MHz TRANSMITTERS PROJECT NO.: 8R00451 EQUIPMENT: TC900 Video Transmitter Page 8 of 18 Theory of Operation The E.U.T. is a video only transmitter operating at 916.5 MHz. The transmitter can be used in any application to wirelessly transmit analogue video information. Modulation input would typically be a 1 V pk/pk NTSC video signal from a camera. System Diagram Modulator Oscillator Amplifier Antenna Output Modulation Input KTL Ottawa FCC PART 15, SUBPART C FOR 900 MHz TRANSMITTERS PROJECT NO.: 8R00451 EQUIPMENT: TC900 Video Transmitter Page 9 of 18 KTL Ottawa FCC PART 15, SUBPART C FOR 900 MHz TRANSMITTERS PROJECT NO.: 8R00451 EQUIPMENT: TC900 Video Transmitter Page 10 of 18 KTL Ottawa FCC PART 15, SUBPART C FOR 900 MHz TRANSMITTERS PROJECT NO.: 8R00451 EQUIPMENT: TC900 Video Transmitter Page 11 of 18 Section 3.Powerline Conducted Emissions NAME OF TEST: Powerline Conducted EmissionsPARA. NO.: 15.207 TESTED BY: Tom TidwellDATE: June 24, 1998 Test Conditions: Standard Temperature and Humidity Standard Test Voltage Minimum Standard: FrequencyMaximum Powerline Conducted RF Voltage (MHz) ( μ μμ μ V)(dB μ μμ μ V) 0.45 - 30.025048 Test Results: Complies. See attached graph(s). Measurement Data: See attached graph(s). Method of Measurement:(Procedure ANSI C63.4-1992) Measurements were made using a spectrum analyzer with 10 kHz RBW, Peak Detector. Any emissions that are close to the limit are measured using a test receiver with 10 kHz bandwidth, CISPR Quasi-Peak Detector. KTL Ottawa FCC PART 15, SUBPART C FOR 900 MHz TRANSMITTERS PROJECT NO.: 8R00451 EQUIPMENT: TC900 Video Transmitter Page 12 of 18 KTL Ottawa FCC PART 15, SUBPART C FOR 900 MHz TRANSMITTERS PROJECT NO.: 8R00451 EQUIPMENT: TC900 Video Transmitter Page 13 of 18 KTL Ottawa FCC PART 15, SUBPART C FOR 900 MHz TRANSMITTERS PROJECT NO.: 8R00451 EQUIPMENT: TC900 Video Transmitter Page 14 of 18 Conducted Photographs (Worst Case Co…
