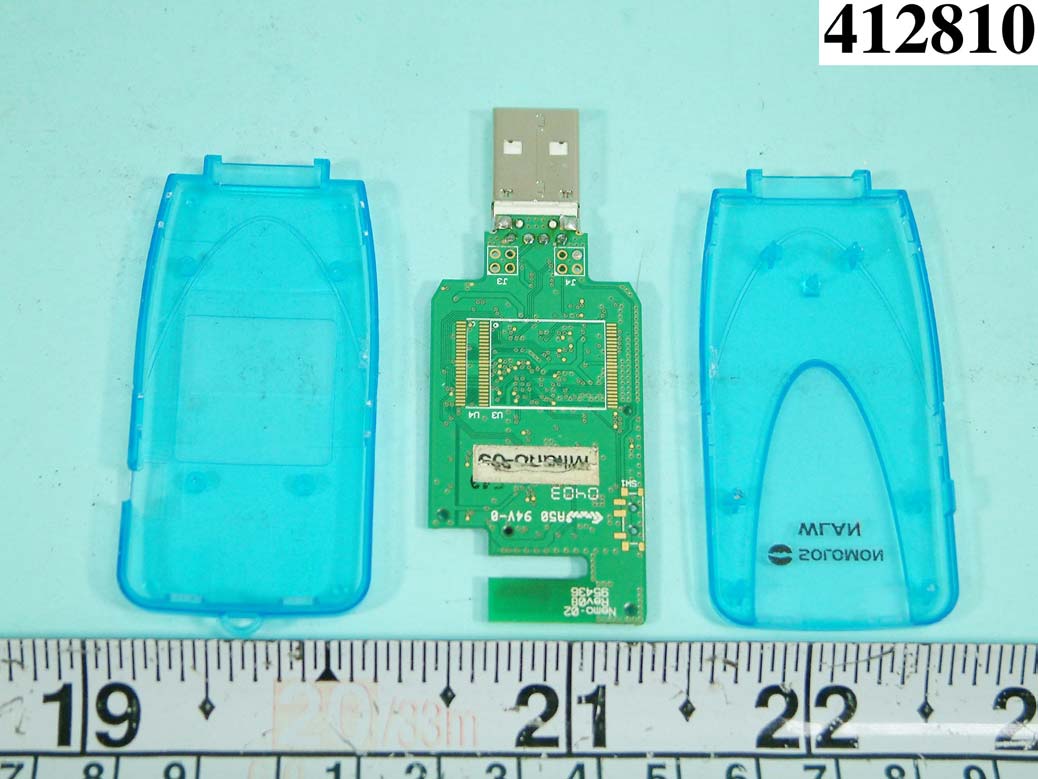

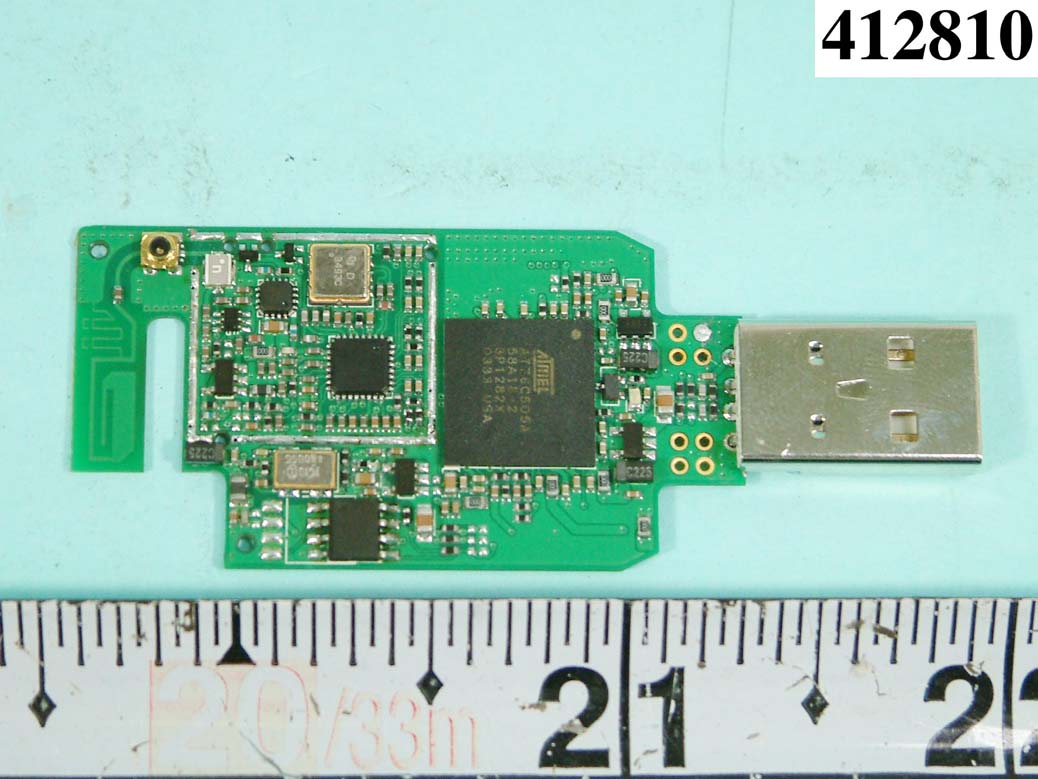

NIT-SCWI211BWLAN Dongle

1. Insert the WLAN Dongle into the USB port on the computer, computer will show found new hardware and the "pgrade Device Driver Wizard will show up, choose "search for a suitable driver" and then click on to continue. 4. When the installation is completed, "WLAN Monitor" shortcut icon will be on the desktop. 5. Site Survey: Click on Rescan to search the nearby AP (access point), the names of the AP and their signal strength will be displayed. Double click on the AP you wished to access to start the connection. You may also choose to save the profile of the AP to be used in later days. 6. Security: You may choose WEP or TKIP for security; WEP can choose 64 or 128 Bit encryption. 2. Put the installation CD into the CDROM drive and the installation program will get invoked. 3. Click on install driver to proceed. Easy installation Guide: NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter FEDERAL COMMUNICATIONS COMMISSION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies RF exposure limits of OET 65C

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 March 22, 2004 RE: FCC ID: NIT -SCWI211B Attention: Daniel Lee I have a few comments on this Application. 1. Please note that block diagrams must be in accordance with 2.1033 of CFR47. Please note that this includes listing the clocks, crystals and data paths. The block diagram provided does not have the crystal frequencies shown. Please provide a block diagram showing the appropriate frequencies of the device as required by 2.1033. 2. Please provide a manual with all of the appropriate FCC statements. These include the 2- condition statement required in 15.19, the information to user (non-modification) statement required in 15.19 and the class B statement of 15.105. 3. Please provide the rf exposure statement in the manual. As this device is less than 25mW, the statement only needs to state the device is compliant to the FCC RF exposure limits of OET65C. 4. Please note that in the table of results on page 14 for PPSD you state that you have an antenna gain of 1.5dB. Please note that the procedure indicates that you measured the PPSD at the antenna terminal. Please explain why the antenna gain is mentioned. 5. Please clearly identify the frequencies for each of the readings in the table on page15. What measured value goes with which frequency? 6. Please note that on page 16 of the report you state that you applied an external attenuator to the system then connected the device to the input of an analyzer. Please not that you did not provide the value of attenuator used nor did you clearly indicate that the attenuation was considered in the measurement results (i.e. there is no indication in the table that you added the attenuator to the final measured results). Please verify that the results in the table on page 16 are the results from the plots showing the attenuators used. 7. Please note that in the table of results on page 16 for Conducted Power you state that you have an antenna gain of 1.5dB. Please note that the procedure indicates that you measured the Conducted Power at the antenna terminal. Please explain why the antenna gain is mentioned. 8. Please note that the report states that the measured conducted antenna terminal power is 11.4dBm (13.8mW). The report states on pages 29, 31 and 35 that the measured radiated emissions of the device are only 91dBuV/m at 3 meters. Please also note that you state the gain of the antenna in the system is 1.5dBi. Please note that the conducted power and the calculated power of the device (EIRP) should be within 2 to 4dB of each other. Please note that the max measured conducted power is 11.4 and yet the max calculated EIRP (P=(ED)^2 / 30G) from the radiated data is only 0.3mw (-5dBm). Please explain why the estimated radiated field strength is more than 10dB different than the measured power at the antenna terminal. (I.e. orientation of USB, max emissions in a different orthogonal plane than measured, etc). Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. z Page 2 March 22, 2004 Any questions about the content of this correspondence should be directed to the sender.
