©2011 Corsair Memory, Inc. All Rights Reserved. Document Number: XXXXXXXXXX USER GUIDE: November 10, 2011 Page 1 of 1 Vengeance™ M60 Corsair Vengeance™ M60 Laser Gaming Mouse User Guide November 10, 2011 ©2011 Corsair Memory, Inc. All Rights Reserved. Document Number: XXXXXXXXXX USER GUIDE: November 10, 2011 Page 2 of 2 Vengeance™ M60 Thanks for your purchase of the Corsair M60 Gaming Mouse (CH-9000001). The Corsair Vengeance M60 has been designed for FPS (first-person shooter) gamers who need a mouse that’s exceptionally precise and responsive, and that can be tuned to their requirements so that it enhances their gaming performance. The M60 has been crafted with a solidity and quality unlike any other gaming mouse, using a single-piece, machined aluminum chassis that gives it a premium ‘feel’ that is unequalled by any other FPS gaming mouse on the market. It offers a level of performance, reliability, durability, and desirability that is unrivalled. This guide contains information on the new Corsair Vengeance M60 Gaming Mouse. Diagram Corsair Vengeance M60 Gaming Mouse Features • 5700 DPI - Avago ADNS-9500 LaserStream™ Gaming Sensor • 1000Hz/500Hz/250Hz/125Hz - 1msec/2msec/4msec/8msec response time • Comfortable ergonomic design with “soft touch surface” and grip improving textures • Omron left and right click switches – up to 8 million operations • Sniper Mode – instantly ratchet down to a low sensitivity for precise aiming • Motion detection at 165ips and acceleration up to 30G – ideal for low-sensitivity gamers • Adjustable centre of gravity – adjust the balance to suit your style • Superior build quality – Machined aluminum chassis provides unmatched durability and stability ©2011 Corsair Memory, Inc. All Rights Reserved. Document Number: XXXXXXXXXX USER GUIDE: November 10, 2011 Page 3 of 3 Vengeance™ M60 • Ultra Low Friction PTFE pads for smooth performance and accurate gliding • Metal, weighted scroll wheel with rubberized surface - improved traction, control and feel Min System Requirements Minimum System Requirements PC with USB port Windows® 7, Windows Vista®, or Windows® XP Specification Corsair Vengeance M60 Gaming Mouse Switch Life Left/Right Click –8 million Electrical +5VDC ±5%, 100mA Dimensions (mm) 117(L) x 77(W) x 35(H) Weight 160g Installation 1. Plug in USB connector with Mouse ICON into available USB port 2. Plug in USB connector with pass through ICON into available USB port 3. Mouse is plug and play so the system will automatically install your Mouse Note Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. (15.21) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.(15.19(a)(3)) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency ©2011 Corsair Memory, Inc. All Rights Reserved. Document Number: XXXXXXXXXX USER GUIDE: November 10, 2011 Page 4 of 4 Vengeance™ M60 energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.

DEXIN Corporation 14F-8, NO 258, Lian Cheng Rd., Chung Ho City, Taipei Hsien, Taiwan, R.O.C. Tel: 02-8227-1093 Fax: 02-8227-1058 Date: November 23, 2011 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: NIY-VENGEANCEM60 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, DEXIN Corporation here by requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Block Diagrams The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely,

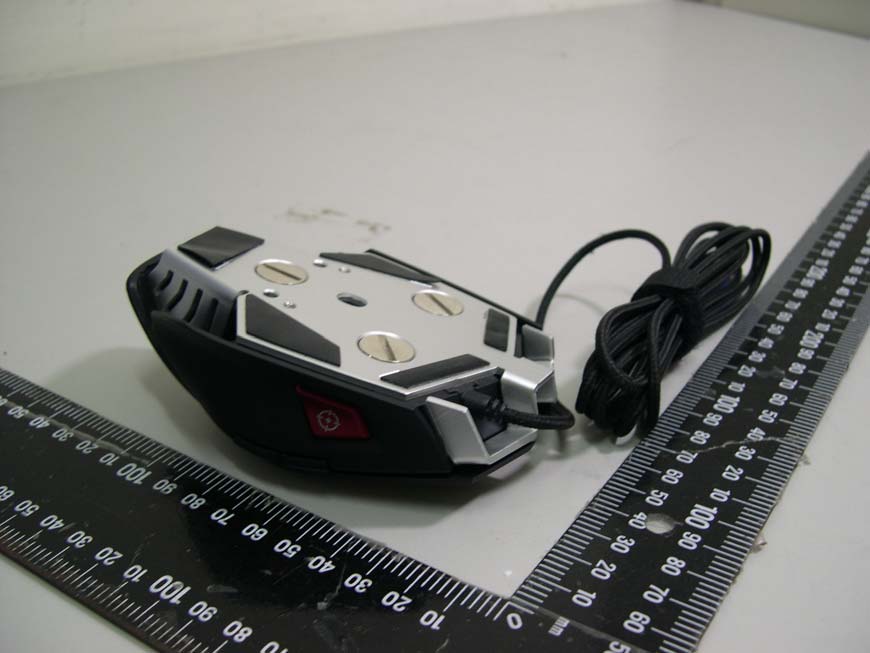

Report No.：1O1701 01 Front view of EUT 02 Rear view of EUT

Label location

Report No.：1O1701 03 INSIDE 04 Front view of Main board 1 Report No.：1O1701 05 Rear view of Main board 1 06 Front view of Main board 2 Report No.：1O1701 07 Rear view of Main board 2 08 Front view of Main board 3 Report No.：1O1701 09 Rear view of Main board 3 10 Front view of Main board 4 Report No.：1O1701 11 Rear view of Main board 4

Global Certification Corp. Date of Issue:Oct. 19, 2011 Report No.: F1O1701 Page 1/16 FCC 47 CFR PART 15 SUBPART B TEST REPORT FOR Gaming mouse Model : Corsair Vengeance M60 gaming mouse Trade Name: Corsair Issued to DEXIN Corporation 14F-8, NO 258, Lian Cheng Rd.,Chung Ho City,Taipei Hsien,Taiwan,R.O.C. Issued by Global Certification Corp. EMC Test Site Xizhi Office and Lab No.146, Sec. 2, Xiangzhang Rd., Xizhi Dist., New Taipei City 221, Taiwan (R.O.C.) Note: This test refers exclusively to the test presented test model and sample. This report shall not be reproduced except in full, without the written approval of Global Certification Corporation. This document may be altered or revised by Global Certification Corporation. Personnel only, and shall be noted in the revision section of the document. Global Certification Corp. Date of Issue:Oct. 19, 2011 Report No.: F1O1701 Page 2/16 TABLE OF CONTENTS -------------------------------------------------------------------------------------------------------- 2 1. GENERAL INFORMATION -------------------------------------------------------------------------------------------------- 3 1.1 DESCRIPTION OF THE TESTED SAMPLES ----------------------------------------------------------------------------------------- 3 1.2 I/O PORT OF THE EUT ------------------------------------------------------------------------------------------------------------ 4 1.3 TEST METHODOLOGY ------------------------------------------------------------------------------------------------------------- 5 1.4 DESCRIPTION OF THE SUPPORT EQUIPMENTS ----------------------------------------------------------------------- 6 1.5 FEATURES OF EUT ------------------------------------------------------------------------------------------------------------- 6 2. INSTRUMENT AND CALIBRATION -------------------------------------------------------------------------------------- 7 2.1 MEASURING INSTRUMENT CALIBRATION ---------------------------------------------------------------------------------- 7 2.2 TEST AND MEASUREMENT EQUIPMENT ------------------------------------------------------------------------------------ 7 2.3 TEST PERFORMED ------------------------------------------------------------------------------------------------------------ 8 2.4 APPENDIX --------------------------------------------------------------------------------------------------------------------- 8 3. CONDUCTED EMISSION MEASUREMENT --------------------------------------------------------------------------- 11 3.1 TEST SET-UP ---------------------------------------------------------------------------------------------------------------- 11 3.2 LIMIT ------------------------------------------------------------------------------------------------------------------------- 11 3.3 TEST PROCEDURE ----------------------------------------------------------------------------------------------------------- 11 3.4 TEST SPECIFICATION -------------------------------------------------------------------------------------------------------- 12 3.5 RESULT ---------------------------------------------------------------------------------------------------------------------- 12 3.6 TEST DATA ------------------------------------------------------------------------------------------------------------------ 12 4. RADIATED EMISSION MEASUREMENT ------------------------------------------------------------------------------ 13 4.1 TEST SETUP ------------------------------------------------------------------------------------------------------------------ 13 4.2 LIMIT ------------------------------------------------------------------------------------------------------------------------- 14 4.3 TEST PROCEDURE ----------------------------------------------------------------------------------------------------------- 14 4.4 TEST SPECIFICATION -------------------------------------------------------------------------------------------------------- 14 4.5 RESULT ----------------------------------------------------------------------------------------------------------------------- 14 4.6 TEST DATA ------------------------------------------------------------------------------------------------------------------ 14 5. MODIFICATION LIST FOR EMC COMPLYING TEST ------------------------------------------------------------- 15 APPENDIX 1 PHOTOS OF TEST CONFIGURATION APPENDIX 2 TEST DATA PHOTOS OF EUT Global Certification Corp. Date of Issue:Oct. 19, 2011 Report No.: F1O1701 Page 3/16 1. GENERAL INFORMATION Applicant : DEXIN Corporation Address : 14F-8, NO 258, Lian Cheng Rd.,Chung Ho City,Taipei Hsien,Taiwan,R.O.C. Manufacturer : DEXIN ELECTRONIC. Address : ShiTan Pu Industrail,Tangxia Town,Donggun,Guangdong,China EUT : Gaming mouse Model Name : Corsair Vengeance M60 gaming mouse Model Differences : N/A Is herewith confirmed to comply with the requirements set out in the FCC Rules and Regulations Part 15 Subpart B and CISPR PUB. 22 and the measurement procedures were according to ANSI C63.4-2003. The said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment are within the compliance requirements. FCC part 15 subpart B ICES-003 Class B Receipt Date : 10/17/2011 Final Test Date : 10/19/2011 Tested by: Reviewed by: Oct. 19, 2011 Oct. 19, 2011 (Date) Jason Yeh / Vice Manager (Date) Alex Chou / Manager Designation Number: TW1030 Global Certification Corp. Date of Issue:Oct. 19, 2011 Report No.: F1O1701 Page 4/16 1.1 DESCRIPTION OF THE TESTED SAMPLES EUT EUT Type : ; Engineer Type Condition when received : ; Good † Damage : EUT Name : Gaming mouse Applicant : DEXIN Corporation Manufacturer : DEXIN ELECTRONIC Model Number : Corsair Vengeance M60 gaming mouse Receipt Date : 10/17/2011 EUT Power Rating : †AC Power：I/P:100-240Vac, 50/60Hz, 1.8A †DC Power：I/P: 48VDC/2A ;DCV from PC †DCV from Adaptor The frequency of the EUT : 1.2 I/O PORT OF THE EUT I/O port type Q’ty Tested with N/A Global Certification…
