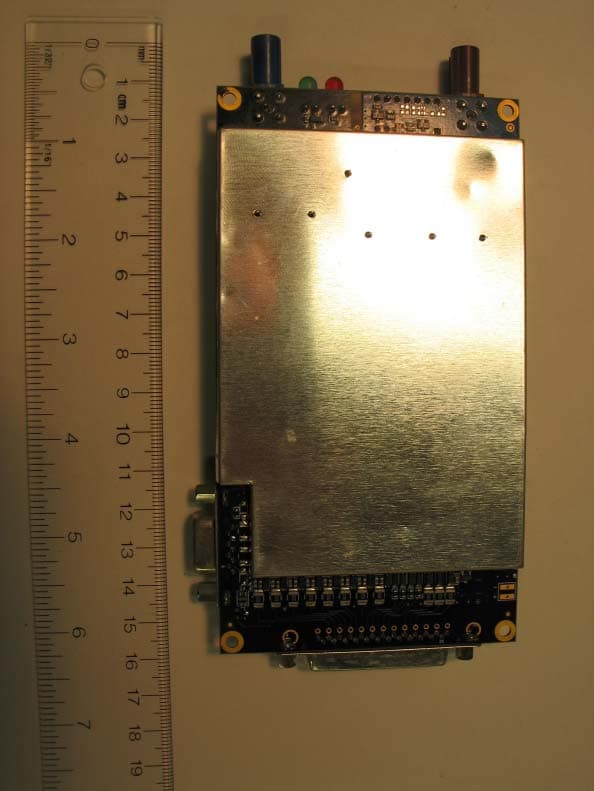

NJIAL250Vehicle Monitoring Transmitter Module

Asset-Link 250 User Manual July 19, 2004 970-00047 Rev. 1.2 CSI Wireless©2004 Specifications subject to change without notice Page i Asset-Link 250 User Manual Installation and Operating Instructions Revision: 1.2 Revision Date: July 19, 2004 Document Number: 970-00047 Asset-Link 250 User Manual July 19, 2004 970-00047 Rev. 1.2 CSI Wireless©2004 Specifications subject to change without notice Page ii Record of Changes Version Date Title or Brief Description Entered By 1.0 11/24/03 Initial Release C. Carver 1.1 06/17/04 Revised L. Yu 1.2 07/19/04 No Audio L. Yu Asset-Link 250 User Manual July 19, 2004 970-00047 Rev. 1.2 CSI Wireless©2004 Specifications subject to change without notice Page iii Acronyms and Abbreviations A Amperes AMPS Advanced Mobile Asset-Link System BPS Bits per Second CCA Circuit Card Assembly Cellular A Asset-Link system based on cells of RF DAC Digital to Analog Converter dB decibel DC Direct Current DPSK Differential Phase Shift Keying EIA Electronics Industry Association ESD Electrostatic Discharge FCP Function Control Processor FLASH a non volatile memory type GPS Global Positioning System GPRS General Packet Radio Service GSM Global System Mobile I/O Input or Output LCP Local Controller Port – serial I/O mW milliwatt PDI Packet Data Interface PPM Parts per Million RF Radio Frequency rms Root Mean Squared or averaged RSSI Received Signal Strength Indicator RTC Real Time Clock SAT Supervisory Audio Tone SMB FAKRA RF Connector Based on FAKRA/USCAR Standards ST Signaling Tone TIA Telecommunications Industry Association V Volts Asset-Link 250 User Manual July 19, 2004 970-00047 Rev. 1.2 CSI Wireless©2004 Specifications subject to change without notice Page iv Definitions Action A programmed response to an exception. Almanac A subset of orbital parameters from the GPS satellite ephemeris used to calculate approximate satellite positions and velocities. Asset Power External power provided by the host vehicle or asset. Baud A unit of measurement specifying the signaling rate (Signals/Sec). Battery Power Power provided by either the optional external 12-V backup battery or >7.0V internal battery. Ears-On A system sub-state in Active operating mode that enables the cellular module (AMPS and MicroBurst TM Page). Ears-Off A system sub-state in Active operating mode when cellular module is switched off Ephemeris A set of GPS satellite parameters used to calculate precise satellite positions and velocities. Exception A predefined event or condition that causes a programmed response (Action). Fix A location determination Page The event of receiving a cellular telephone call via the AMPS Control Channel. Supply Power Power provided to Asset-Link, regardless of source. Typical Expected value under normal operating conditions. 2-D two dimensional 3-D three dimensional Asset-Link 250 User Manual July 19, 2004 970-00047 Rev. 1.2 CSI Wireless©2004 Specifications subject to change without notice Page v Table of Contents 1 INTRODUCTION.............................................................................................1-8 1.1 PURPOSE..........................................................................................................1-8 1.2 SCOPE..............................................................................................................1-8 1.3 A SSET-LINK PRODUCT NUMBERING................................................................1-8 1.4 REFERENCED DOCUMENTS..............................................................................1-9 1.4.1 CSI-Wireless documents: ...................................................................... 1-9 1.4.2 Public Documents or Standards ............................................................ 1-9 1.5 O PERATIONAL OVERVIEW.............................................................................1-10 1.6 S YSTEM PRODUCT FEATURES........................................................................1-11 2 PRODUCT DESCRIPTION .............................................................................2-1 2.1 DETAILED SYSTEM DESCRIPTION....................................................................2-1 2.2 MECHANICAL DIMENSIONS.............................................................................2-2 2.3 GPS RECEIVER................................................................................................2-2 2.3.1 GPS Position/Velocity Fix .................................................................... 2-2 2.4 FUNCTION CONTROL PROCESSOR....................................................................2-4 2.4.1 Non-Volatile Memory ........................................................................... 2-4 2.4.2 FCP Operating Modes ........................................................................... 2-5 2.4.2.1 FCP Sleep Mode Operation .............................................................2-6 2.4.2.2 Active Mode ....................................................................................2-7 2.4.2.3 Full-Power Mode .............................................................................2-9 2.4.3 Power Off Mode.................................................................................. 2-10 2.4.4 Connection and Configuration ............................................................ 2-10 2.5 P OWER MANAGEMENT..................................................................................2-10 2.5.1 Power Input Protection........................................................................ 2-11 2.5.2 MicroBurst™, Control Channel Data ................................................. 2-11 3 APPLICATION I/O CONNECTOR SPECIFICATIONS ................................3-1 3.1 A PPLICATION I/O CONNECTOR TYPE AND PINOUT..........................................3-1 3.2 POWER INPUT SPECIFICATIONS........................................................................3-2 3.2.1 Power Requirements .................................................................…

Text truncated - open the document above for the full version.

Response to TCB Findings 1. Internal and external photos don't show the details of the device, such as component placement and traces well enough. Closer views are required with enough resolution and lighting to show details. Assembly drawings and additional photos supplied. 2. The confidentiality request mentions assembly drawings. Please clarify which exhibit this is. Supplied. 5. It appears from the manual that the device is designed to be installed by different Application Service Providers. Since the device has no external cover or case around it, it can only be certified as a module. For modular approvals of licensed devices the following must be satisfied; a. The maximum antenna gain to allow compliance with RF exposure requirements at 20cm will be listed on the Grant of Certification, therefore we'll need an RF exposure exhibit with maximum conducted power at the antenna terminal and maximum antenna gain information. RF exposure exhibit supplied. b. Besides the label on the licensed module itself, there must be a second label that is visible on the final device with the following text: Contains “FCC ID: NJIAL250”. Therefore a warning in the manual about this requirement must be included. Please see Pg 9 of the manual for the warning. 6. An emission designator with necessary bandwidth must be selected and justified in accordance with 2.201 and 2.202. Please supply the emission designator. Emission designator supplied as an exhibit. 7. Please clarify how the limit on Pg 17 (12kHz) has been determined. The voice deviation limiting specification comes from the EIA-690 - Minimum Standards for 800Mhz Cellular Subscriber Units, section 3.3.2.3.3. "The instantaneous peak and steady-state deviations shall not exceed the rated system peak frequency deviation of +/-12kHz at any audio frequency or reasonable change in input level while operating on any channel under the environmental test conditions described in 4." 8. 22.915 has been removed from the rules. Instead the device must show compliance against 2.1047(a) and 2.1047(c) or (d) as appropriate. Please justify how the device complies with these sections. Please see “Response for Item 8” documents ( 2 files). 9. The occupied bandwidth should be measured at 26dB points of the emission as explained in 22.917(b). It appears from the plot on Pg 28 that approximately 15dB point has been used. Please clarify. Please see “Response for Item 9” document. 10. Does the device have the capability to transmit on multiple channels simultaneously. Please clarify. The device will only transmit on one channel at a time. 11. Please specify the RBW and VBW settings of the spectrum analyzer used for conducted spurious emissions test at the antenna terminal. The RBW setting was 100 kHz, and the VBW setting was 3 MHz for the scans from 3 MHz to 10 GHz. 12. For 2.1053 "Field Strength of Spurious Emissions" test "Signal Substitution Method" of TIA- 603 must be followed. The emissions recorded must meet -13dBm limit of 22.917(a). Section 2.2.12 of the document explains the test method for this measurement. Please submit test data demonstrating compliance with this method. Please see revised test report. 13. The ERP levels listed on Pg 65 of the report are much lower than the conducted ratings (around 30dBm) of the device. Please supply ERP calculation with the proposed antenna attached. Please see revised test report. 14. Please supply the tune-up procedure for the device and clarify if the power output is variable. Supplied as an exhibit. 15. DC voltages and currents in the final RF amplifier stage are required by 2.1033(c)(8). Please supply this information. Supplied as an exhibit.

T i t l e : Label, Model No / Regulatory Compliance, AL250 C a l g a r y A l b e r t a C a n a d a D o c u m e n t N o . 080-00XXX S h e e t 1 of 3 R e v . X 2 Label, Model No / Regulatory Compliance, AL250 080-00XXX THIS DOCUMENT IS THE PROPERTY OF CSI WIRELESS, CALGARY, ALBERTA, CANADA. IT SHALL NOT BE USED FOR ANY PURPOSE EXCEPT THE MANUFACTURE OF ARTICLES FOR CSI WIRELESS WITHOUT WRITTEN PERMISSION OF CSI WIRELESS. T i t l e : Label, Model No / Regulatory Compliance, AL250 C a l g a r y A l b e r t a C a n a d a D o c u m e n t N o . 080-00XXX S h e e t 2 of 3 R e v . X 2 Originator: Peter Hill Revision History Rev EC No. Date Comments X1 04/06/03 Initial Release X2 06/17/04 Revised ∑ Model / Part Number: typeface shall be 10 point Arial Bold, Black lettering. ∑ FCC ID: typeface shall be 10 point Arial Bold, Black lettering. ∑ FCC warning: typeface shall be 6 point Arial, Black lettering. ∑ Industry Canada number: typeface shall be 9 point Arial Bold, Black lettering. ∑ Country of Origin: typeface shall be 8 point Arial Bold, Black lettering. Country of Origin to be supplied with each order. For example: “Made in USA” AL250 020-00xxx FCC ID: NJIAL250 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. IC:XXXXX-ASSETLNK Made in “Country of Origin” 0.73” 2.73” 0.08” 0.08” All Dims tolerance +/- 0.005” T i t l e : Label, Model No / Regulatory Compliance, AL250 C a l g a r y A l b e r t a C a n a d a D o c u m e n t N o . 080-00XXX S h e e t 3 of 3 R e v . X 2 Label Material and Adhesive: Material: 0.002” METALLIZED SILVER (CHROME) POLYESTER (MYLAR) FILM Lamination: 0.001” TRANSPARENT MATTE MYLAR Ink Color: BLACK (INDELIBLE) Printed edge: None Adhesive: PERMANENT PRESSURE SENSITIVE W/ NOTE 1 REQUIREMENT (good tack and adhesion to smooth and rough metal and plastic surfaces.) Supplied with removable adhesive covering. NOTE 1: All material must be suitable for temperature service range of –40 deg F to 248 deg F (-40 deg C to 120 deg C), minimum 10 year lifetime. Typical acceptable material: 3M Polyester Label Stock W/ # 300 ACRYLIC ADHESIVE.

Page 1 of 72 This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Inc. Test Report Prepared By: Electronics Test Centre 27 East Lake Hill Airdrie, Alberta Canada T4A 2K3 [email protected] http://www.etc-mpb.com/ Telephone: (403) 912-0037 Facsimile: (403) 912-0083 MPBT Report No.: c05e3078-2 Release 3 Date: 30 September 2004 Emissions Testing of AL250 In accordance with FCC Part 22 Public Mobile Services, Subpart H Cellular Radiotelephone Service (1999) Test Personnel: T. Nguyen, S. Malwes, D. Raynes (ETC) Les Yu (CSI Wireless) Prepared for: CSI Wireless Inc. 4110 – 9 th Street S.E.> Calgary, Alberta Canada T2G 3C4 Telephone: 1-403-640-6720 Facsimile: 1-259-8866 _________________________ Client Acceptance Authorized Signatory [email protected] Senior EMC Technologist Electronics Test Centre (Airdrie) Authorized Signatory Test Sample: AL250 CFR 47 FCC Part 22, Subpart H, Cellular Radiotelephone Service Report No.:c05e3078-2 Release 3 Page 2 of 72 This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Inc. TABLE OF CONTENTS 1.0 Introduction 1.1 Scope 1.2 Applicant 1.3 Applicability 1.4 Test Sample Description 1.5 General Test Conditions and Assumptions 1.6 Scope of Testing 1.6.1 Variations in Test Methods 1.6.2 Marginal Emissions Measurements 1.6.3 Test Sample Modifications 2.0 Abbreviations 3.0 Measurement Uncertainty 4.0 Test Conclusion 4.1 Conducted Emissions on AC Power Lines (§ 15.207) 4.2 Radiated Emissions (unintentional) (§ 15.109) 4.3 RF Power Output (§ 2.1046) 4.4 Modulation Characteristics (§ 2.1047) 4.5 Modulation Characteristics (§ 22.915) 4.6 Occupied Bandwidth (§ 22.1049) 4.7 Emission Limits For Cellular (§ 22.917) 4.8 Spurious Emissions At Antenna Terminals (§ 2.1051) 4.9 Field Strength Of Spurious Radiation (§ 2.1053) 4.10 Frequency Stability (§ 2.1053) 4.11 Effective Radiated Power (§22.913) 5.0 Test Facility 5.1 Location 5.2 Grounding Plan 5.3 Power 5.4 Emissions Profile 5.5 Test Configuration 5.5.1 Conducted Emissions at Antenna Terminals 5.5.2 Radiated Emissions 6.0 Test Equipment 6.1 Test Equipment Used 6.2 Calibration APPENDIX A: Test Sample Description: AL250 Test Sample: AL250 CFR 47 FCC Part 22, Subpart H, Cellular Radiotelephone Service Report No.:c05e3078-2 Release 3 Page 3 of 72 This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Inc. 1.0 INTRODUCTION 1.1 SCOPE The purpose of this report is to present the findings and results of compliance testing performed in accordance with CFR 47 FCC Part 22, Subpart H, Cellular Radiotelephone Service. 1.2 APPLICANT This test report has been prepared for CSI Wireless Inc., located in Calgary, Alberta, Canada. 1.3 APPLICABILITY All test procedures, limits, and results defined in this document apply to the CSI Wireless Inc. AL250 unit, referred to herein as the Equipment Under Test (EUT). The results contained in this report relate only to the item tested. This report does not imply product endorsement by NVLAP or the Canadian or US governments. 1.4 TEST SAMPLE DESCRIPTION The test sample provided for testing was a AL250: Product Type: Vehicle location/monitor Model Number: AL250 Serial Number: n/a Cables: GPS/AMPS antenna Power Requirements: 13 VDC Peripheral Equipment: antenna More detailed information is provided by CSI Wireless Inc. in Appendix A. 1.5 GENERAL TEST CONDITIONS AND ASSUMPTIONS The EUT was set up and exercised using the configurations, modes of operation and arrangements defined in this report only. All inputs and outputs to and from other equipment associated with the EUT were adequately simulated by client- supplied setups. Where relevant, the EUT was only tested using the monitoring methods and test criteria defined in this report. All testing, unless otherwise noted, was performed under the following environmental conditions: Temperature: 17 to 23 °C Humidity: 45 to 75 % Barometric Pressure: 68 to 106 kPa Test Sample: AL250 CFR 47 FCC Part 22, Subpart H, Cellular Radiotelephone Service Report No.:c05e3078-2 Release 3 Page 4 of 72 This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Inc. 1.6 SCOPE OF TESTING Testing was performed in accordance with FCC Part 22 Subpart H. 1.6.1 V ARIATIONS IN TEST METHODS There were no variations from the test procedures outlined above. 1.6.2 M ARGINAL EMISSIONS MEASUREMENTS There were no radiated emissions measured to be closer to the specified limits than -6 dB. 1.6.3 T EST SAMPLE CONFIGURATION & MODIFICATIONS The EUT met the requirements without modifications. 2.0 ABBREVIATIONS CE -Conducted Emissions E -Field - Electric Field H -Field - Magnetic Field n/t -Not Tested n/a -Not Applicable RE -Radiated Emissions 3.0 MEASUREMENT UNCERTAINTY For Radiated E-Field Emissions and Conducted Emissions, the uncertainties in the measurements were calculated using the methods outlined in the NAMAS document, NIS81: May 1984. Frequency = ± 1 kHz Amplitude (RE) = ± 4.01 dB Amplitude (CE) = ± 3.25 dB Test Sample: AL250 CFR 47 FCC Part 22, Subpart H, Cellular Radiotelephone Service Report No.:c05e3078-2 Release 3 Page 5 of 72 This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Inc. 4.0 TEST CONCLUSION Statement of Compliance The client equipment referred to in this report was found to comply with the requirements as stated below. The EUT was subjected to the following tests. Compliance status is reported as PASS or FAIL. Test conditions that are not applicable to the EUT are marked n/a. If testing was not performed at this time, the appropriate field is marked n/t. TEST CASE TEST TYPE SPECIFICATION MODIFICATIONS CONFIGURATION RESULT §4.1 Conducted Emissions on AC Power Lines FCC Part 15.207 nil See § 1.6.3 n/a §4.2 Radiated Emissions (unintentional) FCC Part 15.109 nil See § 1.6.3 PASS §4.3 RF Output Power FCC Part 2.1046 nil Se…

Text truncated - open the document above for the full version.

AL250 TX Audio Path Low Pass Filter Response -16-15-14-13-12-11-10 -9-8 0 1000 2000 3000 4000 5000 6000 Frequency (Hz) Filter Gain (dB) AL250 TX Audio Path Low Pass Filter Response L. Yu 14-Sep-04 FCC part 2.1047(a) Input Level at 76mV from 100-5000Hz Frequency (Hz) Input AC (mV) Output AC (mV) GainGain (dB) 10074.3723.1 0.310609117 -10.15571603 20074.3723.1 0.310609117 -10.15571603 30074.3723.1 0.310609117 -10.15571603 40074.3723.220.31222267 -10.11071132 60074.3723.37 0.314239613 -10.05478138 80074.3723.56 0.316794406 -9.984449907 100074.3723.81 0.320155977 -9.892767722 120074.3724.13 0.324458787 -9.776809192 140074.3724.44 0.328627135 -9.665931598 160074.3724.75 0.332795482 -9.556451564 180074.3725.02 0.336425978 -9.462209523 200074.3725.23 0.339249697 -9.389610619 220074.3725.310.3403254 -9.362112727 240074.3725.240.33938416 -9.386168618 250074.3725.13 0.337905069 -9.424105858 260074.3724.97 0.335753664 -9.479584783 270074.3724.79 0.333333333 -9.542425094 280074.3724.59 0.330644077 -9.612785055 290074.3724.29 0.326610192 -9.719405334 300074.3723.92 0.321635068 -9.852732123 310074.3723.49 0.315853167 -10.01029529 320074.3723.02 0.309533414 -10.18584924 330074.3722.53 0.302944736-10.3727318 340074.3721.97 0.295414818 -10.59135449 350074.3721.39 0.287615974 -10.82373994 360074.3720.82 0.279951593 -11.05834113 370074.3720.2 0.271614898 -11.32092824 380074.3719.56 0.263009278 -11.60057862 390074.3718.930.25453812 -11.88494335 400074.3718.3 0.246066962 -12.17893384 450074.3715.25 0.205055802 -13.76255876 500074.3712.63 0.169826543 -15.39988862

AL250 Voice Modulation Characteristics -75.00-70.00-65.00-60.00-55.00-50.00-45.00-40.00-35.00-30.00-25.00-20.00-15.00-10.00 -5.00 0.005.00 10.0015.00 100 1000 10000 Frequency (Hz) FM Deviation relative to 1kHz (kHz) FM Deviation relative to 1kHz (kHz) AL250 Voice Modulation Characteristics L. Yu 20-Aug-04 FCC part 2.1047(a) Input Level at 6.1mV from 100-5000Hz Noise level from unmodulated transmitter is 0.300 KHz (50Hz HPF, >99Khz LP) Modulation Frequency (Hz) FM Deviation including noise (kHz) FM Deviation minus noise (kHz) FM Deviation relative to 1kHz (kHz) 1000.305 0.005-54.35 2000.4 0.100-28.33 3000.9800.680-11.68 4001.3201.020-8.16 5001.5801.280-6.19 6001.8501.550-4.53 7002.1201.820-3.13 8002.3902.090-1.93 9002.6502.350-0.91 10002.9102.6100.00 12003.3903.0901.47 14003.8703.5702.72 16004.3804.0803.88 18004.9804.6805.07 20005.6505.3506.23 22006.4406.1407.43 24007.1906.8908.43 25007.4307.1308.73 26007.5007.2008.81 27007.3607.0608.64 28006.9806.6808.16 29006.4506.1507.44 30005.8505.5506.55 31005.3405.0405.72 32004.8904.5904.90 33004.2703.9703.64 34002.4602.160-1.64 35000.3010.001-68.33 40000.3010.001-68.33 45000.3010.001-68.33 50000.3010.001-68.33

AL250 Occupied Bandwidth and Emission Bandwidth Measurement L. Yu 21-Sep-04 Modulation Input for both OBW and EBW: Modulation input voltage required for 50% max modulation = 5.2mV (-43.5dBm) for 6kH z 16dB greater than 50% max modulation = -23.5dBm (51.8mV) Modulation Frequency = 2500Hz Noise level from unmodulated transmitter is 0.300 KHz (50Hz HPF, >99Khz LP) Max Unmodulated Power on ch 367 was measured = 28.0dBm Limit line set at +2dBm The occupied bandwidth, that is the frequency bandwidth such that, below its lower and above its upper frequency limits, the mean powers radiated are each equal to 0.5 percent of the total mean power. FCC part 2.1049 (c ) (1) Occupied Bandwidth - Channel 367 OBW = 30.19 Khz Occupied Bandwidth - Channel 991 OBW = 30.00 kHz Occupied Bandwidth - Channel 799 OBW = 30.19 kHz The emission bandwidth is defined as the width of the signal between two points, one below the carrier center frequency and one above the carrier center frequency, outside of which all emissions are attenuated at least 26 dB below the transmitter power. FCC part 22.917 (b) (d) Emission Bandwidth - Channel 367 EBW = 30.00 kHz Emission Bandwidth - Channel 991 EBW = 30.50 kHz Emission Bandwidth - Channel 799 EBW = 30.26 kHz

AL250 DC Voltages and Currents into the Final RF Amplifier Stage L. Yu14-Sep-04FCC part 2.1033(c)(8)R1407 (measured) = 589 ohms R1413 (measured) = 4700 ohms Ammeter replace L1400Pout (dBm) Vcc V (V) Vcc I (mA) Vcont V (V) Vcont Vacross R (V) Vcont I (uA) Vref V (V) Vref Vacross R (V) Vref I (uA) 7 4.160 87.195 2.175 0.746 0.159 2.921 0.672 0.982 8 4.160 90.876 2.171 0.746 0.159 2.918 0.674 0.986 10 4.150 102.140 2.168 0.747 0.159 2.915 0.677 0.990 12 4.140 118.044 2.163 0.747 0.159 2.911 0.681 0.997 14 4.130 137.519 2.157 0.748 0.159 2.906 0.686 1.006 16 4.110 166.420 2.148 0.750 0.160 2.899 0.693 1.017 18 4.086 201.355 2.139 0.751 0.160 2.890 0.701 1.030 20 4.055 246.772 2.127 0.753 0.160 2.880 0.711 1.047 22 4.015 305.140 2.111 0.755 0.161 2.867 0.724 1.069 24 3.963 378.710 2.094 0.758 0.161 2.852 0.739 1.093 26 3.897 471.820 2.075 0.759 0.161 2.834 0.755 1.120 28 3.812 590.280 2.053 0.761 0.162 2.813 0.775 1.154 29 3.755 658.000 2.051 0.760 0.162 2.811 0.777 1.157
