NM483AQCT02Remote Garage Door/Gate Opener

Re: Certification for Allstar 110995 Transmitter Model: 110995 FCC ID: NM483AQCT02 IC: 4369A-83AQCT02 USER'S MANUAL INFORMATION (PRELIMINARY) The User's Manual is in preparation. The following material will be contained in the manual: FCC ID: NM483AQCT02 IC: 4369A-83AQCT02 This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

Re: Certification for Allstar 110995 Transmitter Model: 110995 FCC ID: NM483AQCT02 IC: 4369A-83AQCT02 POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. Re: Certification for Allstar 110995 Transmitter Model: 110995 FCC ID: NM483AQCT02 IC: 4369A-83AQCT02 REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, Allstar requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (10) Parts List (Part of Exhibit only) Allstar has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan Re: Certification for Allstar 110995 Transmitter Model: 110995 FCC ID: NM483AQCT02 IC: 4369A-83AQCT02 GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Allstar Corporation 4369A-83AQCT02 PO Box 240 Downingtown, PA 19335 David Guthrie Tel: 610-873-6900 Fax: 610-873-6958 It will be manufactured by: Allstar Corporation PO Box 240 Downingtown, PA 19335 David Guthrie Tel: 610-873-6900 Fax: 610-873-6958 Canadian Contact: Valmart Co., #114-9644 192nd St Surrey, BC, Canada V4N 4C6

July 29, 2002 American Telecommunications Certification Body 6731 Whittier Ave. McLean VA, 22101 RE: Comments for FCC ID: NM483AQCT02 1) Please comment on the optional parts in the schematic. It appears from the internal photographs that these were not present. Please note that the grant for this application will only be authorized for the transmitter as submitted. It is the understanding of our test lab that no components are to be placed in the optional areas. 2) The EUT appears to contain a metal visor clip (see test photographs) that is not shown in the external photographs. Please note that we have seen some of these transmitter where removing the clip can cause changes in the fundamental and harmonics. These changes are not consistent as one may increase while the other decreases. If the transmitter may be used with and without the clip, it should be checked both ways at both the fundamental and various harmonics. Please provided additional information to support which would be worse case (i.e. prescan data, or additional test data at fundamental and 6 th harmonic. The DUT will be sold with the metal clip attached and all testing was performed with the metal clip in place (see close-up of test-setup photos). The DUT is not to be sold or used without the metal clip. External Photos mistakenly left out the clip. 3) Page 3 of the test report states the product is identified as a receiver?! Test report has been updated, thanks for catching that.

July 30, 2002 American Telecommunications Certification Body 6731 Whittier Ave. McLean VA, 22101 RE: Comments for FCC ID: NM483AQCT02 1) Your last response stated that The DUT will be sold with the metal clip attached and all testing was performed with the metal clip in place. However the photographs and manual support the fact that the clip may be removed for use as a keychain transmitter. The device should show compliance for all intended applications. Please note that we have seen some keychain/visor transmitters whose emissions dramatically change with removable of their metal clips. Therefore, please provide one of the following: a) Information showing that the clip is not designed to be removable, or b) Prescan information that supports the metal clip option is worse case for the fundamental, 4th, and 6th harmonics, or c) Additional final data for the fundamental, 4th, and 6th harmonics. See the second revision of the test report. The DUT has been tested at the worst case emissions for the following three configurations: 1) DUT with visor clip, 2) DUT with keychain ring, 3) DUT alone. The measurements made for DUT alone and DUT with keychain ring were indistinguishable within 0.1 dB measurement uncertainty.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 26, 2002 RE: Allstar Corporation FCC ID: NM483AQCT02 After a review of the submitted information, I have a few comments on the above referenced Application. 1) Please comment on the optional parts in the schematic. It appears from the internal photographs that these were not present. Please note that the grant for this application will only be authorized for the transmitter as submitted. 2) The EUT appears to contain a metal visor clip (see test photographs) that is not shown in the external photographs. Please note that we have seen some of these transmitter where removing the clip can cause changes in the fundamental and harmonics. These changes are not consistent as one may increase while the other decreases. If the transmitter may be used with and without the clip, it should be checked both ways at both the fundamental and various harmonics. Please provided additional information to support which would be worse case (i.e. prescan data, or additional test data at fundamental and 6 th harmonic. 3) Page 3 of the test report identifies the device as a receiver?! Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 29, 2002 RE: Allstar Corporation FCC ID: NM483AQCT02 After a review of the submitted information, I have a few comments on the above referenced Application. 1) Your last response stated that The DUT will be sold with the metal clip attached and all testing was performed with the metal clip in place. However the photographs and manual support the fact that the clip may be removed for use as a keychain transmitter. The device should show compliance for all intended applications. Please note that we have seen some keychain/visor transmitters whose emissions dramatically change with removable of their metal clips. Therefore, please provide one of the following: a) Information showing that the clip is not designed to be removable, or b) Prescan information that supports the metal clip option is worse case for the fundamental and 6 th harmonic, or c) Additional final data for the fundamental and 6 th harmonic. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

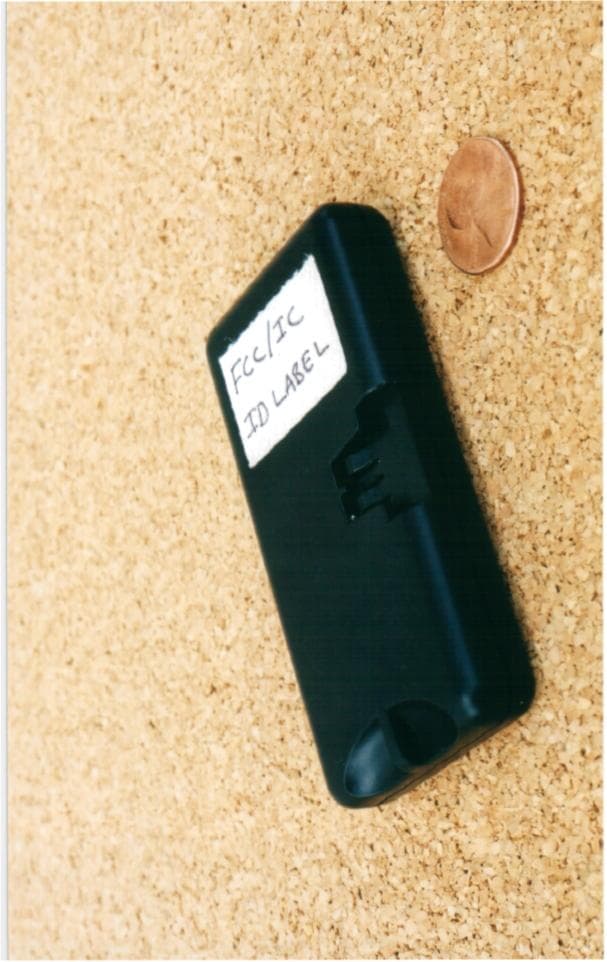

FULLSIZEARTWORK QUICK-CODETRANSMITTERFCCLABEL 1068-17-03_CUSEDON110995 BACKGROUNDCOLOR-BLACK TEXTCOLOR-WHITE CPALLSTARCORPORATION MADEINCHINA MMYYX MODEL:110995 FCCID:NM483AQCT02 FREQ.318 THISDEVICECOMPLIESWITHF.C.C.RULESPART15 OPERATIONOFTHISDEVICEISSUBJECTTOTHE FOLLOWINGTWOCONDITIONS,(1)THISDEVICEMAY NOTCAUSEHARMFULINTERFERENCE,(2)THISDEVICE MUSTACCEPTANYINTERFERENCETHATMAYCAUSE UNDESIREDOPERATION IC:4369A-83AQCT02

The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From Allstar Transmitter Model: 110995 Report No. 415031-123 July 30, 2002 For: Allstar Corporation PO Box 240 Downingtown, PA 19335 Contact: David Guthrie Tel: 610-873-6900 Fax: 610-873-6958 PO: Verbal Tests supervised by: Measurements made by: Report approved by: _____________________ Valdis V. Liepa Valdis V. Liepa Joseph D. Brunett Research Scientist Summary Tests for compliance with FCC Regulations Part 15, Subpart C, and Industry Canada RSS-210, were performed on Allstar model 110995. This device is subject to the Rules and Regulations as a Transmitter. In testing completed on 18-Apr.02, the device tested in the worst case met the allowed FCC specifications for radiated emissions by 1.9 dB (see p. 6). Besides harmonics, there were no other significant spurious emissions found; emissions from digital circuitry were negligible. The conducted emission tests do not apply, since the device is powered from two 3 VDC batteries. 2 1. Introduction Allstar model 110995 was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989, and with Industry Canada RSS-210, Issue 5, November 2001. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-1992 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Test Procedure and Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1 Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) Hewlett-Packard, 182T/8558B Spectrum Analyzer (9kHz-22GHz) X Hewlett-Packard 8593A SN: 3107A01358 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 S-Band Std. Gain Horn S/A, Model SGH-2.6 C-Band Std. Gain Horn University of Michigan, NRL design XN-Band Std. Gain Horn University of Michigan, NRL design X-Band Std. Gain Horn S/A, Model 12-8.2 X-band horn (8.2- 12.4 GHz) Narda 640 X-band horn (8.2- 12.4 GHz) Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) FXR, Inc., U638A U-band horn (40-60 GHz) Custom Microwave, HO19 W-band horn(75-110 GHz) Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) X University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) X Avantak, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantak Amplifier (4.5-13 GHz) Avantek, AFT-12665 Amplifier (6-16 GHz) Trek Amplifier (16-26 GHz) Avantek LISN Box University of Michigan Signal Generator Hewlett-Packard 8657B 3 3. Configuration and Identification of Device Under Test The DUT is a 318 MHz transmitter, 1.5 x 0.5 x 3.25 inches in size. The carrier is amplitude modulated and LC stabilized; the modulating frequency is stabilized within the IC. The antenna is fabricated into the PCB. The DUT was designed and manufactured by Allstar Corporation, PO Box 240, Downingtown, PA 19335. It is identified as: Allstar Corporation Transmitter Model: 110995 S/N or P/N: Proto FCC ID: NM483AQCT02 IC: 4369A-83AQCT02 Since the transmitter transmits continuous as long as the button is depressed, only one transmitter was used in all of the measurements. The DUT has been tested with a visor clip, keychain ring, and stand- alone to verify the worst case emissions. Stand alone measurements were indistinguishable from those taken with the keychain ring. Note: The DUT is manually activated and ceases to transmit within 5 seconds of deactivation. See Figure 6.4. 3.1 Modifications Made Components in the RF section of the DUT were adjusted to bring the DUT into compliance. Those changes are correctly represented in the Schematics and Parts List included in this submittal. 4. Emission Limits The DUT tested falls under the category of an Intentional Radiators and the Digital Devices. For FCC, it is subject to Part 15, Subpart C, (Section 15.231), Subpart B, (Section 15.109), and Subpart A, (Section 15.33). For Industry Canada it is subject to RSS-210, (Sections 6.1 and 6.3). The applicable testing frequencies with corresponding emission limits are given in Tables 4.1 and 4.2 below. As a digital device, the DUT is considered as a Class B device. 4.1 Radiated Emission Limits Table 4.1. Radiated Emission Limits (FCC: 15.33, 15.35, 15.109; IC: RSS-210, 6.2.2(r)). (Digital Class B) Freq. (MHz) E lim (3m) μV/m E lim dB(μV/m) 30-88 100 40.0 88-216 150 43.5 216-960 200 46.0 960-2000 500 54.0 Note: Average readings apply above 1000 MHz (1 MHz BW) Quasi-Peak readings apply to 1000 MHz (120 kHz BW) 4 Table 4.2. Radiated Emission Limits (FCC: 15.231(b), 15.205(a); IC: R…
