NM483AQCT03Wireless Door Control Transmitter

Re: Certification for Allstar 111025 Transmitter Model: 111025 FCC ID: NM483AQCT03 IC: 4369A-83AQCT03 USER'S MANUAL INFORMATION (PRELIMINARY) The User's Manual is in preparation. The following material will be contained in the manual: FCC ID: NM483AQCT03 IC: 4369A-83AQCT03 This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. Short Operation Manual for Allstar Clone TX 288MHz When any of buttons of the transmitter was activated unit RED led will go on and unit will send programmed code to the receiver. Transmitter will cease its transmission when button was pressed for more than 15 seconds.

DC BA 4321 DC BA 4321 DC BA 4321 DC BA 4321 DC BA 4321 DC BA 4321 Rev. Description: Who: Date: MARTEC ACCESS PRODUCTS, Inc. 240 Sheffield St. Mountainside, NJ 07092 Title:Size: Number: Rev. Date Drawn by: : Filename: Check by: Sheet 1 of 1 A NOT TO SCALE F.C. M.B. ANTENNA MICROPROCESSOR WITH INTERNAL CLOCK 1.2 MHz RF CARRIER GENERATOR, MODULATOR AND AMPLIFIER 288 MHz POWER SUPPLY 6VDC (CR2032 X 2) MDN236 9/26/02 MDN236A.VSD A Allstar Clone TX 288MHz F.C. 9/26/02 Allstar Clone TX 288MHz Block Diagram Allstar Clone TX 288MHz

Re: Certification for Allstar 111025 Transmitter Model: 111025 FCC ID: NM483AQCT03 IC: 4369A-83AQCT03 POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. Re: Certification for Allstar 111025 Transmitter Model: 111025 FCC ID: NM483AQCT03 IC: 4369A-83AQCT03 REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, Allstar requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (10) Parts List (Part of Exhibit only) Allstar has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan February 17, 2003 Re: Certification for Allstar 111025 Transmitter Model: 111025 FCC ID: NM483AQCT03 IC: 4369A-83AQCT03 STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for Allstar 111025 Transmitter Model: 111025 FCC ID: NM483AQCT03 IC: 4369A-83AQCT03 GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Allstar Corporation 4369A-83AQCT03 PO Box 240 Downingtown, PA 19335 David Guthrie Tel: 610-873-6900 Fax: 610-873-6958 It will be manufactured by: Allstar Corporation PO Box 240 Downingtown, PA 19335 David Guthrie Tel: 610-873-6900 Fax: 610-873-6958 Canadian Contact: Valmart Co., #114-9644 192nd St Surrey, BC, Canada V4N 4C6 Calvin Valcourt Phone: 604-888-6116 Fax: 604-888-8828 e-mail: [email protected]

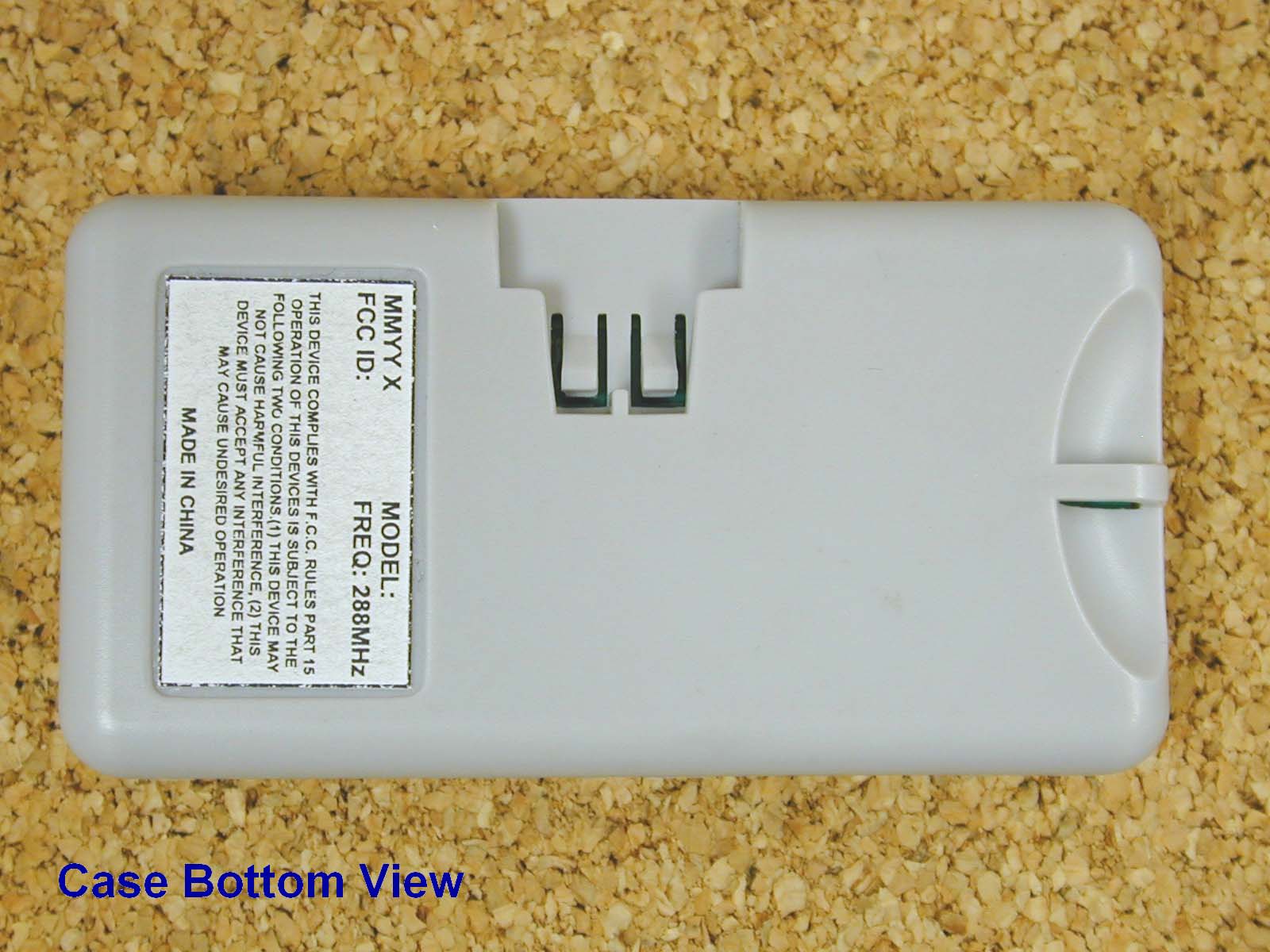

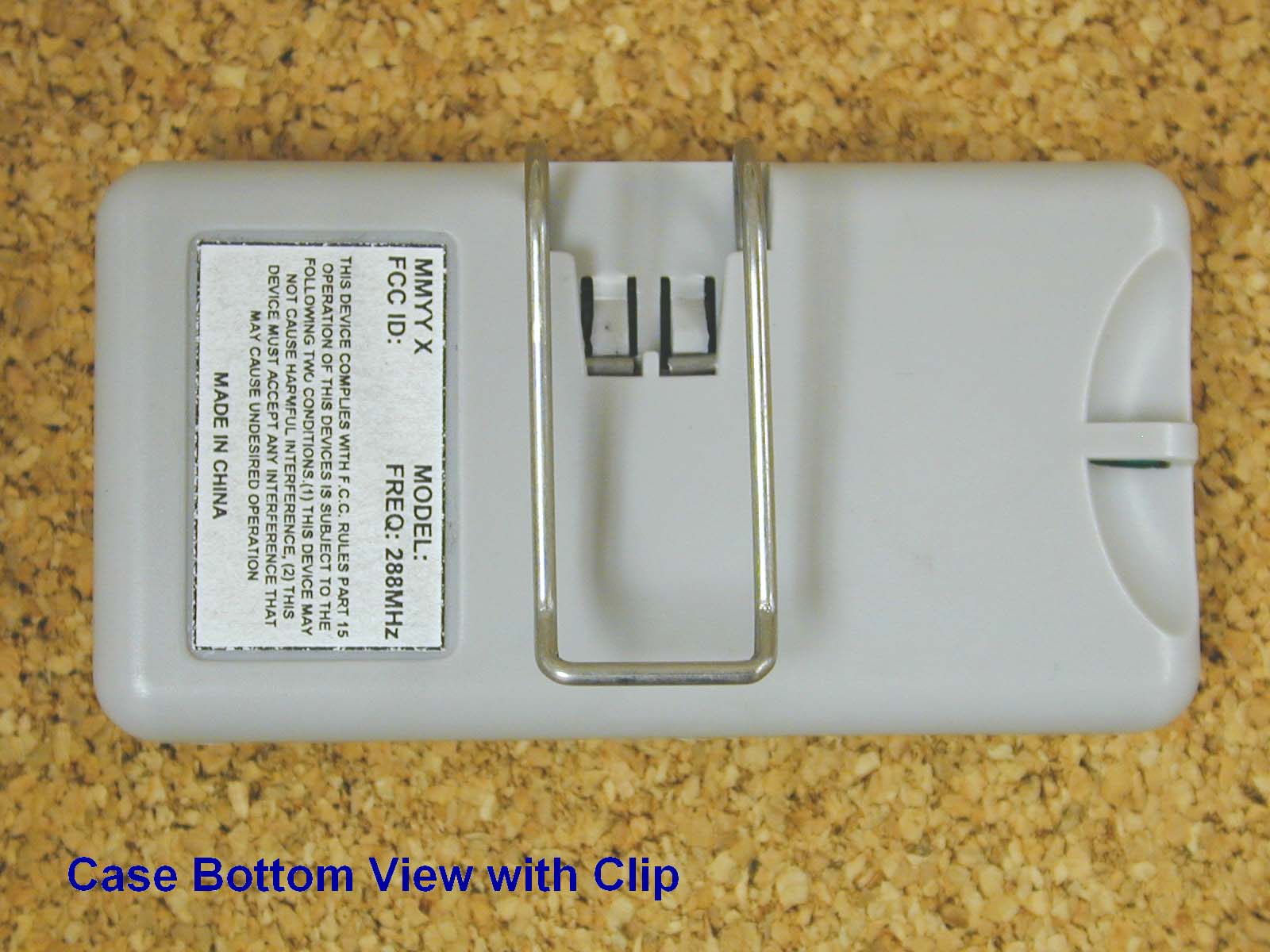

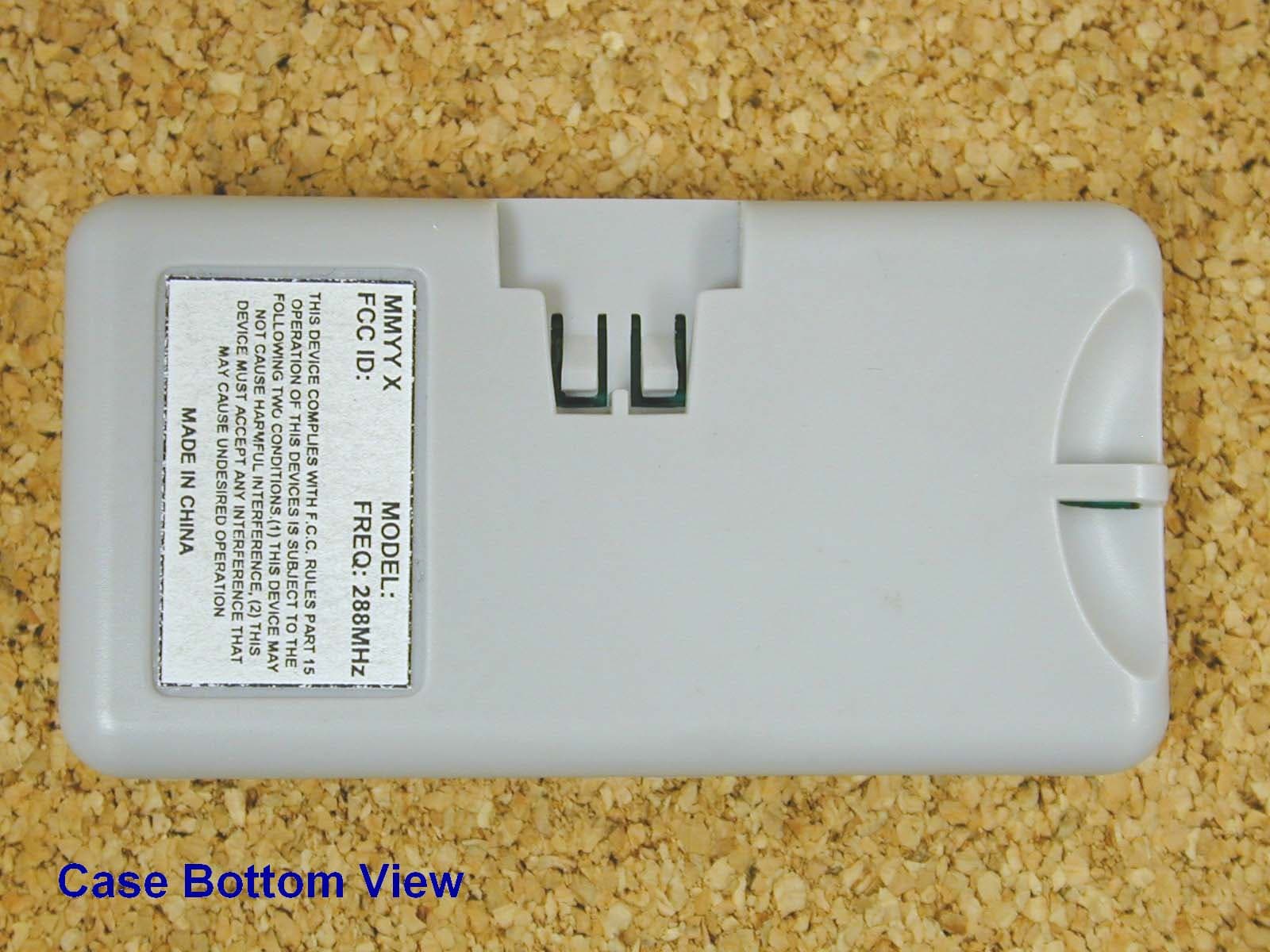

FULL SIZE ARTWORK 1316-05-01 FOR QC CLASSIC TRANSMITTER, ALLSTAR FCC LABEL 1316-05-01 USED ON 111025 BACKGROUND COLOR - BLACK TEXT COLOR - WHITE CP ALLSTAR CORPORATION MADE IN CHINA MMYY X MODEL:111025 FCC ID: NM483AQCT03 FREQ. 288 IC: 4369A-83AQCT03 APPROPRIATE INFORMATION TO BE SUBSTITUTED IN FOLLOWING TEXT AREAS: MMYY - MONTH/YEAR PRODUCTION DATE X - BILL OFMATERIALREVISION THIS DEVICE COMPLIES WITH FCC RULES ANDWITHRSS-210 OF THE ICRULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPTANY INTERFERENCETHAT MAY CAUSE UNDESIREDOPERATION PART 15 OF THE

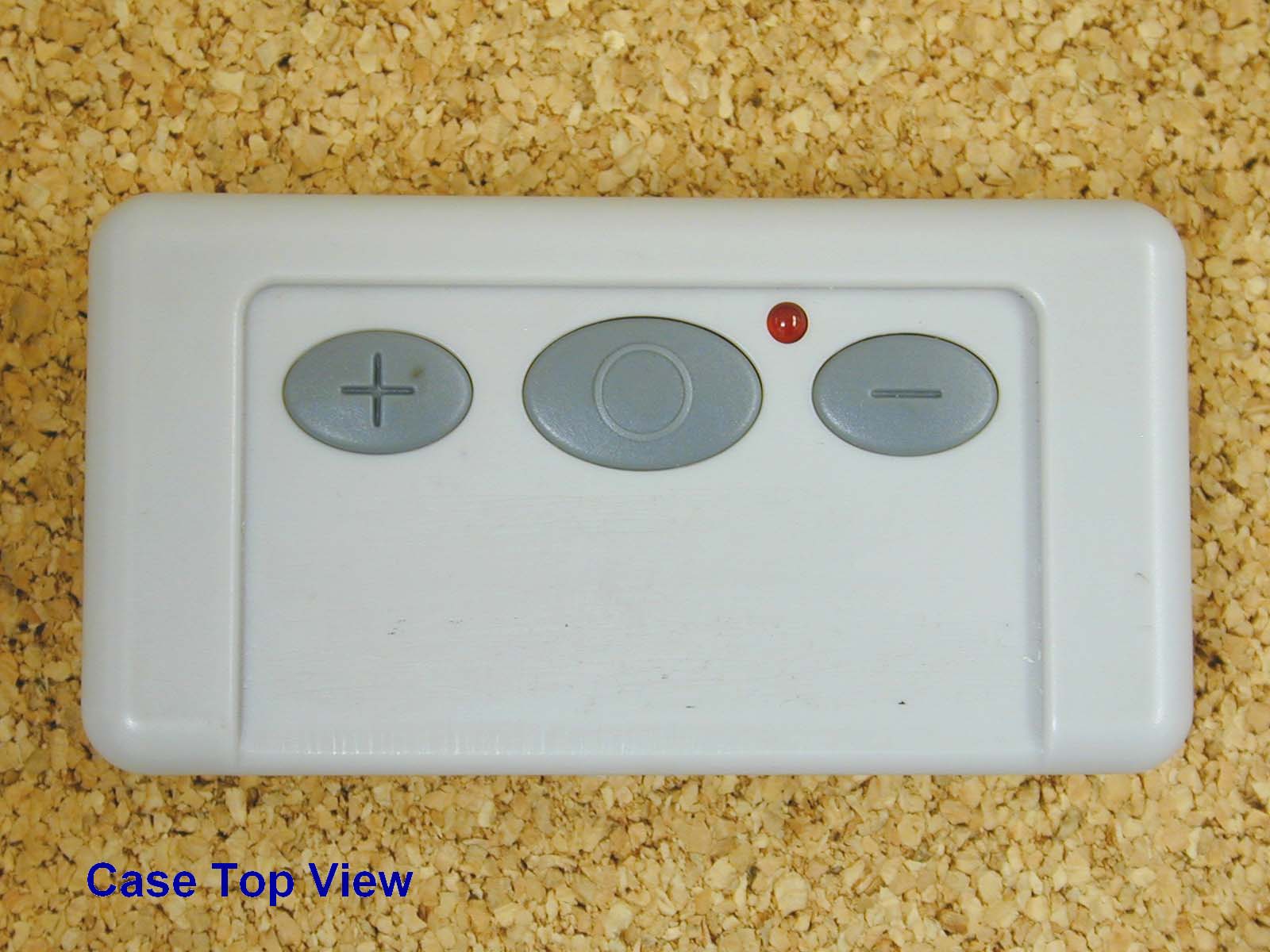

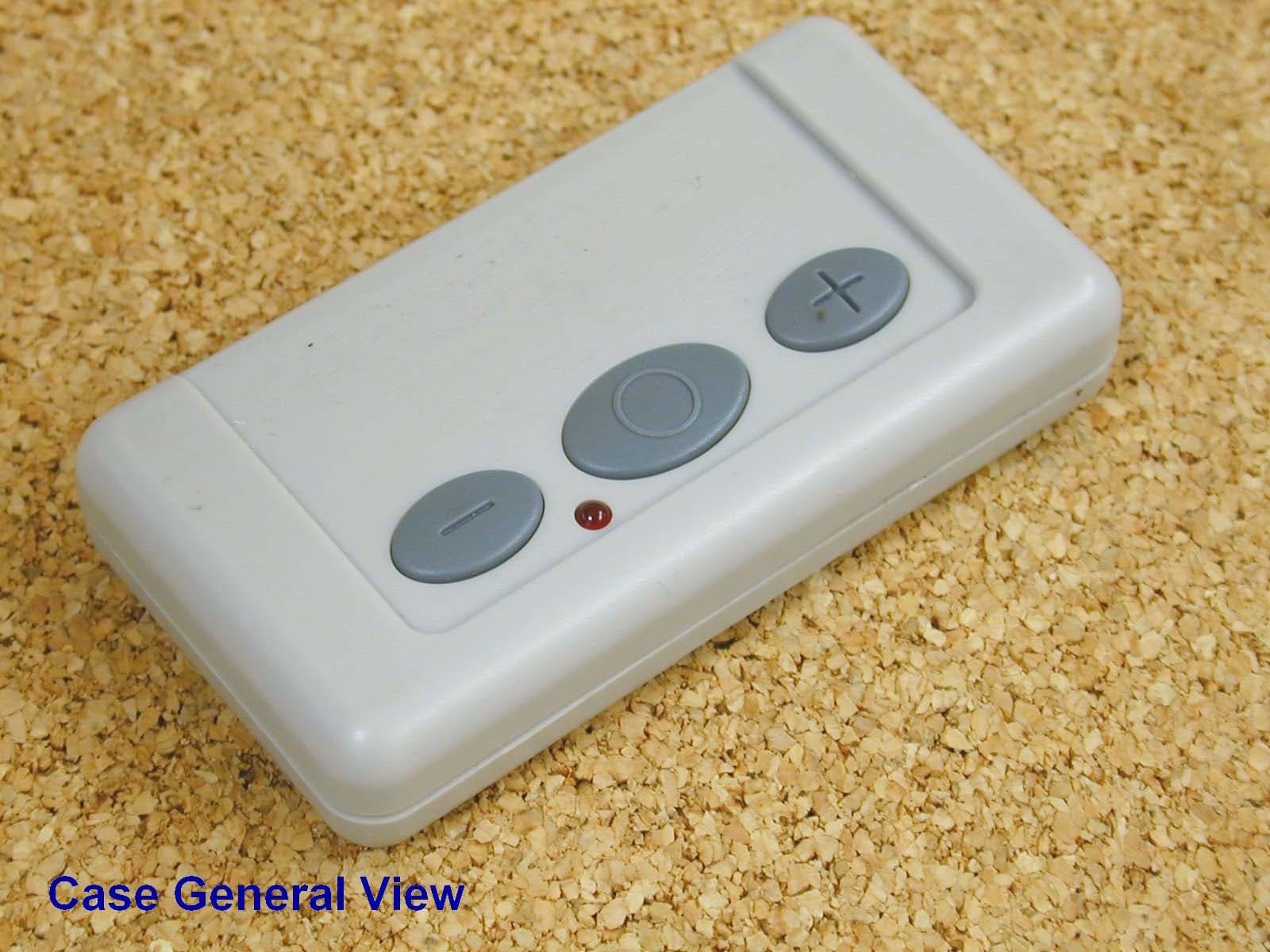

Martec Access Products Inc. Page 1 of 2 Allstar Clone TX 288MHz 1. General description. Allstar Clone TX 288MHz transmitter is a miniature, key chain, or visor mounted, 3- button programmable transmitter operating at 288 MHz. Primary usage is garage door opener. All timing derived from internal 1.2MHz internal oscillator. Unit is operating at 6V DC, supplied by two CR2030 batteries. 2. Programming. User needs to program up to three different 9-‘bit’ codes into the transmitter. Each ‘bit’ can be one of three values – ‘+’(button1), ’0’(button2), or ‘-‘(button3). Each button on the transmitter can be programmed separately to accommodate either one of modes. a. User Programming Sequence Programming is a three-step process: 1. To program button in conventional Allstar mode press “ -“(most right) button then, while holding, activate “+” (most left) button; to program button in new MVP mode press “+“(most left) button then, while holding, activate “-” (most right) button Press one from outside buttons then press any other button. After 5 seconds period the LED will flash to indicate the start of programming. Release buttons during flashing. The user cannot begin the program sequence (step 2) while the LED is flashing. User is forced to wait until LED is steady. 2. Press the button you want to program. After pressing a button the LED goes on and stays on. 3. Press the 9-button sequence to program the 9-bits. Each button on the transmitter is labeled either +, 0, or –. Push the button for each bit representing the symbol for that position in the code. As each button is pushed the LED will goes off and come back on. After the entry of the final bit (#9) the LED will blink three times indicating that programming is complete, and the transmitter goes back to its normal mode. Martec Access Products Inc. Page 2 of 2 b. Other Programming Notes If, at any time during programming, no button is pushed for 15 seconds, the transmitter will exit programming mode and turn the LED off. If button is pressed for 15 second the transmitter will exit programming mode and turn the LED off. Transmitter changes its code after full programming sequence. Anytime button #1 is programmed and the final bit (bit 9) is ‘+’, the software will automatically create codes for buttons 2 and 3, by using the first 8 bits of button one and appending a ‘0’ or ‘-‘ respectively. The transmitters will be initialized during manufacturing to an ‘unusable’ code that can be received by a specially designed tester but not by a field receiver. 3. Regular operation. When any of buttons of the transmitter was activated unit RED led will go on and unit will send programmed code to the receiver. Transmitter will cease its transmission when button was pressed for more than 15 seconds.
