NMEAVTS1030Model AVTS1030, Rule Part 90.203(j)(7)

EXHIBIT U – User Guide FCC ID# NMEAVTS1030 Wireless Data Network System User’s Guide The AlarmView™ System is intended for use with Nellcor™ NPB-290, NPB-295, N-395, and N-3000 Pulse Oximeters AlarmView™ is a trademark of Data Critical Corporation. Nellcor Puritan Bennett Inc. is a wholly owned subsidiary of Mallinckrodt Inc. Nellcor™ is a trademark of Mallinckrodt Inc. Microsoft® and Windows® CE are registered trademarks of Microsoft Corporation. Compaq® and Aero® are registered trademarks of Compaq Computer Corporation. All other trademarks and registered trademarks are the property of their respective owners. © 2000 Data Critical Corporation. All rights reserved. Part #880-0325-01 Rev. A Table of Contents AlarmView™ Wireless Data Network System User’s Guide Table of Contents Using this Guide .................................................................................... 1 Procedures ....................................................................................... 1 Warnings .......................................................................................... 1 Cautions ........................................................................................... 1 Notes ................................................................................................ 1 For More Information ........................................................................ 2 Safety Information ................................................................................. 3 System Warnings .............................................................................. 3 Section 1: AlarmView™ System Overview .......................................... 6 Introduction ....................................................................................... 6 AlarmView™ Transmitter .........................................................6 AlarmView™ Pager ..................................................................7 AlarmView™ Programmer .......................................................7 Section 2: AlarmView™ Transmitter Overview ................................... 9 Transmitter Product Description ..................................................... 10 Top Panel ...............................................................................10 Antenna Connector ...................................................................... 10 On/Off Button ............................................................................... 11 Front Panel ............................................................................11 AC Indicator ................................................................................. 11 Transmitting Indicator .................................................................. 12 Communications Indicator ........................................................... 12 Infrared Port ................................................................................. 13 Rear Panel .............................................................................13 Monitor Input Port ........................................................................ 13 Power Input Port .......................................................................... 13 Part #880-0325-01 Rev. A AlarmView™ System User’s Guide Using the Transmitter ..................................................................... 14 Transmitter Placement ...........................................................14 Turning Transmitter On ..........................................................15 Turning Transmitter Off ..........................................................17 Operating Transmitter On Battery Power ........................................ 17 Testing System Setup ..................................................................... 17 Send Test Page .....................................................................18 Section 3: AlarmView™ Pager Overview ........................................... 19 Pager Product Description .............................................................. 19 Alarm Pages ................................................................................... 20 Alarm Page Event Levels ......................................................20 Alarm Page Format ................................................................21 Alarm Page Types .................................................................22 Alarm Pages ................................................................................ 22 System Error Pages ..................................................................... 23 Section 4: AlarmView™ Programmer Overview ............................... 25 Programmer Product Description .................................................... 26 Using the Programmer .................................................................... 27 Viewing and Editing Bed Numbers .........................................28 Viewing and Editing Pager Numbers .....................................31 Viewing and Changing Bed and Pager Assignments .............33 Viewing Current Transmitter Assignments .................................. 34 Changing Transmitter Assignments ............................................. 37 Assigning All Pagers from the Transmitter .............................41 Setting Reminder Page Delay ................................................42 Section 5: Maintenance, Service, and Support ................................. 47 Cleaning Procedures ...................................................................... 47 Inspection and Testing .................................................................... 47 Electromagnetic Interference (EMI) ................................................ 48 Appendix A: Basic Pager Functions ................................................ A-1 Pager On/Off ................................................................................. A-1 Power On .................................................…

Text truncated - open the document above for the full version.

EXHIBIT EE – Admin Manual FCC ID# NMEAVTS1030 Wireless Data Network System Administrator’s Manual The AlarmView™ System is intended for use with Nellcor™ NPB-290, NPB-295, N-395, and N-3000 Pulse Oximeters AlarmView™ is a trademark of Data Critical Corporation. Nellcor Puritan Bennett Inc. is a wholly owned subsidiary of Mallinckrodt Inc. Nellcor™ is a trademark of Mallinckrodt Inc. Microsoft® and Windows® CE are registered trademarks of Microsoft Corporation. Compaq® and Aero® are registered trademarks of Compaq Computer Corporation. All other trademarks and registered trademarks are the property of their respective owners. © 2000 Data Critical Corporation. All rights reserved. AlarmView™ Wireless Data Network System Administrator’s Manual Table of Contents USING THIS MANUAL...................................................................................1 Procedures............................................................................................1 Warnings...............................................................................................1 Cautions................................................................................................1 Notes.....................................................................................................1 For Basic Operations............................................................................2 SAFETY INFORMATION.................................................................................3 System Warnings..................................................................................3 SECTION 1: ALARMVIEW™ SYSTEM OVERVIEW...........................................6 Introduction............................................................................................7 List of Components.............................................................................10 System Features.................................................................................11 Transmitter......................................................................................11 Programmer.....................................................................................14 Pager...............................................................................................15 SECTION 2: SYSTEM SPECIFICATIONS........................................................18 AlarmView System..............................................................................18 Programmer........................................................................................18 Transmitter..........................................................................................19 Pager (Percomm)................................................................................20 Electromagnetic Interference (EMI)....................................................67 SECTION 3: INSTALLATION........................................................................21 Setting Up Transmitter........................................................................21 Connect Antenna.............................................................................21 Connect to AC Power......................................................................22 Connect to Monitor..........................................................................23 Transmitter Placement....................................................................25 Turning Transmitter On...................................................................26 Turning Transmitter Off...................................................................28 Operating Transmitter On Battery Power............................................28 SECTION 4: INSTALL PROGRAM.................................................................29 Using The Install Program..................................................................29 Changing System Parameters............................................................30 Changing System Password...........................................................31 Changing Individual Transmitter Assignments................................33 Changing Survey Page Configuration.............................................40 Changing Global System Parameters.............................................41 SECTION 5: TESTING AND PERIODIC MAINTENANCE...................................45 Testing System Safety........................................................................45 Earth Leakage Current....................................................................45 Testing System Performance..............................................................46 Communications Page....................................................................46 Test Page........................................................................................47 Transmitter Range Test (Survey Paging)...........................................48 Periodic Maintenance..........................................................................51 Batteries..........................................................................................51 Cleaning Procedures.......................................................................52 Inspection and Testing....................................................................52 Service.............................................................................................53 SECTION 6: TROUBLESHOOTING................................................................54 Error Messages...................................................................................54 Getting System Information.................................................................64 Determining Programmer Software Version.......................................65 Repairing and Replacing Parts...........................................................66 Technical Support...............................................................................69 APPENDIX A: DEFAULT…

Text truncated - open the document above for the full version.

EXHIBIT S – Request for Confidentiality Letter FCC ID# NMEAVTS1030 19820 NORTH CREEK PARKWAY, SUITE 100, BOTHELL, WA 98011 TEL 425.482.7000, FAX 425.482.7010, WEBSITE www.datacritical.com June 18, 2001 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Request for Confidentiality - FCC ID NMEAVTS1030 To whom it may concern, Data Critical Corporation hereby requests, pursuant to 47 CFR paragraph 0.459, that the following items which are submitted to the Commission as part of the application for the AVTS1030 be withheld from public inspection: 1. Schematics 2. Functional Block Diagrams 3. Theory of Operation Document 4. Bill Of Materials We wish to withhold these items due to their content being privileged information. Disclosure of such information would be of substantial competitive harm and is confined to our authorized agents and our company. Thank you. Sincerely, Christopher Hartzog Quality Assurance Engineer Data Critical Corporation

Exhibits for the FCC application of Data Critical Corporation’s AlarmView AVTS1030 FCC ID: NMEAVTS1030 Exhibit Description File Name Confidential Exhibit A Theory of Operations Theory of Operations.pdf Yes Exhibit B Schematics Schematics.pdf Yes Exhibit C Cover Letter from Agent Cover Letter from Agent Exhibit D Bill of Materials Bill of Materials.pdf Yes Exhibit E Transceiver Block Diagram Transceiver Block Diagram.pdf Yes Exhibit F System Block Diagram System Block Diagram.pdf Yes Exhibit G Modulating Wavetrain Modulating Wavetrain.pdf Exhibit H Bode Plots Bode Plots.pdf Exhibit I Output Power Data Output Power.pdf Exhibit J Occupied Bandwidth Data Occupied Bandwidth.pdf Exhibit K Not Used Not Used Exhibit L Spurious Emissions @ Antenna Terminals Data Spurious Emissions@ Antenna Terminals.pdf Exhibit M Radiated Spurious Emissions Data Radiated Spurious Emissions.pdf Exhibit N Frequency Stability Data Frequency Stability.pdf Exhibit O Transient Frequency Behavior Data Transient Frequency Behavior.pdf Exhibit P Tune-up Procedure Tune-up Procedure.pdf Exhibit R Agent Authorization Letter Agent Authorization Letter.pdf Exhibit S Request for Confidentiality Letter Request for Confidentiality Letter.pdf Exhibit T Not Used Not Used Exhibit U User Guide AVUser Guide.pdf Exhibit V Technical Report Technical Report.pdf Exhibit W FCC ID Label FCC ID Label.pdf Exhibit X External Photos External Photos.pdf Exhibit Y Internal Photos Internal Photos.pdf Exhibit Z Not Used Not Used Exhibit AA Not Used Not Used Exhibit BB Not Used Not Used Exhibit CC Test Setup Photos Test Setup Photos.pdf Exhibit DD Circuit Description Circuit Description.pdf Exhibit EE Admin Manual AV Admin Manual.pdf Exhibit FF Antenna Information Antenna Information.pdf

EXHIBIT C – Cover Letter from Agent FCC ID# NMEAVTS1030 NORTHWEST EMC, INC. 22975 NW Evergreen Parkway, Suite 400 Hillsboro, OR 97124 Dear Application Examiner: On behalf of Data Critical Corporation, Northwest EMC, Inc is submitting this application for the certification of Data Critical Corporation’s AlarmView transmitter, Model AVTS1030. The transmitter is part of a secondary alarm notification system (using local, on-site paging) that transmits alarm data from patient monitoring and care equipment to alpha-numeric pagers that are worn by clinicians • Frequency Range: 450-480MHz • Output Power: 293 mW • Modulation: POCSAG • Channel Bandwidth: 25kHz • Channel Spacing: 12.5kHz • Frequency Stability: 1.0PPM • Data rate: 2400bps • Emission Designator: F1D The transmitter is designed for one-way paging and utilizes a 25kHz channel bandwidth. 47 CFR 90.203(j)(7) exempts the transmitter from the spectrum efficiency requirements of 47 CFR 90.203(j)(3). The technical report and exhibits demonstrate compliance with FCC rules 47 CFR 90.203(j)(7). To facilitate the review process, an index of exhibits has been provided (see file “Index of exhibits.pdf”). Your efforts in reviewing this application are greatly appreciated. Best regards, Greg Kiemel Northwest EMC, Inc.

EXHIBIT R – Agent Authorization Letter FCC ID# NMEAVTS1030 19820 NORTH CREEK PARKWAY, SUITE 100, BOTHELL, WA 98011 TEL 425.482.7000, FAX 425.482.7010, WEBSITE www.datacritical.com January 4, 2001 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Subject:Agent Authorization To whom it may concern, We, the undersigned, hereby authorize Northwest EMC, Inc., to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: • Report submittal • Related correspondence • The signing of all documents relating to these matters • Any other lawful activity necessary to obtain such certification. Any act carried out by Northwest EMC, Inc. within the scope of this authorization shall have the same affect as our own. This authorization shall expire 12 months from original date. Sincerely, Christopher Hartzog Quality Assurance Engineer Data Critical Corporation

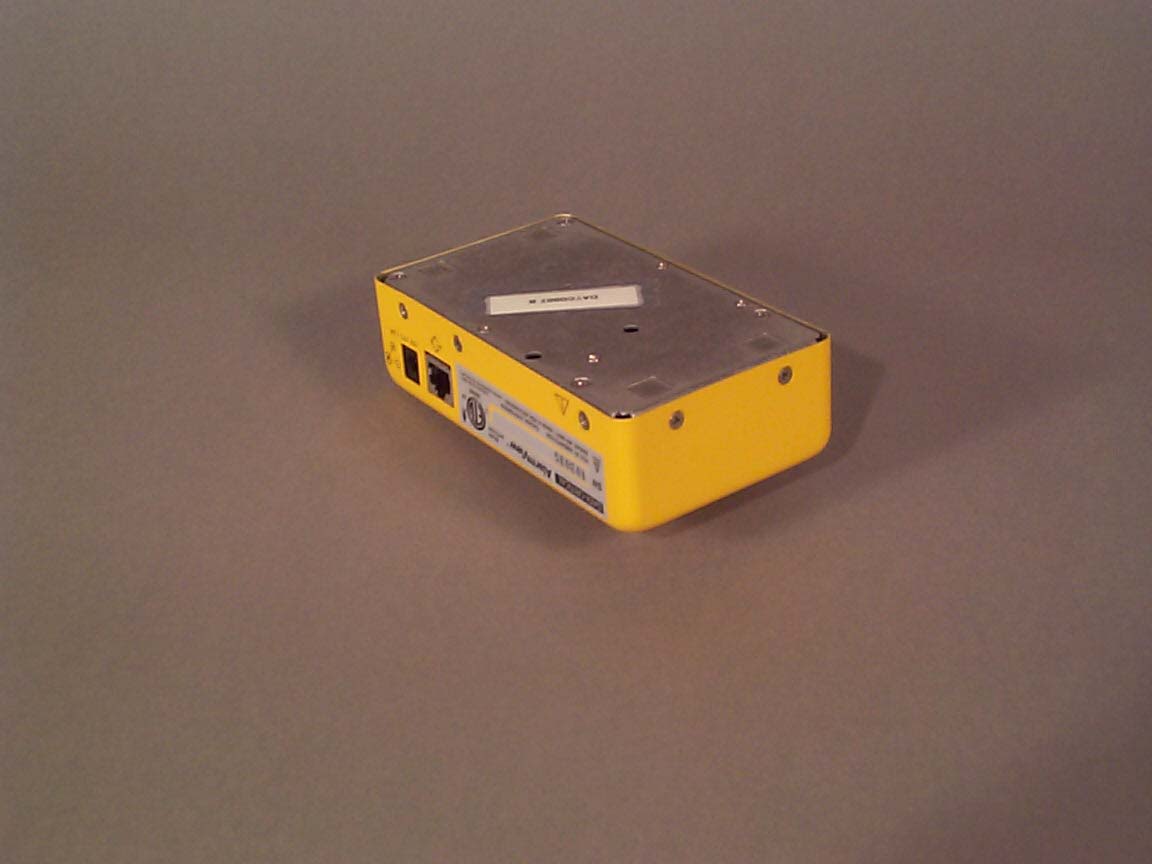

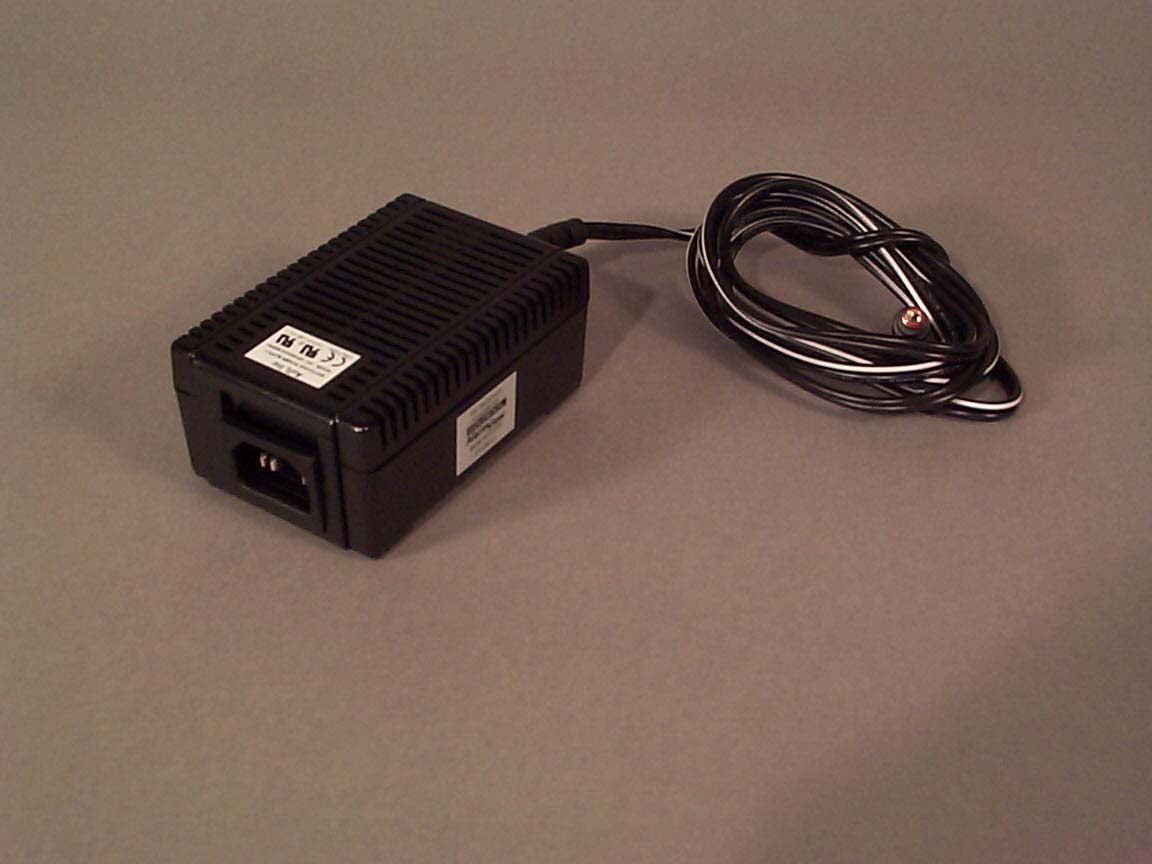

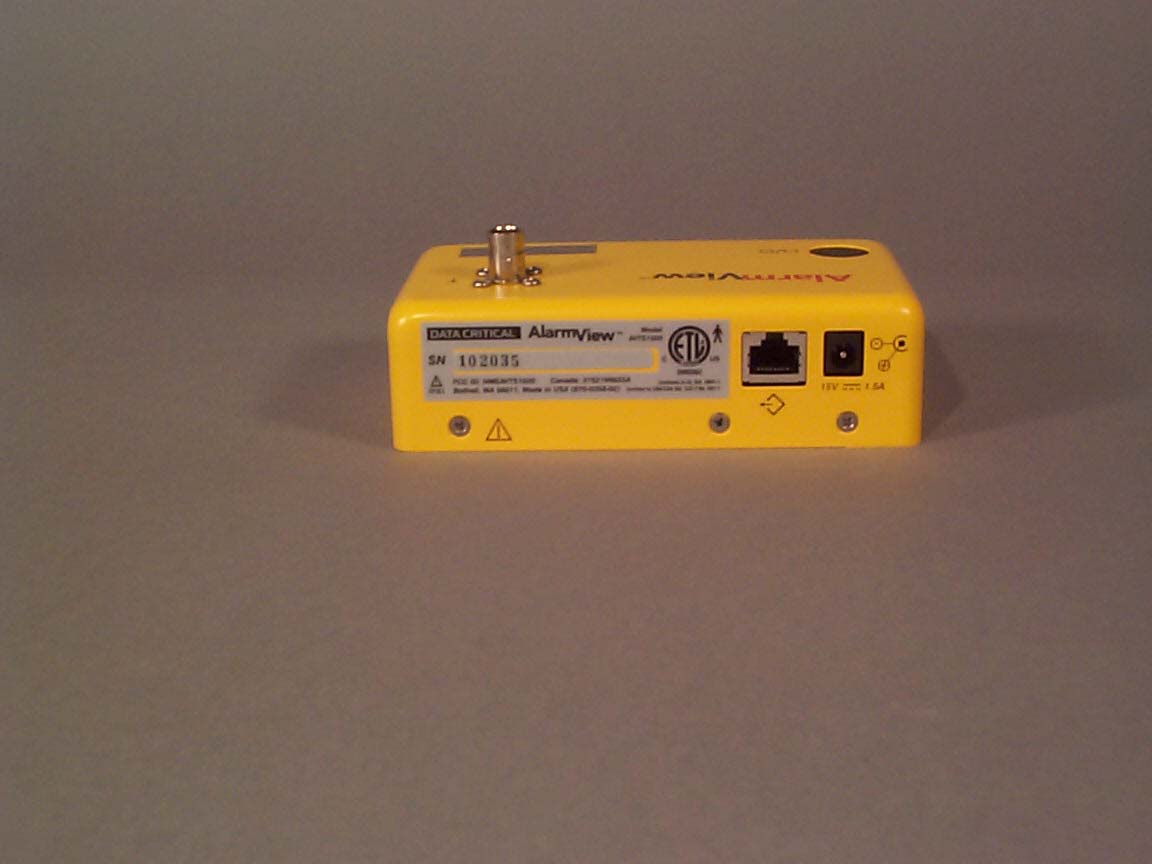

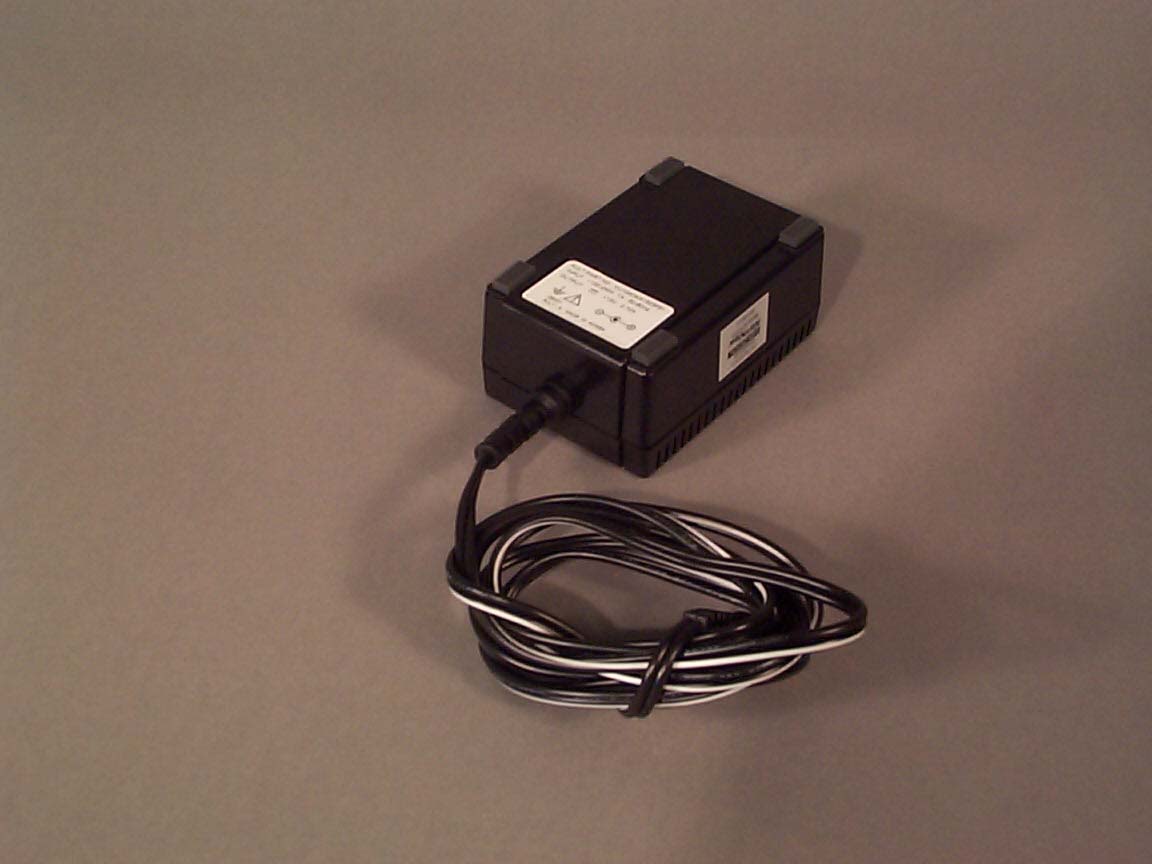

EXHIBIT X – External Photos FCC ID# NMEAVTS1030 Alternate Power Supply, Model MW160KA1503FXX Ault Power Supply, P/N VM104DKA1503F51 Power Cord Used with either Power Supply

EXHIBIT W – FCC ID Label FCC ID# NMEAVTS1030 Location of FCC ID Label on Product FCC ID Label

EXHIBIT Y – Internal Photos FCC ID# NMEAVTS1030 System Board – Solder Side System Board – Component Side Transceiver Board – Solder Side Transceiver Board – Component Side

EXHIBIT G – Modulating Wavetrain FCC ID# NMEAVTS1030 Modulation Input to DM-3473 Transceiver, Transmit Mode 1.71.92.12.32.52.72.93.13.3 0 500 1000 1500 2000 2500 3000 3500 4000 4500 5000 Time, microseconds Modulation Input, volts FM Transmit 0 0.5 1 1.5 2 2.5 3 3.5 0 1000 2000 3000 4000 5000 6000 Time, microseconds Modulation Input, volts -5000-4000-3000-2000-1000010002000300040005000 ModulationDeviation, Hz

EXHIBIT H – Bode Plots FCC ID# NMEAVTS1030

EXHIBIT I – Output Power Data FCC ID# NMEAVTS1030 NORTHWEST2 EMC Rev BETA 01/30/01 EUT: Alarm ViewWork Order: DATC0007 Serial Number: 102037Date: 05/31/01 Customer: Data Critical CorporationTemperature: 75 degrees F Attendees: N/ATested by: Rod PeloquinHumidity: 38% RH Customer Ref. No.: N/APower: N/AJob Site: EV06 TEST SPECIFICATIONS Specification: 47 CFR 2.1046 & 90.205Year: Most CurrentMethod: TIA/EIA-603Year: 1993 SAMPLE CALCULATIONS COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD REQUIREMENTS RESULTSAMPLITUDE Pass.293 Watts SIGNATURE Tested By: DESCRIPTION OF TEST EMISSIONS DATA SHEET Output Power - Low & Mid Channels None Modulated at 2400 Baud Manufacturer's specification or 3 W; whichever is less Frequency (MHz) 450 Power (Watts) 0.288 457 465 0.290 0.293

EXHIBIT J – Occupied Bandwidth Data FCC ID# NMEAVTS1030 NORTHWEST2 EMC Rev BETA 01/30/01 EUT: Alarm ViewWork Order:DATC0007 Serial Number: ENG1126Date: 06/13/01 Customer: Data Critical CorporationTemperature: 75 degrees F Attendees: N/ATested by: Greg KiemelHumidity: 38% RH Customer Ref. No.: N/APower: N/AJob Site: EV06 TEST SPECIFICATIONS Specification:47 CFR 2.1049 & 90.210(c)Year: Most CurrentMethod: TIA/EIA-603Year: 1993 SAMPLE CALCULATIONS COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD REQUIREMENTS RESULTSAMPLITUDE Pass SIGNATURE Tested By: DESCRIPTION OF TEST EMISSIONS DATA SHEET Occupied Bandwidth at Low Channel - Mask C (25 kHz Channel Bandwidth Equipment w/o Audio Low Pass Filter) None Baseline test of unit as received. Modulated at 2400 Baud. The power of any emission must be attenuated below the specified emission mask. The 0 dB reference for the emission mask is the measured output power of 24.7 dBm NORTHWEST2 EMC Rev BETA 01/30/01 EUT: Alarm ViewWork Order:DATA0007 Serial Number: ENG1126Date: 06/13/01 Customer: Data Critical CorporationTemperature: 23 degrees C Attendees: N/ATested by: Greg KiemelHumidity: 38% RH Customer Ref. No.: N/APower: N/AJob Site: EV06 TEST SPECIFICATIONS Specification:47 CFR 2.1049 & 90.210(c)Year: Most CurrentMethod: TIA/EIA-603Year: 1993 SAMPLE CALCULATIONS COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD REQUIREMENTS RESULTSAMPLITUDE Pass SIGNATURE Tested By: DESCRIPTION OF TEST EMISSIONS DATA SHEET Occupied Bandwidth at Low Channel - Mask C (25 kHz Channel Bandwidth Equipment w/o Audio Low Pass Filter) None Baseline test of unit as received. Modulated at 2400 Baud. The power of any emission must be attenuated below the specified emission mask. The 0 dB reference for the emission mask is the measured output power of 24.7 dBm NORTHWEST2 EMC Rev BETA 01/30/01 EUT: Alarm ViewWork Order:DATC0007 Serial Number: ENG1126Date: 06/13/01 Customer: Data Critical CorporationTemperature: 75 degrees F Attendees: N/ATested by: Greg KiemelHumidity: 38% RH Customer Ref. No.: N/APower: N/AJob Site: EV06 TEST SPECIFICATIONS Specification:47 CFR 2.1049 & 90.210(c)Year: Most CurrentMethod: TIA/EIA-603Year: 1993 SAMPLE CALCULATIONS COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD REQUIREMENTS RESULTSAMPLITUDE Pass SIGNATURE Tested By: DESCRIPTION OF TEST EMISSIONS DATA SHEET Occupied Bandwidth at Mid Channel - Mask C (25 kHz Channel Bandwidth Equipment w/o Audio Low Pass Filter) None Baseline test of unit as received. Modulated at 2400 Baud. The power of any emission must be attenuated below the specified emission mask. The 0 dB reference for the emission mask is the measured output power of 24.7 dBm NORTHWEST2 EMC Rev BETA 01/30/01 EUT: Alarm ViewWork Order:DATA0007 Serial Number: ENG1126Date: 06/13/01 Customer: Data Critical CorporationTemperature: 23 degrees C Attendees: N/ATested by: Greg KiemelHumidity: 38% RH Customer Ref. No.: N/APower: N/AJob Site: EV06 TEST SPECIFICATIONS Specification:47 CFR 2.1049 & 90.210(c)Year: Most CurrentMethod: TIA/EIA-603Year: 1993 SAMPLE CALCULATIONS COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD REQUIREMENTS RESULTSAMPLITUDE Pass SIGNATURE Tested By: DESCRIPTION OF TEST EMISSIONS DATA SHEET Occupied Bandwidth at Mid Channel - Mask C (25 kHz Channel Bandwidth Equipment w/o Audio Low Pass Filter) None Baseline test of unit as received. Modulated at 2400 Baud. The power of any emission must be attenuated below the specified emission mask. The 0 dB reference for the emission mask is the measured output power of 24.7 dBm

EXHIBIT L – Spurious Emissions @ Antenna Terminals FCC ID# NMEAVTS1030 NORTHWEST2 EMC Rev BETA 01/30/01 EUT: Alarm ViewWork Order: Serial Number: 102037Date: 05/31/01 Customer: Data Critical CorporationTemperature: 75 degrees F Attendees: N/ATested by: Rod PeloquinHumidity: 38% RH Customer Ref. No.: N/APower: N/AJob Site: EV06 TEST SPECIFICATIONS Specification: 47 CFR 2.1051 and 90.210(c)Year: Most CurrentMethod: TIA/EIA-603Year: 1993 SAMPLE CALCULATIONS COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD REQUIREMENTS RESULTS Pass SIGNATURE Tested By: DESCRIPTION OF TEST Maximum level of any spurious emission outside of the authorized band is 37.7 dB down from the fundamental EMISSIONS DATA SHEET Antenna Conducted Spurious Emissions - Low Channel 0MHz-1GHz None Modulated at maximum data rate of 2400 baud DATC0007 NORTHWEST2 EMC Rev BETA 01/30/01 EUT: Alarm ViewWork Order: Serial Number: 102037Date: 05/31/01 Customer: Data Critical CorporationTemperature: 75 degrees F Attendees: N/ATested by: Rod PeloquinHumidity: 38% RH Customer Ref. No.: N/APower: N/AJob Site: EV06 TEST SPECIFICATIONS Specification: 47 CFR 2.1051 and 90.210(c)Year: Most CurrentMethod: TIA/EIA-603Year: 1993 SAMPLE CALCULATIONS COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD REQUIREMENTS RESULTS Pass SIGNATURE Tested By: DESCRIPTION OF TEST Maximum level of any spurious emission outside of the authorized band is 37.7 dB down from the fundamental EMISSIONS DATA SHEET Antenna Conducted Spurious Emissions - Low Channel 1GHz-3GHz None Modulated at maximum data rate of 2400 baud DATC0007 NORTHWEST2 EMC Rev BETA 01/30/01 EUT: Alarm ViewWork Order: Serial Number: 102037Date: 05/31/01 Customer: Data Critical CorporationTemperature: 75 degrees F Attendees: N/ATested by: Rod PeloquinHumidity: 38% RH Customer Ref. No.: N/APower: N/AJob Site: EV06 TEST SPECIFICATIONS Specification: 47 CFR 2.1051 and 90.210(c)Year: Most CurrentMethod: TIA/EIA-603Year: 1993 SAMPLE CALCULATIONS COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD REQUIREMENTS RESULTS Pass SIGNATURE Tested By: DESCRIPTION OF TEST Maximum level of any spurious emission outside of the authorized band is 37.7 dB down from the fundamental EMISSIONS DATA SHEET Antenna Conducted Spurious Emissions - Low Channel 3GHz-5GHz None Modulated at maximum data rate of 2400 baud DATC0007 NORTHWEST2 EMC Rev BETA 01/30/01 EUT: Alarm ViewWork Order: Serial Number: 102037Date: 05/31/01 Customer: Data Critical CorporationTemperature: 75 degrees F Attendees: N/ATested by: Rod PeloquinHumidity: 38% RH Customer Ref. No.: N/APower: N/AJob Site: EV06 TEST SPECIFICATIONS Specification: 47 CFR 2.1051 and 90.210(c)Year: Most CurrentMethod: TIA/EIA-603Year: 1993 SAMPLE CALCULATIONS COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD REQUIREMENTS RESULTS Pass SIGNATURE Tested By: DESCRIPTION OF TEST Maximum level of any spurious emission outside of the authorized band is 37.7 dB down from the fundamental EMISSIONS DATA SHEET Antenna Conducted Spurious Emissions - Mid Channel 0MHz-3GHz None Modulated at maximum data rate of 2400 baud DATC0007 NORTHWEST2 EMC Rev BETA 01/30/01 EUT: Alarm ViewWork Order: Serial Number: 102037Date: 05/31/01 Customer: Data Critical CorporationTemperature: 75 degrees F Attendees: N/ATested by: Rod PeloquinHumidity: 38% RH Customer Ref. No.: N/APower: N/AJob Site: EV06 TEST SPECIFICATIONS Specification: 47 CFR 2.1051 and 90.210(c)Year: Most CurrentMethod: TIA/EIA-603Year: 1993 SAMPLE CALCULATIONS COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD REQUIREMENTS RESULTS Pass SIGNATURE Tested By: DESCRIPTION OF TEST Maximum level of any spurious emission outside of the authorized band is 37.7 dB down from the fundamental EMISSIONS DATA SHEET Antenna Conducted Spurious Emissions - Mid Channel 1GHz-3GHz None Modulated at maximum data rate of 2400 baud DATC0007 NORTHWEST2 EMC Rev BETA 01/30/01 EUT: Alarm ViewWork Order: Serial Number: 102037Date: 05/31/01 Customer: Data Critical CorporationTemperature: 75 degrees F Attendees: N/ATested by: Rod PeloquinHumidity: 38% RH Customer Ref. No.: N/APower: N/AJob Site: EV06 TEST SPECIFICATIONS Specification: 47 CFR 2.1051 and 90.210(c)Year: Most CurrentMethod: TIA/EIA-603Year: 1993 SAMPLE CALCULATIONS COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD REQUIREMENTS RESULTS Pass SIGNATURE Tested By: DESCRIPTION OF TEST Maximum level of any spurious emission outside of the authorized band is 37.7 dB down from the fundamental EMISSIONS DATA SHEET Antenna Conducted Spurious Emissions - Mid Channel 3GHz-5GHz None Modulated at maximum data rate of 2400 baud DATC0007 NORTHWEST2 EMC Rev BETA 01/30/01 EUT: Alarm ViewWork Order: Serial Number: 102037Date: 05/31/01 Customer: Data Critical CorporationTemperature: 75 degrees F Attendees: N/ATested by: Rod PeloquinHumidity: 38% RH Customer Ref. No.: N/APower: N/AJob Site: EV06 TEST SPECIFICATIONS Specification: 47 CFR 2.1051 and 90.210(c)Year: Most CurrentMethod: TIA/EIA-603Year: 1993 SAMPLE CALCULATIONS COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD REQUIREMENTS RESULTS Pass SIGNATURE Tested By: DESCRIPTION OF TEST EMISSIONS DATA SHEET Antenna Conducted Spurious Emissions - Mid Channel 0MHz-1GHz None Modulated at maximum data rate of 2400 baud Maximum level of any spurious emission outside of the authorized band is 37.7 dB down from the fundamental DATC0007 NORTHWEST2 EMC Rev BETA 01/30/01 EUT: Alarm ViewWork Order: Serial Number: 102037Date: 05/31/01 Customer: Data Critical CorporationTemperature: 75 degrees F Attendees: N/ATested by: Rod PeloquinHumidity: 38% RH Customer Ref. No.: N/APower: N/AJob Site: EV06 TEST SPECIFICATIONS Specification: 47 CFR 2.1051 and 90.210(c)Year: Most CurrentMethod: TIA/EIA-603Year: 1993 SAMPLE CALCULATIONS COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD REQUIREMENTS RESULTS Pass SIGNATURE Tested By: DESCRIPTION OF TEST EMISSIONS DATA SHEET Antenna Conducted Spurious Emissions - Mid Channel 1GHz-3GHz None M…

Text truncated - open the document above for the full version.

EXHIBIT M – Radiated Spurious Emissions FCC ID# NMEAVTS1030 NORTHWEST EMC Rev 4.00 04/10/01 EUT: Alarm View TransmitterWork Order: DATC0007 Serial Number: 102037Date: 05/29/01 Customer: Data CriticalTemperature: 21 Attendees: N/ATester: Rod PeloquinHumidity: 36% Customer Ref. No.: N/APower: N/AJob Site: EV01 TEST SPECIFICATIONS Specification:47 CFR 90.210 (c)Year:Most RecentMethod:TIA/EIA 603, Sec. 2.2.12Year:Most Recent SAMPLE CALCULATIONS Radiated Emissions:Field Strength = Measured Level + Antenna Factor + Cable Attenuation Factor - Amplifier Gain Conducted Emissions:Adjusted Level = Measured Level + Transducer Factor + Cable Attenuation Factor + External Attenuator COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD RESULTSDISTANCE (m)LINERUN PASS3N/A1 OTHER Tested By Frequency Meter ReadingDetector Antenna Factor Antenna PolarityPreamp GainCable Loss Table Azimuth Antenna Height Adjusted LevelSpec. LimitMargin (MHz)(dBuV)(dB/m)(dB)(dB)(degrees) (meters) (dBuV/m) (dBuV/m)(dB) 1369.24165.0PK26.6VHRN34.42.20.01.159.484.3-24.9 1369.24159.6PK26.6HHRN34.42.2325.01.254.084.3-30.3 2173.10055.9PK29.6HHRN34.02.5263.02.854.084.3-30.3 2173.10054.7PK29.6VHRN34.02.5298.01.152.884.3-31.5 456.41263.7PK17.1HBLG29.51.2190.01.052.584.3-31.9 456.41261.8PK17.1VBLG29.51.2308.01.350.684.3-33.7 1629.79052.5PK27.7HHRN34.22.3273.01.448.384.3-36.1 2716.31346.8PK30.9VHRN33.93.021.01.146.884.3-37.6 912.82451.9PK23.4HBLG30.61.7147.01.046.484.3-37.9 1629.79050.6PK27.7VHRN34.22.3299.01.046.484.3-37.9 3802.83742.4PK33.8HHRN34.23.7252.02.745.784.3-38.7 1825.65148.4PK28.5VHRN34.12.4179.01.345.284.3-39.2 3802.83741.3PK33.8VHRN34.23.7205.01.544.684.3-39.7 3194.88742.8PK32.0HHRN34.03.4265.01.744.284.3-40.1 2716.31…
