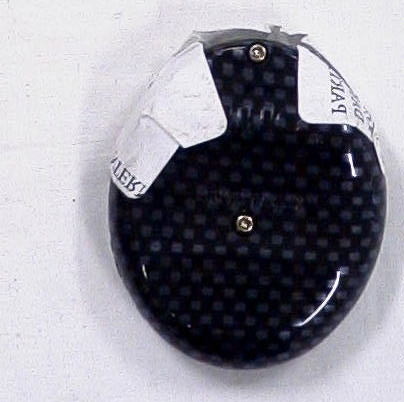

NNK7TXSecurity Transmitter

1181 South Rogers Circle Suite 18 Boca Raton, Florida 33487 e-mail [email protected] www.jti-innovation.com 03/03 OPERATION INSTRUCTIONS THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. NOTE:THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. THIS SYSTEM INCLUDES • Computerized control module • A pair of four-button, Elusive Code™ icon labeled remote controls • JTI Programmable six-tone siren • JTI True Dual™ impact sensor • Super bright red LED indicator • Push button valet switch • Wallet instruction card • Manuals • Window decals • Warranty registration card VERY IMPORTANT JTI will warrant the control module to the original purchaser for as long as you own your vehicle. This warranty is effective only if your system has been installed by an authorized JTI dealer. You must fill out your warranty registration card and send it along with an original copy of your sales receipt to JTI within 10 days of purchase to activate your warranty. By purchasing this system and sending in your warranty card and original sales receipt, you are automatically eligible for the JTI Protection Plus Program™. The Protection Plus Program™can, under certain conditions, provide a refund of the comprehensive insurance deductable if your vehicle is stolen while equipped with this security system. For detailed information, please visit our website at www.jit-innovation.com. 1 Congratulations on your purchase of a Nobody Messes with..IT JT200 vehicle security/convenience system. This system represents the most advanced and reliable technology in vehicle protection. 2. If the remote is lost or damaged, the system can also be disarmed by using the valet switch. Turn the ignition to the ON position and press the valet switch for five seconds or five times depending on the valet switch setting that has been programmed. The systems default setting is five seconds. User Selectable Quiet Mode Your security system has the ability to be armed and disarmed silently (no siren chirps / horn honks). To place the security system into quiet mode, press and simultaneously on the remote control for three seconds. The parking lights will flash once to indicate you have placed the system into quiet mode. You may then arm and disarm the system silently by pressing on the remote control. Quiet Mode does not effect the Panic feature. To take the security system out of quiet mode, press and simultaneously on the remote control for three seconds. The parking lights will flash twice to indicate that you have placed the system into normal operating mode. You may then arm and disarm the system by pressing on the remote control. Valet Mode Valet mode is used to prevent the security system from arming. The security system should be placed into valet mode when the vehicle is being serviced. It may also be used as a manual disarm, in the event of loss or damage to the remote control. It should be noted that convenience features such as keyless entry and trunk release will continue to function via the remote control even if USING YOUR SECURITY SYSTEM Arming 1. To arm the system manually, press on the remote control once. The siren (horn) will chirp once and the parking lights will flash one time. If installed, the vehicle's doors will lock. 2. Automatic passive arming: After the doors have been closed, the LED indicator will flash rapidly for thirty seconds. At the end of thirty seconds, the system will arm, chirp the siren (horn) once and flash the parking lights once. If installed, the vehicle’s doors will lock. NOTE: Passive arming is a selectable feature that may be turned ON or OFF by your authorized dealer/installer. After the security system is armed, the LED indicator will flash approximately once every second to indicate that the system is actively protecting your vehicle. With the security system armed, your vehicle is protected in the following ways: •Light impacts will result in the parking lights activating and a three chirp pre- warn siren blast. •Heavy impacts will result in the siren and parking lights activating for the programmed alarm duration. The alarm comes set at the thirty-second alarm duration, but can be programmed for sixty seconds. •If a door is opened, the system will activate immediately resulting in the siren and parking lights activating for the programmed alarm duration. •Turning on the ignition will trigger the security system. •If the optional start disable system is installed, the vehicle’s starter will be prevented from cranking. If you inadvertently trigger the security system, you can at any time disarm the security system by pressingon the remote control. NOTE: If any entry points (doors, hood, trunk) are not closed when arming, the siren will chirp three times to indicate an open zone. Disarming 1. To disarm the system, press on the remote control. The siren (horn) will chirp twice and the parking lights will flash twice. If installed, the vehicle’s doors will unlock. Also, if installed, the interior lights will turn on and stay on for twenty- five seconds or until you turn on the ignition. NOTE: If the siren chirps four times, this is an indication that a zone has been violated. See Security Zone Intrusion Memory. 2 3 Button 3: Trunk Release Button 4: Panic Button 1: Lock / Unlock Button 2: Option LED Indicator The security system’s status is reported to you via the LED indicator located inside the vehicle. The following is a menu of different indications: Flashing Armed OffDisarmed On Constant Valet mode Rapid Flashing30-second Passive Arming Countdown Security System Zone Intrusion Memory If the security system is triggered du…
