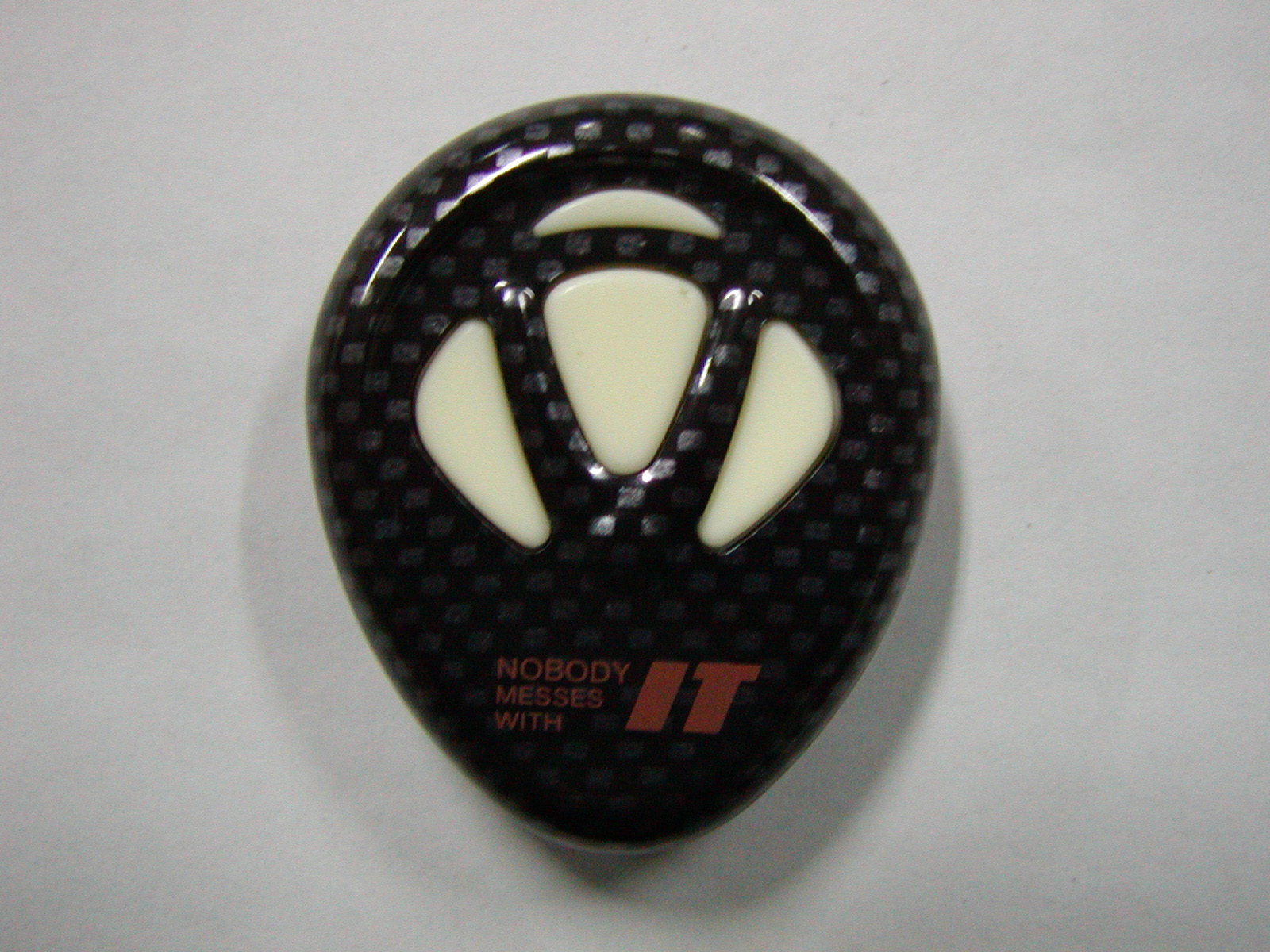

NNK8TXSecurity Transmitter

1181 South Rogers Circle Suite 18 Boca Raton, Florida 33487 e-mail [email protected] www.jti-innovation.com 03/01/03 OPERATION INSTRUCTIONS THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. NOTE:THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. THIS SYSTEM INCLUDES • Computerized control module • A pair of three-button,Elusive Code TM , icon labeled remote controls • Wallet instruction card • Manuals • Warranty Registration Card VERY IMPORTANT JTI will warrant the control module to the original purchaser for a period of 36 months from the date of purchase. This warranty is effective only if your system has been installed by an authorized JTI dealer. You must fill out and send in your warranty card within 10 days of purchase to activate your warranty. USING YOUR KEYLESS ENTRY SYSTEM Locking 1. To lock the vehicle, press on the remote control once. The horn will honk once and the parking lights will flash one time. 2. Automatic passive locking. Five seconds after the ignition has been turned off the horn will honk once to indicate that the passive locking countdown has begun. After an additional twenty seconds elapse, the vehicle will lock. To prevent the system from passively locking, simply press two times immediately after turning the ignition off, or wait until the vehicle passively locks and then press one time. This will prevent / keep the system from passively locking until the ignition is turned on and off again. NOTE: Passive locking is a selectable feature that may be turned ON or OFF by your authorized dealer / installer. Unlocking 1. To unlock the vehicle, presson the remote control. The horn will honk twice and the parking lights will flash twice. Congratulations on your purchase of a Nobody Messes with..IT JT100K keyless entry system. This system represents the most advanced and reliable technology in vehicle convenience. 1 2-Step unlocking The keyless entry system can be installed to unlock the doors in two steps. Pressingwill unlock only the driver’s door. Ifis pressed within the next three seconds, the remaining doors will unlock. Trunk release The keyless entry system may be interfaced to the vehicle’s electric trunk release. By pressing and holding for 3-seconds, the vehicle’s trunk will open. If the trunk release feature is not used, this button may be used to control other options (remote car starter, window roll up, etc.). Starter disable The keyless entry system can be connected to a starter disable mechanism providing security by disabling the ability to start the engine during an attempted break-in. REMOTE BATTERY REPLACEMENT The remote control is powered by a 12-volt battery that lasts approximately six months to one year depending on the frequency of use. A weak remote battery will be indicated by the following symptoms: A) Remote control range decreases. B) The LED on the remote goes dim. If the battery needs to be replaced, please see your authorized JTI dealer. User Selectable Quiet Mode Your keyless entry system has the ability to be locked and unlocked silently (no horn honks). To place the keyless entry into quiet mode, pressand simultaneously on the remote control for three seconds. The parking lights will flash once to indicate you have placed the system into quiet mode. You may then lock and unlock the system silently by pressing on the remote control. Quiet mode does not affect the panic feature. To take the keyless entry system out of quiet mode, pressand simultaneously on the remote control for three seconds. The parking lights will flash twice to indicate that you have placed the system into normal operating mode. You may then lock and unlock the system by pressing on the remote control. Panic Feature You may panic the system by pressing for three seconds. This is done to attract attention to your vehicle. The horn will sound for thirty seconds. Pressing on the remote control will turn the panic feature off early. Multi-Car Remote Operation Your remote control remote control is also able to operate a second vehicle if that vehicle is equipped with a Nobody Messes With..It Keyless Entry system. Your authorized JTI dealer can program this feature. Vehicle #1 will be the primary vehicle (all functions will operate). Vehicle #2 will be the secondary vehicle (on the remote control will lock/unlock the vehicle, no other functions will be available from the primary remote on the secondary vehicle). OPTIONAL FEATURES Ignition controlled door locks The vehicle’s doors can be programmed to lock automatically when the vehicle’s ignition is turned on and unlock automatically when the ignition is turned off. The lock and unlock function can be programmed independently by your authorized JTI installer/dealer. Interior illumination The keyless entry system may be interfaced to the vehicle’s interior lights. When the keyless entry system is disarmed/unlocked, the vehicle’s interior lights will turn on. The interior lights will turn off after 25-seconds, if the vehicle is locked with the remote control, or if the ignition is turned on. 2 3 4 OPTIONAL ACCESSORIES Remote engine start An add-on remote car starter module allows you to start your vehicle via the remote control. This module will allow you to keep the interior of your car warm in the winter and cool in the summer. Power trunk release If your vehicle is not equipped with power trunk release, the JTI A-73 trunk release kit can be added to provide remote controlled trunk release. Power window control The A-71 power window controller kit can be used to operate the vehicle’s power windows with the JT-100K remote control. TROUBLESHOOTIN…

Text truncated - open the document above for the full version.

FCCID: NNK8TX
































!"#$%
&






 '

!
 $













"#(



)

 %
&

)







  *
'


!"#&#+,-$




.'

,//0*




"#












 %
&




'











12

%

APPLICANT: SECURITY ASSOCIATES INTERNATIONAL FCC ID: NNK8TX REPORT #: S\SAI\372UT3\372UT3TestReport.doc TABLE OF CONTENTS LIST APPLICANT: SECURITY ASSOCIATES INTERNATIONAL FCC ID: NNK8TX TEST REPORT CONTAINING: PAGE 1-3...........TEST EQUIPMENT LIST PAGE 4.............TEST PROCEDURE PAGE 5-6...........RADIATION INTERFERENCE TEST DATA PAGE 7.............CALCULATION OF DUTY CYCLE PAGE 8.............DUTY CYCLE PLOT – COMPLETE PULSE TRAIN PAGE 9.............DUTY CYCLE PLOT - LONG PULSES PAGE 10............DUTY CYCLE PLOT – SHORT PULSES PAGE 11............OCCUPIED BANDWIDTH PAGE 12............OCCUPIED BANDWIDTH PLOT EXHIBIT ATTACHMENTS: EXHIBIT 1...........BLOCK DIAGRAM EXHIBIT 2...........SCHEMATIC EXHIBIT 3...........INSTRUCTION MANUAL EXHIBIT 4...........FCC ID LABEL SAMPLE EXHIBIT 5...........SKETCH OF FCC ID LABEL LOCATION EXHIBIT 6...........EXTERNAL PHOTOGRAPHS EXHIBIT 7...........INTERNAL PHOTOGRAPHS EXHIBIT 8...........TEST SET UP PHOTO EXHIBIT 9...........PARTS LIST EXHIBIT 10..........CIRCUIT DESCRIPTION APPLICANT: SECURITY ASSOCIATES INTERNATIONAL FCC ID: NNK8TX REPORT #: S\SAI\372UT3\372UT3TestReport.doc Page 1 of 12 EMC Equipment List DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS X 3-Meter OATS TEI N/A N/A Listed 12/22/99 12/22/02 3/10-Meter OATS TEI N/A N/A Listed 3/26/01 3/26/04 Receiver, Beige Tower Spectrum Analyzer (Tan) HP 8566B Opt 462 3138A07786 3144A20661 CAL 8/31/01 8/31/03 RF Preselector (Tan) HP 85685A 3221A01400 CAL 8/31/01 8/31/03 Quasi-Peak Adapter (Tan) HP 85650A 3303A01690 CAL 8/31/01 8/31/03 X Receiver, Blue Tower X Spectrum Analyzer (Blue) HP 8568B 2928A04729 2848A18049 CHAR 10/22/01 10/22/03 X RF Preselector (Blue) HP 85685A 2926A00983 CHAR 10/22/01 10/22/03 X Quasi-Peak Adapter (Blue) HP 85650A 2811A01279 CHAR 10/22/01 10/22/03 X Biconnical Antenna Electro-Metrics BIA-25 1171 CAL 4/26/01 4/26/03 Biconnical Antenna Eaton 94455-1 1096 CAL 10/1/01 10/1/03 Biconnical Antenna Eaton 94455-1 1057 CHAR 3/15/00 3/15/02 BiconiLog Antenna EMCO 3143 9409-1043 X Log-Periodic Antenna Electro-Metrics LPA-25 1122 CAL 10/2/01 10/2/03 Log-Periodic Antenna Electro-Metrics EM-6950 632 CHAR 10/15/01 10/15/03 Log-Periodic Antenna Electro-Metrics LPA-30 409 CHAR 10/16/01 10/16/03 Dipole Antenna Kit Electro-Metrics TDA-30/1-4 152 CAL 3/21/01 3/21/04 Dipole Antenna Kit Electro-Metrics TDA-30/1-4 153 CHAR 11/24/00 11/24/03 Double-Ridged Horn Antenna Electro-Metrics RGA-180 2319 CAL 12/19/01 12/19/03 Horn Antenna Electro-Metrics EM-6961 6246 CAL 3/21/01 3/21/03 Horn Antenna ATM 19-443-6R None No Cal Required Passive Loop Antenna EMC Test Systems EMCO 6512 9706-1211 CHAR 7/10/01 7/10/03 Line Impedance Stabilization . . . Electro-Metrics ANS-25/2 2604 CAL 10/9/01 10/9/03 APPLICANT: SECURITY ASSOCIATES INTERNATIONAL FCC ID: NNK8TX REPORT #: S\SAI\372UT3\372UT3TestReport.doc Page 2 of 12 DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS Line Impedance Stabilization . . . Electro-Metrics EM-7820 2682 CAL 3/16/01 3/16/03 Termaline Wattmeter Bird Electronic Corporation 611 16405 CAL 5/25/99 5/25/01 Termaline Wattmeter Bird Electronic Corporation 6104 1926 CAL 12/12/01 12/12/03 Oscilloscope Tektronix 2230 300572 CHAR 2/1/01 2/1/03 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 1/22/02 1/22/04 AC Voltmeter HP 400FL 2213A14499 CAL 10/9/01 10/9/03 AC Voltmeter HP 400FL 2213A14261 CHAR 10/15/01 10/15/03 AC Voltmeter HP 400FL 2213A14728 CHAR 10/15/01 10/15/03 X Digital Multimeter Fluke 77 35053830 CHAR 1/8/02 1/8/04 Digital Multimeter Fluke 77 43850817 CHAR 1/8/02 1/8/04 Digital Multimeter HP E2377A 2927J05849 CHAR 1/8/02 1/8/04 Multimeter Fluke FLUKE-77-3 79510405 CAL 9/26/01 9/26/03 Peak Power Meter HP 8900C 2131A00545 CHAR 1/26/01 1/26/03 Digital Thermometer Fluke 2166A 42032 CAL 1/16/02 1/16/04 Thermometer Traulsen SK-128 CHAR 1/22/02 1/22/04 X Temp/Humidity gauge EXTech 44577F E000901 CHAR 1/22/02 1/22/04 Frequency Counter HP 5352B 2632A00165 CAL 11/28/01 11/28/03 Power Sensor Agilent Technologies 84811A 2551A02705 CAL 1/26/01 1/26/03 Service Monitor IFR FM/AM 500A 5182 CAL 11/22/00 11/22/02 Comm. Serv. Monitor IFR FM/AM 1200S 6593 CAL 5/12/02 5/12/04 Signal Generator HP 8640B 2308A21464 CAL 11/15/01 11/15/03 Modulation Analyzer HP 8901A 3435A06868 CAL 9/5/01 9/5/03 Near Field Probe HP HP11940A 2650A02748 CHAR 2/1/01 2/1/03 APPLICANT: SECURITY ASSOCIATES INTERNATIONAL FCC ID: NNK8TX REPORT #: S\SAI\372UT3\372UT3TestReport.doc Page 3 of 12 DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS BandReject Filter Lorch Microwave 5BR4-2400/ 60-N Z1 CHAR 3/2/01 3/2/03 BandReject Filter Lorch Microwave 6BR6-2442/ 300-N Z1 CHAR 3/2/01 3/2/03 BandReject Filter Lorch Microwave 5BR4-10525/ 900-S Z1 CHAR 3/2/01 3/2/03 High Pas Filter Microlab HA-10N CHAR 10/4/01 10/4/03 Audio Oscillator HP 653A 832-00260 CHAR 3/1/01 3/1/03 Frequency Counter HP 5382A 1620A03535 CHAR 3/2/01 3/2/03 Frequency Counter HP 5385A 3242A07460 CHAR 12/11/01 12/11/03 Preamplifier HP 8449B-H02 3008A00372 CHAR 3/4/01 3/4/03 Amplifier HP 11975A 2738A01969 CHAR 3/1/01 3/1/03 Egg Timer Unk CHAR 8/31/01 8/31/03 Measuring Tape, 20M Kraftixx 0631-20 CHAR 2/1/02 2/1/04 Measuring Tape, 7.5M Kraftixx 7.5M PROFI 2/1/02 2/1/04 Coaxial Cable #51 Insulated Wire Inc. NPS 2251-2880 Timco #51 CHAR 1/23/02 1/23/04 Coaxial Cable #64 Semflex Inc. 60637 Timco #64 CHAR 1/24/02 1/24/04 Coaxial Cable #65 General Cable Co. E9917 RG233/U Timco #65 CHAR 1/23/02 1/23/04 Coaxial Cable #106 Unknown Unknown Timco #106 CHAR 1/23/02 1/23/04 APPLICANT: SECURITY ASSOCIATES INTERNATIONAL FCC ID: NNK8TX REPORT #: S\SAI\372UT3\372UT3TestReport.doc Page 4 of 12 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a pres-elector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in d…
