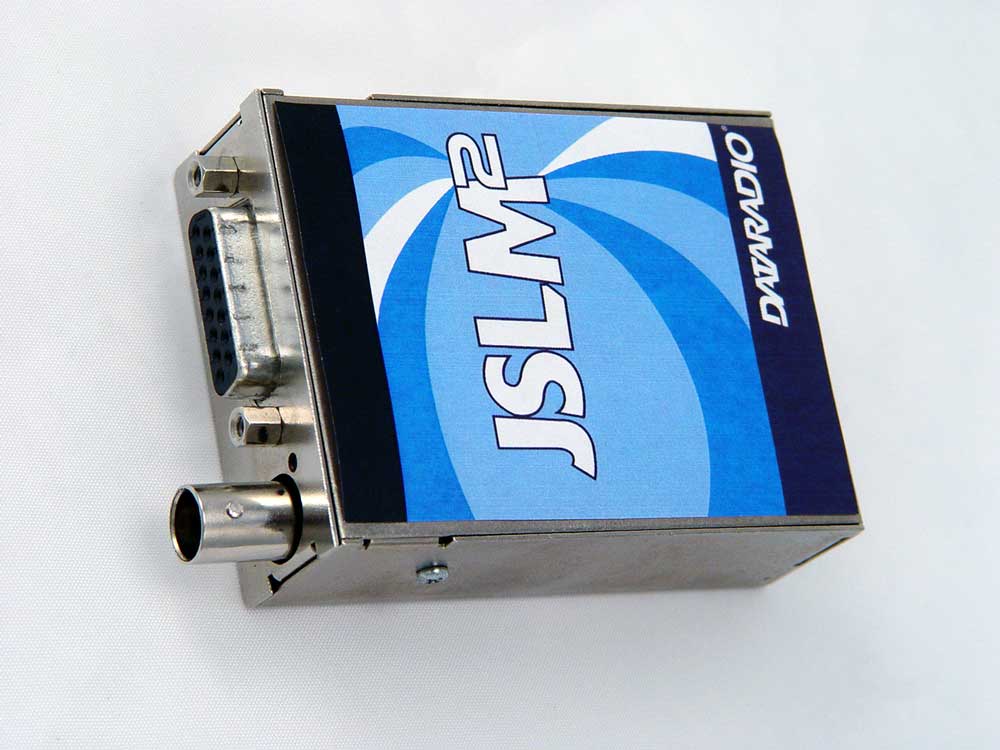

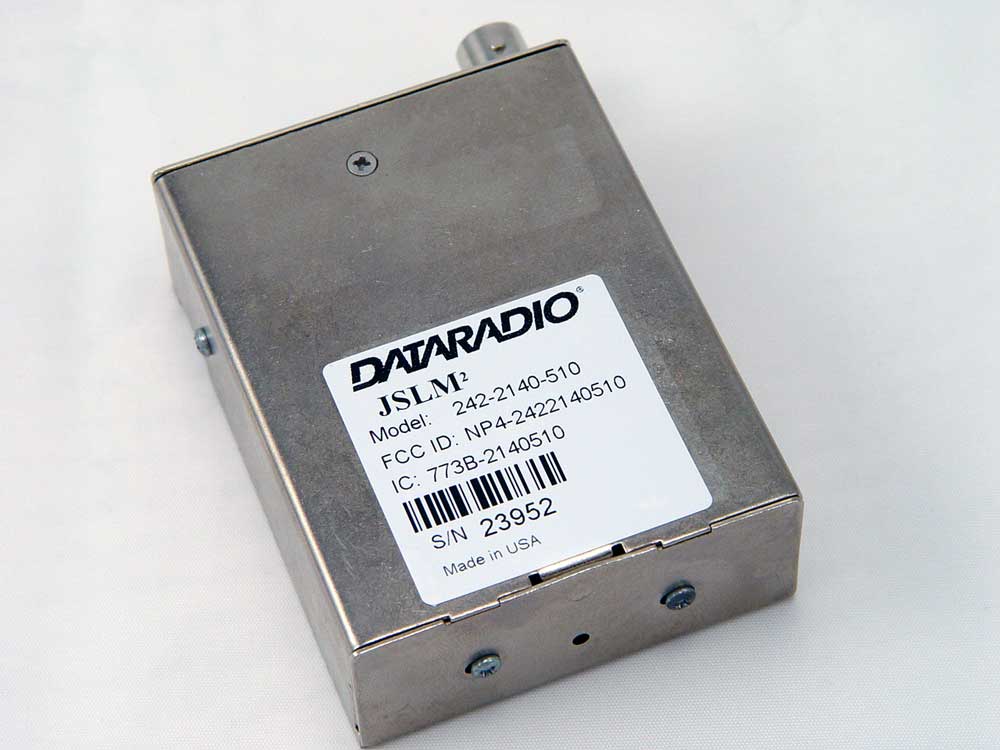

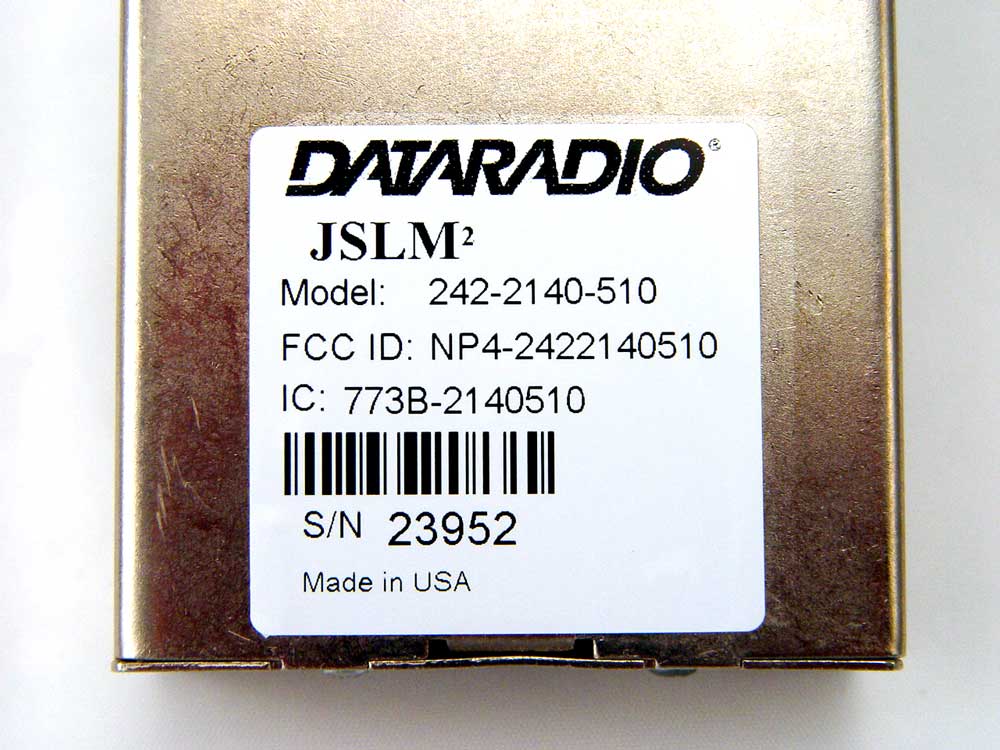

Part Number: 001-2140-101 Revision 000 September 2005 Copyright 2005 Dataradio COR Ltd. Synthesized UHF Telemetry Transceiver Synthesized Telemetry Module Preliminary Part Number: 001-2100-101 Revision 000 September 2005 Copyright 2005 Dataradio COR Ltd. About Dataradio Dataradio is the leading designer and manufacturer of trusted wireless products and systems for critical infrastructure applications. Our products have been found at the heart of mobile and SCADA data networks around the world for over 20 years. Dataradio products include mobile data products and systems, telemetry devices, integrated wireless modems for fixed point-to-point and point to multi-point applications and OEM solutions. Our product line is one of the broadest and most trusted in the industry. Product Warranty The manufacturer's warranty statement for this product is available in our manuals or by contacting Dataradio COR Ltd. 299 Johnson Avenue, Suite 110, Waseca, MN 56093-0833. Phone (507) 833-8819. www.dataradio.com Dataradio provides product brochures, case studies software downloads and product information on our website. Every effort is taken to provide accurate, timely product information in this installation manual. Product updates may result in differences between the information provided herein and the product shipped. The information in this document is subject to change without notice. Dataradio is a registered trademark of Dataradio, Inc. TABLE OF CONTENTS 1 Part No. 001-2100-101 1GENERAL INFORMATION 1.1SCOPE OF MANUAL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 1.2EQUIPMENT DESCRIPTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 JSLM 2 RADIO/LOADER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 1.3MODULE IDENTIFICATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 1.4PART NUMBER BREAKDOWN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 1.5ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 1.6TECHNICAL SUPPORT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 1.7PRODUCT WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 1.8REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 1.9FACTORY REPAIR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 GENERAL JSLM 2 INFORMATION (SPECIFICATIONS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4 2INSTALLATION 2.1PRE-INSTALLATION CHECKS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 2.2INTERFACING WITH THE JSLM 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 PROGRAMMING AND POWER CABLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 ANTENNA AND VSWR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 CONNECTOR J204 USER INTERFACE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 GENERAL PINOUT DESCRIPTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2 3PROGRAMMING 3.1INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 3.2JSLM 2 FIELD PROGRAMMING SOFTWARE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 RADIO PARAMETERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 SETTINGS TAB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 RADIO TAB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4 FREQUENCIES TAB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6 VERSION REQUEST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7 READ/WRITE PROGRAMMABLE SETTINGS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7 PORT SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8 PORT STATISTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10 USER TEST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11 ASCII/HEX T…

Text truncated - open the document above for the full version.

Attn: Reviewing Engineer September 14, 2005 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: CONFIDENTIALITY REQUEST FOR JSLM 2 UHF TELEMETRY TRANSCEIVER FCC ID: NP4- 2422140510 To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Secton 0.457 and 0.459. We have requested the item listed below as items 1 – 4, required to be submitted with this application be withheld from public review. 1. Circuit Schematics Attachment entitled: JSLM 2 UHF rf schematic diagram.pdf Attachment entitled: JSLM 2 loader schematic diagram.pdf 2. Bills of materials Attachment entitled: JSLM 2 UHF rf bom.pdf Attachment entitled: JSLM 2 loader bom.pdf 3. Block Diagrams Attachment entitled: JSLM 2 UHF rf block diagram.pdf Attachment entitled: JSLM 2 loader block diagram.pdf 4. Circuit Description Attachment entitled: JSLM 2 UHF circuit description.pdf This request is based on the fact that these are proprietary trade secrets of Dataradio. Dataradio does not make this information available to the public. Releasing this information gives competitors an unfair advantage of our proprietary research and development efforts. Sincerely, Mark Christensen Director of Product Development

September 20, 2005 RE: FCC ID: NP4-2422140510_ATCB002774 Attention: Mark A. Christensen I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please provide the user manual for this device. 2. Please note that the internal photo of the transmitter board has shielding on several areas (refer to file name “DSC03022-uhf-rf-top.jpg”). Please remove the shielding and provide a photo of the circuitry and components underneath. 3. Please note that CFR 47 licensed device testing does not allow the use of circular polarized antennae. Please explain why a circular polarized antenna gain factor was used in the data in the tables on pages 35 through 38. While the device appears compliant, please provide data using acceptable antenna(s) (i.e. properly polarized vertical and horizontal antennae). 4. Please provide the required MPE (RF exposure) report for this device. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

September 22, 2005 RE: FCC ID: NP4-2422140510_ATCB002774 Attention: Mark A. Christensen I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that the explanation given on the use of the circular polarized antenna is not acceptable. Please note that the FCC does not allow the use of circular polarized antenna(s) in testing licensed devices. As mentioned in the email, please provide data using an acceptable substitution antenna. 2. Please note that the MPE report provided states that a minimum separation of 20cm will be maintained. However, in the same MPE report you state that the minimum separation distance is 77.6cm. Please correct the MPE report to state that the minimum distance that the device will be installed will be 77.6cm. 3. Please note that in regards to item 2, the manual needs to include caution statements about the separation distance. Or, since the MPE report states the device will be professionally installed, this minimum separation distance should be in the installation manual. Also, since the rf exposure is not addressed at the time of licensing, but is addressed at the time of grant, the highest gain antenna (6dBi) must be mentioned. Please address this issue. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

RF Exposure Compliance Requirements JSLM 2 UHF Analog Telemetry Radio Modem FCC Rule: 1.1307, 1.1310, 2.1091 (b) (d), 2.1093 IC Rule: RSS 119 Section 9, RSS-102 Section 2.2 Description of Compliance: The JSLM 2 will be professionally installed in the SCADA (Supervisory Control And Data Acquisition) market and will be mounted with a fixed RTU (Remote Terminal Unit). A typical installation would use a maximum gain antenna of 10 dBi mounted on a tower. A minimum separation distance of more than 121 cm must be maintained between the radiating structure and any person to classify as a mobile under FCC MPE regulations. Note: It is the responsibility of the user to guarantee compliance with the FCC MPE regulations when operating this device in a way other than described above. The calculation for the more stringent specification, a General Population/Uncontrolled Mobile device according to section 2.1091(b) and section 1.1310 Note 2 is shown below: Limits for General Population/Uncontrolled Exposure: Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (mins) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f2) 30 30-300 27.5 0.073 0.2 30 300-1500 --- --- f (MHz)/1500 (MHz) 30 1500-100000 --- --- 1.0 30 Environmental Specification: f(MHz)/(1500 mW/cm 2 ) 406 MHz/(1500 MHz mW/cm 2 ) = 0.27 mW/cm 2 (worst case) S = (PG)/(4πR 2 ) (OET Bulletin 65) Where: S = Power Density (mW/cm 2 ) P = Power input to the antenna (mW) G = Power Gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna (cm) Distance Calculation: R = √((PG)/(4πS)) Typical Antenna Gain: 10.0 dBi 10 (10.0 dBi/10) = 10.0 Power input to the Antenna: 37dBm = 10 (37dBm/10) = 5000 mW R = √((5000mW*10.0)/(4π*0.27 mW/cm 2 )) = 121 cm (Minimum Distance)

Page 1 of 44 DATARADIO COR Ltd. Corporate Headquarters and Manufacturing Operations 299 Johnson Avenue, Suite 110 Waseca, MN 56093-0833 USA Phone: 507-833-8819 Fax: 507-833-6748 FCC Part 90 Certification Application FCC Form 731 For The JSLM 2 UHF ANALOG TELEMETRY RADIO MODEM FCC ID: NP4-2422140510 Page 2 of 44 TABLE OF CONTENTS Test 1: Transmitter Rated Output Power Test 2: Frequency Response of Transmitter Audio Low Pass Filter Test 3: Audio Frequency Response of Transmitter Modulating Circuit Test 4: Modulation Limiting Test 5: Transmitter Occupied Bandwidth - Mask D Test 6: Transmitter Spurious and Harmonic Output Test 7: Frequency Stability with Variation in Ambient Temperature Test 8: Field Strength of Spurious Radiation Test 9: Frequency Stability with Variation in Supply Voltage Test 10: Transient Frequency Behavior Page 3 of 44 NAME OF TEST: Transmitter Rated Power Output RULE PART NUMBER: 2.1046 (a) (c) TEST RESULTS: See results below TEST CONDITIONS: Standard Test Conditions TEST EQUIPMENT: 50-Ohm Attenuator, Tenuline Model 8340 / 20 dB / 25 Watt 50-Ohm Attenuator, Tenuline Model 8340 / 10dB / 25 Watt Power Supply, Instek Model GPS-2303 Power Meter, Model HP-436A TEST SET-UP: TEST RESULTS: Frequency ( MHz ) DC Voltage at Final ( Vdc ) DC Current into Final ( Adc ) DC Power into Final ( W ) RF Power Output ( W ) 450 12.50 1.17 14.63 5.0 450 7.2 0.65 4.68 0.1 Page 4 of 44 NAME OF TEST: Frequency Response of Transmitter Audio Low pass Filter RULE PART NUMBER: 2.1047(a) TEST RESULTS: See Graph On Following Page TEST CONDITIONS: Standard Test Conditions, 25 C TEST PROCEDURE: TIA/EIA – 603-B, 2.2.15 TEST EQUIPMENT: Audio Generator, Model HP8903A Audio Analyzer, Model HP8903A TEST SET-UP: TRANSMIT AUDIO SPLATTER FILTER C413 100pF 100pF C422 68pF C414 0. 001 C421 0. 001 C412 180K R422 180K R421 4. 7K R416 56K R417 680K R418 680K R419 U401- D MC33174D 14 12 13U401- C MC33174D 8 10 9 11 2. 5V 5V 10uF Audi o Gener at or Audi o Anal yzer Page 5 of 44 TEST RESULTS: Performance Relative To 1000 Hz, 0 dB Page 6 of 44 NAME OF TEST: Audio Frequency Response of Transmitter Modulating Circuit RULE PART NUMBER: 2.1047 (a) TEST RESULTS: Conforms to minimum standards, see following pages TEST CONDITIONS: Standard Test Conditions, 25 C TEST PROCEDURE: TIA/EIA – 603-B, 2.2.6.2.2 TEST EQUIPMENT: 50-Ohm Attenuator, Tenuline Model 8340 / 20 dB / 25 Watt 50-Ohm Attenuator, Tenuline Model 8340 / 10 dB / 25 Watt Modulation Analyzer, Model HP8901A Power Supply, Model Instek GPS-2303 Digital Voltmeter, Fluke Model 8000A Audio Generator, Model HP8903A Audio Voltmeter, Model HP8903A TEST SET-UP: TRANSCEIVER UNDER TEST ATTENUATOR ATTENUATOR POWER SUPPLY DIGITAL MULTIMETER MODULATION ANALYZER AUDIO GENERATOR AUDIO VOLTMETER Page 7 of 44 Reference level (0 dB) = 1.0 kHz deviation with 1000 Hz tone at audio input of loader board. MIC IN Frequency (Hz) Relative Level (dB) 100 -20.00 200 -15.92 300 -10.46 400 -8.87 500 -7.13 600 -4.73 700 -3.10 800 -1.11 900 -0.72 1000 0.00 1200 2.14 1400 3.29 1600 4.61 1800 5.11 2000 5.76 2500 6.53 3000 4.19 3500 0.67 4000 -5.04 4500 -9.90 5000 -13.98 Transmit Audio Frequency Response MIC IN -25 -20 -15 -10 -5 0 5 10 15 100100010000 Audio Frequency (Hz) Relative Level (dB) Page 8 of 44 Reference level (0 dB) = 1.0 kHz deviation with 1000 Hz tone at audio input of loader board. AUX w/o Pre-emphasis Frequency (Hz) Relative Level (dB) 100 -3.10 200 -1.51 300 -0.35 400 0.83 500 0.00 600 -0.18 700 0.00 800 -0.18 900 -0.18 1000 0.00 1200 0.51 1400 -0.72 1600 -0.72 1800 -0.92 2000 -0.72 2500 -1.72 3000 -7.13 3500 -12.40 4000 -13.15 4500 -13.98 5000 -33.98 Transmit Audio Frequency Response AUX w/o Preemphasis -25 -20 -15 -10 -5 0 5 10 100100010000 Audio Frequency (Hz) Relative Level (dB) Page 9 of 44 Reference level (0 dB) = 1.0 kHz deviation with 1000 Hz tone at audio input of loader board. AUX with Pre-emphasis Frequency (Hz) Relative Level (dB) 100 -22.28 200 -12.74 300 -10.80 400 -7.88 500 -6.36 600 -4.49 700 -3.44 800 -2.06 900 -0.34 1000 0.00 1200 1.10 1400 2.07 1600 3.18 1800 4.67 2000 4.57 2500 4.86 3000 2.83 3500 -1.65 4000 -6.36 4500 -10.80 5000 -13.49 Transmit Audio Frequency Response AUX with Preemphasis -25 -20 -15 -10 -5 0 5 10 15 100100010000 Audio Frequency (Hz) Relative (dB) Page 10 of 44 NAME OF TEST: Modulation Limiting RULE PART NUMBER: 2.1047(b) MINIMUM STANDARD: Shall not exceed 2.5 kHz deviation from 300 Hz to 3000 Hz TEST RESULTS: Conforms to minimum standards TEST CONDITIONS: Standard Test Conditions, 25 C TEST PROCEDURE: TIA/EIA – 603-B, 2.2.3 TEST EQUIPMENT: 50-Ohm Attenuator, Tenuline Model 8340 / 20 dB / 25 Watt 50-Ohm Attenuator, Tenuline Model 8340 / 10 dB / 25 Watt Modulation Analyzer, Model HP8901A Power Supply, Model Instek GPS-2303 Digital Voltmeter, Fluke Model 8000A Audio Generator, Model HP8903A Audio Voltmeter, Model HP8903A TEST SET-UP: TRANSCEIVER UNDER TEST ATTENUATOR ATTENUATOR POWER SUPPLY DIGITAL MULTIMETER MODULATION ANALYZER AUDIO GENERATOR AUDIO VOLTMETER Page 11 of 44 DEVIATION LIMITING WITH INPUT VOLTAGE 20 dB ABOVE 60% RATED DEVIATION AT 300 Hz For 11K0F3E MIC IN Mod. Freq Pos Dev Neg Dev Hz (kHz) (kHz) 100 1.99 1.99 200 1.99 1.97 300 2.29 2.13 400 2.32 2.14 500 2.26 2.19 800 2.20 2.19 1000 2.29 2.18 1500 2.24 2.13 2000 2.13 2.11 2500 1.81 1.76 3000 1.20 1.22 4000 0.35 0.36 5000 0.12 0.09 Modulation Limiting Audio Response MIC IN 0.00 0.50 1.00 1.50 2.00 2.50 3.00 100100010000 Modulation Frequency (Hz) Deviation (kHz) Page 12 of 44 DEVIATION LIMITING WITH INPUT VOLTAGE 20 dB ABOVE 60% RATED DEVIATION AT 1000 Hz For 11K0F3E MIC IN Mod. Freq Pos Dev Neg Dev Hz (kHz) (kHz) 100 0.45 0.35 200 1.55 1.50 300 1.92 1.95 400 2.04 1.91 500 2.11 2.07 800 2.27 2.22 1000 2.22 2.22 1500 2.20 2.00 2000 2.11 2.18 2500 1.83 2.10 3000 1.22 1.19 4000 0.34 0.37 5000 0.10 0.16 Modulation Limiting Audio Response MIC IN 0.00 0.50 1.00 1.50 2.00 2.50 3.00 100100010000 Modulation Frequency (Hz) Deviation (kHz) Page 13 of 44 DEVIATION LIMITING WITH INPUT VOLTAGE 20 …
