NP4-5046-300Guardian 400 Wireless Radio Modem

Guardian-100™ Guardian-200™ Guardian-400™ Guardian-900™ Narrowband IP Router User Manual PN 001-5008-000 Rev 8E Preliminary ETSI Version Revised May 27, 2010 REVISION HISTORY REV DATE REVISION DETAILS 0 Dec 11, 2010 Initial Release as 001-5006-000. IMPORTANT NOTICE Because of the nature of wireless communication, transmission and reception of data can never be guaranteed. Data may be delayed, corrupted (i.e., have errors), or be totally lost. Significant delays or losses of data are rare when wireless devices such as the Guardian are used in a normal manner with a well-constructed network. Guardian should not be used in situations where failure to transmit or receive data could result in damage of any kind to the user or any other party, including but not limited to personal injury, death, or loss of property. CalAmp accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using Guardian, or for the failure of Guardian to transmit or receive such data. COPYRIGHT NOTICE © Copyright 2007 CalAmp. Products offered may contain software proprietary to CalAmp. The offer of supply of these products and services does not include or infer any transfer of ownership. No part of the documentation or information supplied may be divulged to any third party without the express written consent of CalAmp. RF EXPOSURE COMPLIANCE REQUIREMENTS The Guardian radio is intended for use in the Industrial Monitoring and Control and SCADA markets. The Guardian unit must be professionally installed and must ensure a minimum separation distance listed in the table below between the radiating structure and any person. An antenna mounted on a pole or tower is the typical installation and in rare instances, a 1/2-wave whip antenna is used. Antenna Gain 5 dBi 10 dBi 15 dBi Min Safety Distance (VHF @ max Power) 123cm 218.8cm 389cm Min Safety Distance (UHF @ max Power) 105.7cm 188cm 334.4cm Min Safety Distance (900 MHz @ max power) 63.8cm 115 cm 201.7 cm Note: It is the responsibility of the user to guarantee compliance with the FCC MPE regulations when operating this device in a way other than described above. The Guardian radio uses a low power radio frequency transmitter. The concentrated energy from an antenna may pose a health hazard. People should not be in front of the antenna when the transmitter is operating. The installer of this equipment must ensure the antenna is located or pointed such that it does not emit an RF field in excess of Health Canada limits for the general population. Recommended safety guidelines for the human exposure to radio frequency electromagnetic energy are contained in the Canadian Safety Code 6 (available from Health Canada) and the Federal Communications Commission (FCC) Bulletin 65. RF Exposure Any changes or modifications not expressly approved by the party responsible for compliance (in the country where used) could void the user's authority to operate the equipment. REGULATORY CERTIFICATIONS The Guardian radio is available in several different models each with unique frequency bands. Each model of Guardian may have different regulatory approval as shown in the table below. UL Certification All models UL approved when powered with a listed Class 2 source. DECLARATION OF CONFORMITY FOR MODEL # 140-5046-400 This device (Guardian model #140-5046-400) is a data transceiver intended for commercial and industrial use in all EU and EFTA member states. Česky [Czech] CalAmp tímto prohlašuje, že tento rádio je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES. Dansk [Danish] Undertegnede CalAmp erklærer herved, at følgende udstyr radio overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Deutsch [German] Hiermit erklärt CalAmp, dass sich das Gerät radio in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Eesti [Estonian] Käesolevaga kinnitab CalAmp seadme raadio vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. English Hereby, CalAmp, declares that this radio is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español [Spanish] Por medio de la presente CalAmp declara que el radio cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Ελληνική [Greek] ΜΕ ΣΗΝ ΠΑΡΟΤ΢Α CalAmp ΔΗΛΩΝΕΙ ΟΣΙ ΡΑΔΙΌΦΩΝΟ ΢ΤΜΜΟΡΦΩΝΕΣΑΙ ΠΡΟ΢ ΣΙ΢ ΟΤ΢ΙΩΔΕΙ΢ ΑΠΑΙΣΗ΢ΕΙ΢ ΚΑΙ ΣΙ΢ ΛΟΙΠΕ΢ ΢ΥΕΣΙΚΕ΢ ΔΙΑΣΑΞΕΙ΢ ΣΗ΢ ΟΔΗΓΙΑ΢ 1999/5/ΕΚ. Français [French] Par la présente CalAmp déclare que l'appareil radio est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. Italiano [Italian] Con la presente CalAmp dichiara che questo radio è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla Certifications Model Number Frequency Range FCC IC (DOC) European Union EN 300 113 Australia/New Zealand 140-5016-500 136 – 174 MHz NP4-5016-500 773B-5016500 140-5016-501 136 – 174 MHz NP4-5016-500 773B-5016500 140-5026-500 216 – 222 MHz NP4-5026-500 773B-5026500 140-5026-501 216 – 222 MHz NP4-5026-500 773B-5026500 140-5046-300 406 - 470 MHz NP4-5046-500 773B-5046500 140-5046-301 406 - 470 MHz NP4-5046-500 773B-5046500 140-5046-500 450 - 512 MHz NP4-5046-500 773B-5046500 140-5046-501 450 - 512 MHz NP4-5046-500 773B-5046500 140-5096-500 928 - 960 MHz NP4-5096-500 773B-5096500 140-5096-501 928 - 960 MHz NP4-5096-500 773B-5096500 direttiva 1999/5/CE. Latviski [Latvian] Ar šo CalAmp deklarē, ka radio atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem. Lietuvių [Lithuanian] Šiuo CalAmp deklaruoja, kad šis radijo atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas. Nederlands [Dutch] Hierbij verklaart CalAmp dat het toestel radio in overeenstemming is …

Text truncated - open the document above for the full version.

Calamp Wireless Networks Corporation Waseca, Minnesota Calamp Wireless Networks Corporation hereby requests that our grant for NP4-5046-300 list frequencies outside of the FCC allocated Part 90 frequencies per FCC 2.807. The reason for this request is that Calamp Wireless Networks Corporation has United States government and military customers that require use of these frequencies. Chris Ludewig Director of Engineering

Attn: Reviewing Engineer December 17, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: CONFIDENTIALITY REQUEST FOR Guardian RADIO TRANSCEIVER FCC ID: NP4-5046-300 To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Secton 0.457 and 0.459. We have requested the item listed below as items 1 – 4, required to be submitted with this application be withheld from public review. 1. Circuit Schematics Attachment entitled: #11 Guardian LED Display Board Schematic.pdf Attachment entitled: #11 Guardian Modem Schematic.pdf Attachment entitled: #11 Guardain RF Schematic 300.pdf Attachment entitled: #11 Guardain RF Schematic 500.pdf 2. Bills of materials Attachment entitled: #12 Guardian LED Display Board BOM.pdf Attachment entitled: #12 Guardian Modem BOM.pdf Attachment entitled: #12 Guardian RF BOM 3.pdf Attachment entitled: #12 Guardian RF BOM 5.pdf 3. Block Diagrams Attachment entitled: #10 Guardian LED Display Board Block Diagram.pdf Attachment entitled: #10 Guardian Modem Block Diagram.pdf Attachment entitled: #10 Guardian RF Block Diagram.pdf 4. Circuit Description Attachment entitled: #5 Guardian Circuit Description.pdf This request is based on the fact that these are proprietary trade secrets of CalAmp. CalAmp does not make this information available to the public. Releasing this information gives competitors an unfair advantage of our proprietary research and development efforts. Sincerely, Chris Ludewig Director of Engineering

101210-19 THIS MUST BE SIGNED BY THE APPLICANT AND SHOULD BE PLACED ON APPLICANTS LETTERHEAD ONLY IF AGENT IS SUBMITTING APPLICATION Attn: Director of Certification Authority to Act as Agent I appoint American Certification Body, Inc.__ to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by American Certification Body, Inc. (ACB), still resides with ___(applicant name and address)___. Dated this 17 th day of December, 2010. Agency Agreement Expiration Date: (Typically 8-12 months) By: __________________ _Chris Ludewig____________ (Signature) (Print name) Title: _Director of Engineering___________ On behalf of: Calamp Wireless Networks Corpoeration_______________ (Company Name) Telephone: ____________507-833-6717______________

General Information The following report has been generated for FCC Certification of Calamp Wireless Networks Corporation Model 140-5046-300 & 140-5046-500, UHF Transceiver. Unless otherwise noted, all of the measurements were conducted following the procedures set forth in the TIA/EIA-603-C standards. Trade Name: Guardian Model Number: 140-5046-300, 140-5046-500 Manufacturer: Calamp Wireless Networks Corporation Waseca, MN 56093 FCC ID Number: FCC ID: NP4-5046-300 FCC Rules and Regulations: FCC Part 90 Frequency Range: 406.1-512 MHz Serial Number (s): Pilot #1 (-300), Pilot #2 (-500) Transmitter: Type of Emissions: 9K55F1D 9K35F1D 11K6F1D 14K6F1D 16K4F1D Maximum Power Ratings: 12 Watts Number of Channels: 8 Input Impedance: 50 Ohms, Nominal Voltage Requirement: 10-30 Vdc

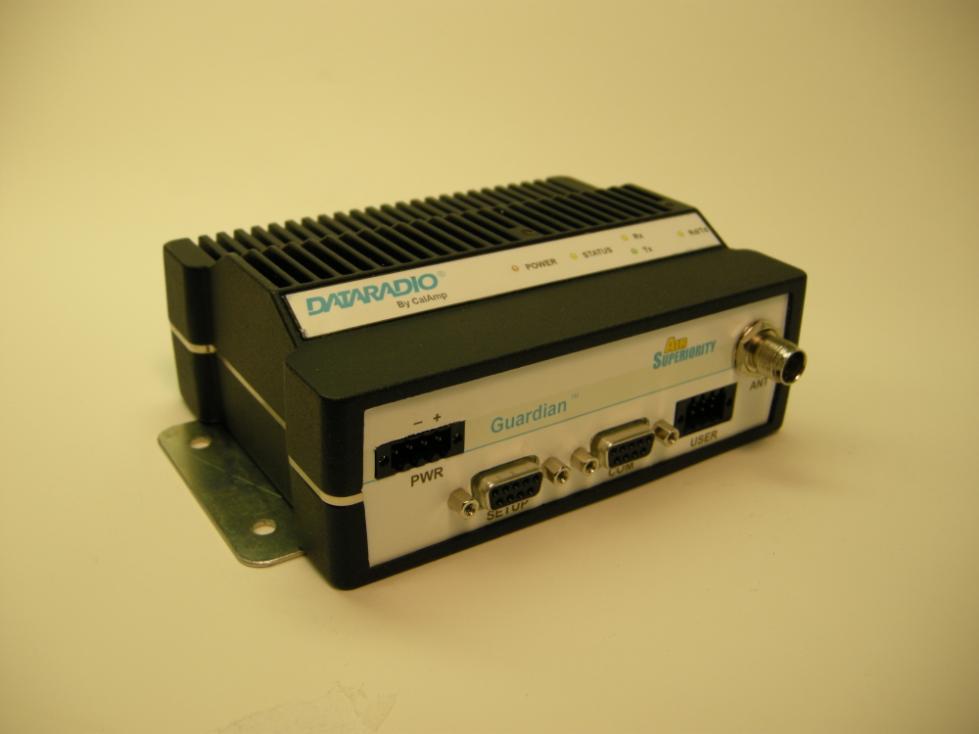

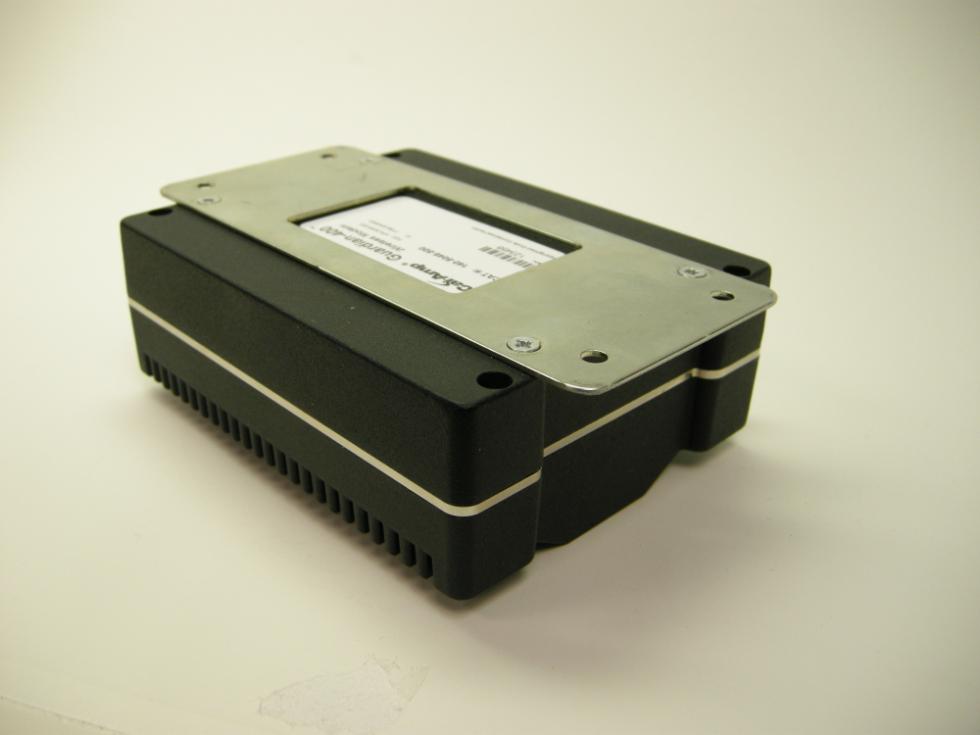

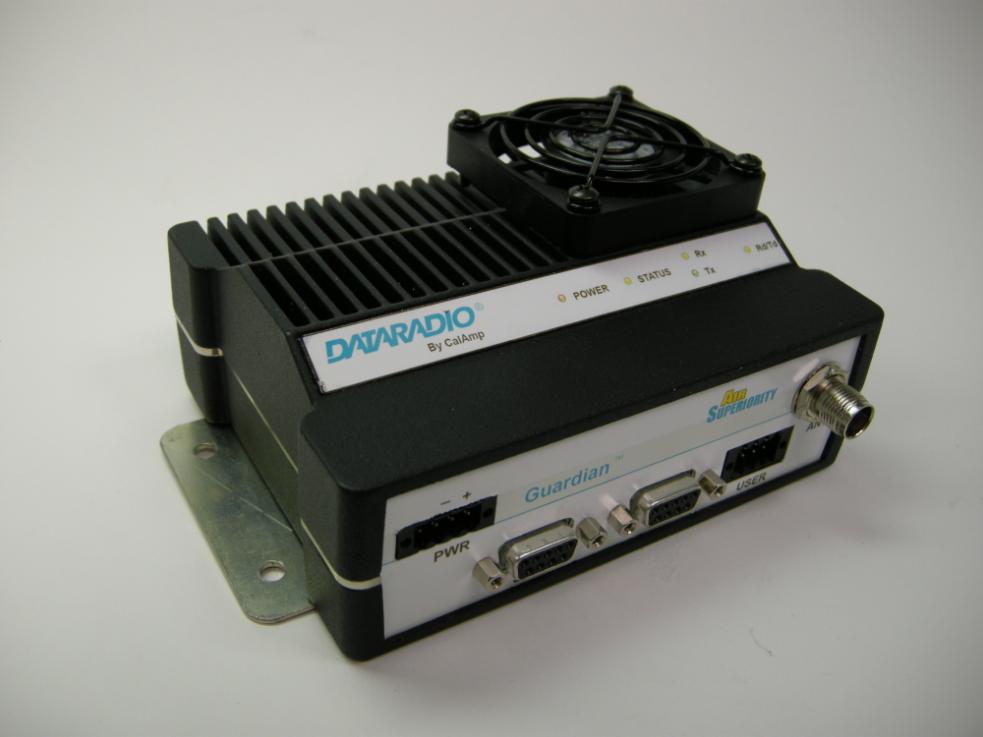

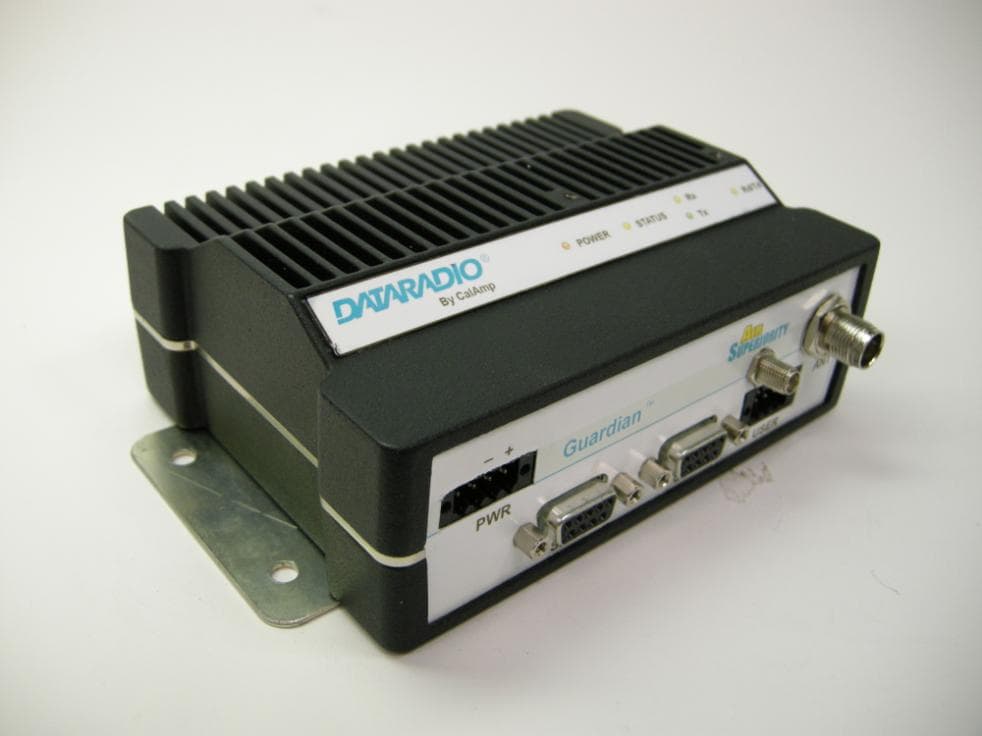

External Photos for the Guardian 400 Top, Front, Left Side Bottom, Back, Right Side Duplex Radio Radio with Fan Option

Internal Photos for the Guardian 400 LED Display Board Bottom Top In Chassis Bottom In Chassis Top RF Board Simplex Top Bottom Top with Shields In Chassis With Mid-Plate RF Board Duplex Top Bottom With Shields In Chassis With Mid-Plate Guardian Modem Board Top Bottom In Chassis

RF Exposure Compliance Requirements Guardian Analog Telemetry Radio Modem FCC Rule: 1.1307, 1.1310, 2.1091 (b) (d), 2.1093 Description of Compliance: The Guardian will be professionally installed in the SCADA (Supervisory Control And Data Acquisition) market and will be mounted with a fixed RTU (Remote Terminal Unit). A minimum separation distance listed in the table below must be maintained between the radiating structure and any person to classify as a mobile under FCC MPE regulations. Antenna Gain vs. Recommended Safety Distance Antenna Gain 5 dBi 10 dBi 15 dBi Min Safety Distance (max power) 105.7cm 188 cm 334.3 cm Note: It is the responsibility of the user to guarantee compliance with the FCC MPE regulations when operating this device in a way other than described above. The calculation for the more stringent specification, a General Population/Uncontrolled Mobile device according to section 2.1091(b) and section 1.1310 Note 2 is shown below: Limits for General Population/Uncontrolled Exposure: Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (mins) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f2) 30 30-300 27.5 0.073 0.2 30 300-1500 --- --- f (MHz)/1500 (MHz) 30 1500-100000 --- --- 1.0 30 Environmental Specification: f(MHz)/(1500 mW/cm 2 ) 406.1 MHz/(1500 MHz mW/cm 2 ) = 0.27 mW/cm 2 (worst case) S = (PG)/(4R 2 ) (OET Bulletin 65) Where: S = Power Density (mW/cm 2 ) P = Power input to the antenna (mW) G = Power Gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna (cm) Distance Calculation for 5dBi antenna: R = ((PG)/(4S)) Antenna Gain: 5.0 dBi 10 (5 dBi/10) = 3.16 Power input to the Antenna: 40.8dBm = 10 (40.8dBm/10) = 12000 mW R = ((12000mW*3.16)/(4*0.27 mW/cm 2 )) = 105.7 cm (Minimum Distance) Distance Calculation for 10dBi antenna: R = ((PG)/(4S)) Antenna Gain: 10.0 dBi 10 (10 dBi/10) = 10 Power input to the Antenna: 40.8dBm = 10 (40.8dBm/10) = 12000 mW R = ((12000mW*10)/(4*0.27 mW/cm 2 )) = 188 cm (Minimum Distance) Distance Calculation for 15dBi antenna: R = ((PG)/(4S)) Antenna Gain: 15.0 dBi 10 (15dBi/10) = 31.6 Power input to the Antenna: 40.8dBm = 10 (40.8dBm/10) = 12000 mW R = ((12000mW*31.6)/(4*0.27 mW/cm 2 )) = 334.3 cm (Minimum Distance)

Page 1 of 41 CAlamp Wireless Networks Corp. 299 Johnson Avenue, Suite 110 Waseca, MN 56093-0833 USA Phone: 507-833-8819 Fax: 507-833-6748 FCC Part 90 Certification Application FCC Form 731 For The Guardian UHF RADIO MODEM FCC ID: NP4-5046-300 Page 2 of 41 TABLE OF CONTENTS Page # Test 1: Transmitter Rated Output Power 3 Test 2: Transmitter Spurious and Harmonic Output 4 Test 3: Transient Frequency Behavior 7 Test 4: Frequency Stability with Variation in Supply Voltage 10 Test 5: Frequency Stability with Variation in Ambient Temperature 12 Test 6: Transmitter Occupied Bandwidth - Mask D 15 12.5 kHz Half Channel Mask D 16 25 kHz Full Channel Mask C 21 Test 7: Field Strength of Spurious Radiation 28 Calibration Information 41 Page 3 of 41 NAME OF TEST: Transmitter Rated Power Output RULE PART NUMBER: 2.1046 (a) (c) TEST RESULTS: See results below TEST CONDITIONS: Standard Test Conditions TEST EQUIPMENT: 50-Ohm Attenuator, Bird 50-A-FFN-20 / 20 dB / 50 Watt Power Supply, Instek Model GPS-3303 Digital Multimeter, Fluke 87 Power Meter, Model HP-8901B TEST SET-UP: TEST RESULTS: Frequency ( MHz ) DC Voltage at Final ( Vdc ) DC Current into Final ( Adc ) DC Power into Final ( W ) RF Power Output ( W ) 460.1 13.1 2.22 29.1 12.0 460.1 5.05 0.69 3.46 1.0 TEST UNIT ATTENUATOR POWER METER POWER SUPPLY DIGITAL MULTIMETER Page 4 of 41 NAME OF TEST: Transmitter Spurious and Harmonic Outputs RULE PART NUMBER: 2.1051, 90.210 (c,3)(d,3) MINIMUM STANDARDS: For 12 Watts: 50+10Log 10 (12 Watts) = -60.8 dBc or -65dBc, whichever is the lesser attenuation. For 1 Watt: 50+10Log 10 (1 Watt) = -50 dBc or –70 dBc, whichever is the lesser attenuation. TEST RESULTS: Meets minimum standards ( see data on following pages ) TEST CONDITIONS: Standard Test Conditions, 25 C RF Voltage measured at antenna terminals TEST PROCEDURE: TIA/EIA – 603-C TEST EQUIPMENT: 50-Ohm Attenuator, Narda 765-10 / 10 dB / 50 Watts 50-Ohm Attenuator, Bird 10-A-MFN-10 / 10 dB / 10 Watts Power Supply, Instek Model GPS-3303 Spectrum Analyzer, HP-8563E Reference Generator, Agilent E8257D High Pass Filter, Mini Circuits VHF-740, Fc = 740 MHz TEST SET-UP: MEASUREMENT PROCEDURE: 1. The transmitter carrier output frequency is 406.100, 460.000, and 512.000. The reference oscillator frequency is 23.040 MHz. The power amplifier has voltage levels at 13.1 Volts and 5.05 Volts for 12 watts and 1 watt, respectively. 2. The carrier reference was established on the spectrum analyzer with the filter by-pass in place. Then the spectrum was scanned from DC to 2 Fc. Finally, the high pass filter was inserted to null the carrier fundamental and extend the range of the spectrum analyzer for harmonic measurements above 2 Fc. 3. At each spurious frequency, generation substitution was used to establish the true spurious level. 4. The spectrum was scanned to the 10 th harmonic of the highest internally generated frequency. Filter By-Pass TEST UNIT ATTENUATORS HIGH PASS FILTER POWER SUPPLY SPECTRUM ANALYZER REFERENCE GENERATOR POWER METER Page 5 of 41 Tuned Frequency 406.1 MHz Tuned Frequency 406.1 MHz Power 12 Watts Power 1 Watt 40.8 dBm 30.0 dBm Min. Specification -60.8 dBc Min. Specification -50.0 dBc Worse Case -88 dBc Worse Case -94 dBc Spurious Relation to Relative to Spurious Relation to Relative to Frequency (MHz) Carrier Carrier (dBc) Frequency (MHz) Carrier Carrier (dBc) 812.2 2 fo -100 812.2 2 fo -101 1218.3 3 fo -115 1218.3 3 fo -116 1624.4 4 fo -117 1624.4 4 fo -119 2030.5 5 fo -124 2030.5 5 fo -129 2436.6 6 fo -124 2436.6 6 fo -133 2842.7 7 fo -122 2842.7 7 fo -130 3248.8 8 fo -88 3248.8 8 fo -94 3654.9 9 fo -122 3654.9 9 fo -138 4061.0 10 fo -141 4061.0 10 fo -138 Tuned Frequency 460.1 MHz Tuned Frequency 460.0 MHz Power 12 Watts Power 1 Watt 40.8 dBm 30.0 dBm Min. Specification -60.8 dBc Min. Specification -50.0 dBc Worse Case -105 dBc Worse Case -109 dBc Spurious Relation to Relative to Spurious Relation to Relative to Frequency (MHz) Carrier Carrier (dBc) Frequency (MHz) Carrier Carrier (dBc) 920 2 fo -138 920 2 fo -120 1380 3 fo -134 1380 3 fo -127 1840 4 fo -106 1840 4 fo -127 2300 5 fo -129 2300 5 fo -127 2760 6 fo -131 2760 6 fo -127 3220 7 fo -105 3220 7 fo -109 3680 8 fo -115 3680 8 fo -123 4140 9 fo -123 4140 9 fo -127 4600 10 fo -138 4600 10 fo -127 Page 6 of 41 Tuned Frequency 512.0 MHz Tuned Frequency 512.0 MHz Power 12 Watts Power 1 Watt 40.8 dBm 30.0 dBm Min. Specification -60.8 dBc Min. Specification -50.0 dBc Worse Case -87 dBc Worse Case -106 dBc Spurious Relation to Relative to Spurious Relation to Relative to Frequency (MHz) Carrier Carrier (dBc) Frequency (MHz) Carrier Carrier (dBc) 1024 2 fo -120 1024 2 fo -106 1536 3 fo -116 1536 3 fo -114 2048 4 fo -118 2048 4 fo -124 2560 5 fo -128 2560 5 fo -126 3072 6 fo -108 3072 6 fo -126 3584 7 fo -91 3584 7 fo -126 4096 8 fo -109 4096 8 fo -123 4608 9 fo -106 4608 9 fo -126 5120 10 fo -87 5120 10 fo -126 Page 7 of 41 NAME OF TEST: Transient Frequency Behavior RULE PART NUMBER: 90.214 MINIMUM STANDARD: 6.25 kHz channel (used worst case numbers from 406.1 to 512 MHz) TIME INTERVAL MAXIMUM FREQUENCY DIFFERENCE (kHz) TIME (ms) T1 +/- 6.25 10 T2 +/- 3.125 25 T3 +/- 6.25 10 TEST RESULTS: Meets minimum standards, see data on following pages TEST CONDITIONS: RF Power Level = 12 Watts and 1.0 Watt Standard Test Conditions, 25 C TEST PROCEDURE: TIA/EIA – 603-C TEST EQUIPMENT: 50-Ohm Attenuator, Bird Electronics Model 50-A-FFN-20 (20dB, 50W) 50-Ohm Attenuator, Bird Electronics Model 10-A-MFN-10 (10dB, 10W) Power Supply, Instek Model GPS-2303 Modulation Domain Analyzer, HP-53310A Power Meter, Model HP436 Signal Generator, Model HP8657A TEST UNIT MODULATION DOMAIN ANALYZER ATTENUATOR(s) POWER METER Page 8 of 41 Frequency : 460.100000 MHz Power: 12 W Key-Down Key-up Page 9 of 41 Frequency : 460.100000 MHz Power: 1.0 W Key-Down Key-up Page 10 of 41 NAME OF TEST: Frequency Stability with Variation in Supply Voltage RULE PART NUMBER: 2.1055 (d)(1), 90.213 (a) MINIMUM STANDARD: Shall not exceed 0.50 ppm. TEST R…
