NP42424099-002IntegraH

INTEGRA H Version Technical Manual INTEGRA-H Copyright 2000 by DATARADIO COR Ltd. Part Number: 001-4090-101/102 Revision 0 September 2000 DATARADIO COR Ltd. designs and manufactures radios and radio modems to serve a wide variety of data communication needs. DATARADIO produces equipment for the fixed data market including SCADA systems for utilities, petrochemical, waste and fresh water management markets and RF boards for OEM applications in the Radio Frequency Data Capture market. PRODUCT WARRANTY The manufacturer's warranty statement for this product is available from DATARADIO COR, Ltd. 299 Johnson Avenue, Box 1733, Waseca, MN 56093-0833. Phone (507) 835-8819. The information in this document is subject to change without notice. is a trademark of DATARADIO, Inc. SECTION 1 1-1 001-4090-101/102 PRODUCT OVERVIEW 1.1 SCOPE OF MANUAL This document provides information required for the operation and preventive maintenance of the DATARADIO COR Ltd. Integra-H Spread Spectrum Radiomodem. This manual is intended for system designers, professional installers and maintenance technicians 1.2 GENERAL DESCRIPTION Integra-H is a high-speed protocol transparent radiomodem. It is designed specifically to fit the needs of Supervisory Control and Data Acquisition (SCADA), telemetry and control applications. Integra-H provides the communication links to data equipment for installations where wired communication is impractical. Integra-H will work with most makes and models of remote terminal units (RTU) and programmable logic controllers (PLC) and their protocols. Configuration settings allow tailoring for a variety of application requirements. Integra-H supports: 1. Point to point configuration in switched simplex mode 2. Point to multipoint configuration Settings and connections for these configurations are given later in this manual 1.2.1 CHARACTERISTICS Integra-H has the following characteristics: l Selectable network speeds of 9600, 19200, 21400, and 25600 b/s l One COM port for connection to DTE. Speed of 300 - 19200 baud l One Setup port, for configuration and diagnostics output (speed fixed to 9600 baud, 8 bit, (unlicensed frequency hopping band) no parity, 1 stop bit l Built-in 0.1 - 1-watt transceiver, operating in the 902-928 MHz communications bands l Fully transparent operation with error-free data delivery (no “dribble bits”) l Allows transmission of “break” characters l DOX (Data Operated Transmit) or RTS mode l Two 8-bit analog inputs (0 - 10V) l Low power consumption modes: “sleep” and “suspend” modes (< 20 mA) l “13.3 VDC, negative ground” device PRODUCT OVERVIEW 1-2 Part No. 001-4090-101/102 1.2.2 ACCESSORIES AND OPTIONS For information on accessories and options, contact your sales representative. In the United States phone 1-800-992-774. For international sales, phone 1-612-882-5529 or 1-305-829-4030. 1.2.3 CONFIGURATION Operating characteristics of the Integra-H are configured by means of Integra-H Radio Service Software (INTRSS). The RSS/RDS software kit also includes the Radio Diagnostic Software (INTDIAG), which permits both local and remote diagnostics. These programs are Win/95 or later based (16 Megabytes of memory required). Integra-H requires the use of INTRSS for both configuration and adjustment. 1.3 FACTORY TECHNICAL SERVICE The Technical Service Department provides customer assistance on technical problems and serves as an interface with factory repair facilities. They can be reached in the following ways: Dataradio COR Ltd. 299 Johnson Avenue, P.O. Box 1733 Waseca, MN 56093-0833 Technical Service hours are: Monday to Friday 7:30 AM to 4:30 PM, Central Time Phone: 1-800-992-7774 1-507-835-6408 or 1-507-835-8819 Fax:1-507-835-6648 Email address: [email protected] 1.4 PRODUCT WARRANTY The warranty statement for the Integra-H is available by contacting your sales representative. DRL warranties are included in .pdf format on CD versions of DATARADIO technical manuals. Table 1-1 Integra-H Accessories and Options AccessoryDRL Part Number Local RSS & RDS software kit (diskette and setup/data cable)023-4090-005 SMA Male - BNC Female adapter cable023-3410-098 Power cable732-03273-001 (DRI p/n) PRODUCT OVERVIEW 1-3 Part No. 001-4090-101/102 1.5 REPLACEMENT PARTS This product is normally not field-serviceable, except by the replacement of complete units. Specialized equipment and training is required to repair logic boards and radio modules. Contact Technical Service for information before returning equipment. A Technical Service representative may suggest a solution eliminating the need to return equipment. 1.6 FACTORY REPAIR Dataradio products are designed for long life and failure-free operation. If a problem arises, factory service is available. Contact the Technical Service Department before returning equipment. A service representative may suggest a solution eliminating the need to return equipment. A Return Material Authorization (RMA) is required when returning equipment to Dataradio for repair. Contact the Technical Service Department at 800-992-7774, extension 6290 to request an RMA number. Be prepared to give the equipment model and serial number, your account number (if known), and billing and shipping addresses. Include the RMA number, a complete description of the problem, and the name and phone number of a contact person with the returned units. This information is important. The technician may have questions that need to be answered to identify the problem and repair the equipment. The RMA number helps locate your equipment in the repair lab if there is a need to contact Dataradio concerning the equipment. Units sent in for repair will be returned to the customer re-tuned to the current Dataradio Test and Tune Procedure and will conform to all specifications noted in this section Customers are responsible for shipping charges (to Dataradio) for returned units in warranty. Units in warranty are repaired free of charge unless there is evidence of abuse or dama…

Text truncated - open the document above for the full version.

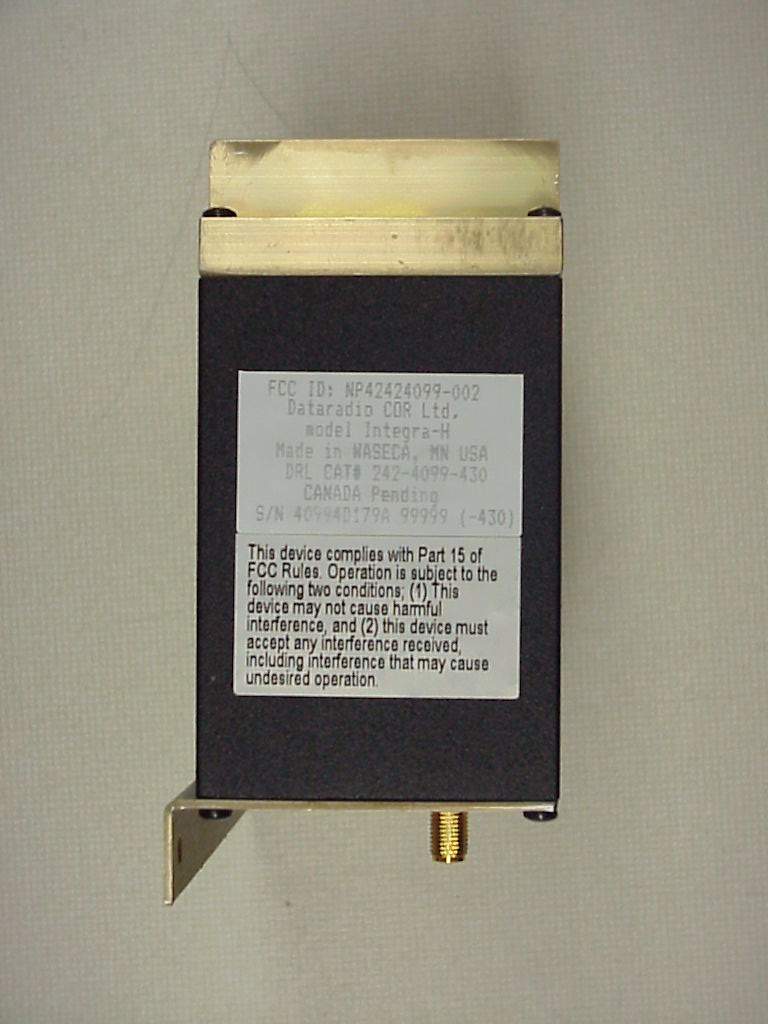

Photo 1: FCC ID Label Photo 2: Front Panel Photo 3: Internal (RF and Modem) Photo 4: Internal Top (RF and Modem) Photo 5: Internal Bottom (RF and Modem)

DATARADIO COR Ltd. Corporate Headquarters and Manufacturing Operations 299 Johnson Avenue, PO Box 1733 Waseca, MN 56093-0833 USA Phone: 507-835-8819 Fax: 507-835-6648 FCC Part 15.247 Certification Application for FCC ID: NP42424099-002 Industry Canada RSS 210 Application Test Report And Technical Documentation For Dataradio COR Ltd. Frequency Hopping Wireless Modem Prepared by Dataradio COR Ltd. Engineering 299 Johnson Ave Waseca, MN 56093-0833 DATARADIO COR Ltd. NP42424099-002 FCC Part 15.247, Frequency Hopping Wireless Modem Page 2 of 39 AFFIDAVIT The technical data included in this report has been accumulated through tests that were performed by me or by engineers under my direction. To the best of my knowledge, all of the data is true and correct. Mark Christensen Director of Engineering, Dataradio COR Ltd. DATARADIO COR Ltd. NP42424099-002 FCC Part 15.247, Frequency Hopping Wireless Modem Page 3 of 39 Table of Contents Section Title Page # Engineering Statement of Allen Frederick 4 1 Qualifications of Engineering Personnel 5 2 General Information 6 3 Test Facilities 7 4 Antenna Compliance 8 5.1 Carrier Frequency Separation 9 5.2 20 dB Bandwidth 10 5.3 System Receive Input Bandwidth 13 5.4 Number of Hopping Frequencies 14 5.5 Time of Occupancy (Dwell Time) 16 5.6 Peak Output Power 17 5.7 De Facto EIRP Limit 18 5.8 RF Exposure Compliance Requirements 19 5.9 Band-edge Compliance of RF Conducted Emissions 20 5.10 Spurious RF Conducted Emissions 29 5.11 Spurious RF Radiated Emissions 30 5.12 Antenna Power Conduction Limits for Receivers 33 5.13 Spurious RF Radiated Receiver Emissions (FCC: Non-radiating Load) 34 5.14 Spurious RF Radiated Receiver Emissions (IC: Highest Gain Antenna) 37 5.15 Conducted Limites (ac Power Line Conducted) 39 DATARADIO COR Ltd. NP42424099-002 FCC Part 15.247, Frequency Hopping Wireless Modem Page 4 of 39 Dataradio COR Ltd. Waseca, Minnesota Engineering Statement of Allen Frederick: The application consisting of the attached engineering exhibit and associated FCC form 731 has been prepared in support of a request for Certification. Certification is requested for the Dataradio COR Ltd (DRL) Integra-H Wireless Modem. DRL located in (Waseca, MN) will build the transceiver part number 023-4099-050 and buy the Integra-H modem from Dataradio Inc (Quebec, Canada) with part number 685-4099-001. DRL will install the modem and perform final assembly. The assembled unit will be marketed under the model name Integra-H and identified by the FCC number NP42424099-002 and DRL part# 242-4099-430. The Integra-H wireless modem operates pursuant to FCC Part(s) 15.247 of the Rules and Regulations. EXISTING CONDITIONS The units utilized for these Certification measurements were obtained from prototypes. The transceiver is designed to operate on frequencies ranging from 902 MHz to 928 MHz. The frequency tolerance of the transceiver is .00015% or 1.5 parts per million. The frequency stability of the transceiver is controlled by a temperature compensated crystal oscillator (TCXO) operating at 14.4 MHz. PROPOSED CONDITIONS It is proposed to certify the Integra-H, 902-928 MHz wireless modem for operation in the band of frequencies previously outlined. The applicant anticipates marketing the device for use in wireless transmission of data. PERFORMANCE MEASUREMENTS All Certification measurements were conducted in accordance with the Rules and Regulations Section 15.247 of Pike & Fischer Inc., CD ROM revision 4/1/00. FCC Public Notice docket DA 00-705 titled Filing and Measurement Guidelines for Frequency Hopping Spread Spectrum Systems dated March 30, 2000 was also used as a reference guide. Industry Canada measurements were conducted in accordance with the Rules and Regulations of RSS-210, Issue 3 dated February 5, 2000. Equipment performance measurements were made in the engineering laboratory and on the FCC certified Open Area Test Site at Transcrypt International / E.F. Johnson Radio Products located at 299 Johnson Avenue in Waseca, Minnesota. All measurements were made and recorded by myself or under my direction. The performance measurements were made between July 5, 2000 and July 28, 2000. CONCLUSION Given the results of the measurements contained herein, the applicant requests that Certification be granted for the Integra-H, 902-928 MHz wireless modem as tested for data communications. ____________________________________________________ November 13, 2000 Allen Frederick Electrical Engineer II, Dataradio COR Ltd. DATARADIO COR Ltd. NP42424099-002 FCC Part 15.247, Frequency Hopping Wireless Modem Page 5 of 39 1 Qualifications of Engineering Personnel NAME: Charles M. Pollock III TITLE: Principal Engineer (Dataradio COR Ltd.) TECHNICAL EDUCATION: BSEE University of Arizona 1984 TECHNICAL EXPERIENCE: 16 years experience in analog and radio frequency communications. NAME: Allen Frederick TITLE: Electrical Engineer II (Dataradio COR Ltd.) TECHNICAL EDUCATION: Bachelor of Science Degree in Electronic Engineering Technology (1998) from Minnesota State University, Mankato. TECHNICAL EXPERIENCE: 4 years experience in analog and radio frequency communications. NAME: Constantin Pintilei TITLE: R&D Test Engineer (DATARADIO Inc.) TECHNICAL EDUCATION: Bachelor of Science Degree in Radiotechnique Electronic Engineering (1993) Technical University of Iasi, Romania. TECHNICAL EXPERIENCE: 7 Years experience in radio frequency measurements. DATARADIO COR Ltd. NP42424099-002 FCC Part 15.247, Frequency Hopping Wireless Modem Page 6 of 39 2 GENERAL INFORMATION The following report has been generated for FCC Certification of the Dataradio 902-928 MHz wireless modem, part number 242-4099-430. Unless otherwise noted, all of the measurements were conducted following the procedures set forth in the TIA/EIA-603 standards. MODEL NUMBER: Integra-H PART NUMBER: 242-4099-430 MANUFACTURER: Dataradio COR Ltd., Waseca, MN 56093 (Transceiver - final assembly) DATARADIO Inc., Town of Mount Royal, Quebec, Canada, H4P …

Text truncated - open the document above for the full version.

Dataradio COR Ltd. Corporate Headquarters & Operations Center 299 Johnson Avenue, PO Box 1733 Waseca, MN 56093-0833 USA Phone: 507-835-8819 Fax: 507-835-6648 Request for Confidentiality Federal Communications Commission November 13, 2000 7435 Oakland Mills Road Columbia, MD 21046 We request the following information from our Certification application for the Integra-H be kept confidential pursuant to 47 CFR 0.459. The Integra-H is a Frequency Hopping Spread Spectrum transceiver operating under parts 15.247 and will be identified by FCC ID: NP42424099-002. 1) Circuit Schematics Attachment entitled: RF Schematics Attachment entitled: Modem Schematics 2) Pseudorandom Frequency Hopping Sequence Equal Hopping Frequency Use / System Receiver Hopping Capability Attachment entitled: Hopping Description This request is based on the fact that these are proprietary trade secrets of Dataradio. Dataradio does not make this information available to the public. Releasing this information gives competitors an unfair advantage of our proprietary research and development efforts. Sincerely, Mark Christensen Director of Engineering
