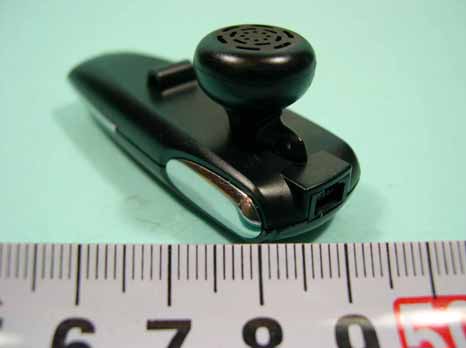

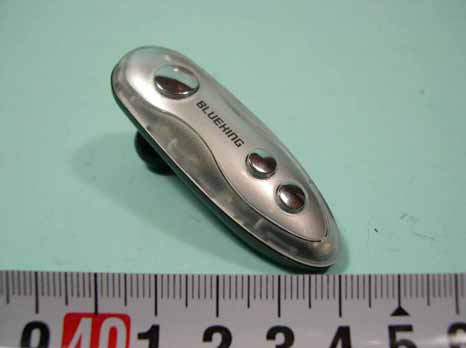

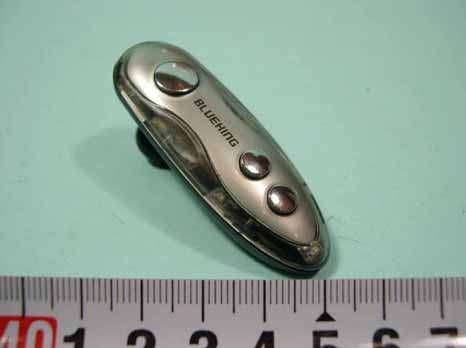

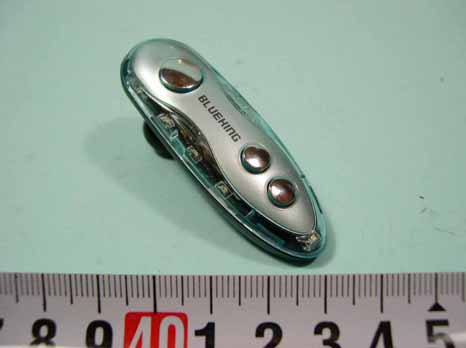

SPORTON International Inc. PAGE NUMBER : A1 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2005 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2005 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A8 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A10 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A11 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A12 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A13 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A14 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A15 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2005 FAX : 886-2-2696-2255

Description of Operation EUT is operating in the 2.4GHz ISM (Industrial Scientific Medicine) band. In a vast majority of countries around the world the range of this frequency band is 2400-2483.5 MHz. Within the ISM band, this device transmissions hop between 79 separate frequencies 1600 times every second. Channel spacing is 1MHz. The Modulation is GFSK (Gaussian Frequency shift keying) with a BT=0.5. The Modulation index must be between 0.28 and 0.35. The antenna is Inverted Antenna, and there is no antenna connector. The device is a Bluetooth device developed with Bluetooth technology, which can connect to other Bluetooth devices such as mobile phone, PDA, or notebook computer (with audio gate way profile supported) wirelessly to attain voice transferred purpose. It supports Headset and Handsfree.

55 44 33 22 11 D D C C B B A A BHD-2010 (022205) C BlueTooth Headset (Partner) Custom 1 1
 ,   14, 2005 Title Size Document Number Rev Date: Sheet of CHARGE_IN CHARGE_DONE CHARGE_IN UART_RX UART_TX SPI_MOSI SPI_CSB SPI_MISO SPI_CLK CHARGE_DONE 1V8 VBATT 1V8 1V8 1V8 5V 1V8 1V8 5V 1V8 1V8 1V8 1V8 VBATT VBATT VBATT VBATT VBATT 1V8 1V8 R28 220K_1% TP1 1 TP13 1 L3 15N R13 4K7 C2100N R27 47K CON3 SPEAKER-150 12 R31 75 L2 CB-1005E1-601T R15 510R R5510 R12 47K R21 47K R18 1K C1 4U7-0805 R6 10K R22 47K C20 10N C5 47N C14 5P6 R3 47K U2 AT24C16A 6 4 5 8 7 SCL VSS SDA VCC WP R16 47K R11 2K2 U4 BQ24010DRC 12345 678910 INVCC STAT1 STAT2 VSS ISET PG TS BAT OUT R19 510R R29 150K_1% TP2 1 U6 NLASB3157 132 654 B1B2GND SEL VCC A TP17 1 C12 10N TP14 1 R14 1K C10 10P R17 4K7 T1 DBF71B101-CSR 34 26 5 1 R30 10K CON1 MQ172X-4PA 12453 +5V USB+ GND GND USB- R92K2 R20 47K C3 15P C9 10N C4 47N TP7 1 R25 2R2 D3BAV99 3 1 2 TP6 1 R26 1M R32 1K8 CON4 MICROPHONE 12 TP5 1 TP11 1 TP4 1 TP3 1 TP15 1 U3 TPS62202DBVR 12 4 3 56 INGND OUT/FB nSHDN GND LX R12R2-0603 R23 47K C16 100N R24 4K7 R447K D1 RED_LED Q2BC847BW C61U-0603 C8 10N C19 10N C11 3P3 C7 2U2-0805 L1 976AS-100M=P5 C22 1UF-0603 C17 10UF-0805 SW1 TS-A85AE-TALK 12 12 XT1 16MHz(4025) 3 1 4 2 SW2 TS-A85AE-VOL- 12 12 SW3 TS-A85AE-VOL+ 12 12 C18 15P TP8 1 L415N TP9 1 C15 10UF-0805 E1IFX-EP03XXXX-118 1 TP10 1 L515N TP12 1 CON2 BATTERY 12 Q1 BC847BW C13 100N D2 BLUE_LED R27K5 U1BC213159A16-EK-E4 H2 G1 J2 J4 D2 F2 E2 J9 K10 A1 A2 E9 B10 J7 A10 B7 B5 D9 F3 J1 K1 H3 G3 E3 A4 A8 A5 K5 B6 C4 H10 G8 G9 G10 J5H5C6 C7 K8 J8 C9B9C8C10H8H7J10H9F9 H4 C3 E1 F1 C1 C2 D1D3 F10C5 H1 E10 B2 B1 J6 A7 A9 H6 A6 K7 D10 A3 K4 G2 K9 D8 B8 K6 K3 B3 B4 E8 F8 K2 J3 LOOP_FILTER VSS_VCO VSS_ANA VSS_ANA VSS_RADIO VSS_RADIO VSS_RADIO VSS_USB VSS_USB VSS_PIO VSS_PIO VSS_CORE VSS_MEM VSS_MEM VSS_MEM VSS_MEM VSS_MEM VSS_PADS VSS SPKR_P SPKR_N MIC_P MIC_N PIO(11) N/C N/C N/C N/C N/C PIO(10) PCM_CLK PCM_OUT PCM_IN PCM_SYNC AIO(2) AIO(1) TEST_EN RESET USB_DN USB_DP SPI_CSB SPI_MISO SPI_MOSI SPI_CLK UART_CTS UART_RTS UART_TX UART_RX PIO(7) AIO(0) PIO(9) TX_B TX_A VDD_RADIO VDD_RADIO RF_IN AUX_DAC PIO(6) PIO(8) VDD_VCO VDD_CORE PIO(1) PIO(0) VDD_MEM VDD_MEM VDD_MEM VDD_MEM VDD_MEM VDD_MEM VDD_PADS VDD_PIO VDD_ANA VSS_VCO VDD_USB MODE_SEL EXT_FLASH VREG_IN XTAL_IN PIO(2) PIO(3) PIO(4) PIO(5) VSS_ANA XTAL_OUT R10 2K2

FCC ID: NPDUBH-2010 Issued on Jun. 1, 2005 Report No.: FR551910 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT CATEGORY : Portable PRODUCT NAME : Bluetooth Headset FCC ID. : NPDUBH-2010 FILING TYPE : Certification MODEL NAME : UBH-2010, BK-600, BH-1100 TRADE NAME : Partner APPLICANT : Partner Tech Corp. 10F, NO. 233-2, PAO CHIAO ROAD, SHIN TIEN, TAIPEI, TAIWAN, R.O.C. MANUFACTURER : Same as applicant ISSUED BY : SPORTON INTERNATIONAL INC. 6F, No. 106, Sec. 1, Hsin Tai Wu Rd., His Chih, Taipei Hsien, Taiwan, R.O.C. Statements: The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. Certificate or Test Report could not be used by the applicant to claim the product endorsement by CNLA, NVLAP or any agency of U.S. government. The test equipment used to perform the test are calibrated and traceable to NML/ROC or NIST/USA. Dr. Alan Lane Vice General Manager Sporton International Inc. 1190 ILAC MRA FCC ID: NPDUBH-2010 Issued on Jun. 1, 2005 Report No.: FR551910 SPORTON International Inc. Page No. : i TEL : 886-2-2696-2468 Issued Date : Jun. 1, 2005 FAX : 886-2-2696-2255: Table of Contents History of this test report....................................................................................................................................ii CERTIFICATE OF COMPLIANCE.......................................................................................................................iii 1. General Description of Equipment under Test.............................................................................................1 1.1. Applicant ......................................................................................................................................................................................... 1 1.2. Manufacturer ................................................................................................................................................................................... 1 1.3. Basic Description of Equipment under Test.................................................................................................................................... 1 1.4. Features of Equipment under Test ................................................................................................................................................. 1 1.5. Antenna Description........................................................................................................................................................................ 2 1.6. Table for Carrier Frequencies ......................................................................................................................................................... 2 2. Test Configuration of the Equipment under Test.........................................................................................3 2.1. Connection Diagram of Test System .............................................................................................................................................. 3 2.2. The Test Mode Description............................................................................................................................................................. 3 2.3. Description of Test Supporting Units .............................................................................................................................................. 3 3. General Information of Test............................................................................................................................4 3.1. Test Facility ..................................................................................................................................................................................... 4 3.2. Test Conditions ............................................................................................................................................................................... 4 3.3. Standards for Methods of Measurement......................................................................................................................................... 4 3.4. DoC Statement ............................................................................................................................................................................... 4 3.5. Frequency Range Investigated ....................................................................................................................................................... 4 3.6. Test Distance .................................................................................................................................................................................. 4 3.7. Test Software .................................................................................................................................................................................. 5 4. List of Measurements......................................................................................................................................6 4.1. Summary of the Test Results.......................................................................................................................................................... 6 5. Test Result .......................................................................................................................................................7 5.1. Test of Hopping Channel Bandwidth .............................................................................................................................................. 7 5.2. Test of Hopping Channel Separation............................................................................................................................................ 10 5.…

Text truncated - open the document above for the full version.

FCC ID: NPDUBH-2010 Issued on Jun. 1, 2005 Report No.: FR551910 SPORTON International Inc. Page No. : 27 of 42 TEL : 886-2-2696-2468 Issued Date: Jun. 1, 2005 FAX : 886-2-2696-2255 5.7.5. Photographs of Conducted Emission Test Configuration FRONT VIEW REAR VIEW FCC ID: NPDUBH-1000 Issued on Jun. 1, 2005 Report No.: FR551910 SPORTON International Inc. Page No. : 39 of 42 TEL : 886-2-2696-2468 Issued Date: Jun. 1, 2005 FAX : 886-2-2696-2255 5.8.8. Photographs of Radiated Emission Test Configuration FRONT VIEW REAR VIEW
