NQ2AM1032RF Wireless Belt Clip Base Station

Caution: Changes or modifications not expressly approved by Advanced Mobile Solutions would void the user’s authority to operate the equipment.

Block diagram1.sch-1 - Wed Jan 16 09:02:53 2002 Block diagram.sch-1 - Wed Jan 16 09:01:54 2002

PROPOSED FCC ID LABEL AND LOCATION ADVANCED MOBILE SOLUTIONS, INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: NQ2AM1032 FCC ID LABEL FCC ID

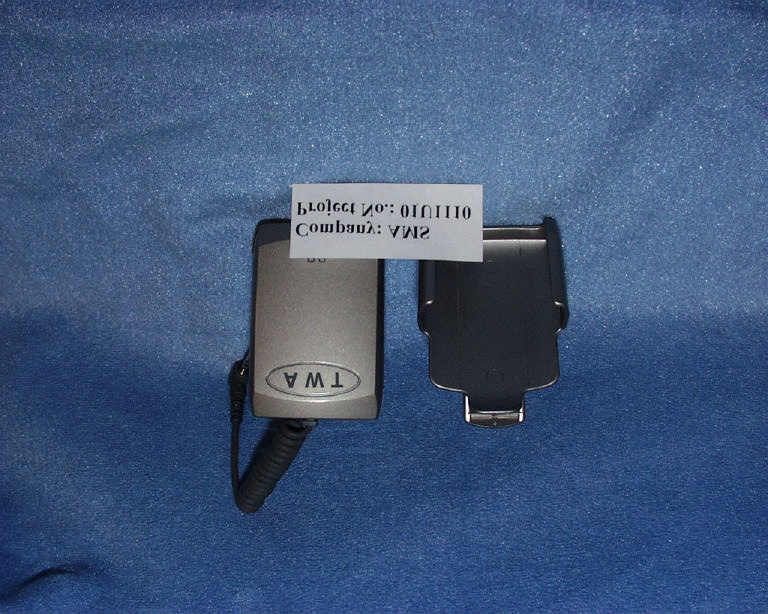

AM1032US... Assembled PC Board and completed unit photos: Assembled receiver-board top view Completed unit Assembled receiver-board bottom view Assembled transmitter-board top view (one side assembled only)

AM1032US Operational description AMS 900MHz wireless hand-free headset system is consist of base unit and headset. The system was designed to provide wireless full duplex audio communication between any cell-phone or audio devices equipped with audio output/input interfaces and users who wearing AMS 900MHz wireless hand-free headset. AM1032US is the base unit. The base unit was designed to connect to any cell-phone or devices equipped with audio output/input interfaces. The base unit has 900MHz transmitter and receiver circuitries with two built-in antennas. Also, the base unit is equipped with a stereo 2.5 mm audio connector and powered on single AAA battery. The output audio signal from the cell-phone or audio devices, which the base unit was connected to, will wakeup the base unit and turns it on. Once the base unit is turned on, the transmitter is picking up the audio signal and modulating the audio signal directly with 903 MHz RF carry signal, then delivering the modulated 903MHz RF carry signal to transmitter antenna. Meanwhile, the receiver antenna is picking up the modulated 927MHz RF carry signal from the AMS 900MHz wireless hand- free headset and delivering the RF carry signal to RF front amplifier. After that, the RF signal is down converted to 10.7 MHz IF band and demodulated back to original audio signal. The recovered audio signal goes through the audio amplifier to the audio input interface of cell-phone or audio devices. That implements a fully duplex audio wireless communication between the base unit and headset. The base unit goes back to sleep mode automatically in about 25seconds after the audio signal disappears.

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT TEST REPORT FOR 903MHz RF WIRELESS BELT CLIP BASE STATION FCC ID: NQ2AM1032 MODEL NO: AM1032 REPORT NO: 01U1110-1 DECEMBER 28, 2001 Prepared for ADVANCED MOBILE SOLUTIONS, INC. 375 RHEEM BLVD., MORAGA, CA 94556, U.S.A. Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037, U.S.A. TEL: (408) 463-0885 FAX: (408) 463-0888 TABLE OF CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE...............................................................................................3 2. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT)..............................................................4 3. TEST LOCATION...............................................................................................................................4 4. EQUIPMENT MODIFICATIONS.....................................................................................................4 5. TEST RESULT SUMMARY...............................................................................................................5 RADIATED EMISSIONS.................................................................................................................................5 Test Requirement: 15.249(A)(B).............................................................................................................5 RADIATED EMISSIONS.................................................................................................................................9 Test Requirement: 15.249(A)(B)(C).......................................................................................................9 RADIATED EMISSIONS...............................................................................................................................13 Test Requirement: 15.209.....................................................................................................................13 AC LINE CONDUCTED EMISSIONS.............................................................................................................16 Test Requirement: 15.207.....................................................................................................................16 PROJECT NO: 01U1110-1 DATE: DEC 28, 2001 FCC ID: NQ2AM1032 EUT: 903MHz RF WIRELESS BELT CLIP BASE STATION PAGE NO: 3 OF 16 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031B 561F MONTEREY ROAD, MORGAN HILL CA 95037 TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. VERIFICATION OF COMPLIANCE COMPANY NAME : ADVANCED MOBILE SOLUTIONS, INC. 375 RHEEM BLVD., MORAGA, CA 94556, U.S.A. CONTACT PERSON : SEAN KIM / DIRECTOR OF RETAIL SALES TELEPHONE NO : (925) 377-3200 EUT DESCRIPTION : 903MHz RF WIRELESS BELT CLIP BASE STATION MODEL NAME : AM1032 DATE TESTED : DECEMBER 28, 2001 LIMITS APPLY TO: FCC PART 15 SECTION 15.249 TECHNICAL LIMITS TEST RESULT Radiated Emission of fundamental Frequency No non-compliance found Radiated Emission of Harmonic Frequency No non-compliance found Radiated Emission Outside the Band No non-compliance found LIMITS APPLY TO: FCC PART 15 SECTION 15.209 Radiated Emission Digital Device No non-compliance found LIMITS APPLY TO: FCC PART 15 SECTION 15.207 AC Line Conducted Emission N/A The above equipment was tested by Compliance Certification Services Inc. for compliance with the requirements set forth in CFR 47 PART 15 SUBPART C. This said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment are within the compliance requirements. ________________________________ _________________________________ Test by: Review by: THU CHAN / EMC SENIORE ENGINEER STEVE CHENG / ENGINEERING MANAGER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATIONS SERVICES Warning: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revision section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. PROJECT NO: 01U1110-1 DATE: DEC 28, 2001 FCC ID: NQ2AM1032 EUT: 903MHz RF WIRELESS BELT CLIP BASE STATION PAGE NO: 4 OF 16 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031B 561F MONTEREY ROAD, MORGAN HILL CA 95037 TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) CHASSIS TYPE PLASTIC Frequency Range 903 MHz Antenna Requirement Permanently Built-in Power requirement 1.5Vdc AAA battery 3. TEST LOCATION All emissions tests were performed at: Compliance Consulting Services 561F Monterey Road Morgan Hill, CA 95087 CCS has site descriptions on file with the FCC for 10 and 3 meter site configurations. CCS is a NVLAP accredited facility. 4. EQUIPMENT MODIFICATIONS To achieve compliance Levels, the following change(s) were made during compliance testing: No changes were required in order to achieve compliance to class B levels. PROJECT NO: 01U1110-1 DATE: DEC 28, 2001 FCC ID: NQ2AM1032 EUT: 903MHz RF WIRELESS BELT CLIP BASE STATION PAGE NO: 5 OF 16 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031B 561F MONTEREY ROAD, MORGAN HILL CA 95037 TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised …

Text truncated - open the document above for the full version.

Test Setup Photo X-Position Y-Position Z-Position
