COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6921 FCC ID: NQE-900REPEAT Page 36 of 43 Exhibit 8 Exhibit 8: User’s Manual The 900 REPEATER is not shipped with a user’s manual. Enclosed below is the FCC compliance information that is shipped with every unit.

COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6921 FCC ID: NQE-900REPEAT Page 42 of 43 Exhibit 13 Exhibit 13: Cover Letters August 16, 1999 FEDERAL COMMUNICATIONS COMMISSION Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: Enclosed is a FCC Part 15 Section 15.231 Certification application for the World Wireless Communications, Inc. Model 900 REPEATER, FCC ID NQE-900REPEAT. Please let me know if I can be of further assistance. Sincerely yours, COMMUNICATION CERTIFICATION LABORATORY Joseph W. Jackson V.P. Marketing COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6921 FCC ID: NQE-900REPEAT Page 43 of 43 Exhibit 13 Request for Confidentiality

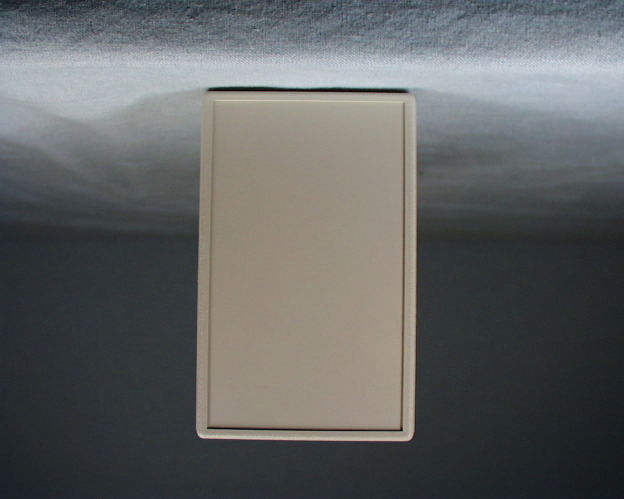

COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6921 FCC ID: NQE-900REPEAT Page 3 of 43 Exhibit 3 Exhibit 3: Photographs of Overall Appearance Front View of the 900 REPEATER COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6921 FCC ID: NQE-900REPEAT Page 4 of 43 Exhibit 3 Back View of the 900 REPEATER COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6921 FCC ID: NQE-900REPEAT Page 5 of 43 Exhibit 3 Back View of the 900 REPEATER with battery cover removed COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6921 FCC ID: NQE-900REPEAT Page 6 of 43 Exhibit 3 Power Supply

COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6921 FCC ID: NQE-900REPEAT Page 1 of 43 Exhibit 1 Exhibit 1: FCC ID Label Equipment Identification Label In accordance with the requirements of Sections 15.19 (a), 2.925 and 2.926 of the FCC Rules, the following information will be permanently affixed to the World Wireless Communications, Inc. Model 900 REPEATER as shown in the photograph below. Photograph showing label placement

COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6921 FCC ID: NQE-900REPEAT Page 1 of 43 Exhibit 1 Exhibit 1: FCC ID Label Equipment Identification Label In accordance with the requirements of Sections 15.19 (a), 2.925 and 2.926 of the FCC Rules, the following information will be permanently affixed to the World Wireless Communications, Inc. Model 900 REPEATER as shown in the photograph below. Photograph showing label placement

COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6921 FCC ID: NQE-900REPEAT Page 37 of 43 Exhibit 9 Exhibit 9: Internal Photographs Component side of the 900 REPEATER COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6921 FCC ID: NQE-900REPEAT Page 38 of 43 Exhibit 9 Solder side of the 900 REPEATER

COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6921 FCC ID: NQE-900REPEAT Page 41 of 43 Exhibit 12 Exhibit 12: Operational Description '' 15.203 Antenna Requirements The 900 REPEATER uses an antenna that is soldered directly to the main board. The same type as specified by the manufacturer can only replace this antenna.

COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6921 FCC ID: NQE-900REPEAT Page 10 of 43 Exhibit 6 Exhibit 6: Test Report TEST REPORT FROM: COMMUNICATION CERTIFICATION LABORATORY 1940 W. Alexander Street Salt Lake City, Utah 84119-2039 Type of Report: Certification TEST OF: 900 REPEATER FCC ID: NQE-900REPEAT To FCC PART 15, Subpart C Section 15.231 Test Report Serial No: 73-6921 Applicant: World Wireless Communications, Inc. 2441 South 3850 West West Valley City, UT 84116 Date of Test: July 16 - 17, 1999 Issue Date: August 16, 1999 COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6921 FCC ID: NQE-900REPEAT Page 11 of 43 Exhibit 6 CERTIFICATION OF ENGINEERING REPORT This report has been prepared by Communication Certification Laboratory to determine compliance of the device described below with the notification requirements of FCC Part 15, Subpart C Section 15.231. This report may be reproduced in full, partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. -Applicant:World Wireless Communications, Inc. - Manufacturer:World Wireless Communications, Inc. -Trade Name:WWC -Model Number:900 REPEATER -FCC ID:NQE-900REPEAT On this 16 th day of August 1999, I, individually, and for Communication Certification Laboratory, certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. Although NVLAP has recognized that the Communication Certification Laboratory EMC testing facilities are in good standing, NVLAP does not endorse the product described in this report. COMMUNICATION CERTIFICATION LABORATORY Checked by: William S. Hurst, P.E. Vice President Tested by: Roger J. Midgley EMC Engineering Manager COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6921 FCC ID: NQE-900REPEAT Page 12 of 43 Exhibit 6 SECTION 1.0 CLIENT INFORMATION 1.1 Client Information: Company Name: World Wireless Communications, Inc. 2441 South 3850 West West Valley City, UT 84116 Contact Name:Rich Sawyer Title:Product Engineer COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6921 FCC ID: NQE-900REPEAT Page 13 of 43 Exhibit 6 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) 2.1 Identification of EUT: Trade Name:WWC Model Name or Number:900 REPEATER Serial Number:N/A Options Fitted:N/A Country of Manufacture:U.S.A. 2.2 Description of EUT: The 900 REPEATER is a repeater that upon power up waits for a specific stream of ASK data. The data is modulated using pulse position modulation. Once a valid data stream is decoded, the repeater transmits the same data stream, repeated four times. The data stream consists of two start bits followed by four 8-bit characters for a total of 34 bits. The duration for each data pulse is approximately 400 microseconds and each bit frame lasts 4 milliseconds. Receiver The received 916.5 MHz signal will be sensed by ANT1 before it is amplified by transistor Q2. SAW1 connects the transistor Q2 to the RF port in the mixer (U2) and filters the received signal. Q3 and SAW2 resonate together to produce a 915 MHz signal that outputs to the mixer’s (U2) LO port. The mixer then outputs a 1.5 MHz IF that is amplified by Q1, amplitude detected by U1, and low pass filtered by U3:1. Finally the IF is then inserted into the data slicer U3:2 and TTL digital signal are outputted to the microprocessor U4:11. Transmitter The TTL level baseband TX signal from the microprocessor (U4:6) actuates the transmit 916.5 MHz oscillator partially comprised of SAW3 and Q6. Transistor Q5 amplifies the 916.5 MHz TX signal that is then low pass filtered by the passive elements C25, L7, C26, L8, C27, L9 and C28. After filtering, the signal is transmitted by ANT2. This application is for the transmitter portion only; the receiver portion was tested and complies with the verification procedures according to FCC Part 15 Subpart B. The receiver is subject to Declaration of Conformity; however, it is contained COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6921 FCC ID: NQE-900REPEAT Page 14 of 43 Exhibit 6 within a transceiver whose transmitter portion is subject to certification, therefore as per ' 15.101(b), the receiver is only subject to the verification procedure. 2.3 Modification Incorporated/Special Accessories on EUT: There were no modifications or special accessories required to comply with the specification. Signature: Typed Name: Rich Sawyer Title: Product Engineer COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6921 FCC ID: NQE-900REPEAT Page 15 of 43 Exhibit 6 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES 3.1 Test Specification: Title:FCC PART 15, Subpart C (47 CFR 15). Section 15.231 Periodic operation in the band 40.66-40.70 MHz and above 70 MHz. Purpose of Test: The tests were performed to demonstrate Initial compliance. 3.2 Methods & Procedures: 3.2.1 '' 15.231 (a) The provision of this section are restricted to periodic operation within the band 40.66-40.70 MHz and above 70 MHz. Except as Shown in paragraph (e) of this section, the intentional radiator is restricted to the transmission of a control signal such as those used with alarm systems, door openers, remote switches, etc. Radio control of toys in not permitted. Continuous transmissions, such as voice or video, and data transmissions are not permitted. The prohibition against data transmissions does not preclude the use of recognition codes. Those codes are used to identify the sensor that is activated or to identify the particular component as being part of the system. The following conditions shall be met to comply with the provisions for this periodic operation: (1) A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds of being released. (2) A transmitter activated automatically shall cease transmission within 5 seconds after activation. (3) Periodic transmissions at regular prede…
