COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 74 of 109 Exhibit 8 Exhibit 8: User’s Manual A copy of the user’s manual is enclosed below. The compliance statement for the 900 SS Hopper is located on page 14 of the manual. TABLE OF CONTENTS Quick Start Guide.............................................................................................2-4 Contents of Developer Kit...................................................................................2 Setting up the Radios..........................................................................................2 Installing the Software........................................................................................3 General Information............................................................................................5 Configuring the Data Radio.................................................................................6 Basic Commands..............................................................................................6-8 LED Indicators.....................................................................................................8 Default Settings...................................................................................................9 Specifications....................................................................................................10 Mechanical Overview/Interface Board..............................................................11 Mechanical Overview/Radio Hardware Interface..............................................11 Pin Definitions for Connector J1........................................................................12 FCC Compliance Warning and Class B Statement............................................14 Correcting Interference.....................................................................................14 Glossary.......................................................................................................15-16 v COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 75 of 109 Exhibit 8 WWC 900 SS Hopper Data Radio Quick Start Guide Contents The World Wireless Communications 900 SS Hopper Developer Kit contains the following items: • User’s Guide with technical diagrams • 900 SS Hopper Radios with an attached RS-232 Interface Board • 900 Megahertz Antennas • 12-volt, 1.2 amp DC Power Adapter • Serial Data Cables with 9-pin connectors Getting Started You will need to supply the following items: • An RS-232 terminal or a computer (PC) running a communication software package • A serial COM port for connecting the terminal or computer to the radio • A 120-volt AC power source for the radio power supply • A standard 25-pin to 9-pin adapter if your PC or terminal does not have a 9-pin serial port available Setting up the Radios 1. Locate the antennas and install them on the antenna connectors of the Hopper radios. Set the radios with antennas aside in a safe place. 2. Remove the 9-pin serial cable from the box and attach it to an available serial COM port on your PC or terminal. If the port has a 25-pin connector, use the appropriate adapter, which is not supplied with this kit. 3. Attach the other end of the serial able to the radios. 4. Plug the power supply into a 120-volt AC outlet. Power up the radio by plugging the cable from the power supply into the radio. If you are using a terminal or a PC with a communications program other than the Data Radio Configuration program, set the communications parameters of your terminal to 9600 baud, 8 data bits, no parity, and one stop bit. You will also want to enable “local echo” or “half-duplex” mode so that the characters typed will appear on the screen as well as be sent to the radio. COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 76 of 109 Exhibit 8 If you are using a PC with the supplied Configuration program, the following instructions will explain how to set up your computer for use with the radio. Installing the Software You are now ready to install the software. 1. Turn on your computer and start Windows. 2. Insert the first Install disk in your disk drive. 3. Click the Windows “Start” button, point to “Run”. 4. In the “Open” box type “a:setup” and press Return. 5. Follow the instructions on your screen, inserting the remaining disk(s) when prompted. You are now ready to use the Hopper Radio Configuration program. Performing a Quick Start Radio Test 1. Launch the Configuration program by clicking “Start” then “Programs” then “Hopper 900 Configuration”. You should see the screen as shown below. 2. Select the appropriate COM port to which the radio is connected. COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 77 of 109 Exhibit 8 3. Click on the “Terminal” button to open the terminal test window. You should see the screen as shown below. 4. Setup the second radio in the same manner. 5. Type text to communicate between the terminals or PC’s and verify proper radio operation. v COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 78 of 109 Exhibit 8 WWC 900 SS Hopper Data Radio General Information The Data Radio is a frequency-hopping data transceiver operating in the 902-928 MHz ISM band. The transceiver is designed to operate under Part 15 of the FCC rules and regulations and is designed as an OEM module for professional integration into other products or field devices. When installed using a World Wireless Communications approved antenna, the user need only make sure the radio’s FCC label or a copy of the FCC label is clearly visible on the outside of the integrated product. Caution: If this radio is integrated into another product, the user is responsible for complying with the external labeling requirements as directed in the FCC Rules and Regulations part 15.19. The user may only use antennas that have b…

Text truncated - open the document above for the full version.

COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 74 of 109 Exhibit 8 Exhibit 8: User’s Manual A copy of the user’s manual is enclosed below. The compliance statement for the 900 SS Hopper is located on page 14 of the manual. TABLE OF CONTENTS Quick Start Guide.............................................................................................2-4 Contents of Developer Kit...................................................................................2 Setting up the Radios..........................................................................................2 Installing the Software........................................................................................3 General Information............................................................................................5 Configuring the Data Radio.................................................................................6 Basic Commands..............................................................................................6-8 LED Indicators.....................................................................................................8 Default Settings...................................................................................................9 Specifications....................................................................................................10 Mechanical Overview/Interface Board..............................................................11 Mechanical Overview/Radio Hardware Interface..............................................11 Pin Definitions for Connector J1........................................................................12 FCC Compliance Warning and Class B Statement............................................14 Correcting Interference.....................................................................................14 Glossary.......................................................................................................15-16 v COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 75 of 109 Exhibit 8 WWC 900 SS Hopper Data Radio Quick Start Guide Contents The World Wireless Communications 900 SS Hopper Developer Kit contains the following items: • User’s Guide with technical diagrams • 900 SS Hopper Radios with an attached RS-232 Interface Board • 900 Megahertz Antennas • 12-volt, 1.2 amp DC Power Adapter • Serial Data Cables with 9-pin connectors Getting Started You will need to supply the following items: • An RS-232 terminal or a computer (PC) running a communication software package • A serial COM port for connecting the terminal or computer to the radio • A 120-volt AC power source for the radio power supply • A standard 25-pin to 9-pin adapter if your PC or terminal does not have a 9-pin serial port available Setting up the Radios 1. Locate the antennas and install them on the antenna connectors of the Hopper radios. Set the radios with antennas aside in a safe place. 2. Remove the 9-pin serial cable from the box and attach it to an available serial COM port on your PC or terminal. If the port has a 25-pin connector, use the appropriate adapter, which is not supplied with this kit. 3. Attach the other end of the serial able to the radios. 4. Plug the power supply into a 120-volt AC outlet. Power up the radio by plugging the cable from the power supply into the radio. If you are using a terminal or a PC with a communications program other than the Data Radio Configuration program, set the communications parameters of your terminal to 9600 baud, 8 data bits, no parity, and one stop bit. You will also want to enable “local echo” or “half-duplex” mode so that the characters typed will appear on the screen as well as be sent to the radio. COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 76 of 109 Exhibit 8 If you are using a PC with the supplied Configuration program, the following instructions will explain how to set up your computer for use with the radio. Installing the Software You are now ready to install the software. 1. Turn on your computer and start Windows. 2. Insert the first Install disk in your disk drive. 3. Click the Windows “Start” button, point to “Run”. 4. In the “Open” box type “a:setup” and press Return. 5. Follow the instructions on your screen, inserting the remaining disk(s) when prompted. You are now ready to use the Hopper Radio Configuration program. Performing a Quick Start Radio Test 1. Launch the Configuration program by clicking “Start” then “Programs” then “Hopper 900 Configuration”. You should see the screen as shown below. 2. Select the appropriate COM port to which the radio is connected. COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 77 of 109 Exhibit 8 3. Click on the “Terminal” button to open the terminal test window. You should see the screen as shown below. 4. Setup the second radio in the same manner. 5. Type text to communicate between the terminals or PC’s and verify proper radio operation. v COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 78 of 109 Exhibit 8 WWC 900 SS Hopper Data Radio General Information The Data Radio is a frequency-hopping data transceiver operating in the 902-928 MHz ISM band. The transceiver is designed to operate under Part 15 of the FCC rules and regulations and is designed as an OEM module for professional integration into other products or field devices. When installed using a World Wireless Communications approved antenna, the user need only make sure the radio’s FCC label or a copy of the FCC label is clearly visible on the outside of the integrated product. In order to comply with FCC Section 15.203 the 900 Micro Hopper Data Radio was tested with and can only be installed with the three different types of antennas listed below: Antenna TypeModel Antenna Gain Small Dipole0 dBi Large Dipole3…

Text truncated - open the document above for the full version.

COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 108 of 109 Exhibit 13 Exhibit 13: Cover Letters August 20, 1999 FEDERAL COMMUNICATIONS COMMISSION Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: Enclosed is a FCC Part 15, Subpart C, Section 15.247 Certification application for the World Wireless Communications, Inc. Model 900 SS Hopper, FCC ID: NQE-900SSHOPPER Please let me know if I can be of further assistance. Sincerely yours, COMMUNICATION CERTIFICATION LABORATORY Joseph W. Jackson V.P. Marketing COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 109 of 109 Exhibit 13 Request for Confidentiality Letter

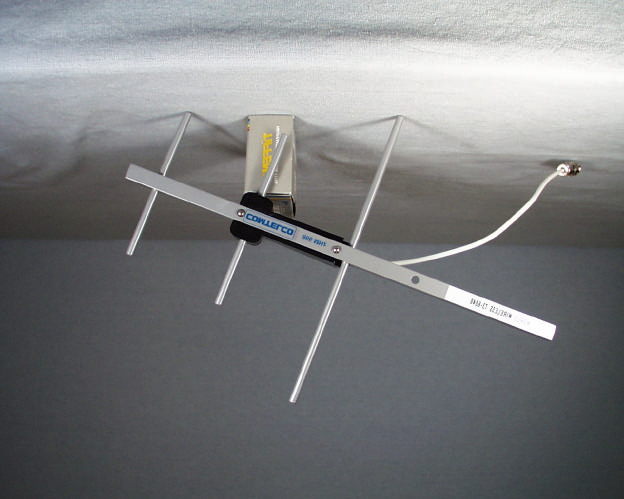

COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 3 of 109 Exhibit 3 Exhibit 3: Photographs of Overall Appearance Front View of the 900 SS Hopper COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 4 of 109 Exhibit 3 Back View of the 900 SS Hopper COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 5 of 109 Exhibit 3 Small Dipole Antenna COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 6 of 109 Exhibit 3 Large Dipole Antenna COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 7 of 109 Exhibit 3 Comtelco Model Y2283A-66 Yagi Antenna COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 8 of 109 Exhibit 3 Maxrad Model MFB9155 Omni Antenna

COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 1 of 109 Exhibit 1 Exhibit 1: FCC ID Label Equipment Identification Label In accordance with the requirements of Sections 15.19 (a), 2.925 and 2.926 of the FCC Rules, the following information will be permanently affixed to the World Wireless Communications, Inc. Model 900 SS Hopper as shown in the sketch below.

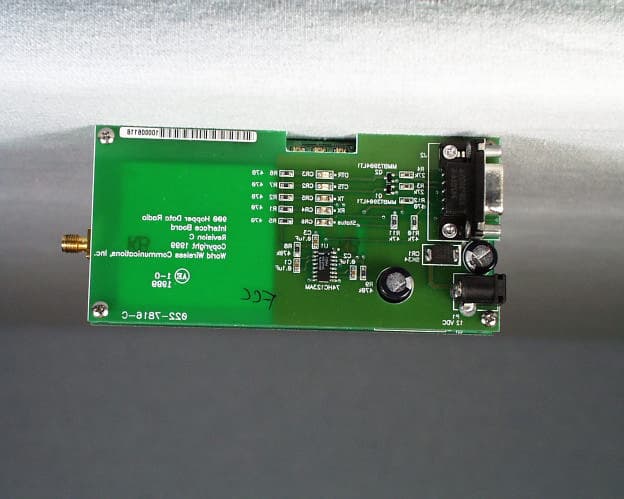

COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 91 of 109 Exhibit 9 Exhibit 9: Internal Photographs Front View of the Interface Board COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 92 of 109 Exhibit 9 Back View of the Interface Board COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 93 of 109 Exhibit 9 Front View of the Radio Board (with RF Can Installed) COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 94 of 109 Exhibit 9 Front View of the Radio Board (with RF Can Removed) COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 95 of 109 Exhibit 9 Back View of the Radio Board

COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 14 of 109 Exhibit 6 Exhibit 6: Test Report TEST REPORT FROM: COMMUNICATION CERTIFICATION LABORATORY 1940 W. Alexander Street Salt Lake City, Utah 84119-2039 Type of Report: Certification TEST OF: 900 SS Hopper FCC ID: NQE-900SSHOPPER To FCC PART 15.247, Subpart C Test Report Serial No: 73-6848 Applicant: World Wireless Communications, Inc. 2441 South 3850 West West Valley City, UT 84116 Date(s) of Test: August 18 - 19, 1999 Issue Date: August 20, 1999 Equipment Receipt Date: August 18, 1999 COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 15 of 109 Exhibit 6 CERTIFICATION OF ENGINEERING REPORT This report has been prepared by Communication Certification Laboratory to determine compliance of the device described below with the requirements of FCC PART 15.247, Subpart C. This report may be reproduced in full, partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. -Applicant:World Wireless Communications, Inc. -Manufacturer:World Wireless Communications, Inc. -Brand Name:WWC -Model Number:900 SS Hopper -FCC ID:NQE-900SSHOPPER On this 20 th day of August 1999, I, individually, and for Communication Certification Laboratory, certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. COMMUNICATION CERTIFICATION LABORATORY Checked by: William S. Hurst, P.E. Vice President Tested by: Roger J. Midgley EMC Engineering Manager COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 16 of 109 Exhibit 6 SECTION 1. CLIENT INFORMATION AND RESPONSIBLE PARTY: 1.1 Client Information: Company Name: World Wireless Communications, Inc. 2441 South 3850 West West Valley City, UT 84116 Contact Name:Keith Hollcroft Title:Director of Engineering COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 17 of 109 Exhibit 6 SECTION 2. EQUIPMENT UNDER TEST (EUT) 2.1 Identification of EUT: Trade Name:WWC Model Name or Number:900 SS Hopper Serial Number:N/A Options Fitted:None Country of Manufacture:U.S.A. 2.2 Description of EUT: See theory of operation (Exhibit 12). This report covers the transmitter only the receiver is covered under a separate verification report. 2.3 Modification Incorporated/Special Accessories on EUT: The following modification was made to the 900 SS Hopper by the Client during testing to comply with the specification. These modifications will be implemented during manufacturing. 1. C73 was changed from 5.0pF to 7.0pF. Signature: Typed Name: Keith Hollcroft Title: Director of Engineering COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 18 of 109 Exhibit 6 2.4 EUT and Support Equipment: The FCC ID numbers for all the EUT and support equipment used during the test (including inserted cards) are listed below: Brand Name Model Number Serial No. FCC ID NumberDescriptionName of Interface Ports/Interface Cables BN: WWC MN: 900 SS Hopper SN: N/A NQE- 900SSHOPPER Data Radio20 pin, 2mm dual in-line header / 9-32 VDC, TTL or RS232 serial interface COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 19 of 109 Exhibit 6 SECTION 3. TEST SPECIFICATION, METHODS & PROCEDURES 3.1 Test Specification: Title:FCC PART 15.247, Subpart C (47 CFR 15). Limits and methods of measurement of radio interference characteristics of radio frequency devices. Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725- 5850 MHz. Purpose of Test: The tests were performed to demonstrate Initial compliance. 3.2 Methods & Procedures: 3.2.1 '' 15.247 (a)Operation under the provisions of this section is limited to frequency hopping and direct sequence spread spectrum intentional radiators that comply with the following provisions: (1)Frequency hoping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. The system shall hop to channel frequencies that are selected at the system-hopping rate from a pseudorandomly ordered list of hopping frequencies. Each frequency must be used equally on the average by each transmitter. The system receivers shall have input bandwidths that match the hopping channel bandwidths of their corresponding transmitters and shall shift frequencies in synchronization with the transmitting signals. (i)For frequency hopping systems operating in the 902 - 928 MHz band: if the 20 dB bandwidth of the hopping channel is less than 250 kHz, the system shall use at least 50 hopping frequencies and the average time of occupancy on any frequency shall not be greater than 0.4 seconds within a 20 second period; if the 20 dB bandwidth of the hopping channel is 250 kHz or greater, the system shall use at least 25 hopping frequencies and the average time of occupancy on any frequency shall not be greater than 0.4 seconds within a 10 second period. The maximum allowed 20 dB bandwidth of the hopping channel is 500 kHz. COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 20 of 109 Exhibit 6 (ii)Frequency hopping systems operating in the 2400 – 2483.5 MHz and the 5725 – 5850 MHz bands shall use at least 75 hopping frequencies. The maximum allowed 20 dB bandwidth of the hopping channel is 1 MHz. The average time of occupancy on any frequency shall not be greater than 0.4 seconds within a 30 second period. (2)For direct sequence systems, the minimum 6 dB bandwidth shall be at least 500 kHz. (b) The maximum peak output power of the intentional radiator shall not exceed the following: (1) For frequency hopping systems operating in the 2400 – 2483.5 MHz or 5725 – 5850 MHz band and for all direct sequence systems: 1 watt. (2) For frequency hopping systems operating…

Text truncated - open the document above for the full version.

COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 70 of 109 Exhibit 7 Exhibit 7: Test Set-Up Photographs Worst case radiated emissions (Small Dipole antenna) COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 71 of 109 Exhibit 7 Worst case radiated emissions (Large Dipole antenna) COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 72 of 109 Exhibit 7 Worst case radiated emissions (Yagi antenna) COMMUNICATION CERTIFICATION LABORATORYTEST REPORT: 73-6848 FCC ID: NQE-900SSHOPPER Page 73 of 109 Exhibit 7 Worst case radiated emissions (Omni antenna)
