NS9IPN4GNBG30IPn4G 4G LTE Cellular Ethernet Bridge/Serial Gateway

IPn4G IPn4G LTE Ethernet Bridge/Serial Gateway Document: IPn4G User Guide.v1.0.pdf User Guide December 2012 150 Country Hills Landing NW Calgary, Alberta Canada T3K 5P3 Phone: (403) 248-0028 Fax: (403) 248-2762 www.microhardcorp.com © Microhard Systems Inc. 2 Revision History Revision Description Initials Date 1.0 Initial Release PEH Dec 2012 FCC/IC Regulatory Notice Modification statement: Microhard Systems Inc has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user’s authority to operate the equipment. Interference statement: This device complies with Part 15 of the FCC Rules and Industry Canada licence‐exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Radiation Exposure Statement: IPn4G complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS‐102 of the IC radio frequency (RF) Exposure rules. Nevertheless, the product should be used in such a manner that the potential for human contact during normal operation is minimized. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and any person and must not be collocated with other transmitters except otherwise authorised. This device is approved to be used with a dipole antenna with a maximum gain of 2 dBi. This product integrates and is authorized to be co‐located with a Novatel Wireless' Expedite® E371 PCI Express Mini Card (FCC ID: PKRNVWE371, IC: 3229A‐E371). The Novatel Wireless' Expedite® E371 PCI Express Mini Card is granted with a modular approval for mobile applications. Integration has been done meeting the following conditions: 1. At least 20cm separation distance between the antenna and any person body is maintained at all times. 2. To comply with FCC/IC regulations limiting both maximum RF output power and human exposure to RF radiation, the maximum antenna gain including cable loss in a mobile only exposure condition does not exceed 3.5 dBi for 850 MHz frequency band, 5.0 dBi for 700 MHz frequency band, 5.0 dBi for 1700 MHz frequency band and 3.0 dBi for 1900 MHz frequency band. 3. The Novatel Wireless' Expedite® E371 PCI Express Mini Card antenna is not co‐located with any other antennas except with the antenna of the IPn4G product. FCC Class B digital device notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐ Reorient or relocate the receiving antenna. ‐ Increase the separation between the equipment and receiver. ‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐ Consult the dealer or an experienced radio/TV technician for help. FCC / IC Avis réglementaire Instruction de modification: Microhard Systems Inc n'a pas approuvé les modifications apportées à cet appareil par l'utilisateur. Les changements ou modifications pourraient annuler l'autorité de l'utilisateur à utiliser cet équipement. Déclaration sur les interférences: Cet appareil est conforme à la Partie 15 de la réglementation FCC et Industrie Canada exempts de licence RSS norme (s). Son fonctionnement est soumis aux deux conditions suivantes: (1) cet appareil ne doit pas provoquer d'interférences, et (2) cet appareil doit accepter toute interférence, y compris les interférences pouvant provoquer un fonctionnement indésirable de l'appareil. Déclaration d'exposition aux radiations: IPN4G est conforme à l'exposition aux radiations FCC / IC définies pour un environnement non contrôlé et répond aux directives d'exposition de la fréquence de la FCC radiofréquence (RF) dans le Supplément C à OET65 et RSS‐102 de la fréquence radio (RF) IC règles d'exposition. Néanmoins, le produit doit être utilisé d'une manière telle que le potentiel pour le contact humain pendant l'utilisation normale soit minimisé. Cet équipement doit être installé et utilisé à une distance minimum de 20 cm entre le radiateur et toute personne et ne doit pas être co‐implanté avec d'autres émetteurs, sauf autorisation contraire. Ce dispositif est approuvé pour être utilisé avec une antenne dipôle avec un gain maximum de 2 dBi. Ce produit intègre et est autorisé à être co‐localisés avec une Novatel Wireless Expedite ® E371 PCI Express Mini Card (FCC ID: PKRNVWE371, IC: 3229A‐E371). Le Novatel Wireless Expedite ® E371 PCI Express Mini Card est accordée à un agrément modulaire pour les applications mobiles. L'intégration a été fait aux conditions suivantes: 1. Au moins 20 cm de distance de séparation entre l'antenne et toute personne corps est maintenue en tout temps. 2. Pour se conformer à la FCC / IC règlements qui limitent à la fois la puissance maximale de sortie RF et l'exposition humaine aux rayonnements RF, le gain maximal de l'antenne, y compris la perte de câble dans une condition d'exposition seulement mobile ne dépasse pas 3,5 dBi pour 850 MHz bande de fréquence, 5,0 dBi pour des fréquences 700 MHz bande, 5,0 dBi pour 1700 MHz et 3,0 dBi bande de 1900 MHz bande de fréquence. 3. Le Nov…

Text truncated - open the document above for the full version.

BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Date: Feb. 19, 2013 Authorisation letter We, Microhard Systems Inc 150 Country Hills Landing N.W. Calgary Alberta T3K 5P3 Canada , hereby authorize AT4 wireless, S.A. Parque Tecnológico de Andalucía C/ Severo Ochoa nº 2 29590 Campanillas - Malaga Spain Ricardo Orejas Phone: +34952619317 e-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. The present authorization considers the development of documents on behalf of the client, written under his own letterhead and related to the necessary information to be provided on his behalf to complete the certification process. This authorisation is applicable to the product: Brand: Microhard Model: IPn4G FCC ID: NS9IPN4GNBG30 IC: 3143A-IPN4GNBG30 This agreement expires one year from the current date. Signed on behalf of Microhard Systems Inc in Calgary on Feb. 19, 2013 Hany Shenouda / President Tel/Fax: +1 403 248-0028 / +1 403 248-2762 Email: [email protected] Company: Microhard Systems Inc Address: 150 Country Hills Landing N.W. Calgary Alberta T3K 5P3 Canada

BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Feb. 19, 2013 Ref: Confidentiality request for FCC ID: NS9IPN4GNBG30 FCC ID: Title/model: NS9IPN4GNBG30 IPn4G To whom it may concern: Pursuant to §0.457(d)(1)(ii) and §0.459 of the Commission’s Rules (47 C.F.R.) and §552 (b)(4) of the Freedom of Information Act, Microhard Systems Inc hereby request permanent confidentiality to avoid release of sensitive information of the product to the public. For the product stated above, we request that the following information be withheld from public disclose: - Schematics - Bill of Materials - Operational description - Block diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to Microhard Systems Inc and provide unjustified benefits to our competitors. Microhard Systems Inc understand that pursuant to §0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Signed on behalf of Microhard Systems Inc in Calgary on Feb. 19, 2013 Hany Shenouda / Managing Director Tel/Fax: +1 403 248-0028 / +1 403 248-2762 Email: [email protected] Company: Microhard Systems Inc Address: 150 Country Hills Landing N.W. Calgary Alberta T3K 5P3 Canada

BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Feb. 19, 2013 REF: Short-term confidentiality request for FCC ID: NS9IPN4GNBG30 FCC ID: Title/model: NS9IPN4GNBG30 IPn4G To whom it may concern: Pursuant to §0.457(d)(1)(ii) and §0.459 of the Commission’s Rules (47 C.F.R.) and §552 (b)(4) of the Freedom of Information Act, Microhard Systems Inc hereby request short-term confidentiality to avoid premature release of sensitive information prior to marketing or release of the product to the public. For the product stated above, we request that the following information be temporarily withheld from public disclose for an initial period of 180 days: - External photographs - Internal photographs - Test setup photographs - User’s guide It is understood that no extensions of the short-term confidentiality may be requested. Signed on behalf of Microhard Systems Inc in Calgary on Feb. 19, 2013 Hany Shenouda / President Tel/Fax: +1 403 248-0028 / +1 403 248-2762 Email: [email protected] Company: Microhard Systems Inc Address: 150 Country Hills Landing N.W. Calgary Alberta T3K 5P3 Canada

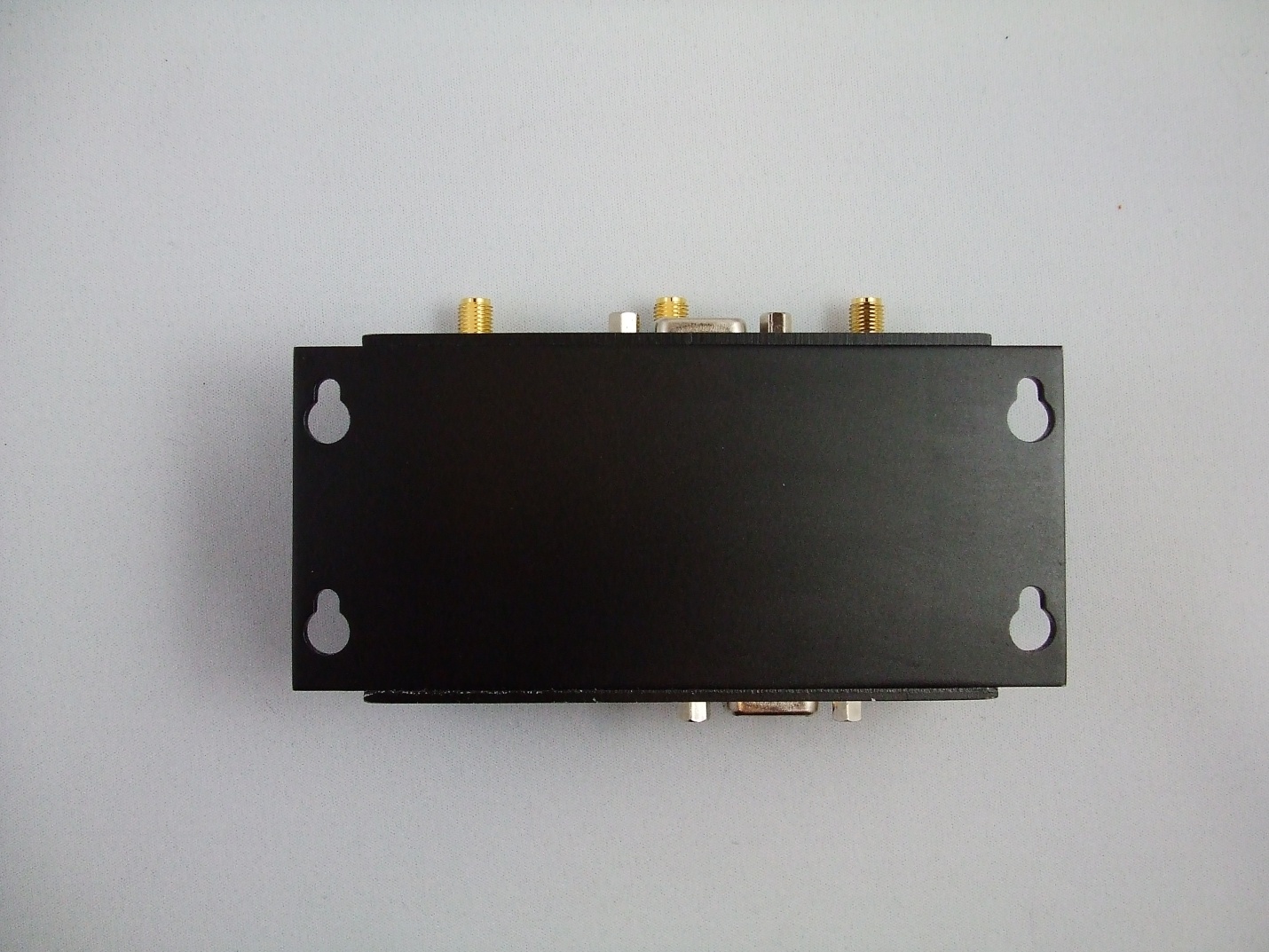

Top: Bottom: Right Side: Left Side: Front: Back:

LABEL FORMAT AND LOCATION IPn4G Bottom View

Internal Photo Assembled Internal Photo Cards Removed Internal Photo Bottom Internal WiFi Card Bottom Internal WiFi Card Top Internal WiFi Shield Removed Card Top Internal E371 Card Top Internal E371 Card Bottom Internal nPCI Card Bottom Internal nPCI Card Top

RF Exposure / RF Technical Brief BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD ATTN: Reviewing Engineer RF exposure information for the equipment IPn4G (FCC ID: NS9IPN4GNBG30, IC: 3143A- IPN4GNBG30) 1. Introduction: The device IPn4G (FCC ID: NS9IPN4GNBG30, IC: 3143A-IPN4GNBG30) is designed to be used only for fixed and mobile applications. This product integrates a Novatel Wireless' Expedite® E371 PCI Express Mini Card (FCC ID: PKRNVWE371, IC: 3229A-E371). The Novatel Wireless' Expedite® E371 PCI Express Mini Card is granted with a modular approval for mobile applications and the highest antenna gains allowed for use with this module for mobile RF exposure conditions are 3.5 dBi (850 MHz), 5.0 dBi (700 MHz), 5.0 dBi (1700 MHz), and 3.0 dBi (1900 MHz). The antenna(s) used for IPn4G transmitter and the antenna used for Novatel Wireless' Expedite® E371 PCI Express Mini Card are co-located and can transmit simultaneously. All the antennas must be installed to provide a separation distance of at least 20 cm from all the persons. 2. MPE limits: The table below is excerpted from RSS-102, Issue 4, 4.2, titled “RF Limits for Devices used by the General Public”: Frequency Range (MHz) Power density (W/m 2 ) Power density (mW/cm 2 ) Averaging time (minutes) 300 – 1500 f (MHz)/150 f (MHz) /1500 6 1500 – 15000 10 1.0 6 The table below is excerpted from Table 1B of 47 CFR 1.1310 titled Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure: Frequency Range (MHz) Power density (mW/cm 2 ) Averaging time (minutes) 300 – 1500 f (MHz) /1500 30 1500 – 100.000 1.0 30 3. Compliance criteria: Power density of individual transmitters is calculated using the equation: 2 4 PG S R   where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) 3.1. Standalone compliance criteria: Power density must be lower than the MPE limits stated in item 2. 3.2. Simultaneous transmission compliance criteria The su m of the MPE ratios (Power density/MPE limit) for all simultaneous transmitting antennas incorporated in the device based on the calculated power density is ≤ 1.0. 4. Compliance calculations: 4.1. Standalone transmission - Novatel Wireless' Expedite® E371 PCI Express Mini Card Generation Frequency band Frequency range (MHz) Mode Average power (dBm) Antenna gain (dBi) Total power (W) Duty Cycle (%) Eva lua tion distance (cm) Power De nsity (mW/cm^2) FCC-IC MPE limit (mW /cm^2) MPE ratio (Power Density / FCC-IC MPE limit) 2GGPRS 850824,2 - 848,8GPRS32,503,53,9825%200,1980,550,36 2GEGPRS 850824,2 - 848,8EGPRS26,043,50,9050%200,0890,550,16 2GGPRS 19001850,2 - 1909,8GPRS29,0031,5825%200,0791,000,08 2GEGPRS 1900 1850,2 - 1909,8EGPRS25,0030,6350%200,0631,000,06 3GFDD IV1712,4 - 1752,6UMTS, Rel 9924,0550,80100%200,1601,000,16 3GFDD IV1712,4 - 1752,6UMTS, HSDPA23,9050,78100%200,1541,000,15 3GFDD V826,4 - 846,0UMTS, Rel 9924,333,50,61100%200,1210,550,22 3GFDD V826,4 - 846,0UMTS, HSDPA24,353,50,61100%200,1210,550,22 3GFDD II1852,4 - 1907,6UMTS, Rel 9923,5330,45100%200,0891,000,09 3GFDD II1852,4 - 1907,6UMTS, HSDPA23,7030,47100%200,0931,000,09 4G (LTE)FDD 17706,5 - 713,55MHz, QPSK23,8050,76100%200,1510,470,32 4G (LTE)FDD 17706,5 - 713,55MHz, 16QAM22,4650,56100%200,1110,470,24 4G (LTE)FDD 17709,0 - 711,010MHz, QPSK23,8550,77100%200,1530,470,32 4G (LTE)FDD 17709,0 - 711,010MHz, 16QAM23,5450,71100%200,1420,470,30 4G (LTE)FDD 41710,7 - 1754,31.4MHz, QPSK23,8150,76100%200,1511,000,15 4G (LTE)FDD 41710,7 - 1754,31.4MHz, 16QAM23,1650,65100%200,1301,000,13 4G (LTE)FDD 41711,5 - 1753,53MHz, QPSK23,9050,78100%200,1541,000,15 4G (LTE)FDD 41711,5 - 1753,53MHz, 16QAM22,7950,60100%200,1201,000,12 4G (LTE)FDD 41712,5 - 1752,55MHz, QPSK23,5550,72100%200,1421,000,14 4G (LTE)FDD 41712,5 - 1752,55MHz, 16QAM22,6850,59100%200,1171,000,12 4G (LTE)FDD 41715,0 - 1750,010MHz, QPSK23,7550,75100%200,1491,000,15 4G (LTE)FDD 41715,0 - 1750,010MHz, 16QAM22,3950,55100%200,1091,000,11 4G (LTE)FDD 41717,5 - 1747,515MHz, QPSK23,5350,71100%200,1421,000,14 4G (LTE)FDD 41717,5 - 1747,515MHz, 16QAM23,0250,63100%200,1261,000,13 4G (LTE)FDD 41720,0 - 1745,020MHz, QPSK23,5350,71100%200,1421,000,14 4G (LTE)FDD 41720,0 - 1745,020MHz, 16QAM22,8750,61100%200,1221,000 ,12 Maximum MPE ratio: 0,36 4.2 . Standalone transmission - IPn4G Frequency band Frequency range (MHz) Mode Average power (dBm) Antenna gain (dBi) Total power (W ) Duty Cycle (%) Eva lua tion distance (cm) Power Density (mW /cm^2) FCC-IC MPE limit (mW/cm^2) MPE ratio (Power Density / FCC-IC MPE limit) 2,4 GHz2412 - 2462802.11b15,8220,06100%200,0121,000,01 2,4 GHz2412 - 2462802.11g15,9720,06100% 200,0121,000,01 Maximum MPE ratio: 0,01 4. 3. Simultaneous transmission Maximum MPE ratio of Novatel Wireless' Expedite® E371 PCI Express Mini Card: 0,36 + Maximum MPE ra tio of IPn4G: 0,01 = 0,37 ≤ 1 Signe d on behalf of Microhard Systems Inc in Calgary on Feb. 19, 2013 Hany Shenouda / Managing Director Tel/Fax: +1 403 248-0028 / +1 403 248-2762 Email: [email protected] Company: Microhard Systems Inc Address: 150 Country Hills Landing N.W. Calgary Alberta T3K 5P3 Canada

A Test Lab Techno Corp. Report Number: 1212FE18-01 1 of 51 FCC 47 CFR PART 15 SUBPART B Product Type ： IPn4G Applicant ： Microhard Systems Inc. Address ： 150 Country Hills Landing NW Calgary, Alberta, Canada T3K 5P3 Trade Name ： Microhard Model Number ： IPn4G Test Specification ： FCC 47 CFR PART 15 SUBPART B: Oct., 2012 ANSI C63.4: 2009 CISPR 22: 1997 ICES-003: Issue 5 Receive Date ： Dec. 07, 2012 Test Period ： Dec. 11, 2012 Issue Date ： Feb. 23, 2013 Issue by A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 Note: This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. This document may be altered or revised by A Test Lab Techno Corp. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, or any government agencies. The test results in the report only apply to the tested sample. A Test Lab Techno Corp. Report Number: 1212FE18-01 2 of 51 Revision History Rev. Issue Date Revisions Revised By 00 Dec. 17, 2012 Initial Issue 01 Feb. 23, 2013 Revised ID Joyce Liao A Test Lab Techno Corp. Report Number: 1212FE18-01 3 of 51 Verification of Compliance Issued Date: 02/23/2013 Product Type : IPn4G Applicant : Microhard Systems Inc. Address : 150 Country Hills Landing NW Calgary, Alberta, Canada T3K 5P3 Trade Name : Microhard Model Number : IPn4G FCC ID : NS9IPN4GNBG30 IC : 3143A-IPN4GNBG30 EUT Rated Voltage : DC 12.0V, 1.25A Test Voltage : AC 120V, 60Hz Applicable Standard : FCC 47 CFR PART 15 SUBPART B: Oct., 2011 ANSI C63.4: 2009 CISPR 22: 1997. ICES-003: Issue 5 Test Result : Complied Performing Lab. : A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 http://www.atl-lab.com.tw/e-index.htm The above equipment has been tested by A Test Lab Techno Corp., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved By ： Reviewed By ： (Manager) (Murphy Wang) (Testing Engineer) (Frank Lin) TABLE OF CONTENTS 1 General Information .........................................................................................................5 2 EUT Description................................................................................................................6 3 Test Methodology.............................................................................................................7 3.1. Decision of Test Mode .............................................................................................7 3.2. EUT Exercise Software............................................................................................7 3.3. Configuration of Test System Details .......................................................................8 3.4. Test Site Environment ..............................................................................................9 4 Emission Test .................................................................................................................10 4.1. Conducted Emission Measurement.......................................................................10 4.2. Radiated Interference Measurement.....................................................................24 A Test Lab Techno Corp. Report Number: 1212FE18-01 4 of 51 A Test Lab Techno Corp. Report Number: 1212FE18-01 5 of 51 1 General Information 1.1 Summary of Test Result Emission Standard Item Result Remark FCC 47 CFR PART 15 SUBPART B ANSI C63.4 ICES-003 Conducted Emission PASS Meet Class B limit FCC 47 CFR PART 15 SUBPART B ANSI C63.4 ICES-003 Radiated Emission PASS Meet Class B limit The test results of this report relate only to the tested sample(s) identified in this report. Manufacturer or whom it may concern should recognize the pass or fail of the test result. 1.2 Measurement Uncertainty Conducted Emission The measurement uncertainty is evaluated as ± 2.24 dB. Conducted Emissions (Telecommunication Ports) The measurement uncertainty is evaluated as ± 2.24 dB. Radiated Emission The measurement uncertainty of 30 MHz - 1GHz is evaluated as ± 3.072dB. The measurement uncertainty of 1GHz - 40GHz is evaluated as ± 3.072dB. A Test Lab Techno Corp. Report Number: 1212FE18-01 6 of 51 2 EUT Description Product IPn4G Trade Name Microhard Model Number IPn4G FCC ID NS9IPN4GNBG30 IC 3143A-IPN4GNBG30 Applicant Microhard Systems Inc. 150 Country Hills Landing NW Calgary, Alberta, Canada T3K 5P3 Manufacturer Microhard Systems Inc. 150 Country Hills Landing NW Calgary, Alberta, Canada T3K 5P3 Component Power Adapter BI, BI30-120200-AdU Input:100-240Vac, 50/60Hz, 1.2A Output: 12Vdc, 2A Cable out: Non-Shielded, 1.6 m with one core I/O Port Description： I/O Port Types Q’TYTest Description 1). RS-232 Port 2 Connected to Notebook / Terminal 2). LAN Port 1 Connected to Notebook 3). Antenna Port 2 Connected to 2G/3G Antenna 4). Antenna Port 1 Connected to GPS Antenna 5). SIM Card Port 1 Connected to SIM Card 6). DC Power Port 1 Connected to AC Adapter 3 Test Methodology 3.1. Decision of Test Mode 3.1.1. The following test mode(s) were scanned during the preliminary test: Pre-Test Mode Mode 1: GSM 850 + Wi-Fi Link Mode Mode 2: GSM 1900 + Wi-Fi Link Mode Mode 3: WCDMA Band II + Wi-Fi Link Mode Mode 4: WCDMA Band IV + Wi-Fi Link Mode Mode 5: WCDMA Band V + Wi-Fi Link Mode Mode 6: WCDMA Band XVII + Wi-Fi Link Mode 3.1.2. After the preliminary scan, the following test mode was found to produce the highest emission level. Final Test Mode Condu…

Text truncated - open the document above for the full version.

Part 15B Test Setup Photographs Conducted Emissions Test Configuration: Front View Rear View A Test Lab Techno Corp. Report Number: 1212FE18-01 1 of 3 Radiated Emissions Test Configuration: Below 1GHz _ Front View Below 1GHz _ Rear View A Test Lab Techno Corp. Report Number: 1212FE18-01 2 of 3 Above 1GHz _ Front View Above 1GHz _ Rear View A Test Lab Techno Corp. Report Number: 1212FE18-01 3 of 3
