NT8-VWMIBREGIODisplay Audio Infotainment Unit 10 TP

Infotainment System - REGIO © 2019 Visteon Corporation Infotainment System www.visteon.com Regio Infotainment System Model Name: VW MIB Regio Type of Equipment: Display Audio Infotainment Unit 10”TP Brand Name: Visteon Manufacturer: Visteon Corporation Made In Brazil USER MANUAL Version 3.0 December 04 2019 Infotainment System - REGIO © 2019 Visteon Corporation Infotainment System www.visteon.com 1. Safety Requirements  This product works with a supply voltage of 13.4V.  Always check the function of each connector color through the wiring diagram.  Do not disassemble or modify the equipment, because this can cause an accident such as fire or electric shock, invalidating your warranty.  Do not block the heat exits of the appliance. This may cause overheating or fire.  To prevent the risk of electric shock, never expose the unit, amplifier and speakers to cleaning products, moisture or water. In addition, contact with  Liquids may cause damage, overheating of the unit and risk of fire.  While driving, keep the volume at a level where external sounds can be heard.  Make sure all speaker wiring is properly installed. Otherwise the unit may be damaged.  Respect the local rules, laws and regulations of traffic.  While driving - Do not watch or operate the unit as this may lead to distraction and cause an accident. Park yours car in a safe place to watch or operate the unit. - Do not use the configuration feature or no other function that can divert your attention of the road.  During operation - Do not insert your hands, fingers or objects strangers to the unit as this may cause injury or damage to the unit. - Keep small objects out of reach of the children.  To avoid the risk of accidents and the violation of rules, the video feature should never be used while the vehicle is being conducted. Infotainment System - REGIO © 2019 Visteon Corporation Infotainment System www.visteon.com 2. Warnings  To reduce the risk of fire or electric shock, do not expose the device rain or moisture. To avoid electric shock, do not open the appliance. Search for an Authorized Service.  Avoid prolonged use at high volume (power greater than 85 decibels), because this may impair your audition.  Taking your eyes off the road for too long or too often while using any infotainment feature can cause a crash. You or others could be injured or killed. Do not give extended attention to infotainment tasks while driving. Limit your glances at the vehicle displays and focus your attention on driving. Use voice commands whenever possible.  Use the proper power supply. This product is designed for operation with a negative grounded 12 V DC battery system. Never operate this product with other battery systems, especially not with a 24 V DC battery system.  Do not disassemble or modify the unit, or attempt to repair the product yourself. This may cause serious injury or damage and your warranty will be null and void. If the product needs repair, consult your dealer or contact technical support.  If the unit is out of order (no power, no sound) or in an abnormal state (has foreign objects in it, is exposed to water, is smoking, or smells), turn it off immediately and consult your dealer. Infotainment System - REGIO © 2019 Visteon Corporation Infotainment System www.visteon.com Overview Infotainment System REGIO is an Display Audio Infotainment with a 10.1-inch display that combines state-of-the-art technology, modern design, impeccable finishing and multiple features. The product is all designed to run Android Automotive operating system, bringing more connectivity and interactivity to the user. This infotainment hasn't physical buttons, all contact being made through a capacitive screen that allows extremely precise touches. The infotainment system is controlled by using the infotainment display with buttons on left and right bars, steering wheel controls. Display Left Bar: 1. (Power)  Touch and hold to turn off system.  Touch and hold to turn on system.  Touch to mute/unmute the system when on. 2. (Phone)  Touch to access the phone display or answer an incoming call. 3. (Volume)  Touch to access the volume display. 4. (Media)  Touch the Audio icon to display the active audio source page. Available sources are AM, FM, USB1, USB2 and Bluetooth. 5. (Back)  Touch to return to the previous screen in a menu. 6. (App Store)  Touch the APPS icon to display the apps in the radio.  Downloading and using apps requires Internet connectivity. 7. (Home Screen)  Touch to return to home screen. Display Right Bar: 8. (Settings)  Touch to go to settings screen. Infotainment System - REGIO © 2019 Visteon Corporation Infotainment System www.visteon.com 3. Radio AM-FM Radio From the Home Screen, touch the Media icon to display the audio sources screen. Choose radio icon AM-FM controls a. Seeking a Station Press or to search for the previous or next strongest station. b. Tuning a Station Touch the keyboard icon on the infotainment display to switch to Direct Tune. Touch or to manually search for a station. c. Frequency Range Touch frequency band icon on the infotainment display to switch to slide over the frequency range. d. Storing Radio Station Presets Favorites are stored near the bottom of the display. Up to 6 preset stations can be stored. 4. USB From the Home Screen, touch the Media icon to display the audio sources screen. Choose USB icon USB controls a. USB Port This infotainment system is equipped with two USB ports. These ports are for data and charging. b. Playing from a USB To play a USB device, perform the following steps:  Connect the USB device.  Touch USB1 or USB2 on the media screen Use the following buttons when playing an active USB source: Touch to play the current media source. Touch to pause play of the current media source Press to seek to the previous track. Press to seek to the next track. Touch the shuffle icon on the infotainment display to shuffle through the available media. Touch to play …

Text truncated - open the document above for the full version.

V1steon· Sincerely, P. A. Heidi Sepanik Corporate Secretary Visteon Corporation One Village Center Orive Van Buren Township, MI, 48111 U.S.A By: Tille: Company: Telephone: e-mail: Terry SanSouci Environmental Validation Engineer Vsteon Cor poration (734) (734) 710-7137 [email protected] \ (734) 710-4672 Q (734) 736-5560 � Fax number e [email protected] www.visleon.co m FCB012_02 //DEKRA Testing and Certification, S.A.U. // www.dekra-product-safety.com/wireless

FCB011_02 //DEKRA Testing and Certification, S.A.U. // www.dekra-product-safety.com/wireless Date: 30‐December‐2019 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía C/ Severo Ochoa 2 & 6 29590 Campanillas Málaga, España Ref: Agent letter for FCC ID: NT8-VWMIBREGIO We, Visteon Corporation One Village Center Drive Van Buren Township, MI, 48111 hereby authorize Dekra Testing and Certification S.A.U. Parque Tecnológico de Andalucía Calle Severo Ochoa nº-2, 59590 Málaga Mr. Alberto Rico Cabello, e-mail: [email protected], Phone: +34 952 61 94 06 to act as our agent in the preparation of this application for equipment certification, including the signing of all documents relating to these matters. The present authorization considers the development of documents on behalf of the client, written under his own letterhead and related to the necessary information to be provided on his behalf to complete the certification process. We also hereby certify that neither we nor any party to this application are subject to a denial of U.S. Federal benefits, which include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862 because of conviction for possession or distribution of controlled substance. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by DEKRA Testing and Certification, S.A.U., still resides with us. This agreement expires one year from the current date. Sincerely, __________________________ By: Terry SanSouci Title: Environmental Validation Engineer Company: Visteon Corporation Telephone: (734) 710-7137 e-mail: [email protected]

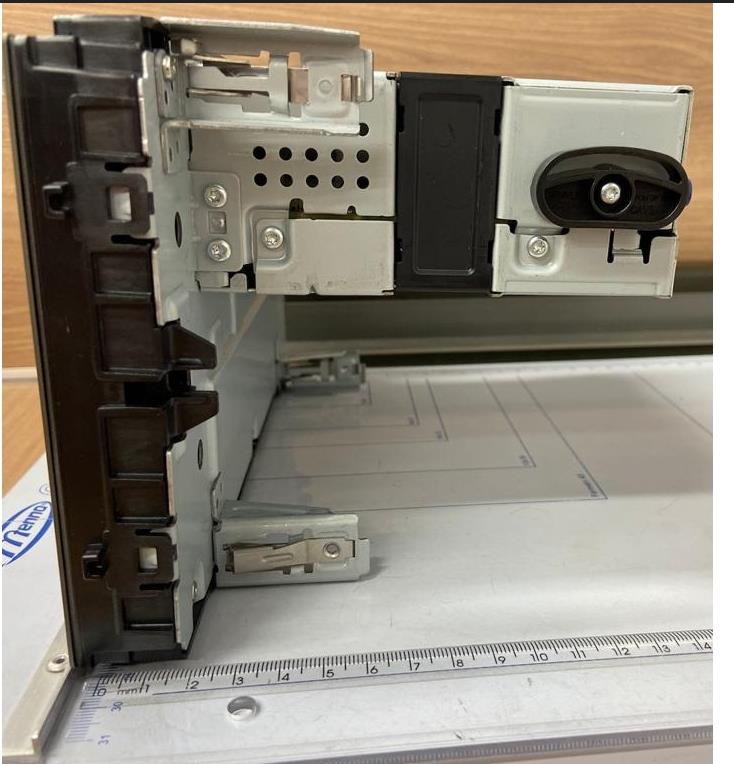

VW MIB REGIO EXTERNAL PHOTOS Back Side Front _1 Heat Sinker Left side Right Side Top side

Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a sistemas operando em caráter primário PRODUCT COMPLIES WITH DHHS RULES "21 CHAPTER CFR1, SUBCHAPTER J" APPLICABLE AT DATE OF MANUFACTURE. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; (2) this device must accept any interference received, including interference that may cause undesired operation. CNC ID:YYYYYY MADE IN BRAZIL VISTEON VW MIB REGIO - DISPLAY AUDIO INFOTAINMENT UNIT 10'' TP 12V 12A Agencia Nacional de Telecomunicasoes ZZZZ-ZZ-ZZZZ FCC ID:NT8-VWMIBREGIO IFT:XXXXXXX-XX Marca:Volkswagen Modelo(s):VW MIB REGIO - DISPLAY AUDIO INFOTAINMENT UNIT 10'' TP ARGENTINA FULL MANUFACTURING NAME FULL MODEL NAME MANUFACTURING LOCATION VISTEON BAR CODE USA PRINT BRAZIL BAR CODE BRAZIL EU+EFTA NOTIFIED BODY MEXICO CU DECLARATION(CUSTOMS ISSUE) THIS DRAWING AND ANY INTELLECTUAL PROPERTY RIGHTS THERIN ARE PROPERTY OF VISTEON CORPORATION AND NO LICENSES ARE GRANTED UNDER THOSE RIGHTS OPERATIONSUNITPLANTSAFETY DRAFTED IN ACCORDANCE WITH VISTEON ENGINEERING CAD STANDARDS CURRENT AT INITIAL RELEASE MUST COMPLY WITH VISTEON AND APPLICABLE OEM RESTRICTED SUBSTANCES MANAGEMENT STANDARDS INITIAL ORIGINATOR DATE ICESARPR 20191202 INITIAL REVIEWER DATE WDIAS 20191202 INITIAL ENGINEER DATE PFIOROTT 20191202 3RD ANGLE PROJ CUSTOMER DATA TYPESCALE:4:1UNITS:MM SHT1/1RH/LH: CUSTOMER NUMBERCPSC :IS MASTERDtMC NAME CAD FILEXXXXX DWG FILEXXXX DATA LOCTCE PRODUCT NUMBER DATA TYPE X-CATIA V5 DWG SIZE: A0 LTRSREVISIONS DATEORIGINATORREVIEWERENGR APP GBC: UNLESS OTHERWISE SPECIFIED THE LETTER/NUMBER CODE PRECEDING ANY NOTE IS FOR CAD NOTE IDENTIFICATION AND RETRIEVAL ONLY SUPPLER TO PROVIDE BLANK LABEL PRINTING TO BE DONE AT VISTEON MATERIAL:COPPER -PRINT PAPER WITH SELF-ADHESIVE ON BACK, DELIVER MATERIAL TEST REPORT AND TEST SAMPLE PER TL52038-A COLOUR: WHITE TEMPERATURE REQUIREMENT: -40C TO 85C LABELS TO BE SUPPLIED IN ROLL FORM ON RELEASE PAPER PRINTING SHALL BE IN BLACK PERMANENT INK THIS COMPONENT TO BE FREE OF HAZARDOUS MATERIALS ACCORDING TO VW91101 CHANGES AFFECTING DESIGN,COMPOSITION,OR PROCESSING OF THE PART PREVIOUSLY APPROVED FORPRODUCTION REQUIRE PRIOR APPROVAL FROM VISTEON PRODUCT ENGINEERING.REFER TO IATF 16949 FOR CURRENT RELEASE STATUS SEE THE VISTEON ENGINEERING NOTICE. THE MASTER SOURCE OF INFORMATION FOR THIS DRAWING IS IN A PE COMPUTER DATABASE. CHANGES ARE NOT PERMITTED WITHOUT PRIOR CONSENT OF THE RELEVANT ENGINEERING CAD ACTIVITY. DIMENSION NOTES: EU+EFTA NOTIFIED BODY:THE SIZE OF THE MARK SHOULD BE NOT LESS THAN 5MM. OTHERS: IF THERE IS NO DIMENSION REQUIREMENT, PLEASE MAKE SURE IT IS LEGIBILITY AND VISIBLE. N/A N/A CPSC : 13.01.01 N/AN/AN/A N/A N/A RELEASED CN00XXXX 20191202 PFIOROTTWDIASICESARPR VPMVLF-18B968-XXX 00344572-04 LBL-RADO RECV IDENT (BT LABEL-V1-STD VW MIB REGIO) 80 50 1 1 1 IC: 3043A-VWMIBREGIO CANADA Paraguay NR: XXXX-XX-X-XXXX

VW MIB REGIO -Internal photos- Front Board_1 Front Board_2 Main Board_1 Main Board_2 Rear Board_1 Rear Board_2

DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 60750RAN.002 2019-12-11 Test report No: NIE: 60750RAN.002 Assessment report RF EXPOSURE REPORT ACCORDING TO FCC 47 CFR Part 2.1091 ISED RSS-102 Issue 5:2015 (*) Identification of item under evaluation Display Audio Infotainment Unit 10”TP (*) Trademark Visteon (*) Model and /or type reference VW MIB Regio Other identification of the product FCC ID: NT8-VWMIBREGIO IC ID: 3043A-VWMIBREGIO HW version: H04 SW version: 0107 (*) Features FM, AM, USB, Bluetooth, WLAN, GNSS Manufacturer VISTEON CORPORATION ONE VILLAGE CENTER DRIVE, VAN BUREN TOWNSHIP, MI, 48111 U.S.A Test method requested, standard FCC 47 CFR Part 2.1091 Radiofrequency radiation exposure evaluation: mobile devices. ISED RSS-102 Issue 5 (2015-03) – Radio Frequency Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands) IEEE Std C95.3 TM -2002 (R2008). IEEE Recommended Practice for Measurements and Computations of Radio Frequency Electromagnetic Fields With Respect to Human Exposure to Such Fields, 100 kHz–300 GHz Summary IN COMPLIANCE Approved by (name / position & signature) Miguel Lacave Antennas Lab Manager Date of issue 2019-12-11 Report template No FAN36_01 (*) “Data provided by the client” DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 60750RAN.002 Page 2 of 11 2019-12-11 Index Competences and guarantees .................................................................................................... 3 General conditions ...................................................................................................................... 3 Data provided by the client .......................................................................................................... 3 Identification of the client............................................................................................................. 3 Document history ........................................................................................................................ 3 General description of the device under evaluation ..................................................................... 4 RF Exposure Assessment result and verdict ............................................................................... 5 Appendix A: FCC RF Exposure information ................................................................................ 6 FCC RF Exposure evaluation ................................................................................................. 7 FCC MPE Evaluation ............................................................................................................. 8 Appendix B: ISED RF Exposure information ............................................................................... 9 ISED RF Exposure evaluation for mobile devices ................................................................. 10 ISED MPE Evaluation .......................................................................................................... 11 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 60750RAN.002 Page 3 of 11 2019-12-11 Competences and guarantees In order to assure the traceability to other national and international laboratories, DEKRA has a calibration and maintenance program for its measurement equipment. DEKRA Testing and Certification S.A.U. guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated on the report and, it is based on the knowledge and technical facilities available at DEKRA Testing and Certification at the time of performance of the test. DEKRA Testing and Certification S.A.U. is liable to the client for the maintenance of the confidentiality of all information related to the item under test and the results of the test. The results presented in this Assessment Report apply only to the particular item under test established in this document. IMPORTANT: No parts of this report may be reproduced or quoted out of context, in any form or by any means, except in full, without the previous written permission of DEKRA Testing and Certification S.A.U. General conditions 1. This report is only referred to the item that has undergone the assessment. 2. This report does not constitute or imply on its own an approval of the product by the Certification Bodies or competent Authorities. 3. This document is only valid if complete; no partial reproduction can be made without previous written permission of DEKRA Testing and Certification S.A.U. 4. This test report cannot be used partially or in full for publicity and/or promotional purposes without previous written permission of DEKRA Testing and Certification S.A.U. and the Accreditation Bodies Data provided by the client The following data has been provided by the client: 1. Information relating to the description of the sample ("Identification of the item tested", "Trademark", "Model and/or type reference tested"). 2. Maximum output power and maximum antenna gain information. 3. VW MIB Regio is a Display Audio Infotainment Unit with capacitive 10”TP touch screen with following functionalities: USB 3.1/USB Video, USB Hub, Bluetooth EDR 2.4 GHz, Audio BT streaming music, control and browsing, Wi-Fi hotspot Functionality/Wireless 2.4GHz and 5 GHz band, GNSS receiver- GLONASS, GPS. DEKRA Testing and Certification S.A.U. declines any responsibility with respect to the information provided by the client and that may affect the validity of results. Identification of the client VISTEON CORPORATION ONE VILLAGE CENTER DRIVE, VAN BUR…

Text truncated - open the document above for the full version.

DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2501BERM.007 11-27-2019 FCC LISTED, REGISTRATION NUMBER: 2764.01 ISED LISTED REGISTRATION NUMBER: 23595-1 Test report No: 2501BERM.007 Test report USA FCC Part 15.247, 15.209, 15.207 CANADA RSS-247, RSS-Gen Radio Frequency Devices. Operation within the bands 902 - 928 MHz, 2400 -2483.5 MHz, and 5725 - 5850 MHz. Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and License-Exempt Local Area Network (LE-LAN) Devices. Identification of item tested Display Audio Infotainment Unit 10”TP Trademark Visteon Model and /or type reference VW MIB Regio Other identification of the product FCC ID: NT8-VWMIBREGIO IC: 3043A-VWMIBREGIO HW Version: H04 SW Version: 0107 Features FM, AM, USB, Bluetooth, WLAN, GNSS Manufacturer VISTEON CORPORATION ONE VILLAGE CENTER DRIVE, VAN BUREN TOWNSHIP, MI, 48111 U.S.A Test method requested, standard USA FCC Part 15.247, 10-1-18 Edition: Operation within the bands 902 - 928 MHz, 2400 -2483.5 MHz, and 5725 - 5850 MHz. USA FCC Part 15.209, 10-1-18 Edition: Radiated emission limits; general requirements CANADA RSS-247 Issue 2 (February 2017). CANADA RSS-Gen Issue 5 (April 2018). 558074 D01 15.247 Meas Guidance v05r02. Guidance for Compliance Measurements on Digital Transmission Systems, Frequency Hopping Spread Spectrum System, and Hybrid System Devices Operating Under section §15.247 of the FCC Rules ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices. Summary IN COMPLIANCE Approved by (name / position & signature) Domingo Galvez EMC&RF Lab Manager Date of issue 11-27-2019 Report template No FDT08_21 DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2501BERM.007 Page 2 of 163 11-27-2019 Index Competences and guarantees .................................................................................................... 3 General conditions ...................................................................................................................... 3 Uncertainty ................................................................................................................................. 3 Data provided by the client .......................................................................................................... 4 Usage of samples ....................................................................................................................... 4 Test sample description .............................................................................................................. 5 Identification of the client............................................................................................................. 6 Testing period and place ............................................................................................................. 6 Document history ........................................................................................................................ 6 Environmental conditions ............................................................................................................ 7 Remarks and comments ............................................................................................................. 7 Testing verdicts ........................................................................................................................... 7 Summary .................................................................................................................................... 8 List of equipment used during the test......................................................................................... 9 Appendix A: Test results (Bluetooth EDR) ................................................................................ 10 Appendix B: Test results (WI-FI 2.4GHz) .................................................................................. 78 DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2501BERM.007 Page 3 of 163 11-27-2019 Competences and guarantees DEKRA Certification Inc. is a testing laboratory accredited by A2LA (The American Association for Laboratory Accreditation), to perform the tests indicated in the Certificate 2764.01 DEKRA Certification Inc. is a testing laboratory competent to carry out the tests described in this report. In order to assure the traceability to other national and international laboratories, DEKRA Certification Inc. has a calibration and maintenance program for its measurement equipment. DEKRA Certification Inc. guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated on the report and, it is based on the knowledge and technical facilities available at DEKRA Certification at the time of performance of the test. DEKRA Certification Inc. is liable to the client for the maintenance of the confidentiality of all information related to the item under test and the results of the test. The results presented in this Test Report apply only to the particular item under test established in this document. IMPORTANT: No parts of this report may be reproduced or quoted out of context, in any form or by any means, except in full, without the previous written permission of DEKRA Certification Inc. General conditions 1. This report is only referred to the item that has undergone the test. 2. This report does not constitute or imply on its own an approval of the product by the Certification Bodies or competent Authorities. 3. This document is only valid if complete; no partial reproduction can be made without previous written permission of DEKRA Certification Inc. 4. This test report cannot be used partially or in full for publicity and/or promotional purposes without …

Text truncated - open the document above for the full version.

DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2501BERM.007 Page 91 of 163 11-27-2019 TESTED SAMPLES: S/01 TESTED CONDITIONS MODES: TC#03 (n20 mode 20 MHz) TEST RESULTS: PASS Lowest frequency 2412 MHz Middle frequency 2437 MHz Highest frequency 2462 MHz 6dB bandwidth (MHz) 17.750 17.750 17.750 Occupied bandwidth (MHz) 17.700 17.700 17.800 Measurement uncertainty (kHz) <± 1.80 6dB Measurement Setting Instrument Value Instrument Value Instrument Value Start Frequency 2.39200 GHz 2.41700 GHz 2.44200 GHz Stop Frequency 2.43200 GHz 2.45700 GHz 2.48200 GHz Span 40.00 MHz 40.000 MHz 40.000 MHz RBW 100.000 kHz 100.000 kHz 100.000 kHz VBW 300.000 kHz 300.000 kHz 300.000 kHz Sweep Points 800 800 800 Sweep time 56.836 μs 56.836 μs 56.836 μs Reference Level 20.000 dBm 10.000 dBm 10.000 dBm Attenuation 40.000 dB 30.000 dB 30.000 dB Detector MaxPeak MaxPeak MaxPeak Sweep Count 100 100 100 Filter 3 dB 3 dB 3 dB Trace Mode Max Hold Max Hold Max Hold Sweep type FFT FFT FFT Preamp off off off Stable mode Trace Trace Trace Stable value 0.50 dB 0.50 dB 0.50 dB Run 40 / max. 150 40 / max. 150 51 / max. 150 Stable 5 / 5 5 / 5 5 / 5 Max Stable Difference 0.43 dB 0.44 dB 0.48 dB DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2501BERM.007 Page 92 of 163 11-27-2019 TEST RESULTS (Cont.): 6 dB BANDWIDTH Lowest Channel Middle Channel Highest Channel DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2501BERM.007 Page 93 of 163 11-27-2019 TEST RESULTS (Cont.): OBW Measurement Setting Instrument Value Instrument Value Instrument Value Start Frequency 2.39200 GHz 2.41700 GHz 2.44200 GHz Stop Frequency 2.43200 GHz 2.45700 GHz 2.48200 GHz Span 40.00 MHz 40.000 MHz 40.000 MHz RBW 200.000 kHz 200.000 kHz 200.000 kHz VBW 1.000 MHz 1.000 MHz 1.000 MHz Sweep Points 400 400 400 Sweep time 28.477 μs 28.477 μs 28.477 μs Reference Level 10.000 dBm 10.000 dBm 10.000 dBm Attenuation 30.000 dB 30.000 dB 30.000 dB Detector MaxPeak MaxPeak MaxPeak Sweep Count 100 100 100 Filter 3 dB 3 dB 3 dB Trace Mode Max Hold Max Hold Max Hold Sweep type FFT FFT FFT Preamp off off off Stable mode Trace Trace Trace Stable value 0.30 dB 0.30 dB 0.30 dB Run 47 / max. 150 21 / max. 150 38 / max. 150 Stable 3 / 3 3 / 3 3 / 3 Max Stable Difference 0.15 dB 0.06 dB 0.07 dB DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2501BERM.007 Page 94 of 163 11-27-2019 TEST RESULTS (Cont.): OCCUPIED BANDWIDTH Lowest Channel Middle Channel Highest Channel DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2501BERM.007 Page 95 of 163 11-27-2019 TESTED SAMPLES: S/01 TESTED CONDITIONS MODES: TC#03 (n20 mode 40 MHz) TEST RESULTS: PASS Lowest frequency 2422 MHz Middle frequency 2437 MHz Highest frequency 2452 MHz 6dB bandwidth (MHz) 36.450 36.400 36.450 Occupied bandwidth (MHz) 36.250 36.500 36.500 Measurement uncertainty (kHz) <± 1.80 6dB Measurement Setting Instrument Value Instrument Value Instrument Value Start Frequency 2.38200 GHz 2.39700 GHz 2.41200 GHz Stop Frequency 2.46200 GHz 2.47700 GHz 2.49200 GHz Span 80.00 MHz 80.00 MHz 80.00 MHz RBW 100.000 kHz 100.000 kHz 100.000 kHz VBW 300.000 kHz 300.000 kHz 300.000 kHz Sweep Points 1600 1600 1600 Sweep time 94.727 μs 94.727 μs 94.727 μs Reference Level 20.000 dBm 10.000 dBm 20.000 dBm Attenuation 40.000 dB 30.000 dB 40.000 dB Detector MaxPeak MaxPeak MaxPeak Sweep Count 100 100 100 Filter 3 dB 3 dB 3 dB Trace Mode Max Hold Max Hold Max Hold Sweep type FFT FFT FFT Preamp off off Off Stable mode Trace Trace Trace Stable value 0.50 dB 0.50 dB 0.50 dB Run 91 / max. 150 77 / max. 150 77 / max. 150 Stable 5 / 5 5 / 5 5 / 5 Max Stable Difference 0.15 dB 0.47 dB 0.28 dB DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2501BERM.007 Page 96 of 163 11-27-2019 TEST RESULTS (Cont.): 6 dB BANDWIDTH Lowest Channel Middle Channel Highest Channel DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2501BERM.007 Page 97 of 163 11-27-2019 TEST RESULTS (Cont.): OBW Measurement Setting Instrument Value Instrument Value Instrument Value Start Frequency 2.38200 GHz 2.39700 GHz 2.41200 GHz Stop Frequency 2.46200 GHz 2.47700 GHz 2.49200 GHz Span 80.00 MHz 80.00 MHz 80.00 MHz RBW 500.000 kHz 500.000 kHz 500.000 kHz VBW 2.000 MHz 2.000 MHz 2.000 MHz Sweep Points 320 320 320 Sweep time 18.906 μs 18.906 μs 18.906 μs Reference Level 10.000 dBm 10.000 dBm 10.000 dBm Attenuation 30.000 dB 30.000 dB 30.000 dB Detector MaxPeak MaxPeak MaxPeak Sweep Count 100 100 100 Filter 3 dB 3 dB 3 dB Trace Mode Max Hold Max Hold Max Hold Sweep type FFT FFT FFT Preamp off Off Off Stable mode Trace Trace Trace Stable value 0.30 dB 0.30 dB 0.30 dB Run 60 / max. 150 48 / max. 150 61 / max. 150 Stable 3 / 3 3 / 3 3 / 3 Max Stable Difference 0.00 dB 0.02 dB 0.25 dB DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2501BERM.007 Page 98 of 163 11-27-2019 TEST RESULTS (Cont.): OCCUPIED BANDWIDTH Lowest Channel Middle Channel Highest Channel DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2501BERM.007 Page 99 of 163 11-27-2019 TEST B.2: MAXIMUM CONDUCTED OUTPUT POWER AND ANTENNA GAIN LIMITS: Product standard: Part 15 Subpart C §15.247 and RSS-247 Test standard: Part 15 Subpart C §15.247(b) and RSS-247 5.4(d) LIMITS For systems using digital modulation in the 2400 -2483.5 MHz band: 1 watt (30 dBm). The e.i.r.p. shall not exceed 4 W (RSS-247). TEST SETUP The EIRP power (dBm) is calculated by adding the declared maximum antenna gain to the measured conducted power DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2501BERM.007 Page 1…

Text truncated - open the document above for the full version.

DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2501BERM.007 11-27-2019 Appendix C: Photographs DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2501BERM.007 Page 2 of 3 11-27-2019 Figure C1: Conducted DUT Set up FigureC2. Radiated Setup – High Range DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2501B…

Text truncated - open the document above for the full version.
