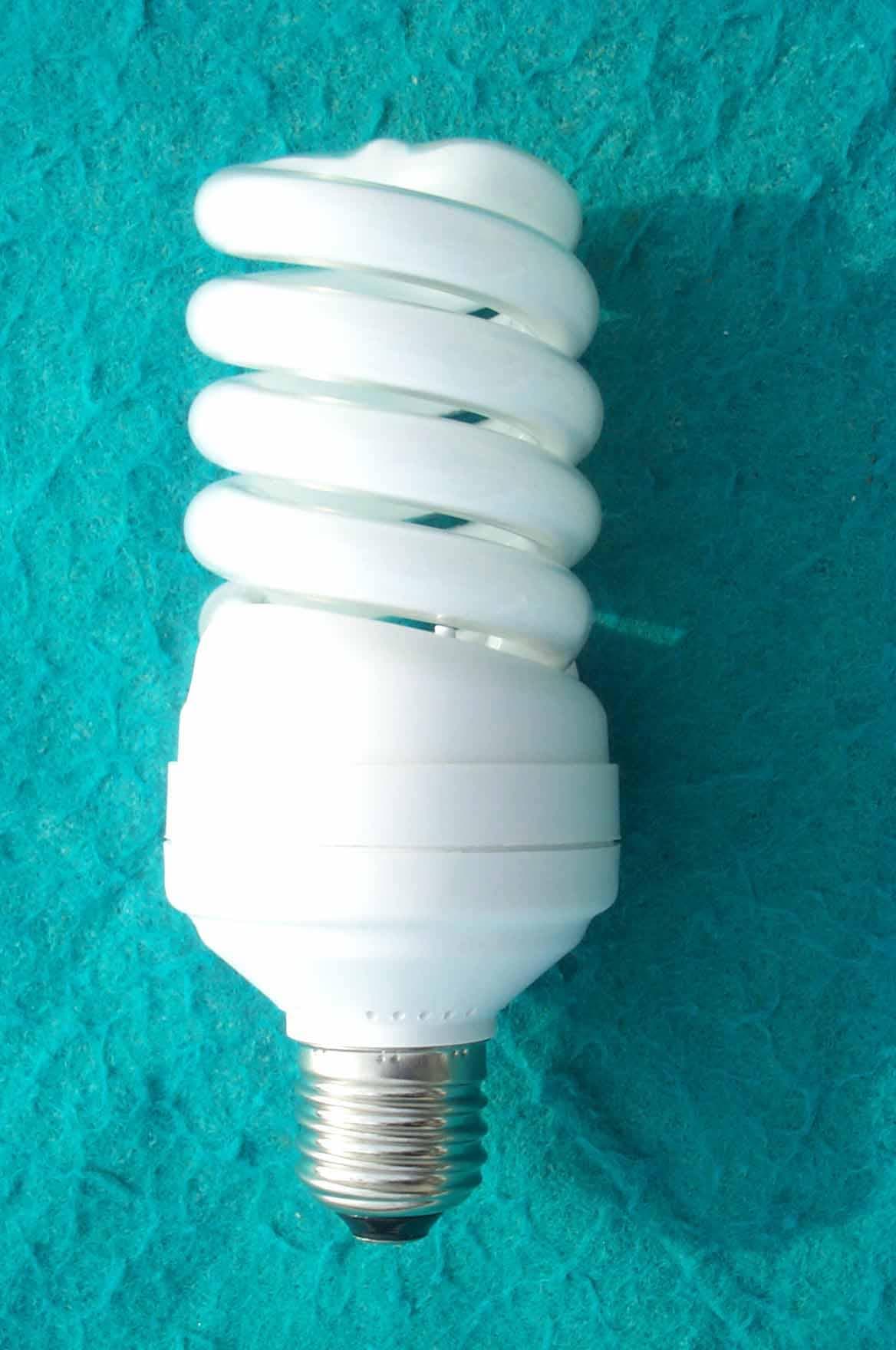

NTHESL1225Self-Ballasted Lamp

SK TECH CO., LTD. Page 1 of 2 SKT SKTOS-00137 FCC ID : NTHESL1225 External Photographs of EUT SK TECH CO., LTD. Page 2 of 2 SKT SKTOS-00137 FCC ID : NTHESL1225

SK TECH CO., LTD. Page 1 of 1 SKT SKTOS-00137 FCC ID : NTHESL1225 FCC ID Sample Label & Location Information LABELLING REQUIREMENTS PER ∫∫∫∫ ∫∫∫∫∫∫∫∫ ∫∫∫∫2.928 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. FCC ID : NTHESL1225

SK TECH CO., LTD. Page 1 of 2 SKT SKTOS-00137 FCC ID : NTHESL1225 Internal Photographs of EUT SK TECH CO., LTD. Page 2 of 2 SKT SKTOS-00137 FCC ID : NTHESL1225

SK TECH CO., LTD. Page 1 of 12 SKT SKTOS-00137 FCC ID : NTHESL1225 Certificate of Compliance Test Report No.: SKTOS-00137 NVLAP CODE : 200220-0 Applicant: Jung Woo International Inc. Applicant Address: 495-4, Chowonjee-Ri, Daegoc-Myun, Kimpo-City, Kyonggi-Do, 415-850, Korea Product: SELF-BALLASTED LAMP FCC ID: NTHESL1225 Model No.: ESL1225 Receipt No.: SKE20001027-779 Date of receipt: Oct. 27, 2000 Date of Issue: Nov. 06, 2000 Testing location: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Standards: ANSI C63.4 / 1992 Rule Parts: FCC part 18 Equipment Class : RF lighting devices ( Consumer Equipment ) Test Result: The above mentioned product has been tested and passed. Prepared by:Y.H. Kang Tested by:K.H.Nam/Engineer Approved by: J.Y.Hyun /Lab.Manager Signature Date Signature Date Signature Date Other Aspects : Abbreviations : · OK, Pass = passed · Fail = failed · N/A = not applicable ☞ ☞☞ ☞ •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 12 SKT SKTOS-00137 FCC ID : NTHESL1225 》》 》》》》 》》 Contents 《《 《《《《 《《 Contents 2 List of Tables 2 List of Figures 2 List of Photographs 2 1. General 3 2. Test Site 3 2.1 Location 3 2.2 List of Test and Measurement Instruments 4 2.3 Test Data 4 2.4 Test Environment 4 3. Description of the tested samples 5 3.1 Rating and Physical characteristics 5 3.2 Submitted documents 5 4. Measurement conditions 6 4.1 Modes of operation 6 4.2 List of Peripherals 6 4.3 Type of Used cables 6 4.4 Test Setup 6 4.5 Uncertainty 6 5. Emission Test 7 5.1 Conducted Emissions 7 5.2 Radiated Emissions 11 》 》》 》List of Tables Table 1 List of test and measurement equipment 4 Table 2 Test Data, Conducted Emissions 10 Table 3 Test Data, Radiated Emissions 12 》 》》 》List of Figures Figure 1 Spectral Diagram, LINE-PE 8 Figure 2 Spectral Diagram, Neutral-PE 9 SK TECH CO., LTD. Page 3 of 12 SKT SKTOS-00137 FCC ID : NTHESL1225 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. All measurements reported herein were performed by SK Tech Co., Ltd. and were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site SK TECH Co., Ltd. 2.1 Location 820-2, Wolmoon Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea The test site is in compliance with ANSI C63.4/1992 for measurement of radio interference. SK TECH CO., LTD. Page 4 of 12 SKT SKTOS-00137 FCC ID : NTHESL1225 2.2 List of Test and Measurement Instruments Table 1 : List of Test and Measurement Equipment z Conducted Emissions Kind of Equipment Type S/N Calibrated until Field Strength Meter ESHS 10 862970/019 04.2001 LISN KNW-407 M63284 07.2001 LISN ESH2-Z5 862060/029 06.2001 Conducted Cable N/A N/A 07.2001 z Radiated Emissions Kind of Equipment Type S/N Calibrated until Field Strength Meter ESVS 10 825120/013 04.2001 Spectrum Analyzer R3361A 11730187 07.2001 Amplifier 8447F 3113A05153 05.2001 Log Periodic Antenna UHALP9107 91071238 04.2001 Biconical Antenna BBA9106 N/A 04.2001 Open Site Cable N/A N/A 07.2001 Antenna Mast 5907 N/A N/A Antenna & Turntable controller 5906 91X519 N/A Amp & Receiver connection cable N/A N/A 07.2001 Amp & Spectrum connection cable N/A N/A 07.2001 50Ω Switcher MP59B M93083 07.2001 2.3 Test Date Date of Application : Oct. 27, 2000 Date of Test : Oct. 27, 2000 2.4 Test Environment See each test item’s description. SK TECH CO., LTD. Page 5 of 12 SKT SKTOS-00137 FCC ID : NTHESL1225 3. Description of the tested samples The EUT is Self-Ballasted Lamp. 3.1 Rating and Physical Characteristics • Consumption Power : 23W • Input Voltage : AC 120V • Input Current : 330mA • Frequency of input line : 60Hz • Life : 10,000 Hrs 3.2 Submitted Documents N/A SK TECH CO., LTD. Page 6 of 12 SKT SKTOS-00137 FCC ID : NTHESL1225 4. Measurement Conditions Testing Input Voltage : AC 120V, 60Hz 4.1 Modes of Operation The EUT was in the following operation mode during all testing; After warming up time of 30 minutes, Testing in mode of Lamp on. 4.2 List of Peripherals Description Manufacturer Model Name Serial No. FCC ID None 4.3 Type of Used Cables Description Length Type of shield Manufacturer Remark None 4.4 Test Setup The test setup photographs showed the external supply connections and interfaces. 4.5 Uncertainty 1) Radiated disturbance Uc (Combined standard Uncertainty) = ±1.9dB Expanded uncertainty U = KUc K = 2 ∴ U = ±3.8dB 2) Conducted disturbance Uc = ±0.88dB U = KUc = 2xUc = ±1.8dB SK TECH CO., LTD. Page 7 of 12 SKT SKTOS-00137 FCC ID : NTHESL1225 5. EMISSION Test 5.1 Conducted Emissions Result: Pass The line-conducted facility is located inside a 2.0M x 3.6M x 7.2M shielded enclosure. The shielding effectiveness of the shielded room is in accordance with MIL-Std-285 or NSA 604-05. A 1m x 1.5m wooden table 40cm. high is placed 40cm. away from the vertical wall and 1.5m away from the side wall of the shielded room. Kyoritsu Model KNW-407 (10kHz-30MHz) 50ohm/50 uH Line-Impedance Stabilization Networks(LISNs) are bonded to the shielded room. The EUT is powered from the Kyoritsu LISN and the support equipment is powered from the Kyoritsu LISN. Power to the LISNs are filtered by a high-current high-insertion loss Lindgren enclosures power line filters (100dB 14kHz-10GHz). The purpose of the filter is to attenuate am…

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 2 SKT SKTOS-00137 FCC ID : NTHESL1225 Test set up photos Photograph 1: Setup for Conducted Emissions SK TECH CO., LTD. Page 2 of 2 SKT SKTOS-00137 FCC ID : NTHESL1225 Photograph 2: Setup for Radiated Emissions
