NTUPS-300RCar Parking Safety System

OPERATING MANUAL CAR PARKING SENSOR WITH WIRELESS DISPLAY UNIT MODEL : YPS-300M The Ultrasonic Car Parking Safety Device has been engineered with the highest technology and equipped with the most advanced wireless features. The system helps the driver to be in better control when reversing. When the car approaches too close to an object in the detection zone, an alarm sounds, increasing the intensity in proportional to distance from the object, simultaneously displaying the direction of right or left side and distance. This allows the driver to have better control when parking in tight spaces and greatly improving safety and judgments. • OPERATING METHODS When in reverse, the system sounds a beep and senses the first detection zone (within1.6m(5.0ft) distance), second zone at 1.0m(3.0ft) and the third zone at 0.6m(2.0ft) the alarm sounds progressively. From 0.4m(1.0ft) the alarm sounds continually indicating the driver to stop. For the driver with hearing problems the displays shows 0.0m(0.0ft) the actual distance is 0.1m(0.5ft). This system also indicates the closest side to an object left or right. • FEATURES • Compact and unique display unit • Built-in buzzers both display and main body • 4 stage audio and visual LCD display from 1.6 meters to 0.4meters • 2 ultrasonic sensors installed on or under the rear bumper • Display's distance, direction and sound. • Aids reversing in all weathers. • Easy Installation on any vehicle. • Especially design with wireless LCD display). • No scratches. • SPECIFICATIONS Detection : Ultrasonic sensor lnput power : 9VOLTS TO 16VOLTS DC Operating temperature : -20 ° C ~ 60 ° C Length of wiring :2 Meters(Sensor), 4 Meters( Main module& monitor power wire ) DETECTION RANGE DISPLAY : 0.4METERS TO 1.6 METERS Current consumption : 30mA( Main module ), 85mA( Monitor ) Dimension : 70(W) X 93(L) X 33(H) Main control module 66(w) X 62(L) X 40(H) Wireless monitor Weight (with blister packing) : 357g ♦ OPERATING DISTANCE DISPLAY STE P DISTANCE(CM ) BEEP SOUNDMONITOR DISPLAY REMARK( MODE ) 1OVER 200 CMN/A “ • •• • “ FLASHING REVERSING MODE 2 160-200 CM N/A“ 2.0 ” – “ 1.6”DISPLAY DETECTING THE OBJECT 3 100-160 CMSLOWLY BEEPING “ 1.6 “ – “ 1.0 “ DISPLAY 1 ST ALARM (1 st NOTICE MODE) 4 60-100 CMNORMALLY BEEPING “ 0.6 “ – “ 1.0 ” DISPLAY 2 ND ALARM (2 ND NOTICE MODE) 5 40 – 60 CMQUICKLY BEEPING “0.4 “ – “ 0.6 “ DISPLAY 3 RD ALARM ( WARNING MODE) 6 WITHIN 40 CMCONTINUOUS BEEPING “ 0.4 “ & “ 0 “ DISPLAY SEQUENTLY STOPPING THE CAR DRIVING ♦ PROGRAMMING MODE A. BEEP SOUNDING ON/OFF IN THE MONITOR The beep sounding will be OFF with one beep sounding if you press the switch for 2 seconds in the back of the monitor by using a small screw driver and the beeping sound will be ON with one beep sounding if you repeat above process. B. REMOTE CODE PROGRAMMING IN THE MONITIOR Turn on the power( plug-in the connector) in the condition of pressing the switch in the monitor. You will hear one beep sounding in the monitor and then turn on the power( plug-in the connector) in the main control module. You will hear one beep sounding to confirm code programming. C. HOW TO SWITCH FROM METERS TO FEET Follow instructions in step one, depressing the switch for 6 seconds and the display will toggle between meters and feet display. NOTE 1. The YPS-300M is operated only when reversing the car. 2. Please keep cleaning the ultrasonic sensor for correct operation. 3. The system cannot be often operated in the small object such as wire, rope, sponge or textile etc. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

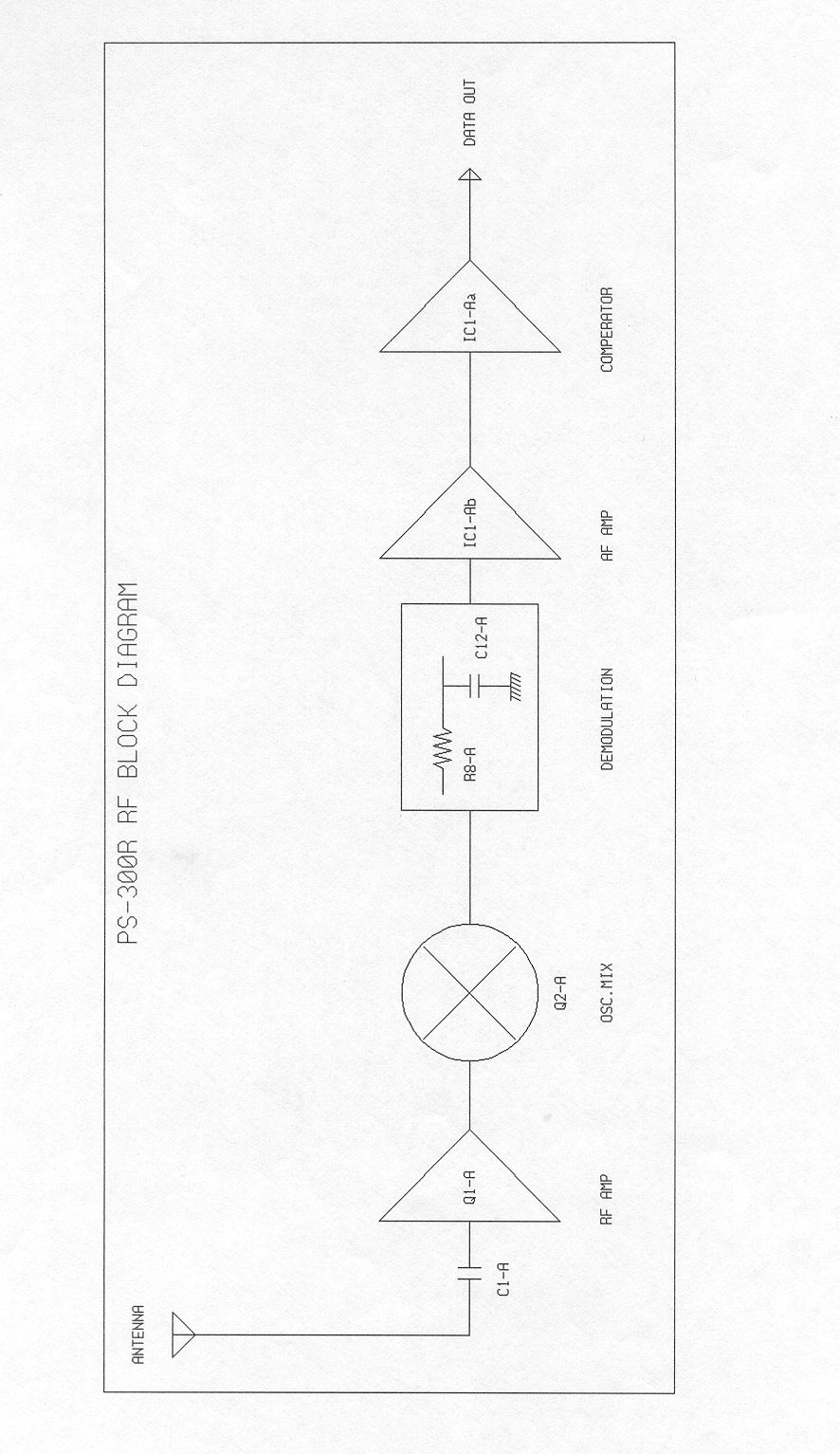

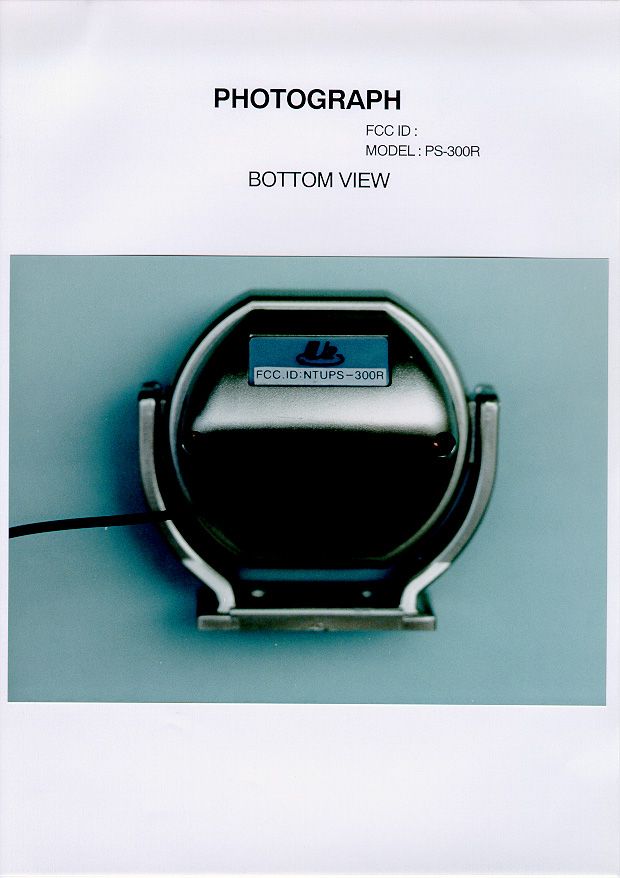

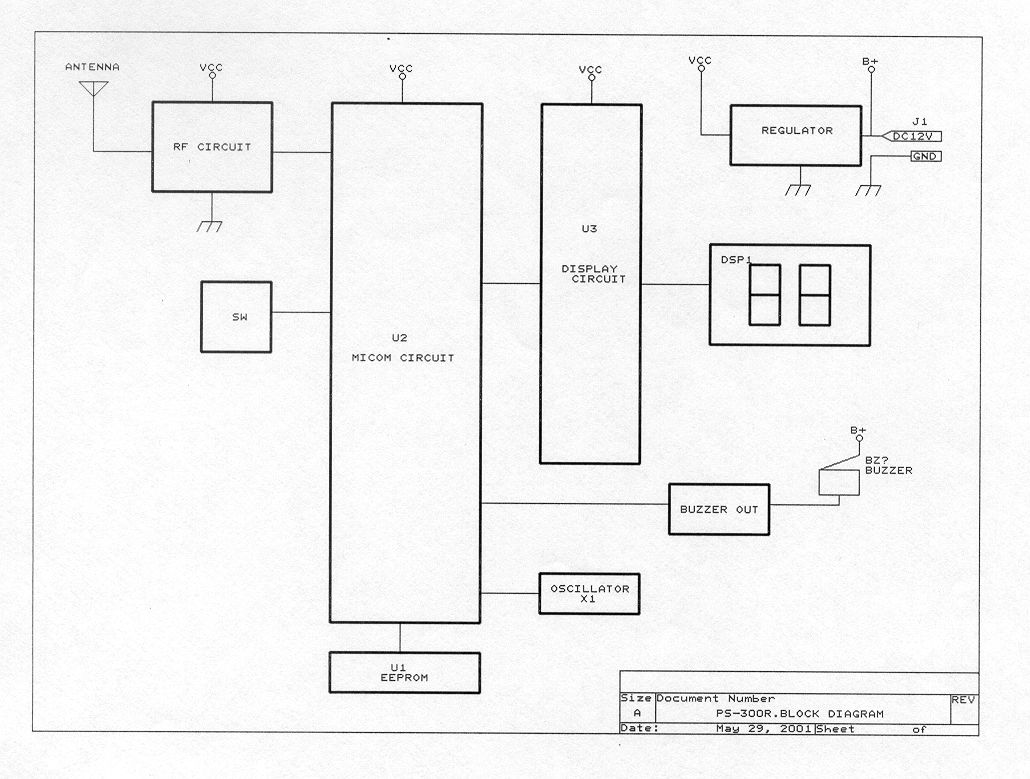

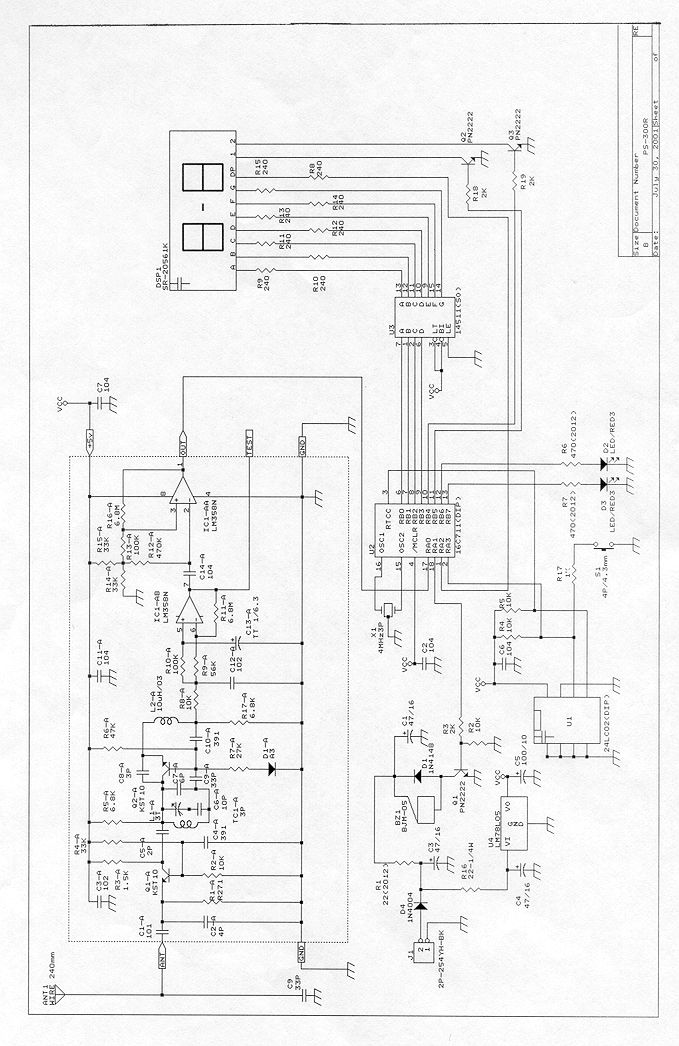

Description of Circuit Function FCC ID : PS-300R DATE : MAY 31, 2001 MODEL : YPS-300M The monitor is displayed by Numbers through LED lamp and output the beeper sounding. The input signal through the antenna is delivered to the IC U2 the data only composed by 24 bit via Q1-A, Q2-A and JC1-A. The data in U2 is displayed by numbers and sounding after delivering the display unit composed by IC U3 and FNd DSP1 and beeper output circuit composed by transistor Q1 by calculating in the program. The IC U4 is normal voltage use and the IC U1 is data storing use.

KTL Korea Testing Laboratory Page 1 of 9 TEST REPORT This test report only responds to the tested sample and shall not be reproduced except in full without written approval of the Korea Testing Laboratory. Tested and reported by Reviewed by Jeong-Min Kim , Senior Engineer Won-Seo Cho , EMC Team Leader KOREA TESTING LABORATORY FG101-01-02-00 222-13, Guro-Dong Guro-Gu Seoul Korea 152-053 http://www.ktl.re.kr Ref. Report No. 01-341-030-02 Name and address of the applicant Young Jin Electronics Co., Ltd. 335-151, Sangdo-3dong, Dongjak-ku, Seoul, 156-033, Korea Standard / Test regulation FCC Part 15, Subpart B Test result Pass Incoming date : July 01, 2001 Test item( s) ; Superregenerative Receiver (Car Parking Safety System) Model/type ref. ; YPS-300M Manufacturer ; Young Jin Electronics Co., Ltd. Additional information ; -Re quire d Aut ho riz atio n : Ce rtificatio n -FCC ID. : NTUPS-300R Test date : July 30, 2001Issue date : July 31, 2001 Ref. Report No. 01-341-030-02 Page 2 of 9 TABLE O F CONTENTS I. GENERAL INFORMATION ............................................................................................................ 3 1. Grantee’s Name and Mailing Address 2. Manufacturer's Name and Mailing Address 3. Equipment Descriptions 4. Rules and Regulations 5. Measuring Procedure 6. Date of Measurement α. GENERAL REQUIREMENTS OF THE EUT .................................................................4 1. Labelling Requirement (Section 15.19) 2. Information to User (Sections 15.21) 3. Special Accessories (Section 15.27) β. RADIATED EMISSION MEASUREMENT (Section 15.109) .......................................................5-8 1. Test Procedure 2. Photograph for the test configuration 3. Sample Calculation 4. Measurement Data 5. Reference Data χ. TEST EQUIPMENTS USED FOR MEASUREMENT..................................................................9 Ref. Report No. 01-341-030-02 Page 3 of 9 . GENERAL INFORMATION 1. Grantee’s Name and : Young Jin Electronics Co., Ltd. Mailing Address 335-151, Sangdo-3dong, Dongjak-ku, Seoul, 156-033, Korea 2. Manufacturer's Name and : Young Jin Electronics Co., Ltd. Mailing Address 335-151, Sangdo-3dong, Dongjak-ku, Seoul, 156-033, Korea 3. Equipment Descriptions 3.1 Tunning Frequency : 315 MHz 3.2 Detect Method : Superregenerative Detector 3.3 Power Supply: DC 12 V(Car Battery) 4. Rules and Regulations: FCC Part 15, Subpart B 5. Measuring Procedure: ANSI C63.4-1992 6. Date of Measurement 6.1 Line Conducted: Not Applicable 6.2 Radiated Emission : July 30, 2001 Ref. Report No. 01-341-030-02 Page 4 of 9 . GENERAL REQUIREMENTS O F THE EUT 1. Labelling Requirement (Section 15.19) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interface, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1.1 Location of Label : User’s Guide Manual 1.2 How Applied : Printed 2. Information to User (Section 15.21) The following or similar statements were provided in the manual for user instruction. Please refer page 2 of the attached manual for details. CA UT ION : A ny c ha nges or modifications i n cons truc tion o f this device w hich are not e xpressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 3. Special Accessories (Section 15.27) 3.1 Were the special Accessories provided? [ ] yes, [ x ] no 3.2 If yes, details for the special accessories are as follows : 3.3 If yes, were the appropriate instructions provided on the first page of the text concerned with the device? [ ] yes, [ ] no 3.4 Are these accessories provided of the type which can be readily obtained from multiple retail outlets ? [ ] yes, [ ] no And therefore does the manual specify what additional components or accessories are required to used in order to comply with the Rules? [ ] yes, [ ] no Ref. Report No. 01-341-030-02 Page 5 of 9 . RADIATED EMISSION MEASUREMENT (Section 15.109) 1. Test Procedure 1.1 Preliminary Testing for Reference Preliminary testing was performed in a KTL absorber-lined room to determine the emission characteristics of the EUT. The EUT was placed on the wooden table which has dimensions of 0.8 meters in height, 1 meter in length and 1.5 meters in width. Receiving antenna (Biconical antenna : 30 to 300 MHz, Log-periodic antenna : 200 to 1000 MHz or Horn Antenna : 1 to 18 GHz) was placed at the distance of 1 meter from the EUT. In order to cohere the individual components of the characteristic broadband emission from the receiver(EUT), a RF generator(CW signal) and a log-periodic antenna were used. The frequency and output level of the generator were adjusted for highest observed coherent receiver emissions on the spectrum analyzer with RF amplifier. An attempt was made to maximize the emission level with the various configurations of the EUT. The effect of changing the position of the cable was observed to find the worst case configuration while rotating the table and varying antenna height and it’s polarization. Radiated and spurious emissions were checked from 30 MHz to 3000 MHz according to section 15.33. 1.2 Final Radiated Emission Test at an Absorber-Lined Room The final measurement of radiated field strength was carried out in a KTL Absorber-Lined Room that was listed up at FCC according to the "Radiated Emissions Testing" procedure specified by ANSI C63.4. Based on the test results in preliminary test, measurement was made in same test set up and configuration which produced maximum emission level. Receiving antenna was installed at 3-meter distance from the EUT, and was connected to an EMI receiver or spectrum analyzer(for above 1 GHz) with a RF amplifier. Turntable was rotated through 360 degrees and receiving antenna height was varied from 1 to 4 meters above the ground plane to read maximum emission level. The maximum emission level from the EUT occurred i…

Text truncated - open the document above for the full version.

Ref. Report No. 01-341-030-02 Page 6 of 9 2. Photograph of the test configuration 3. Sample Calculation The emission level measured in decibels above one microvolt (dB) was converted into microvolt per meter (/m) as shown in following sample calculation. For example : Measured Value at 315.9 MHz 17.7 dB + Antenna Factor 14.0 dB/m + Cable Loss 3.3 dB - Preamplifier 0.0 dB - Distance Correction Factor * 0.0 dB -------------------------------------------------------------------------------- = Radiated Emission 35.0 dB/m ( = 56.2 /m) * Extrapolated from the measured distance to the specified distance by an inverse linear distance extrapolation.
