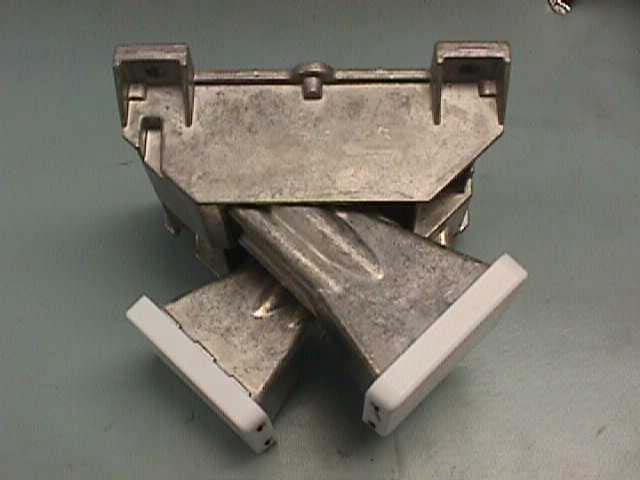

NTV-90137673Doppler Effect Ground Speed Sensor

TÜV America Inc. Phone: (651) 638-0297 19333 Wild Mountain Road Fax: (651) 638-0298 Taylor Falls, MN 55084 E-mail: [email protected] www.TUVamerica.com Management Service • Product Service • Industry Service • Automotive • BABT TÜV America Inc. is a subsidiary of TÜV SÜD Group. TÜV AMERICA INC - PRODUCT SERVICE 19333 WILD MOUNTAIN ROAD TAYLORS FALLS, MINNESOTA 55084-1786 ENGINEERING STATEMENT For Certification of Phoenix International Corporation Eagle Radar Ground Speed Sensor Model No: 90-137673 FCC ID: NTV-90137673 FRN: 0006-6733-62 I am an Electromagnetic Compatibility Engineer for TÜV AMERICA INC - PRODUCT SERVICE, Taylors Falls, Minnesota. My education and experience are a matter of record with the Federal Communications Commission. TÜV AMERICA INC - PRODUCT SERVICE has been authorized by Paul A Nystuen, Vice President of Engineering, of Phoenix International Corporation, to make Certification measurements and act as the authorized representative in the preparation of applications for registration of the above mentioned equipment. TÜV AMERICA INC - PRODUCT SERVICE is on file with the FCC under Paragraph 2.948 of the FCC Rules. Test data required by the TCB for Certification is included in this report. It is submitted that the above equipment meets the FCC Part 15 requirements and Certification is hereby requested. Joel T. Schneider Senior Engineer TÜV America - Product Service Tel: 651 604 4582 Fax: 651 638 0298 [email protected] Dated: 14 June 2005

TÜV America Inc. Phone: (651) 638-0297 19333 Wild Mountain Road Fax: (651) 638-0298 Taylor Falls, MN 55084 E-mail: [email protected] www.TUVamerica.com Management Service • Product Service • Industry Service • Automotive • BABT TÜV America Inc. is a subsidiary of TÜV SÜD Group. Declaration of Compliance to FCC CFR Part 2, Section 2.1091 Radiofrequency radiation exposure evaluation: mobile devices The Phoenix International, Eagle Radar - Ground Speed Sensor, Model 90-137673, is a “Mobile Device” ( sec. 2.1091(b) ). It measures the true ground speed of various agricultural equipment using K-band doppler radar technology and is normally mounted below the vehicle. It operates at a frequency of 24.125 GHz with an ERP of 0.746 watts and remains separated from humans by at least 20 cm. The device is exempt from RF evaluation because of an operating frequency greater than 1.5GHz and an ERP less than 3 watts ( sec. 2.1091 (c) ). ERP is calculated from the field strength measurement of 126.1 dBuV/m @ 3 meters. ERP(dBm) = F(dBuV/m) - 106.92 + 20log D(meters) ERP = 126.1 – 106.92 + 20log 3 = 28.73 dBm 28.73 dBm = 0.746 W Whereas; F = Field strength (dBuV/m) D = Measurement distance (meters) Joel T. Schneider Senior Engineer Minnesota Wild River Lab TÜV America Product Service [email protected] Dated: 15 June 2005

PRODUCT SERVICE TEST RESULT SUMMARY FCC PART 15 SUBPART C Section 15.245 Industry Canada RSS-210: Issue 5: 2001 A1: Nov. 2002, A2: Apr. 2003, A3: 2004, A4: 2004 Section 6.2.2(n) MANUFACTURER'S NAME Phoenix International NAME OF EQUIPMENT Eagle Radar Ground Speed Sensor MODEL NUMBER 90-137673 MANUFACTURER'S ADDRESS 1441 44 th St NW Fargo, ND 58102 TEST REPORT NUMBER WC501664 REV. A TEST DATE 04 & 11 April 2005 According to testing performed at TÜV Product Service Inc, the above-mentioned unit is in compliance with the electromagnetic compatibility requirements defined in FCC Part 15 Subpart C Section 15.245 and RSS-210, section 6.2.2(n). It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Any modifications necessary for compliance made during testing on the above mentioned date(s) must be implemented in all production units for compliance to be maintained. TÜV Product Service Inc, as an independent testing laboratory, declares that the equipment tested as specified above conforms to the requirements of FCC Part 15 Subpart C Section 15.245 and RSS-210, section 6.2.2(n). Date: 13 April 2005 Location: Taylors Falls MN J. C. Sausen T. K. Swanson USA Tested By Reviewed By Not Transferable File No. WC501664 REV. A, Page 1 of 30 TÜV PRODUCT SERVICE INC 19333 Wild Mountain Road Taylors Falls MN 55084-1758 Tel: 651 638 0297 Fax: 651 638 0298 Rev.No 1.0 PRODUCT SERVICE EMC EMISSION - T E S T R E P O R T Test Report File No. : WC501664 REV. A Date of issue: 13 April 2005 Model No. : 90-137673 / 100111 Product Name : Eagle Radar Ground Speed Sensor Applicant : Phoenix International Manufacturer : Phoenix International License holder : Phoenix International Address : 1441 44 th St NW : Fargo, ND 58102 Test Result : „ Positive † Negative Test Project Number : Reference(s) WC501664 REV. A Total pages 30 TÜV Product Service Inc is a subcontractor to TÜV Product Service, GmbH according to the principles outlined in ISO/IEC Guide 25 and EN 45001. TÜV Product Service Inc reports apply only to the specific samples tested under stated test conditions. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. TÜV Product Service Inc shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV Product Service Inc issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report shall not be used by the client to claim product endorsement by NVLAP or any agency of the US government. TÜV Product Service Inc and its professional staff hold government and professional organization certifications and are members of AAMI, ACIL, AEA, ANSI, IEEE, NVLAP, and VCCI File No. WC501664 REV. A, Page 2 of 30 TÜV PRODUCT SERVICE INC 19333 Wild Mountain Road Taylors Falls MN 55084-1758 Tel: 651 638 0297 Fax: 651 638 0298 Rev.No 1.0 PRODUCT SERVICE REVISION TOTAL NUMBER OF PAGES DATE DESCRIPTION 13 April 2005 Initial Release A 30 16 June 2005 Revisions include: ƒ Corrected test equipment list on pages 20 and 22. TABLE OF CONTENTS General Information Page(s) Revision History 2 Test Regulations 3 Emission Test Results 4 Measurement Protocol 5 - 6 Deviations / Summary 7 Constructional Data Form(s) and/or Product Information Form(s) 8 - 15 Test data FCC Section RSS-210 Section Fundamental Field Strength 15.245 (b) 6.2.2(n) 17 - 19 Harmonic Emissions 15.245 (b)(1) 6.2.2(n) 20 - 21 Radiated Emissions Outside of the specified frequency bands 15.245(b)(3) 6.2.2(n) 22 - 25 Band Edge Compliance 15.245(b)(3) 6.2.2(n) 26 - 27 Emission Bandwidth N/A 5.9.1 28 - 30 File No. WC501664 REV. A, Page 3 of 30 TÜV PRODUCT SERVICE INC 19333 Wild Mountain Road Taylors Falls MN 55084-1758 Tel: 651 638 0297 Fax: 651 638 0298 Rev.No 1.0 PRODUCT SERVICE EMISSIONS TEST REGULATIONS : The emissions tests were performed according to following regulations: -------------------------------------------------------------------------------- † - EN 50081-1 / 1991 † - EN 55011 / 1998 † - Group 1 † - Group 2 w/Amendment A1:1999 † - Class A † - Class B † - EN 55013 / 1990 † - EN 55014 / 1987 † - Household appliances and similar † - Portable tools † - Semiconductor devices † - EN 55014 / A2: 1990 † - EN 55014 / 1993 † - Household appliances and similar † - Portable tools † - Semiconductor devices † - EN 55015 / 1987 † - EN 55015 / A1:1990 † - EN 55015 / 1993 † - EN 55022 / 1987 † - Class A † - Class B „ - FCC Part 15 Subpart C Section 15.245 † - FCC Part 15 Subpart C Section 15.207 Conducted Emission Requirements „ - RSS-210, Issue 5, 2001 – Section 6.2.2(n) File No. WC501664 REV. A, Page 4 of 30 TÜV PRODUCT SERVICE INC 19333 Wild Mountain Road Taylors Falls MN 55084-1758 Tel: 651 638 0297 Fax: 651 638 0298 Rev.No 1.0 PRODUCT SERVICE Emission Test Results: Fundamental Field Strength [FCC 15.245 (b)], [RSS-210 Section 6.2.2(n)] The requirements are „ - MET † - NOT MET Minimum margin of compliance 1 dB at 24.12 GHz Remarks: The fundamental was measured to be 126.1 dBuV/m (2018.4 mV/m) in peak mode compared to a limit of 127.95 dBuV/m (2500mV/m). Harmonic Emissions [FCC 15.245 (b)(1)], [RSS-210 Section 6.2.2(n)] The requirements are „ - MET † - NOT MET Minimum margin of compliance for Harmonics 34 dB at 48.234 GHz Remarks: The first harmonic harmonic was measured to be 73.1 dBuV/m (4.52 mV/m) in peak mode compared to a limit of 108 dBuV/m (250 mV/m). Radiated Emissions outside of the specified frequency bands [FCC 15.245 (b)(3)], [RSS-210 Section 6.2.2(n)] The requirements are „ - MET † - NOT MET Minimum margin of compliance for spurious emissions 8 dB at 50.99 MHz Remarks: 50.99 MHz was measured to be 31.7 dBuV/m (.038 …

Text truncated - open the document above for the full version.

TEST SETUP FOR EMISSIONS TESTING WILD RIVER LAB Large Test Site Notes: 1. Items shown in dotted lines are located on the floor below the test area. It is 5 meters vertically from the ground floor to the test area. 2. 50 Hz, 60 Hz, and 400 Hz are power panels for alternating current. 3. The antenna may be positioned horizontally 3, 10 or 30 meters from the center of the turntable. 4. The circle is a 6.7 meter diameter turntable. 5. A ground plane is in the plane of this sheet. 6. The test sample is shown in the azimuthal position representing zero degrees. EUT 0 90270 180 60 Hz 50 Hz 400 Hz Shielded Enclosure ANTENNA
