NTV-JDSTG-PSA01AccuSpeed Doppler Effect Speed Sensor

Accuspeed Installation Instructions: FCC Warning: Changes or modifications not expressly approved by Phoenix International could void the user's authority to operate the equipment. Installation: The Accuspeed ground speed sensor is designed as an OEM ground speed sensor, and is to be mounted from 45 cm to 90 cm vertical height above the ground and at 35 degrees from horizontal. The sensor is designed to face the rear of the vehicle. When designing a mounting bracket, avoid having metal extend beyond the mounting feet of the sensor anywhere around the circumference of the radome, which is the integrated antenna for this device. The sensor can be mounted directly onto the tractor without need for rubber mounting feet. Avoid having any moving parts (i.e. tires, treads, 3-point hitch, etc) in the line of sight of the sensor. AccuSpeed Doppler Effect Speed Sensor PHOENIX INTERNATIONAL AccuSpeed Doppler Effect Speed Sensor The Phoenix International AccuSpeed Doppler Effect Speed Sensor uses a concentrated millimeterwave radar signal and the proven Doppler shift principle to accurately measure true ground speed of vehicles that operate in adverse environmental conditions. The AccuSpeed sensor combines in its ruggedized plastic enclosure and a unique radar front end design with highly integrated digital signal processing (DSP) electronics. Output signal and installation details are backward-compatible with older speed sensor products. With its small size and low cost, AccuSpeed meets the requirements of OEM customers and retrofit markets. AccuSpeed’s industry-standard output provides a continuous and robust true ground speed signal whenever the vehicle is moving. While this signal is useful for driver information displays, it also enables closed- loop control systems, such as variable rate application techniques, and intelligent vehicle driveline management. A reliable true ground speed signal will also support emerging autonomous vehicle concepts. The sensor is typically installed at a height of 0.6 m but can be installed up to 1.2 m above the ground or above the top of the crop. The sensor should be mounted facing rearward and positioned so that it has a clear view of the ground. The AccuSpeed sensor has passed the full spectrum of tests specified in the ASAE EP- 455 Standard for electronics on mobile equipment including temperature, vibration, moisture, dust, electrical, and the electromagnetic compatibility (EMC) tests. The unit also meets the requirements of the R&TTE Directive and is CE compliant. AccuSpeed Speed Sensor Product Specifications Velocity Range0.19 to 39.8 mph Accuracy< ± 3% 0.19-1.9 mph < ± 1% 1.9-39.8 mph Mounting Angle35° depressed below horizontal, rearward-facing (preferred) or forward-facing Mounting Height 0.3 to 1.2 m above the ground or above the top of the crop, typical mounting height 0.6 m Mounting Fasteners To Be Determined Overall Dimen.10.2 cm x 10.2 cm x 9.1 cm Weight0.45 kg ConnectorCPC: DELPH*12015024 Pin 1 Ground Pin 2 Speed Signal Output Pin 3 +12V DC (nominal 12V vehicle supply) 15 inches or 0.37 meter cable length (European version pictured above with an AMP*206429-1 connector and a cable length of 57.1”inches or 1.45 meters) Electrical Supply 150 mA @ 12 V DC +9 to 16V DC input voltage range Output Frequency 57.42 Hz/mph (128 pulses/meter) @ 45° mounting angle Other frequencies are available by custom order. Square Wave Output Z OH ≈ 1000 ohms Z OL ≤ 100 ohms V OH ≈ +V (battery)-1.0V V OL ≤ 1.0 V at 15 mA I out (max.) = 22 mA Electrical Protection Signal to ground & signal to power supply protection Electrical transient protection per ASAE EP-455 Standard Step Response≤ 200 milliseconds delay Start/Stop Delay ≤ 25 cm Microwave Frequency24.125 GHz (standard) 24.300 GHz (UK) Tolerance ± 25 MHz Microwave Power 100 mW (EIRP) Regulatory Compliance Environmental • ASAE EP-455: includes standards for reverse polarity, electrical transients (such as load dump, inductive load switching), chemical corrosion, dust, salt spray, rain, wash, mechanical shock, and vibration Electro-Magnetic Compatibility • CE • CSA • FCC Storage Temperature-40C to +85C Specifications and design subject to change without notice. PHOENIX INTERNATIONAL CORPORATION Fargo, ND u Springfield, IL Phone: 701-282-9364 u Fax: 701-282-9365 u www.phoeintl.com 100005GU Printed in USA

TÜV MANAGEMENT SERVICEPhone: (651) 631 2487 TÜV PRODUCT SERVICE INC.Fax: (651) 638 0285 1775 Old Highway 8 NW, Suite 104email [email protected] New Brighton MN 55112-1891http:://www.tuvglobal.com Divisions of TÜV America Inc., a subsidiary of TÜV Süddeutschland and TÜV Nord Group TÜV PRODUCT SERVICE INC 19333 WILD MOUNTAIN ROAD TAYLORS FALLS, MINNESOTA 55084-1786 ENGINEERING STATEMENT For Certification of Phoenix International Accuspeed Doppler Effect Speed Sensor I am an Electromagnetic Compatibility Engineer for TÜV PRODUCT SERVICE INC, Taylors Falls, Minnesota. My education and experience are a matter of record with the Federal Communications Commission. TÜV PRODUCT SERVICE INC has been authorized by Ahmad Mahin Fallah, Senior EMC Engineer, of Phoenix International Corporation, to make Certification measurements on the Accuspeed. These tests were made by me or under my supervision at our Wild River Laboratory which is on file with the FCC under Paragraph 2.948 of the FCC Rules. Test data required by the TCB is included in this report. It is submitted that the above equipment meets the FCC Part 15, Subpart C Requirements and Certification is hereby requested. Joel T. Schneider Minnesota Wild River Lab TÜV Product Service [email protected] Dated: 23 January 2001

Transceiver (24.125 GHz) (+/- 0.025%) Gain Stage 10 Hz to 2.2 KHz (depending on vehicle speed) Gain Stage 10 Hz to 2.2 KHz (depending on vehicle speed) Lowpass Filter/Gain Final Gain Stage 10 Hz to 2.2 KHz (depending on vehicle speed) Lowpass Filter/Gain Final Gain Stage 10 Hz to 2.2 KHz (depending on vehicle speed) Digital Signal Processor (5 MHz Crystal) Multiplied internally to 20 MHz Output Driver 57.42 Hz/mph 12-volt logic Power Supply Reference Voltages IF IF Antenna I signal Q signal I Q RF Input/Output Signal Output Signal Pin 3 on the connector +5VDC Analog +5VDC Digital Ground DSP Ref. Voltage +12 VDC J1-Pin 1 Ground J1-Pin 2 AccuSpeed Block Diagram

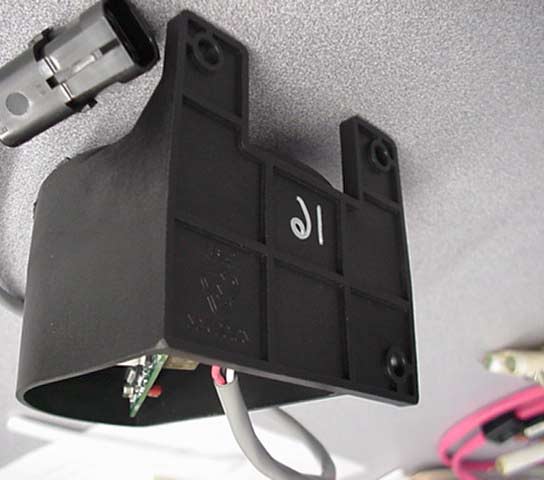

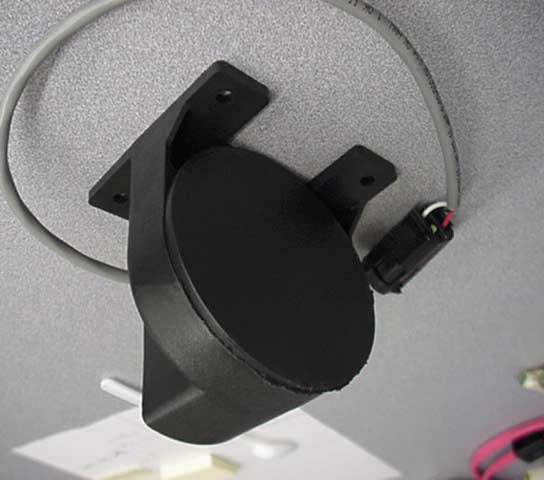

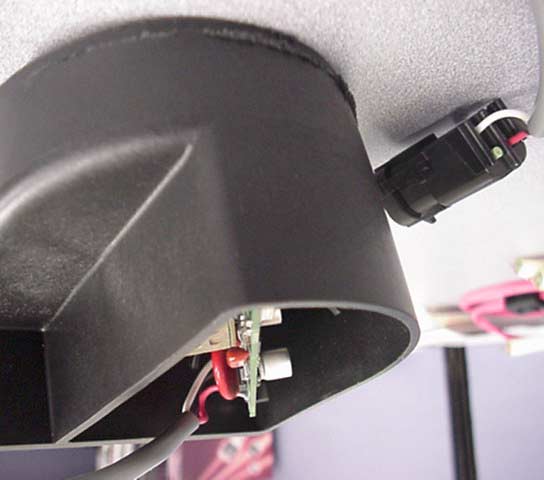

Potted Unit Unpotted assembly back Unpotted assembly bottom Unpotted assembly front Unpotted assembly top

Acusp06 Analog and power section closeup Complete board, digital side Complete board transceiver side Complete PCB Transceiver side 2 Housing and board PCB Assembly complete PCB assembly Side view of digital side Transceiver closeup 1 Transceiver full Transceiver closeup 2 Unpotted unit

Theory of Operation for the Doppler Effect Speed Sensor (DESS) Phoenix International® 1441 44 th Street NW Fargo, North Dakota 58102 Doppler Effect Speed Sensor uses a concentrated millimeterwave radar signal and the Doppler shift principal to provide a measure of true ground speed of vehicles used in agricultural and forestry operations. The speed sensor relies on the radiation transmitted from the sensor being scattered by the ground and re-entering the sensor. If the sensor is moving, the scattered radiation appears to have a slightly different wavelength than the transmitted radiation. The difference in the two wavelengths is the Doppler signal. An ideal speed sensor would indicate a vehicle’s true ground speed instantaneously on any surface. It should perform under any acceleration/deceleration event as well as under steady state conditions. In reality, it is difficult for any one sensor to perform flawlessly under all conditions. Doppler effect speed sensors are ideal for stubble fields, plowed fields, and gravel roads which give a large amount of scattered radiation, but are less reliable on smooth surfaces such as on concrete or blacktop roads which have a larger amount of specular reflection. This is particularly true if the smooth surface is wet. Doppler effect speed sensors do not work if the incident surface is standing water. Sensor speed is a sum of all movement for which r⋅v is non zero. Where r is the vector indicating the column of microwave radiation incident on the ground, and v is the vector describing the velocity. For example if the sensor moves vertically (v v ) as well as horizontally (v h ), the speed indicated will be the magnitude of the vector r/|r|⋅v h + r/|r|⋅v v . Sensor Specular Reflection Scattered Radiation Ground Principle of Operation The Doppler effect speed sensor outputs 100 pulses/meter. A pulse is defined from rising edge to rising edge of the output pulse stream. The output pulses run from 0 – 12 VDC and are approximately square. The speed sensor is relatively insensitive to vehicle vibration at zero speed. Because the sensor is designed to detect movement, motion in the horizontal direction (vibration) can lead to the sensor giving a false speed signal even at zero speed. This effect has been minimized through design and sophisticated algorithms that are constantly executed by the on-board digital signal processor (DSP). The sensor detects changes in vehicle speed. Both acceleration from rest (or deceleration to rest) and acceleration/deceleration while in motion. Installation: The ground speed sensor is designed for mounting from 30 cm to 120-cm vertical height above the ground and at 35 degrees from horizontal. The sensor is designed to face the rear of the vehicle. The sensor can be mounted directly to the tractor without need for rubber mounting feet. The line of sight of the sensor shall not be blocked by any moving parts such as tires, treads, 3-point hitch. The following is an abbreviated version of the sensor specifications. Velocity Range0.3 to 64 km/h Accuracy< ± 3% 0.3-3 km/h < ± 1% 3-64 km/h Electrical Supply 150 mA @ 12 V DC +9 to 16V DC input voltage range Output Frequency 27.78 Hz/kph (100 pulses/meter) @ 35° mounting angle Step Response≤ 200 millisecond delay Start/Stop Delay ≤ 25 cm Microwave Frequency24.125 GHz (standard) 24.300 GHz (UK) Tolerance ± 25 MHz Microwave Power 5 mW, (nominal at the transceiver)

Printed On: 10-20-00 Phoenix International Corporation - Springfield PAGE 1 Effective Date: 10-20-00 Indented Bill of Material (PICBOM) 90-126958 ACCUSPEED GROUND RADAR Rev: 4 Rev Date: 10-13-00 Item Part Number.... Quantity. Rev UOM Description.............. Manufacturer's P/N...................... EFF DATE 13 52-127711A 1.0000 EA LABEL, ACCUSPEED 05-24-00 1 .53-127712 1.0000 EA LABEL 3.0 X 1.0 POLYESTER IDENT*TTL309-740-5 05-24-00 18 53-127712 1.0000 EA LABEL 3.0 X 1.0 POLYESTER IDENT*TTL309-740-5 10-13-00 2 60-126963B 1.0000 EA FAB HOUSING ACCUSPEED PREPLA*P297.001002C 10-13-00 3 70-126961 AR LB CHEM POTT BIWAX 661 RESIN BIWAX*661R 01-24-00 4 70-126962 AR LB CHEM POTT BIWAX 661 CATAL BIWAX*661C - BLACK 01-24-00 6 81-127677 3.0000 EA STFPNTN04U400SZ004 ROSE*STTTRP-.04-0025Z/BW 05-24-00 14 900-0001 0.0417 EA CRTN, 22 5/16 x 18 3/16 x STONE*900- 0001 10-04-00 15 900-0004 0.2917 EA PAD, 17 7/8 x 22 1/8 JEFRSN*900-0004 10-04-00 16 900-0046 0.1667 EA PARTITION, 7 3/8 x 5 1/16 JEFRSN*900-0046 10-04-00 17 903-0001 AR RL BUBBLE WRAP, ANTI-STATIC ULINE*S- 1268P 10-04-00 7 95-126960 1.0000 1 EA PCB ASSY CBA ACCUSPEED 01-21-00 1 .15-112665 2.0000 EA CAP R 2203 050 05 MFM PAN*ECQ- V1H 224JL 03-13-00 C37,38 2 .21-119903 1.0000 EA VAR R 050 022 120 HAR*V27ZA60(PART MARKED 27Z60) 01-24-00 V1 3 .95-126959 1.0000 1 EA PCB ASSY WSA ACCUSPEED 01-24-00 1 ..10-117710 4.0000 EA RES S 1001 R100 01 MTF DALE*CRCW0805 1001 F# 01-21-00 R16,23,26,32 2 ..10-118032 1.0000 EA RES S 1502 R100 01 MTF DALE*CRCW0805 1502 F# 02-10-00 R24 3 ..10-118805 2.0000 EA RES S 2202 R100 05 MTF DALE*CRCW0805 223 J# 01-21-00 R20,29 4 ..10-118807 6.0000 EA RES S 4701 R100 05 MTF DALE*CRCW0805 472 J # 01-21-00 R3,4,10,11,21,30 5 ..10-119960 3.0000 EA RES S 1002 R100 05 MCF DALE*CRCW0805 103 J # 01-21-00 R7,17,27 6 ..10-121682 2.0000 EA RES S 1005 R100 05 MCF DALE*CRCW0805 106 J # 01-21-00 R22,31 7 ..10-121749 1.0000 EA RES S 7500 R100 01 MTF DALE*CRCW0805 7500 F# 01-21-00 R14 8 ..10-122212 2.0000 EA RES S 0150 R500 05 MCF DALE*CRCW2010 150 J # 01-21-00 R1,2 Printed On: 10-20-00 Phoenix International Corporation - Springfield PAGE 2 Effective Date: 10-20-00 Indented Bill of Material (PICBOM) 90-126958 ACCUSPEED GROUND RADAR Rev: 4 Rev Date: 10-13-00 Item Part Number.... Quantity. Rev UOM Description.............. Manufacturer's P/N...................... EFF DATE 9 ..10-123859 1.0000 EA RES S 0820 R250 05 MCF ROHM*MCR25#MJ820 01-21-00 R8 10 ..10-123880 1.0000 EA RES S 1001 R500 05 MCF ROHM*MCR50#MJ102 01-21-00 R6 11 ..10-123954 2.0000 EA RES S 3001 1% DALE*CRCW0805-3001-FRT2 02-02-00 R18,34 12 ..10-126790 2.0000 EA RES S 5601 R100 05 MCF PAN*ERJ- 6GEYJ562V 01-21-00 R19,28 13 ..10-127029 1.0000 EA RES S 6201 R100 01 MCF ROHM*MCR10EZHF6201 02-10-00 R33 14 ..10-127101 3.0000 EA RES S 4700 R100 01 MTF DALE*CRCW08054700F# 02-24-00 R9,12,13 15 ..15-117730 17.0000 A EA CAP S 1002 050 10 MLC X KEMET*C0805C103K5RAC# 01-21-00 C5,9,15,16,17,18,19,20,21,22,27,30,32,33 34,35,36 16 ..15-119427 2.0000 EA CAP S 1006 050 20 ELE N NIC*NACEW101M50V8X10.5TR13 01-24-00 C3,7 17 ..15-119793 2.0000 EA CAP S 1005 010 10 TAN N KEMET*T491B106K010AS 01-24-00 C6,10 18 ..15-120212 3.0000 EA CAP S 1003 050 10 MLC X KEMET*C0805C104K5RAC7800 01-24-00 C4,8,11 19 ..15-120726 3.0000 EA CAP S 1002 200 10 MLC X VENKEL*C0805X7R201-103KNE 01-24-00 C1,2,12 20 ..15-121529 1.0000 EA CAP S 2204 016 10 TAN N AVX*TAJB225K016R 01-24-00 C25 21 ..15-123248 4.0000 EA CAP S 1001 050 05 COG KEMET*C0805C102J5GAC7800 01-24-00 C23,24,28,31 22 ..15-126792 2.0000 EA CAP S 0100 050 05 MLC NPO PAN*ECUV1H100DCN 01-24-00 C13,14 23 ..17-126793 7.0000 EA IND S FRBD MUR*BLM21B272SPT 01-24-00 FB2,3,4,5,6,7,8 24 ..20-123099 1.0000 EA TRANS S NFT BSP295 SIE*BSP295E6327 01-24-00 Printed On: 10-20-00 Phoenix International Corporation - Springfield PAGE 3 Effective Date: 10-20-00 Indented Bill of Material (PICBOM) 90-126958 ACCUSPEED GROUND RADAR Rev: 4 Rev Date: 10-13-00 Item Part Number.... Quantity. Rev UOM Description.............. Manufacturer's P/N...................... EFF DATE Q3 25 ..22-120547 2.0000 EA VREG S 005 001 D2PAC MOT*MC7805BD2T 01-24-00 Q1,2 26 ..25-126794 2.0000 EA IC LIN S OPA LMC6036 NAT*LMC6036IMX 01-24-00 U3,4 27 ..25-126795 1.0000 EA IC MSC S VOLT SUPERVISOR MCCHIP*MCP130T475ITT 01-24-00 U2 28 ..25-126797 1.0000 EA IC MIC S FL TMS320F241 TI*TMS320F241PG 01-24-00 U1 29 ..30-119837 1.0000 EA XTAL S Q 5.0000MHZ ECLTK*EC2SMB-5.000M-TR 01-24-00 Y2 30 ..35-119192 1.0000 EA DIOD S SIL CMR3-06 CS*CMR3-06 TR13 01-24-00 D1 31 ..35-123861 1.0000 EA DIOD S ZEN MMBZ20VA 20V MOT*MMZ20VALT1 01-24-00 D2 32 ..38-124247 1.0000 EA XFMR S A 3000 3000 NOTA MUR*PLM250S20T1 01-24-00 FB1 34 ..55-127081B1 1.0000 EA PCB ACCUSPEED GND RADAR QCI 05-24-00 4 .98-123723 1.0000 EA MISC XCEIVER 24.125 GHZ M/A*86843- M18 01-24-00 Y1 8 96-127236 1.0000 1 EA ASSY CABLE ACCUSPEED 03-07-00 1 .45-127092 1.5833 FT WIRE M 18 MULT N BELDEN*9493 03-07-00 6 .46-128699 0.0833 FT HEATSHRINK TUBE 5 BLK RAYCHM*ES2000NO2B901220MM 09-05-00 2 .50-127235 1.0000 EA CONN O MCMT 4 NOTAP OTH DELPHI*12015024 03-07-00 3 .98-127238 3.0000 EA MISC WEATHERPK SEAL 18-20 DELPHI*12015323 03-10-00 4 .98-127239 1.0000 EA MISC WEATHERPK PLUG GRN DELPHI*12010300 03-10-00 5 .98-127240 3.0000 EA MISC WEATHERPAK PIN 18-20 DELPHI*12089040 03-10-00 10 98-127354 3.0000 EA MISC AUTOSPLICE BAND AUTOSL*3015616BC 03-27-00

RF Exposure Information for Accuspeed Unit According to OET Bulletin 65, page 41, paragraph three; this unit is excluded from evaluation with respect to MPE limits since its radiated power is under 3 watts, which is the limit for equipment operating at frequencies above 1.5 GHz. This unit’s radiated power has been measured to be 100 mW (EIRP), which is substantially lower than the threshold stated in that document. The transceiver in this unit outputs about 5 mW of power at the frequency of 24.125 GHz.

PRODUCT SERVICE TEST RESULT SUMMARY FCC PART 15 SUBPART C Section 15.245 MANUFACTURER'S NAMEPhoenix International Corporation NAME OF EQUIPMENTAccuspeed - Doppler Effect Speed Sensor MODEL NUMBERN/A MANUFACTURER'S ADDRESS1441 44 th Street NW Fargo ND 58102 TEST REPORT NUMBERW0592 TEST DATE18 May & 07 November 2000 According to testing performed at TÜV Product Service Inc, the above-mentioned unit is in compliance with the electromagnetic compatibility requirements defined in FCC Part 15 Subpart C Section 15.245. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Any modifications necessary for compliance made during testing on the above mentioned date(s) must be implemented in all production units for compliance to be maintained. TÜV Product Service Inc, as an independent testing laboratory, declares that the equipment tested as specified above conforms to the requirements of FCC Part 15 Subpart C Section 15.245. Date:22 January 2001 Location:Taylors Falls MNR. M. JohnsonJ. T. Schneider USATest TechnicianLead Engineer Not Transferable File No. WC1G059201, Page 1 of 14 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE EMC EMISSION - T E S T R E P O R T Test Report File No.: WC1G059201 Date of issue:22 January 2001 Serial No.:N/A / 10 Product Type: Accuspeed - Doppler Effect Speed Sensor Applicant: Phoenix International Corporation Manufacturer: Phoenix International Corporation License holder: Phoenix International Corporation Address: 1441 44 th Street NW : Fargo ND 58102 Test Result: nn Positiveoo Negative Test Project Number: Reference(s) W0592 Total pages including Appendices 14 TÜV Product Service Inc is a subcontractor to TÜV Product Service, GmbH according to the principles outlined in ISO/IEC Guide 25 and EN 45001. TÜV Product Service Inc reports apply only to the specific samples tested under stated test conditions. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. TÜV Product Service Inc shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV Product Service Inc issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report shall not be used by the client to claim product endorsement by NVLAP or any agency of the US government. TÜV Product Service Inc and its professional staff hold government and professional organization certifications and are members of AAMI, ACIL, AEA, ANSI, IEEE, NVLAP, and VCCI File No. WC1G059201, Page 2 of 14 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE D I R E C T O R Y - EMISSIONS Page(s) A)Documentation Test report1 – 13 Directory2 Test Regulations3 B)Test data Conducted emissions on AC power leads5 Field strength of fundamental6 Field strength of harmonics7 Field strength of spurious emissions8-10 Test Setup Photo(s)See Test Setup Exhibit File No. WC1G059201, Page 3 of 14 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE EMISSIONS TEST REGULATIONS : The emissions tests were performed according to following regulations: -------------------------------------------------------------------------------- o - EN 50081-1 / 1991 o - EN 55011 / 1991o - Group 1o - Group 2 o - Class Ao - Class B o - EN 55013 / 1990 o - EN 55014 / 1987o - Household appliances and similar o - Portable tools o - Semiconductor devices o - EN 55014 / A2:1990 o - EN 55014 / 1993o - Household appliances and similar o - Portable tools o - Semiconductor devices o - EN 55015 / 1987 o - EN 55015 / A1:1990 o - EN 55015 / 1993 o - EN 55022 / 1987o - Class Ao - Class B n - FCC Part 15 Subpart C Section 15.245 o - BS o - VCCIo - Class Ao - Class B o - FCCo - Class Ao - Class B o - AS 3548 (1992)o - Class Ao - Class B o - CISPR 11 (1990) o - Group 1o - Group 2 o - Class Ao - Class B o - CISPR 22 (1993) o - Class Ao - Class B File No. WC1G059201, Page 4 of 14 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE Environmental conditions in the lab: Actual Temperature: 19 °C Relative Humidity: 42 % Atmospheric pressure: 99 kPa Power supply system: 12 VDC Sign Explanations: o - not applicable n - applicable File No. WC1G059201, Page 5 of 14 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE CONDUCTED EMISSIONS on AC power leads The CONDUCTED EMISSIONS (INTERFERENCE VOLTAGE) measurements were performed at the following test location: n - Test not applicable o - Wild River Lab Large Test Site (Open Area Test Site) o - Wild River Lab Small Test Site (Open Area Test Site) o - Oakwood Lab (Open Area Test Site) o - Wild River Lab Screen Room o - New Brighton Lab Shielded Room Test equipment used : Model NumberManufacturerDescriptionSerial NumberCal Due All measurement instrumentation is traceable to the National Institute of Standards and Technology (NIST) and is calibrated annually. File No. WC1G059201, Page 6 of 14 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE Field Strength of Fundamental The fundamental was measured to have a field strength of 891.2 mV/m (119 dBuV/m) at 24112 MHz, compared to a limit of 2500 mV/m. The spectrum analyzer level of 74 dBuV + antenna factor/cable loss of 45 dB/m = 119 dBuV/m. The Field Strength o…
