NU2UVR-100NDigital Satellite Receiver

Page 1 of 1 2/4/02file://T:\H\HANDAN\25KT2\intcomponent\card%20reader%20component.JPG Page 1 of 1 2/4/02file://T:\H\HANDAN\25KT2\intcomponent\card%20reader%20copper.JPG Page 1 of 1 2/4/02file://T:\H\HANDAN\25KT2\intcomponent\front%20panel%20component.JPG Page 1 of 1 2/4/02file://T:\H\HANDAN\25KT2\intcomponent\front%20panel%20copper.JPG Page 1 of 1 2/4/02file://T:\H\HANDAN\25KT2\intcomponent\main%20board%20component.JPG Page 1 of 1 2/4/02file://T:\H\HANDAN\25KT2\intcomponent\main%20board%20copper.JPG Page 1 of 1 2/4/02file://T:\H\HANDAN\25KT2\intcomponent\power%20supply%20component.JPG Page 1 of 1 2/4/02file://T:\H\HANDAN\25KT2\intcomponent\power%20supply%20copper.JPG Page 1 of 1 2/4/02file://T:\H\HANDAN\25KT2\intcomponent\tuner%20side%20one.JPG Page 1 of 1 2/4/02file://T:\H\HANDAN\25KT2\intcomponent\tuner%20side%20two.JPG

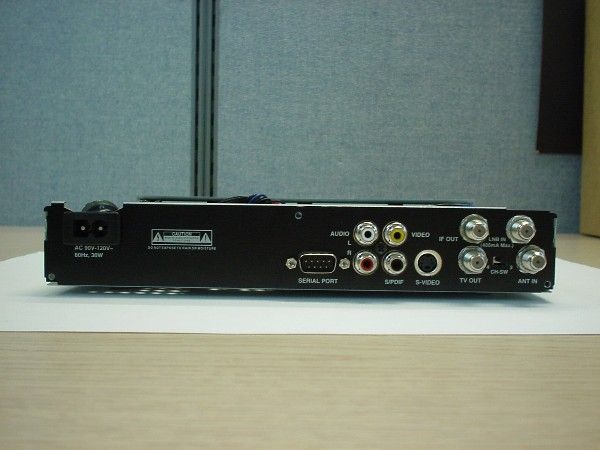

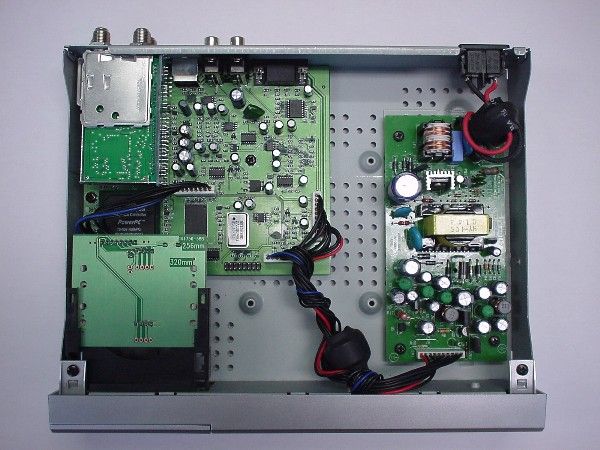

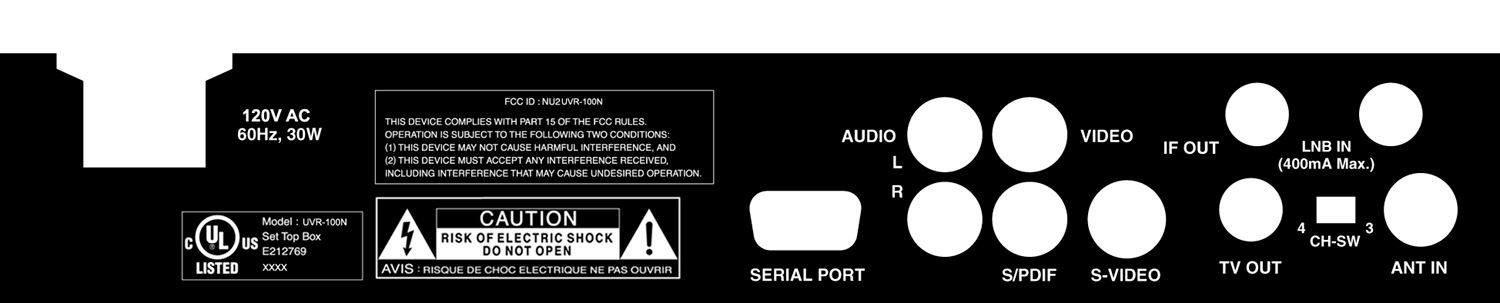

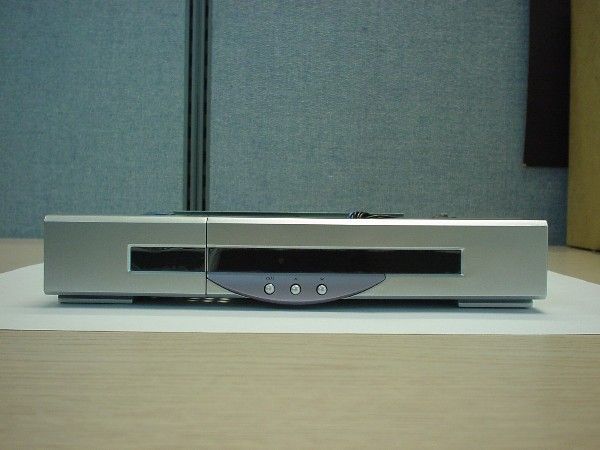

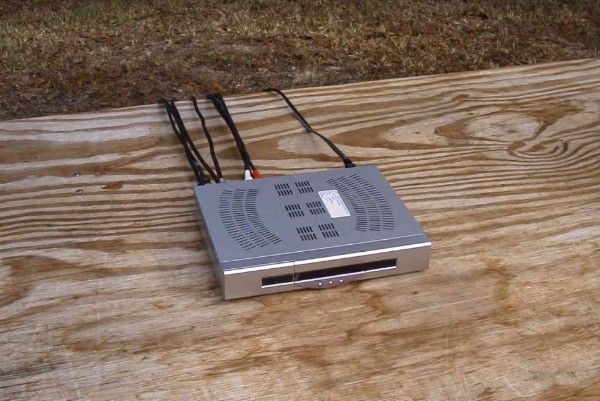

APPLICANT: HANDAN BROADINFOCOM CO., LTD. MODEL #: NU2UVR-100N TABLE OF CONTENTS TEST REPORT PAGE 1-2......TEST EQUIPMENT LIST AND TEST PROCEDURE PAGE 3-4......RADIATED EMISSIONS TEST DATA PAGE 5-7......POWERLINE CONDUCTED EMISSIONS TEST DATA PAGE 8........OUTPUT TERMINAL CONDUCTED SIGNAL LEVEL PAGE 9........TRANSFER SWITH ISOLATION EXHIBITS CONTAINING: EXHIBIT 1.........FCC ID LABEL SAMPLE & SKETCH OF LOCATION EXHIBIT 2.........SCHEMATICS - MAIN EXHIBIT 3.........SCHEMATICS – POWER SUPPLY EXHIBIT 4.........BLOCK DIAGRAM – MAIN EXHIBIT 5.........BLOCK DIAGRAM – POWER SUPPLY EXHIBIT 6.........USER’S MANUAL EXHIBIT 7.........EXTERNAL FRONT VIEW PHOTO EXHIBIT 8.........EXTERNAL REAR VIEW PHOTO EXHIBIT 9.........INTERNAL CHASSIS VIEW PHOTO EXHIBIT 10........INTERNAL PHOTOS EXHIBIT 11........TEST SETUP PHOTO – RADIATED EMISSIONS EXHIBIT 12........TEST SETUP PHOTO – POWERLINE CONDUCTED APPLICANT: HANDAN BROADINFOCOM CO., LTD. FCC ID: NU2UVR-100N REPORT #: H\HANDAN\25KT2\25KT2RPT.doc TABLE OF CONTENTS LIST APPLICANT: HANDAN BROADINFOCOM CO., LTD. FCC ID: NU2UVR-100N TEST EQUIPMENT LIST 1._X_Spectrum Analyzer: HP 8566B-Opt 462, S/N 3138A07786, w/ preselector HP 85685A, S/N 3221A01400, Quasi-Peak Adapter HP 8565OA, S/N 3303A01690 & Preamplifier HP 8449B-OPT H02, S/N 3008A00372 Cal. 8/31/01 Due 8/31/02 2._X_Biconnical Antenna: Eaton Model 94455-1, S/N 1057, Cal. 10/1/01 Due 10/1/02 3.__ Biconnical Antenna: Electro-Metrics Model BIA-25, S/N 1171 Cal. 4/26/01 Due 4/26/03 4._X_Log-Periodic Antenna: Electro-Metrics Model EM-6950, S/N 632 Char. 10/15/01 Due 10/15/02 5.__ Log-Periodic Antenna: Electro-Metrics Model LPA-30, S/N 409 Char. 10/16/01 Due 10/16/02 6.__ Log-Periodic Antenna: Electro-Metrics Model LPA-25, S/N 1122 Char. 2/10/01 Due 3/10/02 7._X_ Double-Ridged Horn Antenna: Electro-Metrics Model RGA-180, 1-18 GHz, S/N 2319 Cal. 12/19/01 Due 12/19/02 8.__ 18-26.3GHz Systron Donner Standard Gain Horn #DBE-520-20 No Cal Required 9.__ Horn 40-60GHz: ATM Part #19-443-6R No Cal Required 10.__ Line Impedance Stabilization Network: Electro-Metrics Model EM-7820, w/NEMA Adapter S/N 2682 Cal. 3/16/01 Due 3/16/02 11.__ Temperature Chamber: Tenney Engineering Model TTRC, S/N 11717-7 Char. 1/27/01 Due 1/27/02 12.__ Frequency Counter: HP Model 5385A, S/N 3242A07460 Char. 12/11/01 Due 12/11/02 13.__ Peak Power Meter: HP Model 8900C, S/N 2131A00545 Char. 1/26/01 Due 1/26/02 14._X_Open Area Test Site #1-3meters Cal. 12/22/99 15.__ Signal Generator: HP 8640B, S/N 2308A21464 Cal. 11/15/01 Due 11/15/02 16.__ Passive Loop Antenna: EMCO Model 6512, 9KHz to 30MHz, S/N 9706-1211 Char. 7/10/01 Due 7/10/02 17.__ Dipole Antenna Kit: Electro-Metrics Model TDA-30/1-4, S/N 152 Cal. 3/21/01 Due 3/21/02 18.__ AC Voltmeter: HP Model 400FL, S/N 2213A14499 Cal. 10/9/01 Due 10/09/02 19._X_Digital Multimeter: Fluke Model 77, S/N 35053830 Char. 1/11/01 Due 1/11/02 20.__ Oscilloscope: Tektronix Model 2230, S/N 300572 Char. 2/1/01 Due 2/1/02 APPLICANT: HANDAN BROADINFOCOM CO., LTD. FCC ID: NU2UVR-100N REPORT #: H\HANDAN\25KT2\25KT2RPT.doc PAGE #: 1 APPLICANT: HANDAN BROADINFOCOM CO., LTD. FCC ID: NU2UVR-100N TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 Paragraph 12.2 using a HEWLETT PACKARD spectrum analyzer with a preselector. The resolution bandwidth below 1GHz was 100 kHz & the video bandwidth was 300 kHz. Above 1 GHz the resolution bandwidth was 1 MHz and the video bandwidth was 3 MHz. The ambient temperature of the UUT was 73°F with a humidity of 47%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3 m was estab- lished by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor sup- plied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m POWER LINE CONDUCTED INTERFERENCE: The procedure used was ANSI STAN- DARD C63.4-1992 using a 50uH LISN. Both lines were observed. The bandwidth of the spectrum analyzer was 10 kHz with an appropriate sweep speed. The ambient temperature of the UUT was 76°F with a humidity of 47%. ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continu- ous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1 m to 4 m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSIC63.4-1992 with the EUT 40 cm from the vertical ground wall. APPLICANT: HANDAN BROADINFOCOM CO., LTD. FCC ID: NU2UVR-100N REPORT #: H\HANDAN\25KT2\25KT2RPT.doc PAGE #: 2 APPLICANT: HANDAN BROADINFOCOM CO., LTD. FCC ID: NU2UVR-100N NAME OF TEST: RADIATION INTERFERENCE RULES PART NUMBER: 15.109 REQUIREMENTS: 30 to 80 MHz: 40.0 dBuV/M @ 3 METERS 88 to 216 MHz: 43.5 dBuV/M 216 to 960 MHz: 46.0 dBuV/M ABOVE 960 MHz: 54.0 dBuV/M TEST RESULTS: A search was made of the spectrum from 30 to 1000 MHz and the measurements indicate that the unit DOES meet the FCC requirements. TEST DATA: Emission Frequency MHz Meter Reading dBuV Ant. Polarity Coax Loss dB Correction Factor dB Field Strength dBuV/m Margin dB DIGITAL EMISSIONS 85.00 15.5 h 1.08 9.90 26.48 13.53 85.00 18.1 v 1.08 9.90 29.08 10.93 270.00 6.9 h 2.08 13.60 22.58 23.42 270.00 11.0 v 2.08 13.60 26.68 19.32 297.00 17.1 h 2.19 14.10 33.39 12.61 297.00 19.6 v 2.19 14.10 35.89 10.11 324.00 12.8 h 2.34 14.46 29.60 16.40 324.00 17.6 v 2.34 14.46 34.40 11.60 351.00 10.5 h 2.51 14…
