NU2V-2500Digital Satellite Receiver

QPSK QPSK Viaccess Viaccess V V - - 2500 2500 User User ’ ’ s manual s manual Important Safety Instructions Important Safety Instructions •Read Instructions-All the safety and operating instructions should be read beforethe product is operated. •Retain Instructions-The safety and operating instructions should be retained for future reference. •Heed Warnings-All warning on the product in the operating instructions shouldbe adhered to. •Follow Instructions-All operating and use instructions should be followed. •Cleaning-Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. •Attachments-Do not use attachments not recommended by the product manufacturer as they may cause hazards. •Water and Moisture-Do not use this product near water –for example, near bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like. •Accessories-Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer. To prevent electric shock, match wide blade of plug to wide slot, fully insert. To prevent fire or electric shock, Do not expose this appliance to rain or moisture. WARNINGWARNING CAUTIONCAUTION Portable cart warning •A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. •Ventilation-Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to product it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in abuilt-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to. •Power Sources-This product should be operated only from the type of power source indicated on the marking label. If you are not sureof the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, orother source, refer to the operating instructions. The lighting flash with arrowhead symbol, within an equilateral triangle is intended to alter the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock o persons. The exclamation point within a equilateral triangle is intended to alert the user to the presence of important operating and maintenance(Servicing) instruction in the literature accompanying the appliance. CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL 1 Example of Antenna groundingas per National Electric Code, ANSI/NFPA 70 (NEC –National Electrical Code) ANTENNA LEAD IN WIRE ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) GROUNDING CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPSPOWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC AR 250, PART H) GROUND CLAMP ELECTRIC SERVICE EQUOPMENT Note to CATV System Installer This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. •Grounding or Polarization-This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. •Alternate Warnings-This product is equipped with a three-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug. •Power-Cord Protection-Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product. •Productive Attachment Plug-The product is equipped with an attachment plug having overloadprotection. This is a safety feature. See Instruction Manual for replacementor resetting of protective device. If replacement of the plug is required, be sure the service technician has useda replacement plug specified by the manufacturer that has the same overload protection as the original plug. •Outdoor Antenna Grounding-If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, groundingof the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the gr…

Text truncated - open the document above for the full version.

Tuner QpskDem. & FEC Digital Satellite Set-top Box V-2500 BLOCK DIAGRAM 950~2150 MHz CPU Transport Stream Demux Video Decoder AudeoDecoder Descrambler Audio DAC Smart Card CVBS, Y, C Audio L, R VCXO (NIM) (One Chip)

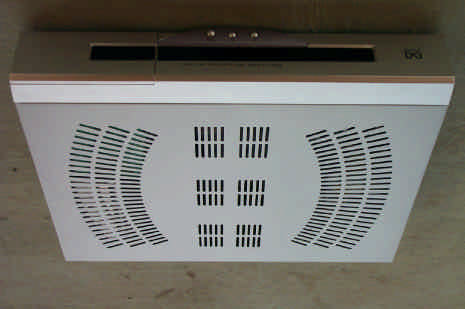

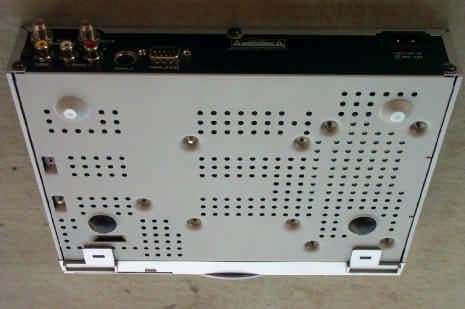

THRULab. & Engineering 6 - Photographs 6. 1EUT : Front View 6.2EUT : R ear View Report No.: THRU-F2k1010AFCCPart 15ClassB Test Report Page15 of 22 THRULab. & Engineering 6.3EUT : Label View 6.4EUT : Inter nal View Report No.: THRU-F2k1010AFCCPart 15ClassB Test Report Page16 of 22

ΛΑΒΕΛ ΦΟΡΜΑΤ

THRULab. & Engineering 6.5PCB : Mainboard, Com ponent View Report No.: THRU-F2k1010AFCCPart 15ClassB Test Report Page17 of 22 THRULab. & Engineering 6.6PCB : Mainboard, Circ uit View Report No.: THRU-F2k1010AFCCPart 15ClassB Test Report Page18 of 22 THRULab. & Engineering 6.7PCB : TunerModule, Com ponent View Report No.: THRU-F2k1010AFCCPart 15ClassB Test Report Page19 of 22 THRULab. & Engineering 6.8PCB : TunerModule, Circ uit View Report No.: THRU-F2k1010AFCCPart 15ClassB Test Report Page 20 of 22 THRULab. & Engineering 6.9PCB : Pow erBoard, Com ponent View Report No.: THRU-F2k1010AFCCPart 15ClassB Test Report Page 2 1 of 22 THRULab. & Engineering 6. 10PCB : Pow erBoard, Circ uit View Report No.: THRU-F2k1010AFCCPart 15ClassB Test Report Page 22 of 22

Operational Description Functionality The NU2V-2500 is the box, which is placed between the satellite dish and the TV set or other electronic home equipment. It decodes the incoming signals, verifies the access rights and outputs clear picture, sound or other services in the appropriate format. Description The decoder is functionally organized as indicated in the following figure. NIM(Network Interface Module) NIM(BS0054) consists of TUNER and QPSK Demodulator. The signal received by Antenna and LNB will be transmitted to TUNER. TUNER is designed to select one transponder and convert to I & Q signal. The I & Q signal from TUNER will be transmitted to QPSK Demodulator which is designed to demodulation and FEC(Forward Error Correction) decording. The output of QPSK Demodulator is parallel format of TS (Transport Stream) signal. Integrated STB Controller Integrated STB Controller(U101) consists of Demultiplexer, MPEG Decoder, Video Encoder and Microprocessor. The TS signal from NIM will be transmitted to Demultiplexer. Demultiplexer is designed to select wanted Video PES (Packetized Elementtary Stream) and Audio PES. These signal will be transmitted MPEG Decoder to make decompressed digital Video and Audio signal. Digital Video signal will be transmitted Video Encoder to convert analog Video output. Digital Audio signal will be transmitted to external Digital-to-Analog converter. The Microprocessor is designed to control all other devices. Flash Memory Flash memory(U201) is used to store main software and default Satellite Information. Main software and Satellite Information can be up-dated by PC through serial communication. And also the Satellite Information can be up-dated by customer when he changes some data. SDRAM SDRAM(U202) is temporary memory, and it is used for main software, demultiplexing and MPEG decording. VCXO The VCXO(Y401) is designed to generate system clock signal. The system clock is used for demultiplexing, MPEG decording and to work of Microprocessor. It has DC voltage input port which is used to adjust output frequency. Video Filter The Video Filter(L601, L602, L603) is designed to remove high-frequency noise on Video signal. Audio DAC Τηε Αυδιο ∆ΑΧ(Υ501)ισ δεσιγνεδ το χονπερτ τηε διγιταλ αυδιο σιγναλ(Ι2Σ φορματ). Τηε ουτπυτ σιγναλ ισ αμπλιφιεδ 6δΒ βψ αυδιο αμπ(Υ502). Τηε φιναλ ουτπυτσ αρε στρεο αυδιο(Λεφτ, Ριγητ). Video Output Τηε πιδεο ουτπυτσ αρε ΧςΒΣ ανδ λυμινανχε Ψ σιγναλ.

Operational Description Functionality The NU2V-2500 is the box, which is placed between the satellite dish and the TV set or other electronic home equipment. It decodes the incoming signals, verifies the access rights and outputs clear picture, sound or other services in the appropriate format. Description The decoder is functionally organized as indicated in the following figure. NIM(Network Interface Module) NIM(BS0054) consists of TUNER and QPSK Demodulator. The signal received by Antenna and LNB will be transmitted to TUNER. TUNER is designed to select one transponder and convert to I & Q signal. The I & Q signal from TUNER will be transmitted to QPSK Demodulator which is designed to demodulation and FEC(Forward Error Correction) decording. The output of QPSK Demodulator is parallel format of TS (Transport Stream) signal. Integrated STB Controller Integrated STB Controller(U101) consists of Demultiplexer, MPEG Decoder, Video Encoder and Microprocessor. The TS signal from NIM will be transmitted to Demultiplexer. Demultiplexer is designed to select wanted Video PES (Packetized Elementtary Stream) and Audio PES. These signal will be transmitted MPEG Decoder to make decompressed digital Video and Audio signal. Digital Video signal will be transmitted Video Encoder to convert analog Video output. Digital Audio signal will be transmitted to external Digital-to-Analog converter. The Microprocessor is designed to control all other devices. Flash Memory Flash memory(U201) is used to store main software and default Satellite Information. Main software and Satellite Information can be up-dated by PC through serial communication. And also the Satellite Information can be up-dated by customer when he changes some data. SDRAM SDRAM(U202) is temporary memory, and it is used for main software, demultiplexing and MPEG decording. VCXO The VCXO(Y401) is designed to generate system clock signal. The system clock is used for demultiplexing, MPEG decording and to work of Microprocessor. It has DC voltage input port which is used to adjust output frequency. Video Filter The Video Filter(L601, L602, L603) is designed to remove high-frequency noise on Video signal. Audio DAC The Audio DAC(U501)is designed to convert the digital audio signal(I2S format). The output signal is amplified 6dB by audio amp(U502). The final outputs are streo audio(Left, Right). Video Output The video outputs are CVBS and luminance Y signal.




























THRULab. & Engineering FCCPART15CLA SSB EMI MEA SUREMENT ANDTEST REPORT FOR HANDANBroadInfoComCo., Ltd. 6F Shinsung Plaza, 697- 11Y eogsam-dong, Kangnam -gu, Seoul 135-080, KOREA MODEL: V-2500 Iss ued Date: Octob er 10 , 2000 Repo rt N o.: THRU-F2k 10 10B This Report Concerns : Original Repo rt Equipm ent Type : Digit al Satellite Set-topBox V-2500 Test D ate:Octob er 6, 2000 Tested By : S. H . Hong- Test Eng inee r Cer tified By : J. J . Ha- Direc tor, Compli anceEng inee ring Pre pare d By :Thru Lab . & Eng inee ring 1367-1, ShinKil -Dong, YoungDeungPo-Ku, Seou l 150-057, KOREA TEL: 82 -( 2)- 846-5002/ FAX: 82 -( 2)- 834-0969 N ote:This repo rt may not be dupli ca ted exce pt i n full wit hout prior writt en consent of Thru Lab . & Eng inee ring. Report No.: THRU-F2k1010BFCCPart 15ClassB Test Report THRULab. & Engineering Table of Contents 1-G ener al Inform ation 1.1Test Fac ility4 1.2Test Methodology4 1.3Test Equ ipment List4 1.4Product Descripti onfor Equ ipment Under Test (EUT)5 1.5Equ ipment Under Test (EUT)6 1.6Support Equ ipment6 1.7External I/O Cabli ng6 2-SystemTest Configuration 2.1Justi fica ti on7 2.2EUT Exercise7 2.3Spec ial Access ories7 2.4Schemati cs/Block Diagram7 2.5Con figu rati on of Test System8 2.6Conducted Emiss ions Test SetupBlock Diagram8 3-Conducted Em iss ions Test 3.1EUT Setup9 3.2Test Equ ipment Setup9 3.3Test proce du re9 3.4Summary of Test Result s10 3.5Conducted Emiss ions Test Result Data10 3.6Plot of Conducted Emiss ions Test Data10 4-R adiated Em iss ions Test 4.1EUT Setup11 4.2Test Equ ipment Setup11 4.3Test Proce du re11 4.4Summary of Test Result s12 4.5Radiated Emiss ions Test Result Data12 Report No.: THRU-F2k1010AFCCPart 15ClassB Test Report P age2 of 22 THRULab. & Engineering Table of Contents(cont 'd) 5-Conducted andR adiated SetupPhotographs 5.1Conducted Emiss ions Pho tog raph: Fron t View13 5.2Conducted Emiss ions Pho tog raph: Side View13 5.3Radiated Emiss ions Pho tog raph: Fron t View14 5.4Radiated Emiss ions Pho tog raph: Rea r View14 6-Photographs 6.1EUT: Fron t View15 6.2EUT: Rea r View15 6.3EUT: Label View16 6.4EUT: Internal View16 6.5PCB: Mainboard, Component View17 6.6PCB: Mainboard, Circuit View18 6.7PCB: Tuner Module, Component View19 6.8PCB: Tuner Module, Circuit View20 6.9PCB: Power Board, Component View2 1 6.10PCB: Power Board, Circuit View22 A ppen dix A- Plot of Con ducted Emiss ions Test Data A ppen dix B - EUTSchem atics/Block Diagram A ppen dix C- User's Manual Report No.: THRU-F2k1010AFCCPart 15ClassB Test Report P age3 of 22 THRULab. & Engineering 1 - Gener al Information 1. 1Test Facili ty The op en areatest sit e used byThru Lab . &Eng inee ringto coll ec t radiated andconducted emiss ions mea surement data is loca ted in the 389JeArm-Rhi, Hyang Nam-Myun, HwaSung-Gun, KyungKi-Do, Korea . Test sit es at Thru Lab . &Eng inee ring has bee n full y described in repo rts submitted to the Federal Communica ti onCommiss ionandthe detail s of the repo rts has bee n foundto be in compli ancewit h the requ irements of Sec ti on 2.948 of the FCC Rules. The test fac ility also compli es wit h the radiated andAC li ne conducted test sit e crit erionin ANSI C63.4- 1992. The Federal Communica ti ons Commiss ion has the repo rts onfil e andis li sted under Registrati onNumber 92583. Thru Lab . & Eng inee ringis a Test Fac ility . The scop e of the accredit ati oncov ers the FCCMethod- 47CFR Part 15 or 18 of the Commiss ion's Rules. 1.2Test Methodology All mea surements con tained in this repo rt were conducted wit h ANSI C63.4- 1992, America n Nati on al Standard for Methods of Mea surement of Radio-Noise Emiss ions fr omLow-Volt age Elec trica l and Elec tron ic Equ ipment i n the range of 9k Hz to 40GHz. All radiated andconducted emiss ions mea surements were perf ormed at Thru Lab . &Eng inee ring. The radiated testi ngwas perf ormed at an antenna-to-EUT distanceof 3 meters 1.3Test Equipm ent List Descr iptionModel NumberSer ial NumberManufacturerCal. Due Date EMI Test ReceiverE SVS 10830489/00 1Rohde &Schwarz200 1.05.17 . Spec trumAnalyze rR326 1C7 1720 189Adv antest200 1.10 .04. Bicon ica l Antenna94455- 10977Eaton200 1.05.17 . LogPeriod ic Antenna3 1462051EMCO200 1.05.17 . Dipo le AntennaTDA-25 /TD S25.1/2176/200/200Elec tro Metrics200 1.10 .4. LISNKNW-2428-923-2Kyorit suN on e LISN80 12-50 -R-248379 12 1SolarN on e Plott er7475A22 10A 02802Hewlett Pac kardN on e Signal GeneratorSM S872 1651100Rohde &SchwarzN on e Report No.: THRU-F2k1010AFCCPart 15ClassB Test Report P age4 of 22 THRULab. & Engineering 1.4P roduct Descr iption for Equipm ent Un derTest (EUT) HANDANBroadInfoComCo., Ltd.'s V-2500 or the "EUT" as referr ed to in this repo rt i s Digit al Satellite Set-topBox. Main Fea tures of EUT are: MPEG-2 Video (MP@ML) MPEG- 1 Audio Layer 1 andLayer2 MPEG-2 Digit al &Full y DVDCompli ant Capable of r eceiving unencryp ted fr eedigit al prog rams Viaccess embedd ed wit h 1smartca rd slot Variety of LNB po larit y con trol; 13 / 18 V, 0/22kHz ton e On-scree n display wit h 256colors full -r esoluti on LD Qualit y Video, CD Qualit y Audio Plug&Play install ati on Parental l ock, Install ati on& Edit lock, Receiver lock Favorit e channel functi on Power r ec ov ery functi on 64 -steps Volume con trol User friend ly OSG menuwit h full functi on IR remote con trol Last channel memory functi on Variable aspec t rati o (4 :3, 16 :9) wit h Pan vec tor EPG for onscree n channel i nformati on R S232C p;ort for add iti on al i nformati onservice and updati ngIRDcon trol software Receiver- to-Receiver f uncti onfor prog ramand data transmiss ion Over- the-Air software prog ramdo wnloadable SCPC/MCPC receivable fr omC/Ku-bandsatellites Displays s ignal l evel t o setupthe satellite antenna wit h ea se Multi -li ngual functi onaccordingto the satellite and broadca sti ngserviceprov ider DiSEqC 1.0 compati ble Report No.: THRU-F2k1010AFCCPart 15ClassB Test Report P age5 of 22 THRULab. & Engineering 1.5Equipm ent Un derTest (EU T) Descr iption…

Text truncated - open the document above for the full version.

THRULab. & Engineering 5 - Conducted andRadiated SetupPhotographs 5. 1Conducted Em iss ions Photograph: Front View 5.2Conducted Em iss ions Photograph: Side View Report No.: THRU-F2k1010AFCCPart 15ClassB Test Report Page13 of 22 THRULab. & Engineering 5.3R adiated Em iss ions Photograph: Front View 5.4R adiated Em iss ions Photograph: Rear View Report No.: THRU-F2k1010AFCCPart 15ClassB Test Report Page14 of 22
