FCC ID：NUSTMW1052 Annex P User’s Manual (Draft) User’s Manual (Draft) TOKO INC. 2.4GHz Wireless LAN Mini-PCI Card Model:TMW1052 Page 1 of 4 1. FCC Compliance This equipment has been tested and found to comply with the limits for a Class B Personal Computer and Peripheral, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment dose cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This equipment has been tested to comply with the limits for a Class B personal computer and peripheral, pursuant to Subpart B of Part 15 of FCC Rules. Only peripherals(computer input/output devices, terminals, printers, etc.) certified (DoC) or verified to comply with Class B limits may be attached to this equipment. Operation with non-certified (DoC) or non-verified personal computer and/or peripherals is likely to result in Interference to radio and TV reception. The connection of a unshielded equipment interface cable to this Equipment will invalidate the FCC Certification of this device and may cause interference levels which Exceed the limits established by FCC for equipment. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. Page 2 of 4 This device complies with Part 15 of the FCC Rules. Operation is subject to following two conditions: (1) this device may not cause harmful interference. and (2) this device must accept any interference received, including interference that may cause undesired operation. 3. Feature • Support for 11, 5.5, 2 and 1 Megabit Per Second (Mbps) Data Rates. • Supports the lEEE 802.11 Direct Sequence Specification. • Driver Supports Microsoft® Windows® 98, 2000, Me, Xp. ※1 • Advanced RAKE Receiver Design with Decision Feedback Equalizer. ※1 Microsoft® and Windows® and Windows NT® are registered trademarks of Microsoft Corporation. 4. Specifications ・Absolute Maximum Ratings Supply Voltage. . . . . . . . . . . . . . -0.3V to 4.0V (Max) Storage Temperature ※２ . . . . ... . . . . – 10°C to 60°C ※２ All temperature references refer to ambient conditions. ・Operating Conditions Temperature Range . . . . . . . . . . . . . . 0°C TA 55°C Supply Voltage Range . . . . . . . . . . . . 3.0V to 3.6V Caution: These are the absolute maximum ratings for the Mini-PCI product. Exceeding these limits could cause permanent damage to the card. ・Electrical Specifications Test Conditions: Supply Voltage (VCC ) = 3.3V, Ambient Temperature (TA) = 25°C, Unless Otherwise Specified Page 3 of 4 PARAMETER TEST CONDITIONS MIN TYP MAX UNITS MECHANICALMini-PCI Card Type III CURRENT CONSUMPTION Continuous Transmit Mode - 325 380 mA Continuous Receive Mode Receiving Valid Packets- 200 225 mA Mini-PCI LOGIC LEVELS Input HIGH Voltage Vcc=Max,Min 0.7Vcc - - V Input LOW Voltage Vcc=Min,Max - - 0.3Vcc V Output HIGH Voltage Iol=2mA,Vcc=Min 0.9Vcc 2.6 - V Output LOW Voltage Iol=2mA,Vcc=Min - 0.05 0.1Vcc V Input Leakage Current Vcc=Max,Input=0V or Vcc0.1 1.0 μA Mini-PCI LOADING CAPACITANCE Input Capacitance - 5 10 pF Output Capacitance - 5 10 pF RF SYSTEM SPECIFICATIONS Center Frequency Range 2412 - 2462 MHz Transmitter Power Output-1m 5.5Mbps, 8% PER - -87 - dBm 11Mbps, 8% PER - -83 - dBm Maximum Receive Level PER <8% -3 +3 - dBm Image Rejection PER 8% -NA ZIF- dB IF Rejection PER 8%-NA ZIF- dB Adjacent Channel Rejection PER <8% -40-dB Data Rate (Physical Layer) - 1, 2, 5.5,11 -Mbps Receive Sensitivity 5. Installation ① The following work is done with card(TMW1052) not inserted in PC. ② Setup.exe in Driver CD ROM is executed. ③ Please input the key to setting utility according to the instruction displayed on the screen. ④ The message of the purport by which PC is rebooted is displayed. Please reboot PC. ⑤ Please insert card(TMW1052) in PC. ⑥ The installation of the driver is automatically completed. ⑦ The networks and communication channel and the communication mode are set. ⑧ Please set the network according to the manual of OS. ⑨ The communication mode and the communication channel are set by utility in the task tray. The communication mode is set in "Adhoc". The communication channel is made the same as the other party of the communication set . Channels which can be set are from 1 to 11. Page 4 of 4

External Photos

2.4G Wireless LAN Mini-PCI Card 1/4 FCC ID: NUSTMW1052 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 2.4G Wireless LAN Mini-PCI Card 2/4 FCC ID: NUSTMW1052 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 2.4G Wireless LAN Mini-PCI Card 3/4 FCC ID: NUSTMW1052 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 2.4G Wireless LAN Mini-PCI Card 4/4 FCC ID: NUSTMW1052 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

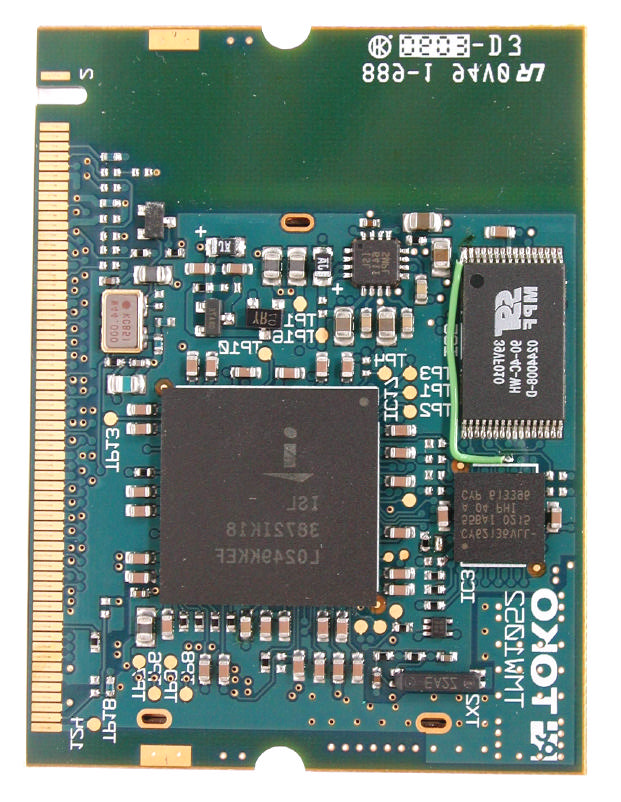

Internal Photos

RF Exposure Info

Training Research Co., Ltd. No. 255, Nan-yang Street, Shijr City, Taipei Hsien 221, Taiwan Tel: 886-2-26935155 Fax: 886-2-26934440 e-mail: [email protected] 1 of 2 TRCSince1985 ® Measurement of MPE 1. Foreword In adopt with the Human Exposure IEEE C95.1, and according to the FCC 1.1310. The Maximum Permissible Exposure (MPE) is obligated to measure in order to prove the safety of radiation harmfulness to the human body. The Gain of the antenna used is measured in an Anechoic chamber. The maximum total power to the antenna is to be recorded. By adopting the Friis Transmission Formula and the power gain of the antenna, we can find the distance right away from the product, where the limit of the MPE is. 2. Description of EUT Granted FCC ID : NUSTMW1052 Product name : 2.4G Wireless LAN Mini-PCI Card Model name : TMW1052 Classification : Portable Device (i) Under normal use condition, the antenna is at least 2.5cm away from the user; (ii) Warning statement for keeping 2.5cm separation distance and the prohibition of operating next to the person has been printed in the user’s manual Frequency Range : 2.412 GHz ~ 2.462GHz Supported Channel : 11 Channel Modulation Skill : DBPSK, DQPSK, CCK Channel Spacing : 5MHz Power Type : Powered by Mini-PCI interface of notebook PC Training Research Co., Ltd. No. 255, Nan-yang Street, Shijr City, Taipei Hsien 221, Taiwan Tel: 886-2-26935155 Fax: 886-2-26934440 e-mail: [email protected] 2 of 2 TRCSince1985 ® 3. Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Filed Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Time |E| 2 , |H| 2 or S (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 100 6 3.0-30 1842/f 4.89/f 900/f 2 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 100 30 1.34-30 824/f 2.19/f 180/f 2 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 [The EUT is tested in transmit and receive modes and in the first, middle and the last channel separately. The following shows only our observation have the greatest emissions.] According to OET BULLETIN 56 Fourth Edition/August 1999, Equation for Predicting RF Fields: Friis Transmission Formula: 2 22 /278.0 )5.2(4 637.1366.13 4 cmmW R PG S= × == ππ Estimated safe separation: cm PG R319.1 4 637.1366.13 4 = × == ππ Remarks: "The safe estimated separation that the user must maintain from the antenna is at least 1.319 cm." Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) The Numeric gain G of antenna with a gain specified in dB is determined by: G = Log -1 ( dBi antenna gain / 10 ) G = Log -1 (2.14 / 10) = 1.637

Test Report

Test Report -------------------------------------------------------------------------------1/36 Report No.: T6815631, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 MEASUREMENT REPORT of 2.4G Wireless LAN Mini-PCI Card Applicant:TOKO INC. EUT:2.4G WLAN Mini-PCI Card Model No.:TMW1052 FCC ID:NUSTMW1052 Report No.:T6815631 Tested by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 No. 255, Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Test Report -------------------------------------------------------------------------------2/36 Report No.: T6815631, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 CERTIFICATION We here by verify that: The test data, data evaluation, test procedures and equipment configurations shown in this report were made mainly in accordance with the procedures given in ANSI C63.4 (1992) as a reference. All test were conducted by Training Research Co., Ltd., 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with the technical requirements set forth in the FCC Rules Part 15Subpart CSection 15.247. Applicant:TOKO INC. Applicant address:18, Oaza Gomigaya, Turugashima- shi, Saitama-ken 350-02, Japan Product name:2.4G Wireless LAN Mini-PCI Card Model name:TMW1052 FCC ID:NUSTMW1052 Report No.:T6815631 Test Date:June 24, 2003 Prepared by:Approved by: Jack Tsai Frank Tsai Conditions of issue : (1) This test report shall not be reproduced except in full, without written approval of TRC. And the test result contained within this report only relate to the sample submitted for testing. (2) This report must not be used by the client to claim product endorsement by NVLAP or any agency of U.S. Government. NVLAP LAB CODE: 200174-0 Test Report -------------------------------------------------------------------------------3/36 Report No.: T6815631, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Tables of Contents I.GENERAL...................................................................................................................... 5 1.1 Introduction.............................................................................................................. 5 1.2 Description of EUT .................................................................................................. 5 1.3 Test method ............................................................................................................. 5 1.4 Description of Support Equipment ............................................................................ 6 1.5 Configuration of System Under Test .......................................................................... 8 1.6 Verify the Frequency and Channel ........................................................................... 10 1.7 Test Procedure ........................................................................................................ 11 1.8 Location of the Test Site .......................................................................................... 11 1.9 General Test Condition ............................................................................................ 11 II.Section 15.203 : Antenna Requirement.......................................................................... 12 III.Section 15.207 : Power Line Conducted Emissions for AC Powered Units................ 13 3.1 Test Condition & Setup ........................................................................................... 13 3.2 List of Test Instruments ............................................................................................ 13 3.3 Test Result of Conducted Emissions ......................................................................... 14 Table 1 Conducted emissions of Channel 01 ......................................................... 14 Table 2 Conducted emissions of Channel 06 ......................................................... 15 Table 3 Conducted emissions of Channel 11 ......................................................... 16 IV.Section 15.247(a) : Technical Description of the EUT................................................... 17 V.Section 15.247(a)(2) : Bandwidth for Direct Sequence System................................... 18 5.1 Test Condition & Setup ........................................................................................... 18 5.2 Test Instruments Configuration................................................................................. 18 5.3 List of Test Instruments ............................................................................................ 18 5.4 Test Result of Bandwidth ......................................................................................... 19 Channel 01 .............................................................................................................. 20 Channel 06 .............................................................................................................. 21 Channel 11 .............................................................................................................. 22 Test Report -------------------------------------------------------------------------------4/36 Report No.: T6815631, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 VI.Section 15.247(b) : Power Output .................................................................................. 23 6.1 Test Condition & Setup ........................................................................................... 23 6.2 List of Test Instruments ............................................................................................ 23 6.3 Test Result....................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Test Setup Photos ------------------------------------------------------------------------ 1/2 FCC ID: NUSTMW1052 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Conducted Test Setup Placement: Front View of the Test Configuration Side View of the Test Configuration Test Setup Photos ------------------------------------------------------------------------ 2/2 FCC ID: NUSTMW1052 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: Front View of the Test Configuration of Intentional Rear View of the Test Configuration of Intentional

Contact Information

Applicant

Go Ishii(Q.C Manager)

81 49 279-1623Fax: 81 49 279-1891

Test Firm

Training Research Co., LtdJack Tsai

[email protected]886-2-26935155Fax: 886-2-26934440

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.41 GHz - 2.46 GHz	15.70 mW

Confidentiality

Long Term

Grant Notes

This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.End-users must be provided with specific operating instructions for satisfying RF exposure compliance.
