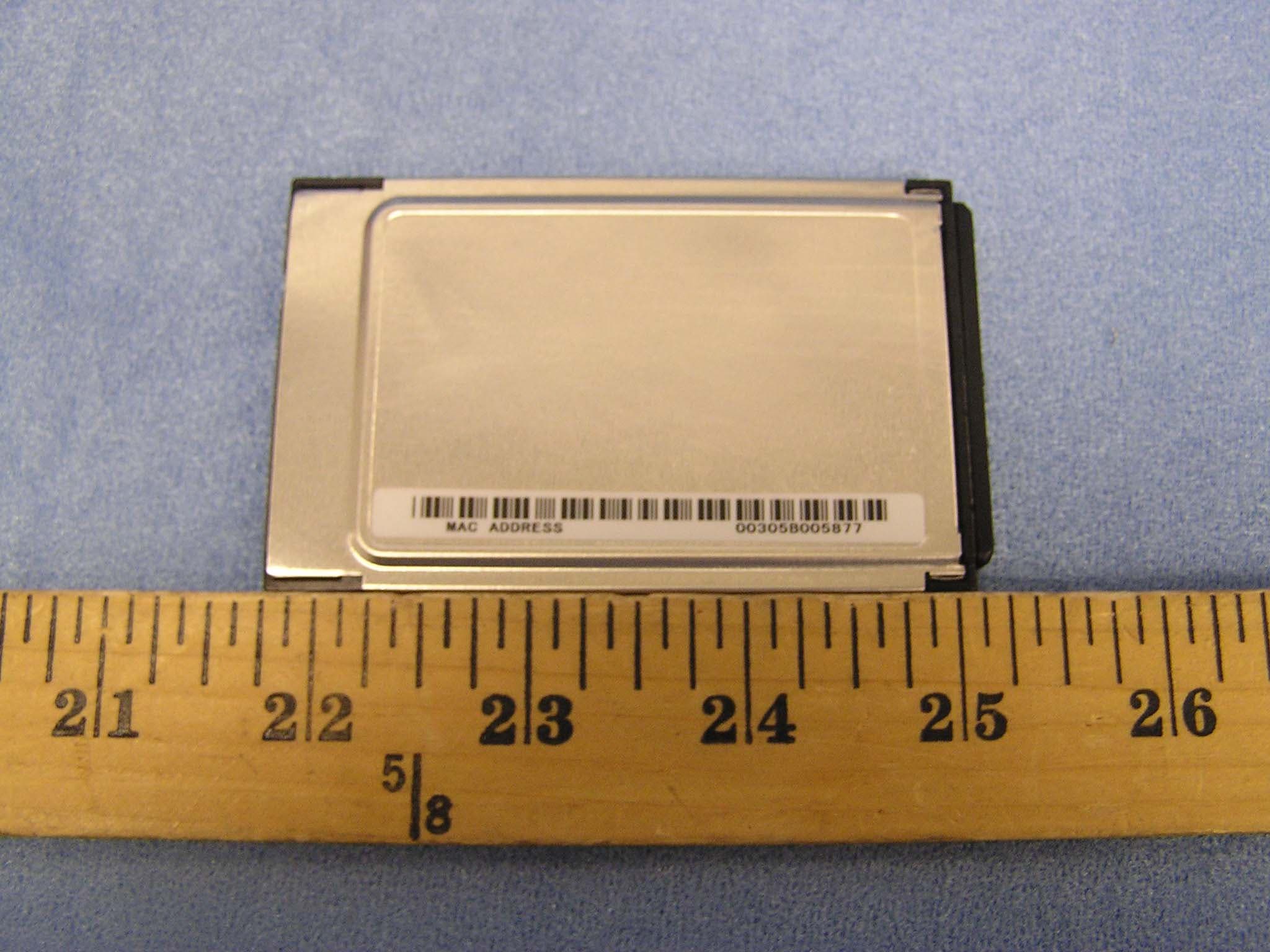

NUSTMW1059802.11 b/g Wireless LAN Card

TMW1059 TOKO Wireless Network Adapter User’s Guide Adapter type TMW1059 :Cardbus Rev.001 Page 1 of 17 TMW1059 FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to following two conditions:(1) this device may not cause harmful interference. and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B Personal Computer and Peripheral, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment dose cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This equipment has been tested to comply with the limits for a Class B personal computer and peripheral, pursuant to Subpart B of Part 15 of FCC Rules. Only peripherals (computer input/output devices, terminals, printers, etc.) certified (DoC) or verified to comply with Class B limits may be attached to this equipment. Operation with non-certified (DoC) or non-verified personal computer and/or peripherals is likely to result in Interference to radio and TV reception. The connection of a unshielded equipment interface cable to this Equipment will invalidate the FCC Certification of this device and may cause interference levels which Exceed the limits established by FCC for equipment. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. For portable devices without co-location condition (eg. notebook pc) FCC RF Radiation Exposure Statement: 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. This device was tested and complies with FCC RF Exposure (SAR) limits in typical laptop computer configurations and this device can be used in desktop or laptop computers with side mounted PCMCIA slots which can provide 8 mm separation distance from the antenna to the body of the user or a nearby person. Thin laptop computers may need special attention to maintain antenna spacing while operating. This device cannot be used with handheld PDAs (personal digital assistants). Use in other configurations may not ensure compliance with FCC RF exposure guidelines. Rev.001 Page 2 of 17 TMW1059 Table of Contents 1. Introduction................................................................................................................................4 Package Contents..........................................................................................................................4 System Requirements....................................................................................................................4 Specifications.................................................................................................................................5 2. Windows XP................................................................................................................................6 Driver Installation (First Time Install).......................................................................................6 Client Utility Installation and Driver Update.............................................................................8 Driver and Client Utility Uninstallation......................................................................................9 Device Configuration..................................................................................................................11 Windows XP Wireless Network Configuration........................................................................11 Client Utility Security...............................................................................................................12 Zero Configuration Security...................................................................................................... 12 Interactions................................................................................................................................12 Sample Configuration...............................................................................................................14 Rev.001 Page 3 of 17 TMW1059 1. Introduction TOKO Wireless Network Adapter offers performance comparable to Ethernet Local Area Network (LAN) system, without the limitations of network cables. It allows you to connect your computer to a Local Area Network from anywhere within the wireless coverage area. It also enables you to roam throughout the network while remaining connected to the LAN. Package Contents Make sure the following materials are available before beginning: ‰ TMWTMW1059 Release CD, or electronic equivalent ‰ Wireless Network Adapter TMW1059 System Requirements ‰ Laptop PC containing: TMW1059 32-bit CardBus slot (or Desktop PC with PC Card-PCI adapter) 128 MB memory or greater 300 MHz processor or higher ‰ Microsoft Windows 2000/Windows Millennium Edition/Windows 98 Second Edition/Windows XP Rev.001 Page 4 of 17 TMW1059 Specifications ‰ Absolute Maximum Ratings Supply Voltage. . . . . . . . . . . . . . -0.3V to…

Text truncated - open the document above for the full version.

1 Mike Kuo From: Claire Hoque Sent: May182004Tuesday 1:40 PM To: Mike Kuo Cc: Helen Zhao; Mika Kaneko Subject: RE: TOKO, Inc., FCC ID:NUSTMW1059, AN04T3903 Antenna location photos.pdf Hi Mike, Here are the answers. Question #1: The antenna position can not be located in the internal photos. Please identify antenna location in the internal photos or provide additional photo to show antenna location. <answer>pls see the antenna location photos. Question #2: How is the antenna connected to the cardbus ? Is it via antenna connector ? If yes, please provide antenna connector specification. <answer>The antenna is integrated in a card. Thanks, Claire -----Original Message----- From: CERTADM Sent: Monday, May 17, 2004 11:40 PM To: Mike Kuo Subject: TOKO, Inc., FCC ID:NUSTMW1059, AN04T3903 Notice_content ------------- Question #1: The antenna position can not be located in the internal photos. Please identify antenna location in the internal photos or provide additional photo to show antenna location. Question #2: How is the antenna connected to the cardbus ? Is it via antenna connector ? If yes, please provide antenna connector specification. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for 802.11bg Wireless LAN Card With Laptop Computers (Hosts) Model: TMW1059 FCC ID: NUSTMW1059 May 10, 2004 REPORT NO: 04I2702-2 Prepared for TOKO, Inc. 18, Oaza Gomigaya, Tsurugashima-shi Saitama-ken, 350-2281 Japan Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 REPORT NO: 04I2702-2 DATE: May 10, 2004 FCC ID: NUSTMW1059 COMPLIANCE CERTIFICATION SERVICES Page: 2 of 27 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Dates of Tests: May 10, 2004 APPLICANT: TOKO, Inc. 18, Oaza Gomigaya, Tsurugashima-shi Saitama-ken, 350-2281, Japan MODEL: TMW1059 FCC ID: NUSTMW1059 DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: Orthogonal Frequency Division Multiplexing (OFDM) for 802.11g Direct Sequence Spread Spectrum (DSSS) for 802.11b Tx Frequency: 2412 to 2462 MHz Max. O/P Power: (Conducted/Average) 17.94 dBm for 802.11b 15.91 dBm for 802.11g Max. SAR (1g): 0.086 mW/g for Host # 1 0.387 mW/g for Host # 2 0.201 mW/g for Host # 3 FCC Rule Part(s): 15C Host devices: Host # 1: IBM, 2373 Host # 2: IBM, 1161 Host # 3: NEC, PC-VA60HWXDABA9 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hsin-Fu Shih (Sunny Shih) Senior Engineer REPORT NO: 04I2702-2 DATE: May 10, 2004 FCC ID: NUSTMW1059 COMPLIANCE CERTIFICATION SERVICES Page: 3 of 27 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. EQUIPMENT UNDER TEST (EUT) DESCRIPTION........................................................... 4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC............................... 4 3. DOSIMETRIC ASSESSMENT SYSTEM.......................................................................... 4 3.1. MEASUREMENT SYSTEM DIAGRAM......................................................................................................5 3.2. SYSTEM COMPONENTS.......................................................................................................................6 4. EVALUATION PROCEDURES..................................................................................... 8 5. MEASUREMENT UNCERTAINTY............................................................................... 12 6. EXPOSURE LIMIT................................................................................................. 13 7. PROCEDURES USED TO ESTABLISH TEST SIGNALS................................................... 13 8. MEASUREMENT RESULTS...................................................................................... 14 8.1. SIMULATING LIQUIDS PARAMETER CHECK..........................................................................................14 8.2. SYSTEM PERFORMANCE CHECK........................................................................................................17 8.3. SAR MEASUREMENTS RESULTS.......................................................................................................18 9. PHOTOS............................................................................................................. 21 10. EQUIPMENT LIST & CALIBRATION STATUS............................................................... 25 11. REFERENCES...................................................................................................... 26 12. ATTACHMENTS.................................................................................................... 27 REPORT NO: 04I2702-2 DATE: May 10, 2004 FCC ID: NUSTMW1059 COMPLIANCE CERTIFICATION SERVICES Page: 4 of 27 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. EQUIPMENT UNDER TEST (EUT) DESCRIPTION The following is the information provided by the applicant. Type of EUT: 802.11gg Wireless LAN Card With Laptop Computers (Hosts) Host # 1: IBM, 2373 Host # 2: IBM, 1161 Host # 3: NEC, PC-VA60HWXDABA9 Type/Model No.: TMW1059 Modulation Type: Direct Sequence Spread Spectrum (DSSS) for 802.11b Orthogonal Frequency Division Multiplexing (OFDM) for 802.11g TX Frequency: 2412 to 2462 MHz Power Supply: Power supplied through the laptop computer 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996 [1]. The order requires routine SAR evaluation prior to equipment authorization of portable transmitter devices, including portable telephones. For consumer products, the applicable limit is 1.6 mW/g for an uncontrolled environment and 8.0 mW/g for an occupational/controlled environment as recomme…

Text truncated - open the document above for the full version.

Date/Time: 05/10/04 10:34:04 Test Laboratory: The name of your organization File Name: D2450V2SN706_Probe 3021_051004.da4 DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:706 Program Name: System Performance Check at 2450 MHz Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.89 mho/m; ε r = 39.2; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(4.5, 4.5, 4.5); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 1; Type: SAM 1; Serial: 1185 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 90.7 V/m; Power Drift = 0.0 dB Maximum value of SAR (measured) = 14.9 mW/g d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 90.7 V/m; Power Drift = 0.0 dB Maximum value of SAR (measured) = 14.8 mW/g Peak SAR (extrapolated) = 28.6 W/kg SAR(1 g) = 13.4 mW/g; SAR(10 g) = 6.16 mW/g 0 dB = 14.8mW/g Date/Time: 05/10/04 10:34:04 Test Laboratory: The name of your organization File Name: D2450V2SN706_Probe 3021_051004.da4 DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:706 Program Name: System Performance Check at 2450 MHz Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.89 mho/m; ε r = 39.2; ρ = 1000 kg/m 3 Phantom section: Flat Section d=10mm, Pin=250mW/Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 90.7 V/m; Power Drift = 0.007 dB Maximum value of SAR (measured) = 15 mW/g

Date/Time: 05/10/04 10:48:14 Test Laboratory: The name of your organization File Name: 1_EUT Setup Configuration 1_IBM-2373.da4 DUT: Toko, Inc.; Type: TMW1059; Serial: N/A Program Name: IBM_2373_802.11b Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: 802.11b; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2412 MHz; σ = 1.94 mho/m; ε r = 52.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(4.1, 4.1, 4.1); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 L-Ch (Antenna A)/Area Scan (9x7x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 3.95 V/m; Power Drift = 0.15 dB Maximum value of SAR (measured) = 0.075 mW/g Info: Interpolated medium parameters used for SAR evaluation! L-Ch (Antenna A)/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 3.95 V/m; Power Drift = 0.15 dB Maximum value of SAR (measured) = 0.099 mW/g Peak SAR (extrapolated) = 0.154 W/kg SAR(1 g) = 0.086 mW/g; SAR(10 g) = 0.043 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 05/10/04 10:48:14 Test Laboratory: The name of your organization File Name: 1_EUT Setup Configuration 1_IBM-2373.da4 DUT: Toko, Inc.; Type: TMW1059; Serial: N/A Program Name: IBM_2373_802.11b Communication System: 802.11b; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2412 MHz; σ = 1.94 mho/m; ε r = 52.4; ρ = 1000 kg/m 3 Phantom section: Flat Section L-Ch (Antenna A)/Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 3.95 V/m; Power Drift = 0.17 dB Maximum value of SAR (measured) = 0.067 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 05/10/04 10:48:14 Test Laboratory: The name of your organization File Name: 1_EUT Setup Configuration 1_IBM-2373.da4 DUT: Toko, Inc.; Type: TMW1059; Serial: N/A Program Name: IBM_2373_802.11b Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: 802.11b; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.96 mho/m; ε r = 52.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(4.1, 4.1, 4.1); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 M-Ch (Antenna A)/Area Scan (9x7x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 6.61 V/m; Power Drift = -0.13 dB Maximum value of SAR (measured) = 0.112 mW/g Info: Interpolated medium parameters used for SAR evaluation! M-Ch (Antenna A)/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 6.61 V/m; Power Drift = -0.13 dB Maximum value of SAR (measured) = 0.081 mW/g Peak SAR (extrapolated) = 0.147 W/kg SAR(1 g) = 0.073 mW/g; SAR(10 g) = 0.037 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 05/10/04 10:48:14 Test Laboratory: The name of your organization File Name: 1_EUT Setup Configuration 1_IBM-2373.da4 DUT: Toko, Inc.; Type: TMW1059; Serial: N/A Program Name: IBM_2373_802.11b Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2462 MHz; σ = 2 mho/m; ε r = 52.2; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(4.1, 4.1, 4.1); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 H-Ch (Antenna A)/Area Scan (9x7x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 5.86 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 0.088 mW/g Info: Interpolated medium parameters used for SAR evaluation! H-Ch (Antenna A)/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 5.86 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 0.095 mW/g Peak SAR (extrapolated) = 0.170 W/kg SAR(1 g) = 0.085 mW/g; SAR(10 g) = 0.043 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 05/10/04 12:38:02 Test Laboratory: The name of your organization File Name: 1_EUT Setup Configuration 1_IBM-2373.da4 DUT: Toko, Inc.; Type: TMW1059; Serial: N/A Program Name: IBM_2373_802.11g Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: 802.11g; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2412 MHz; σ = 1.94 mho/m; ε r = 52.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(4.1, 4.1, 4.1); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 L-Ch (Antenna A)/Area Scan (9x7x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 3.32 V/m; Power Drift = -0.14 dB Maximum value of SAR (measured) = 0.037 mW/g Info: Interpolated medium parameters used for SAR evaluation! L-Ch (Antenna A)/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 3.32 V/m; Power Drift = -0.14 dB Maximum value of SAR (measured) = 0.044 mW/g Peak SAR (extrapolated) = 0.084 W/kg SAR(1 g) = 0.039 mW/g; SAR(10 g) = 0.020 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 05/10/04 12:38:02 Test Laboratory: The name of yo…

Text truncated - open the document above for the full version.

Date/Time: 05/10/04 18:09:26 Test Laboratory: The name of your organization File Name: 3_EUT Setup Configuration 3_NEC_PC-VA60HWXDABA9.da4 DUT: Toko, Inc.; Type: TMW1059; Serial: N/A Program Name: NEC_PC-VA60HWXDABA9_802.11b Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: 802.11b; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2412 MHz; σ = 1.94 mho/m; ε r = 52.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(4.1, 4.1, 4.1); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 L-Ch (Antenna A)/Area Scan (9x8x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 6.43 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 0.219 mW/g Info: Interpolated medium parameters used for SAR evaluation! L-Ch (Antenna A)/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 6.43 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 0.222 mW/g Peak SAR (extrapolated) = 0.362 W/kg SAR(1 g) = 0.201 mW/g; SAR(10 g) = 0.101 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 05/10/04 18:09:26 Test Laboratory: The name of your organization File Name: 3_EUT Setup Configuration 3_NEC_PC-VA60HWXDABA9.da4 DUT: Toko, Inc.; Type: TMW1059; Serial: N/A Program Name: NEC_PC-VA60HWXDABA9_802.11b Communication System: 802.11b; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2412 MHz; σ = 1.94 mho/m; ε r = 52.4; ρ = 1000 kg/m 3 Phantom section: Flat Section L-Ch (Antenna A)/Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 6.43 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 0.182 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 05/10/04 18:09:26 Test Laboratory: The name of your organization File Name: 3_EUT Setup Configuration 3_NEC_PC-VA60HWXDABA9.da4 DUT: Toko, Inc.; Type: TMW1059; Serial: N/A Program Name: NEC_PC-VA60HWXDABA9_802.11b Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: 802.11b; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.96 mho/m; ε r = 52.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(4.1, 4.1, 4.1); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 M-Ch (Antenna A)/Area Scan (9x8x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 5.55 V/m; Power Drift = 0.14 dB Maximum value of SAR (measured) = 0.203 mW/g Info: Interpolated medium parameters used for SAR evaluation! M-Ch (Antenna A)/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 5.55 V/m; Power Drift = 0.14 dB Maximum value of SAR (measured) = 0.200 mW/g Peak SAR (extrapolated) = 0.354 W/kg SAR(1 g) = 0.192 mW/g; SAR(10 g) = 0.096 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 05/10/04 18:09:26 Test Laboratory: The name of your organization File Name: 3_EUT Setup Configuration 3_NEC_PC-VA60HWXDABA9.da4 DUT: Toko, Inc.; Type: TMW1059; Serial: N/A Program Name: NEC_PC-VA60HWXDABA9_802.11b Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2462 MHz; σ = 2 mho/m; ε r = 52.2; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(4.1, 4.1, 4.1); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 H-Ch (Antenna A)/Area Scan (9x7x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 5.42 V/m; Power Drift = 0.14 dB Maximum value of SAR (measured) = 0.184 mW/g Info: Interpolated medium parameters used for SAR evaluation! H-Ch (Antenna A)/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 5.42 V/m; Power Drift = 0.14 dB Maximum value of SAR (measured) = 0.188 mW/g Peak SAR (extrapolated) = 0.312 W/kg SAR(1 g) = 0.170 mW/g; SAR(10 g) = 0.085 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 05/10/04 19:22:27 Test Laboratory: The name of your organization File Name: 3_EUT Setup Configuration 3_NEC_PC-VA60HWXDABA9.da4 DUT: Toko, Inc.; Type: TMW1059; Serial: N/A Program Name: NEC_PC-VA60HWXDABA9_802.11g Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: 802.11g; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2412 MHz; σ = 1.94 mho/m; ε r = 52.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(4.1, 4.1, 4.1); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 L-Ch (Antenna A)/Area Scan (9x8x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 5.94 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 0.146 mW/g Info: Interpolated medium parameters used for SAR evaluation! L-Ch (Antenna A)/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 5.94 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 0.148 mW/g Peak SAR (extrapolated) = 0.251 W/kg SAR(1 g) = 0.137 mW/g; SAR(10 g) = 0.069 mW/g Info: Interpolat…

Text truncated - open the document above for the full version.

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR 802.11 B/G WIRELESS LAN CARD MODEL NUMBER: TMW1059 FCC ID: NUSTMW1059 REPORT NUMBER: 04I2702-1 ISSUE DATE: MAY 05, 2004 Prepared for TOKO INCORPORATED 18, OAZA GOMIGAYA, TSURUGASHIMA-SHI, SAITAMA-KEN 350-2281 JAPAN Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 04I2702-1 DATE: MAY 05, 2004 EUT: 802.11 b/g WIRELESS LAN CARD FCC ID:NUSTMW1059 Page 2 of 83 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.................................................................................................. 3 2. EUT DESCRIPTION.......................................................................................................................... 4 3. TEST METHODOLOGY .................................................................................................................. 5 4. FACILITIES AND ACCREDITATION .......................................................................................... 5 5. CALIBRATION AND UNCERTAINTY.......................................................................................... 6 5.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 6 5.2. MEASUREMENT UNCERTAINTY ............................................................................................... 6 5.3. TEST AND MEASUREMENT EQUIPMENT................................................................................ 7 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................... 8 7. APPLICABLE LIMITS AND TEST RESULTS ........................................................................... 10 7.1. 6 dB BANDWIDTH ..................................................................................................................... 10 7.2. 99% BANDWIDTH ..................................................................................................................... 17 7.3. PEAK OUTPUT POWER.......................…

Text truncated - open the document above for the full version.
